Built tough for serious hauling, the EHG features two 10,000 lb straight axles with electric brakes, a 10" I-beam frame, and slide-in ramps. The treated wood floor, 16" crossmembers, and drive-over diamond plate fenders offer durability and ease of use.
EHG22
22,000 lb Super Single 10K Axle Gooseneck
GVWR: 22,000
Reviews
No Reviews. Check back soon!
Description

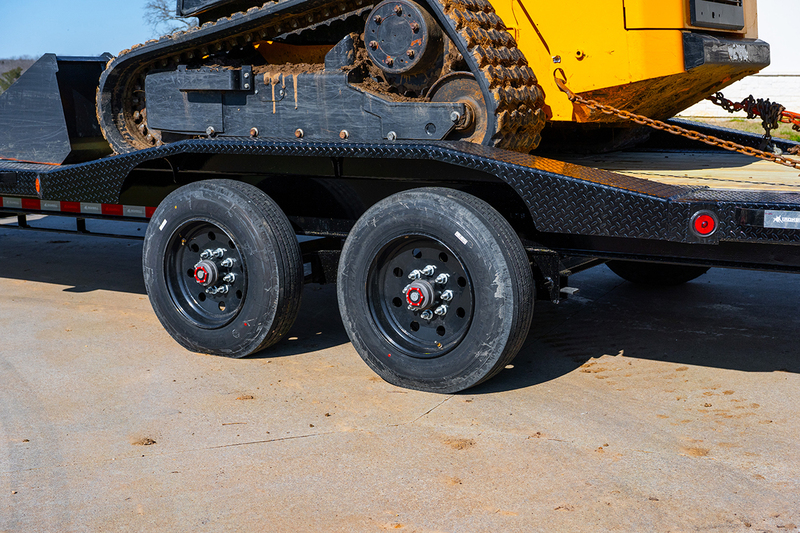

Engineered for heavy-duty hauling and rugged reliability, the EHG is your go-to solution when performance and durability are non-negotiable. This powerhouse is equipped with two 10,000 lb straight single wheel axles, including electric brakes for enhanced stopping power and control under load.
Constructed with a 10" I-beam underframe bridge, the EHG features a 83" or 102" wide straight deck supported by 16" crossmembers made of 3" 3.5 lb C-channel steel, ensuring structural integrity for the most demanding jobs. The deck is finished with treated wood flooring for long-lasting durability in all weather conditions.

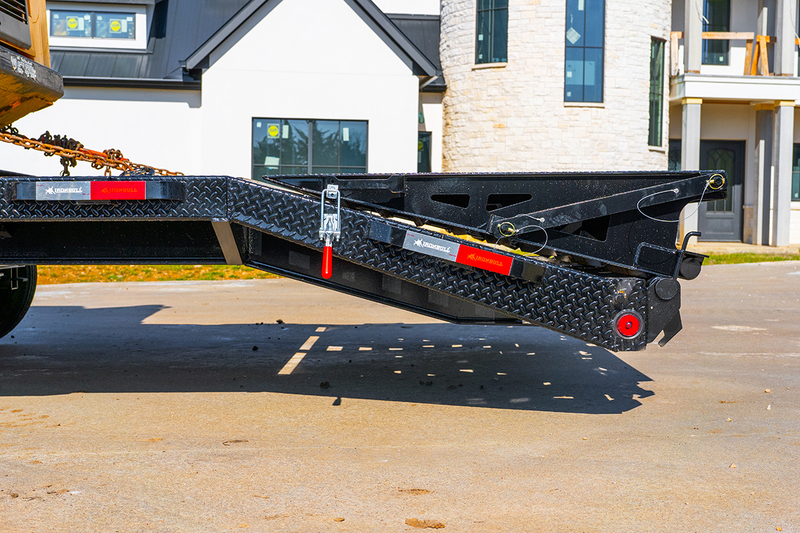

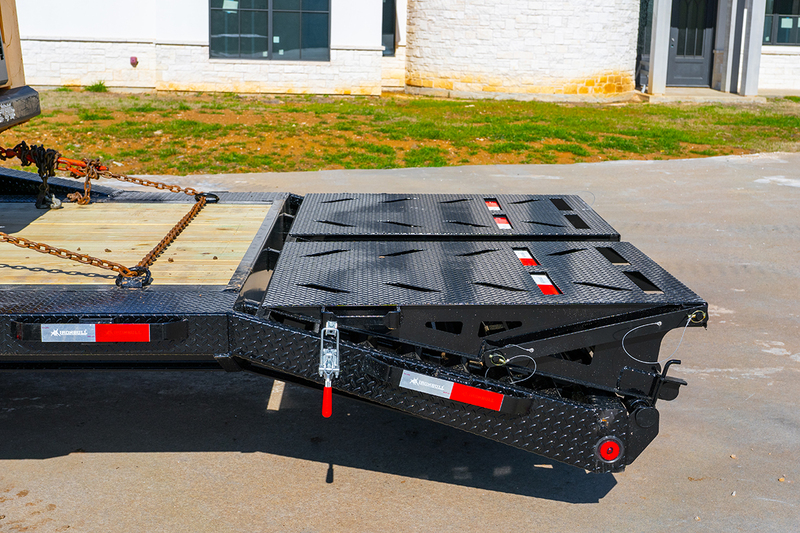

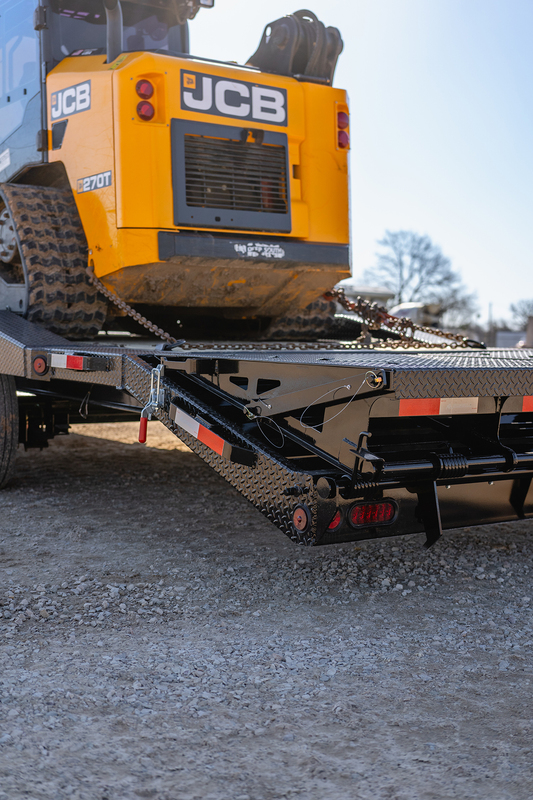

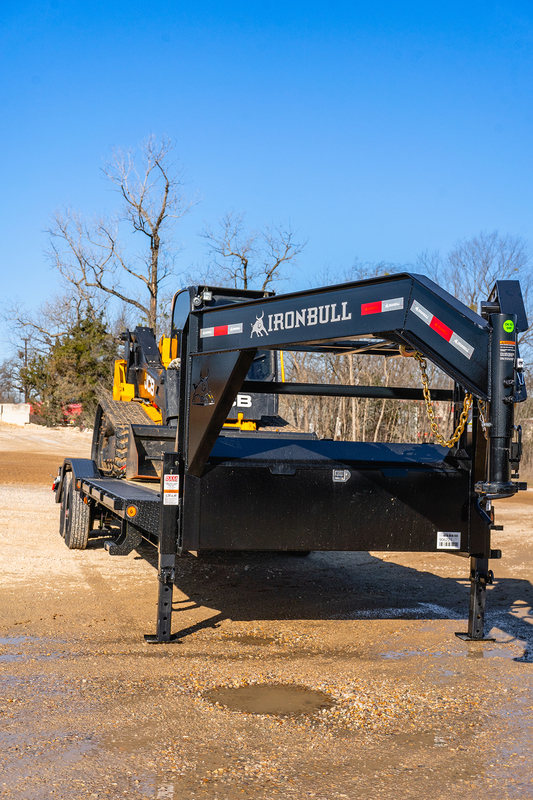

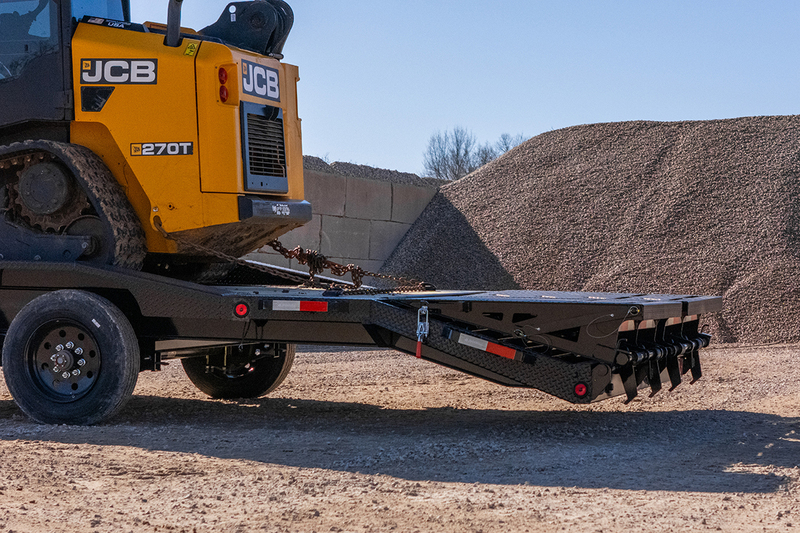

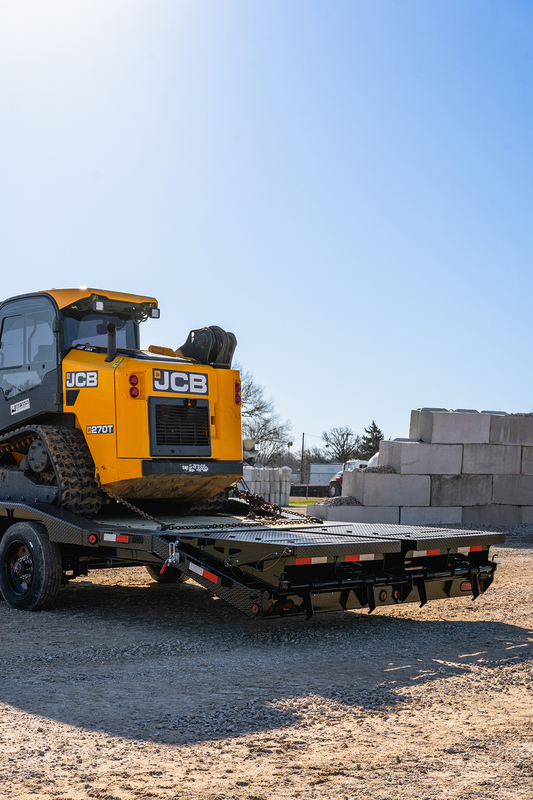

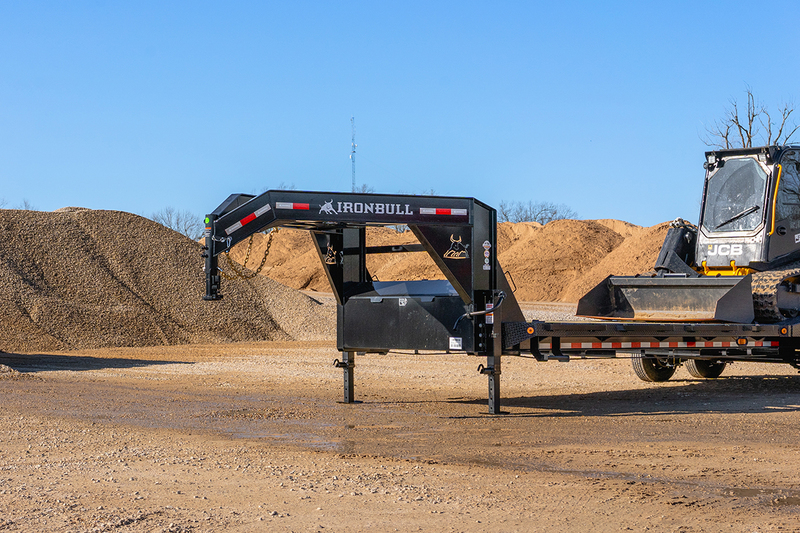

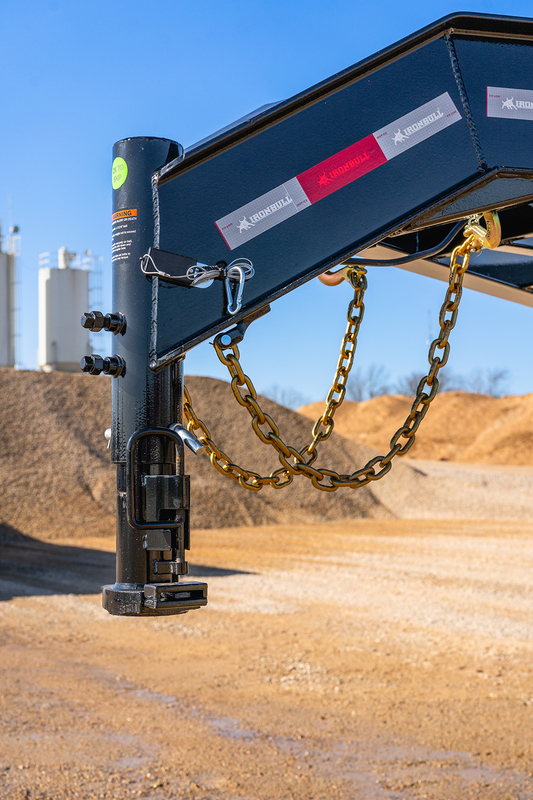

For convenience and versatility, the trailer includes 8' slide-in ramps, drive-over diamond plate fenders, and a full-size front toolbox between the neck. The gooseneck adjustable 25k 2-5/16” coupler and spring-loaded drop-leg jacks (10K) offer straightforward hookup and leveling, even with heavy equipment.
Specifications
| Width | Length | GVWR | Axles | TIre/Wheel | Tongue | Weight |
|---|---|---|---|---|---|---|
| 83" | 20' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | |
| 83" | 22' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | |
| 83" | 24' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | 4,121 |
| 83" | 26' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | |
| 83" | 28' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | |
| 102" | 20' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | |
| 102" | 22' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | |
| 102" | 24' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | |
| 102" | 26' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam | |
| 102" | 28' | 22,000 | 2 x 10,000 | ST215/75R17.5 | 10" I Beam |
Photos & Videos
Standard Features

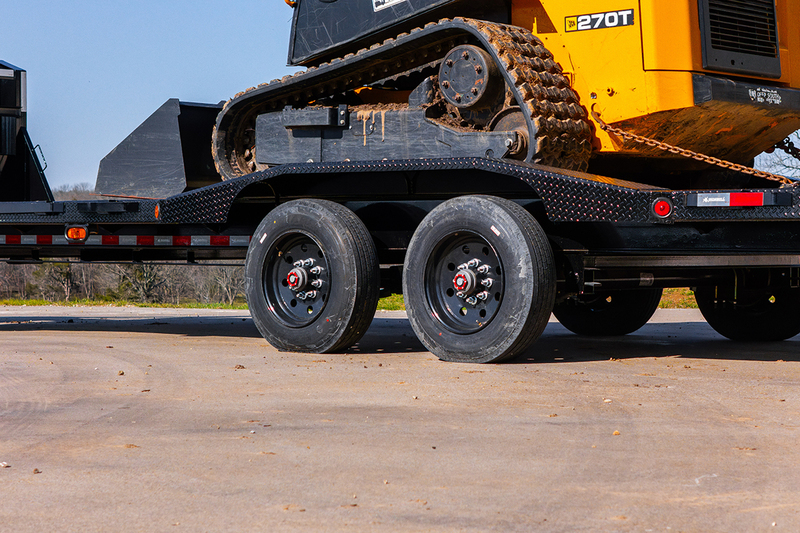

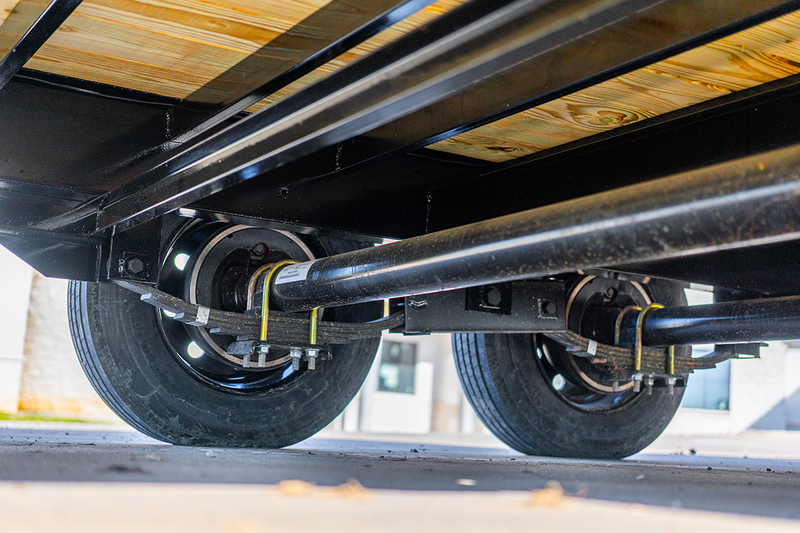

2-10,000 Lb Spring Axles (2 Elec. Brakes)
10" x 19lb I-Beam Frame

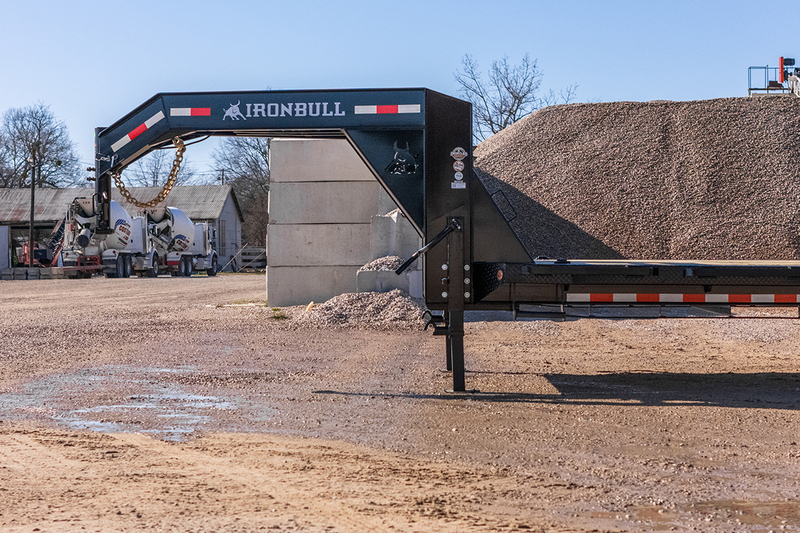

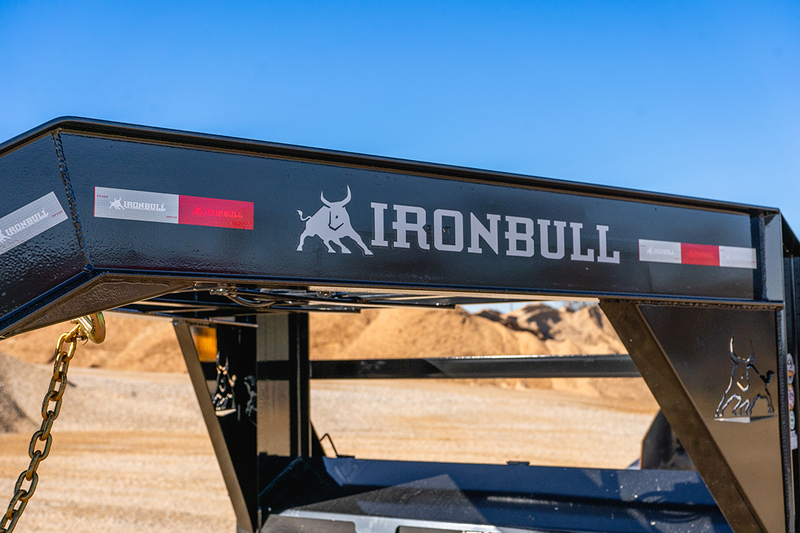

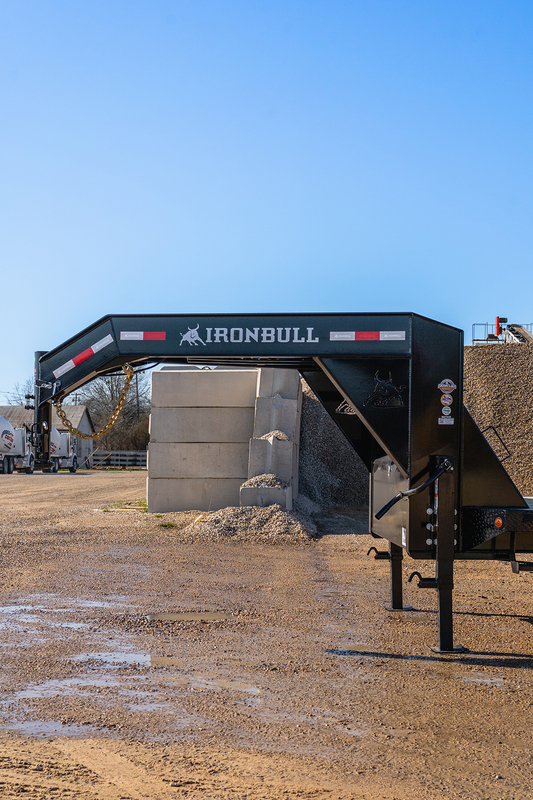

10" x 19lb I-Beam Neck
16" Crossmembers (3" 3.5lb C-channel)

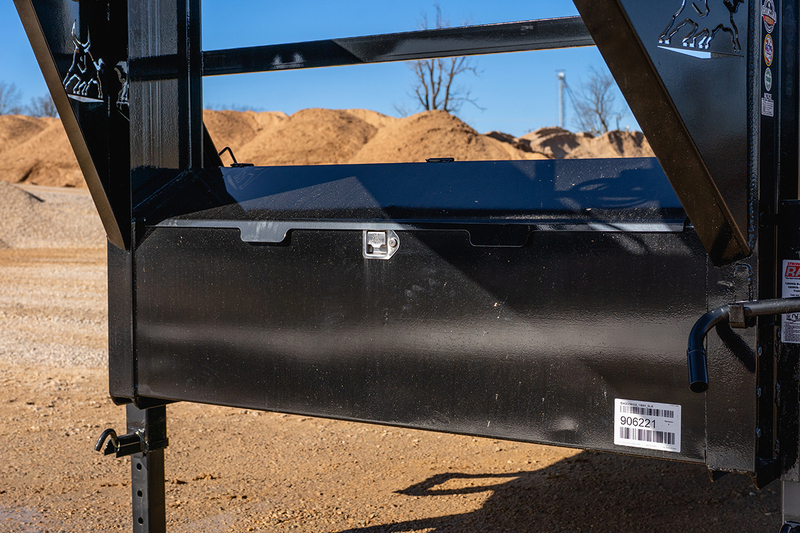

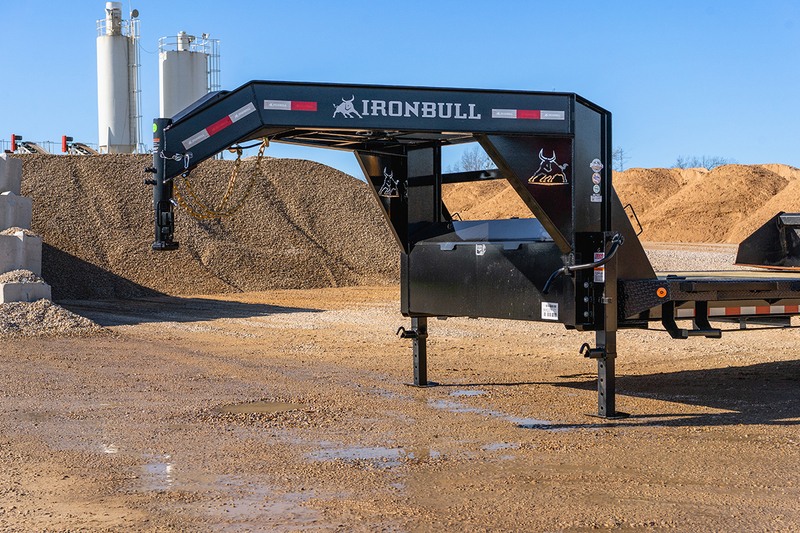

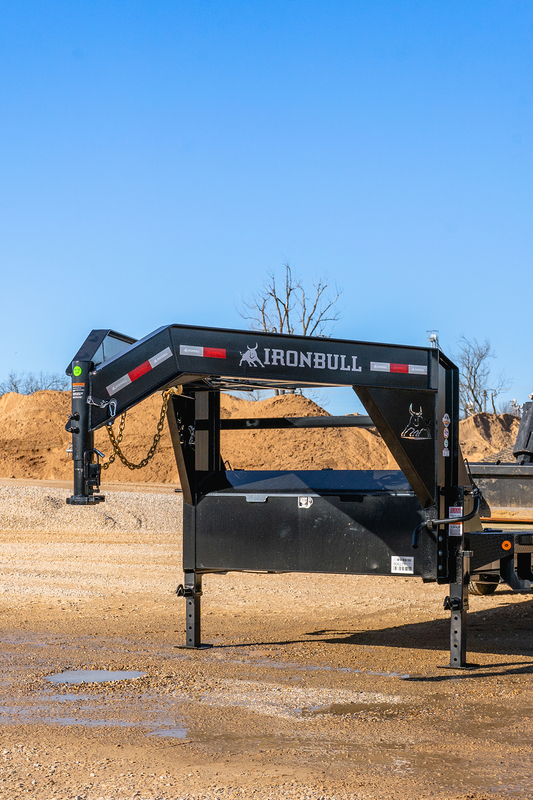

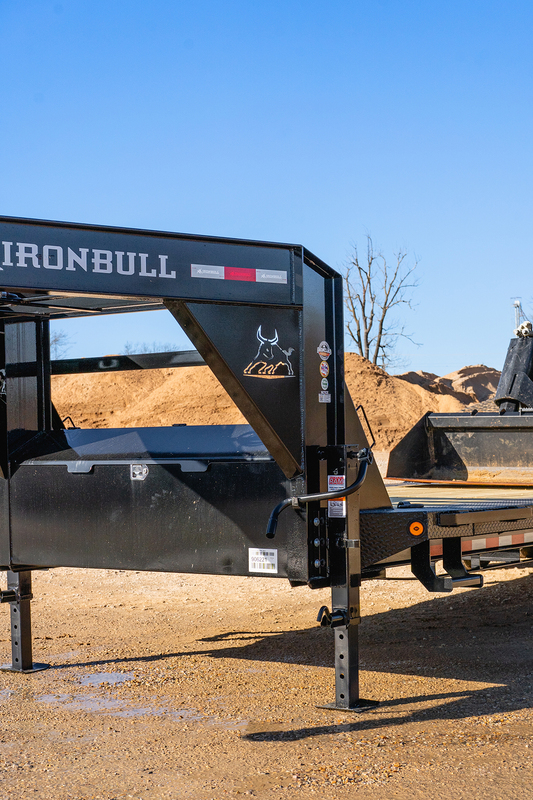

Front Full Tool Box Between Neck
Gooseneck Coupler 2-5/16" Adjustable Rd. 25K

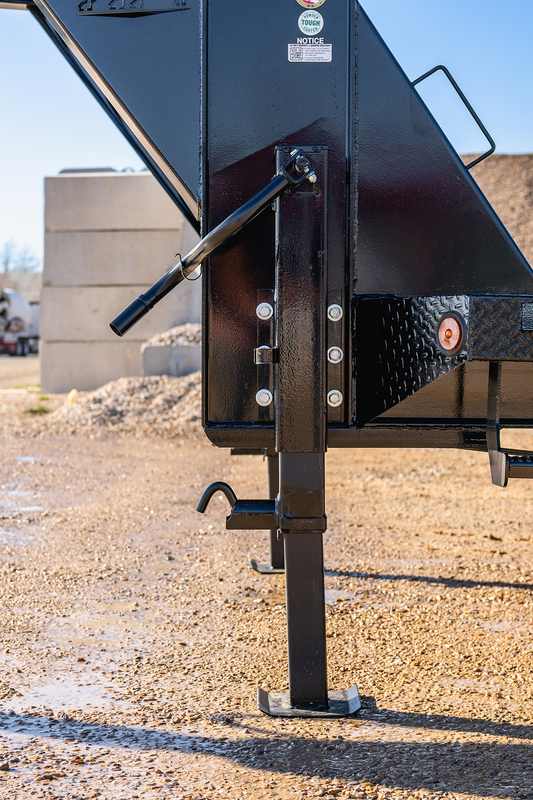

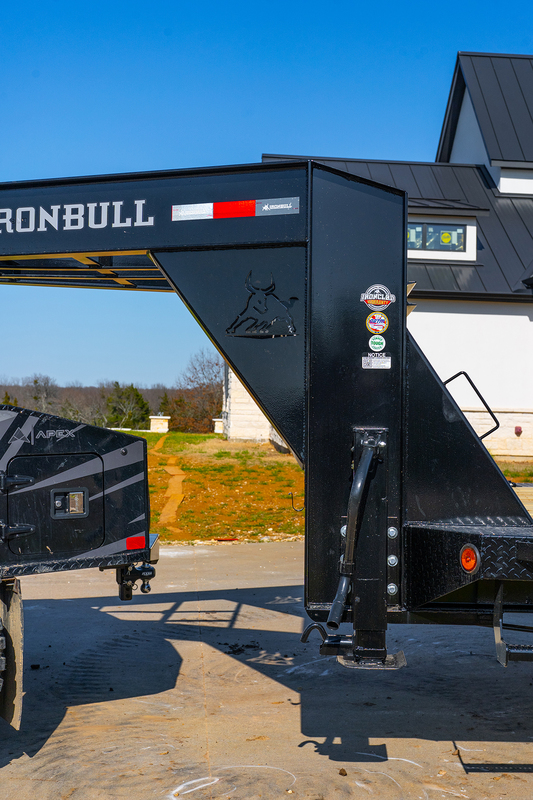

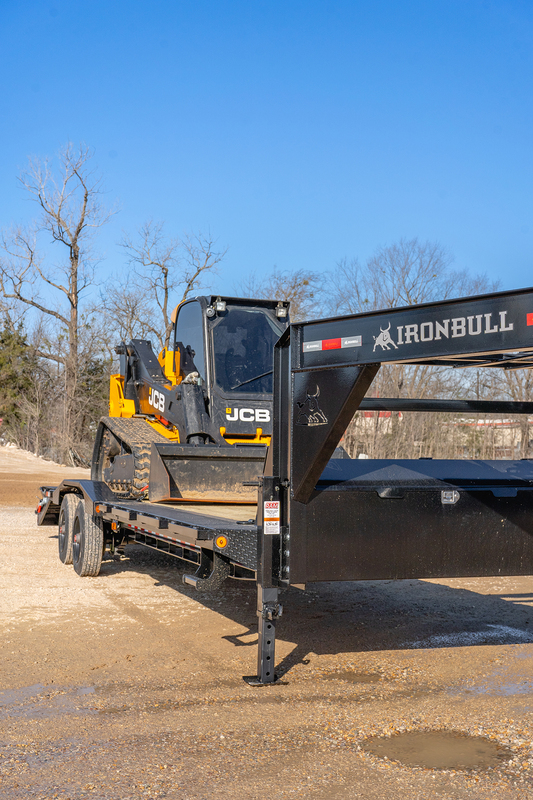

Jack Spring Loaded Drop Leg 2-10K

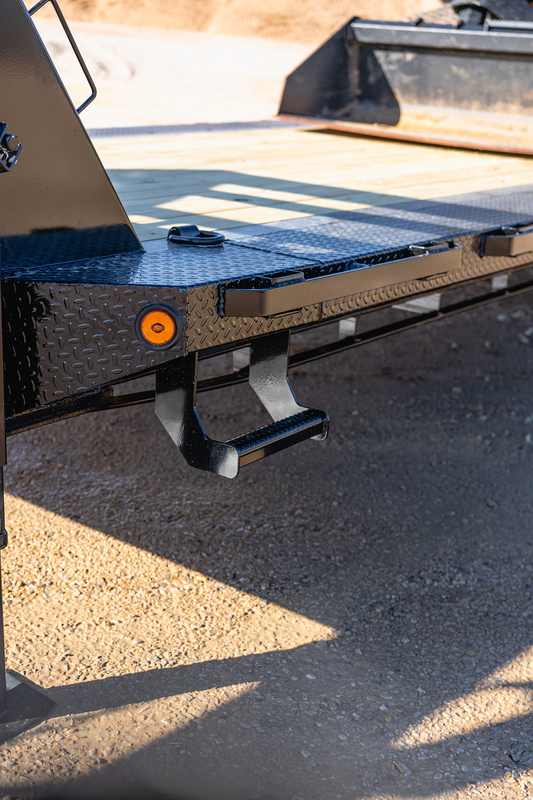

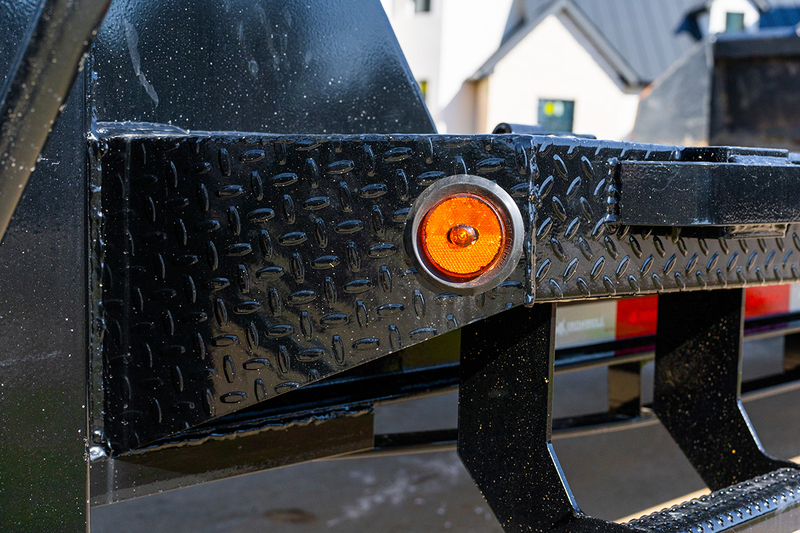

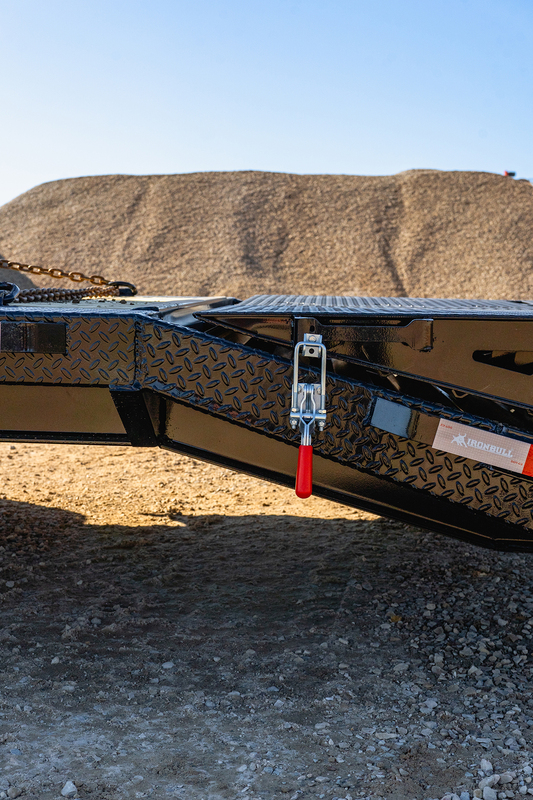

Drive Over Diamond Plate Fenders
Floor Treated Wood
Front Bumper (Std.)
Standard Wire Harness & Lights

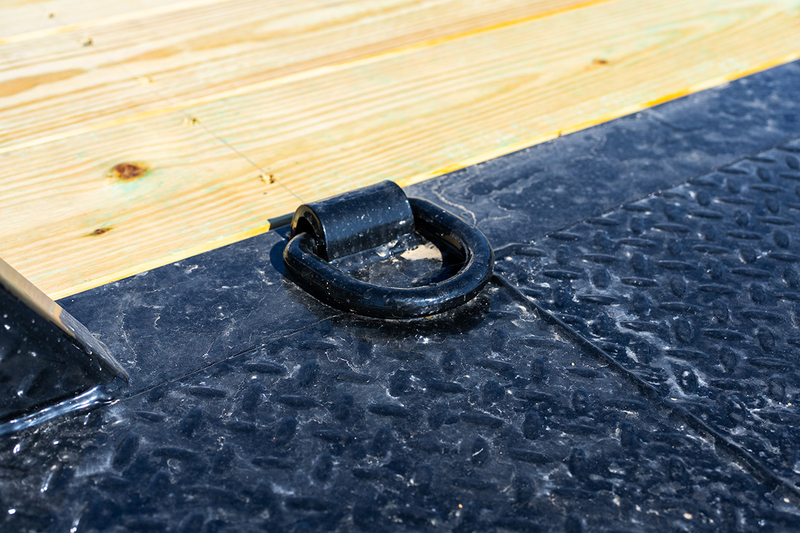

D-Rings 3" x 5/8" Weld On (6ech) Std.
ST215/75R17.5 (H)16 Ply
Spare Tire Mt.
BLK - Black
*Weight is approximate base model. Optional features will change
Attention: Due to supply chain issues some standard features are subject to change without notice. If a feature is of particular importance for you, please verify with your dealer prior to purchase.
