DDG14

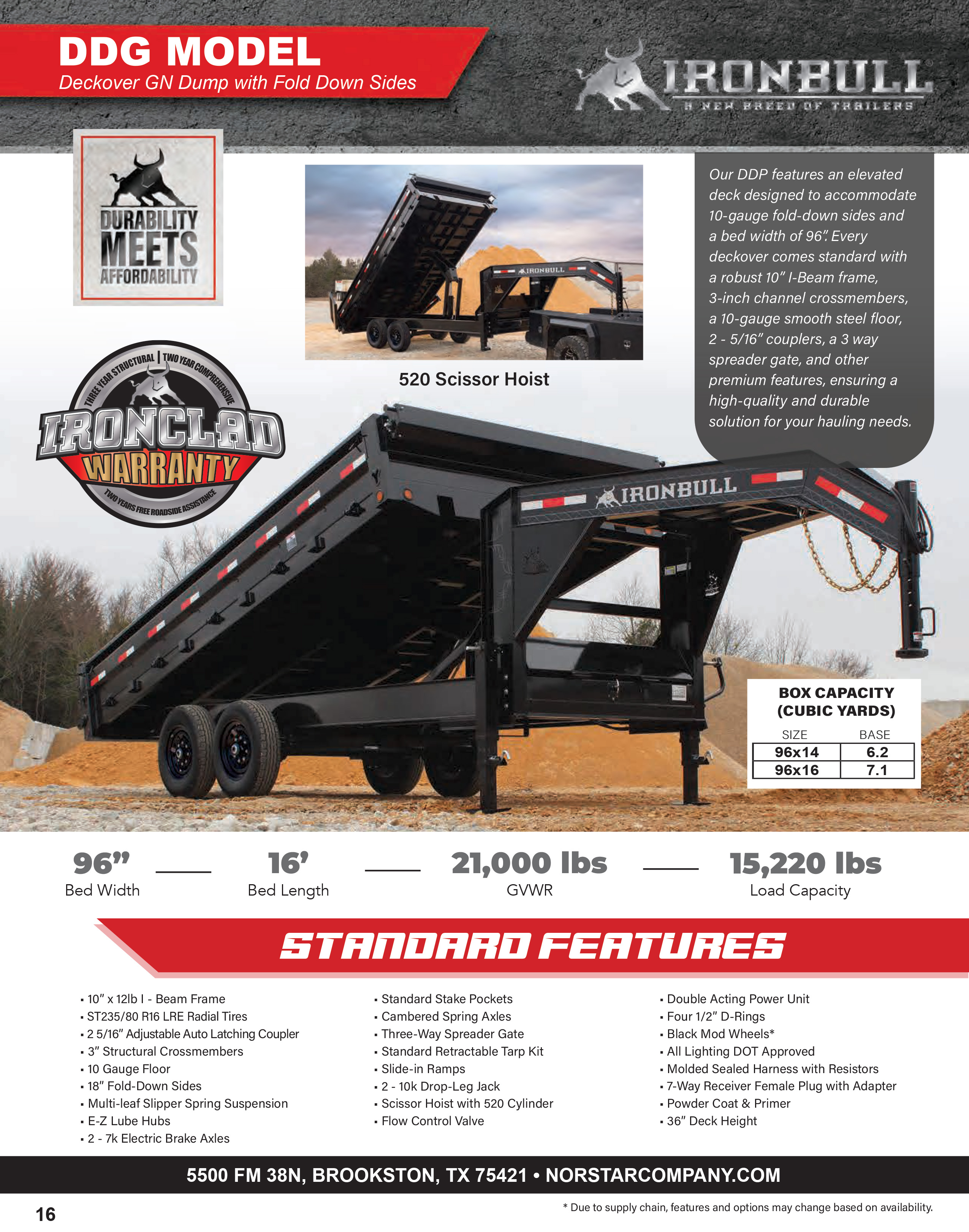

Deckover GN Dump With Fold Down Sides
No items found.
14k Gooseneck Deckover fold-down sides
SIZES
96 x 14--16'
GVWR
14,999 lb

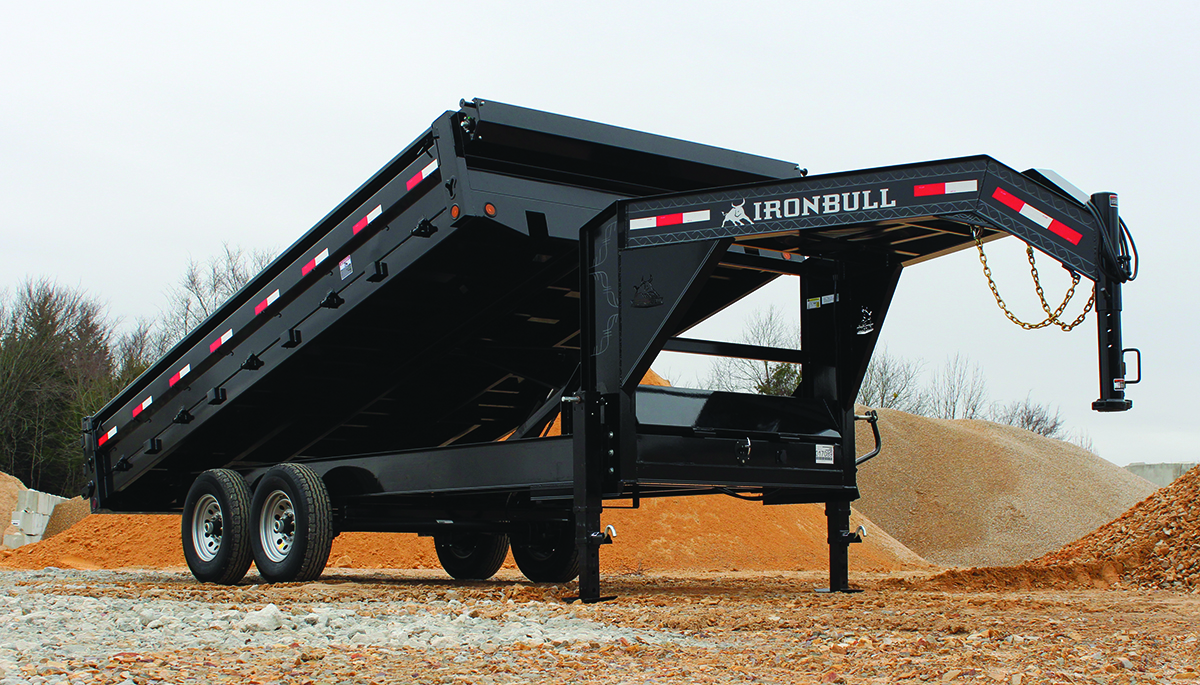

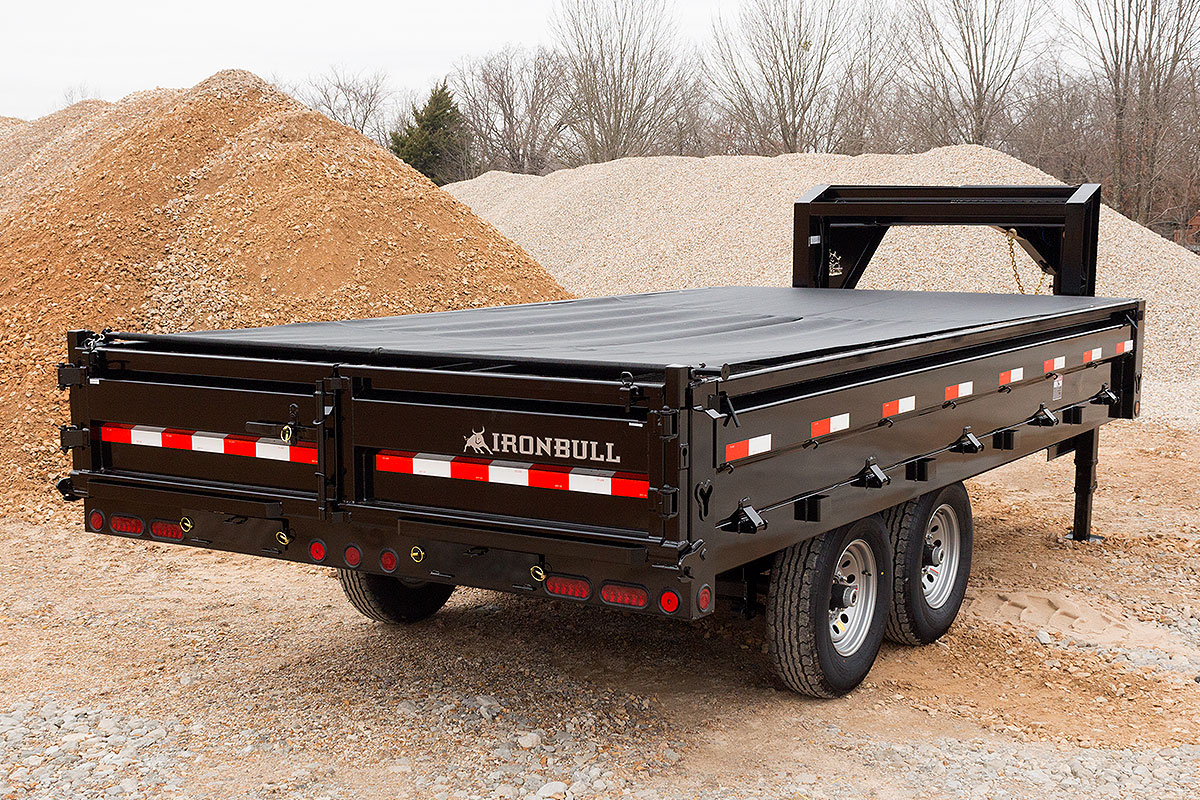

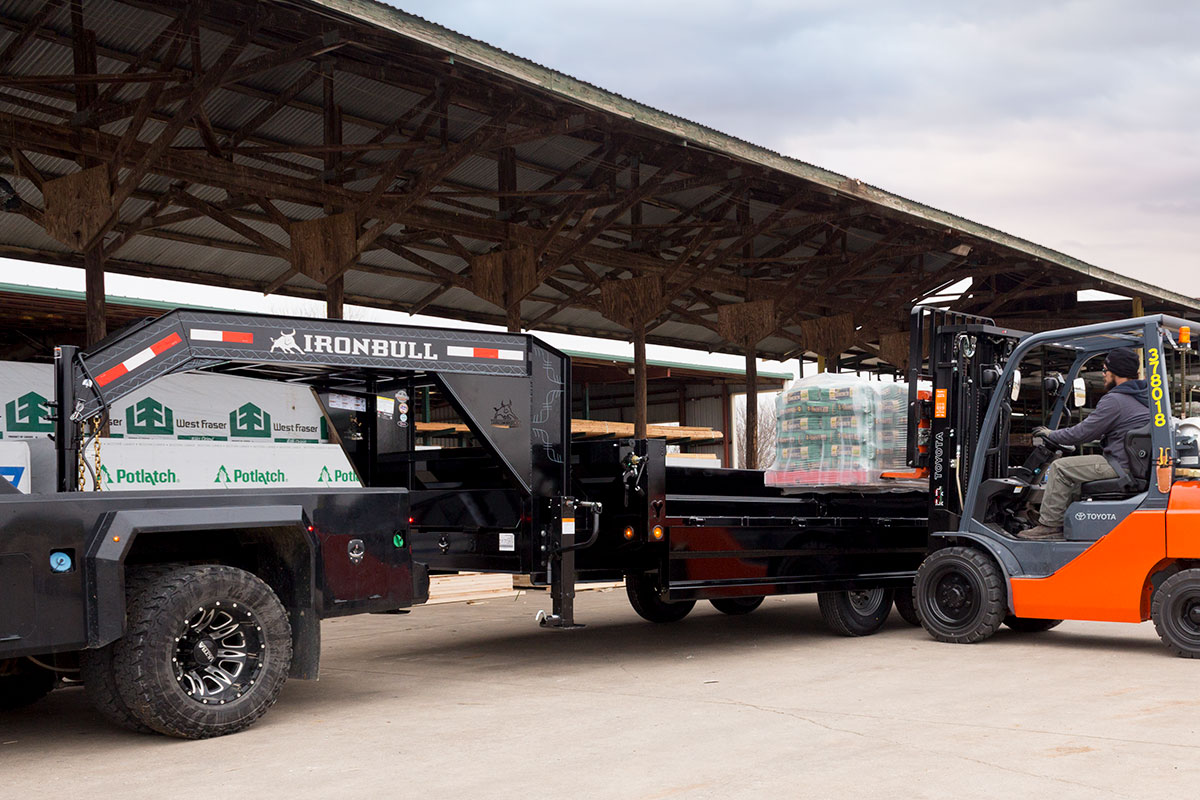

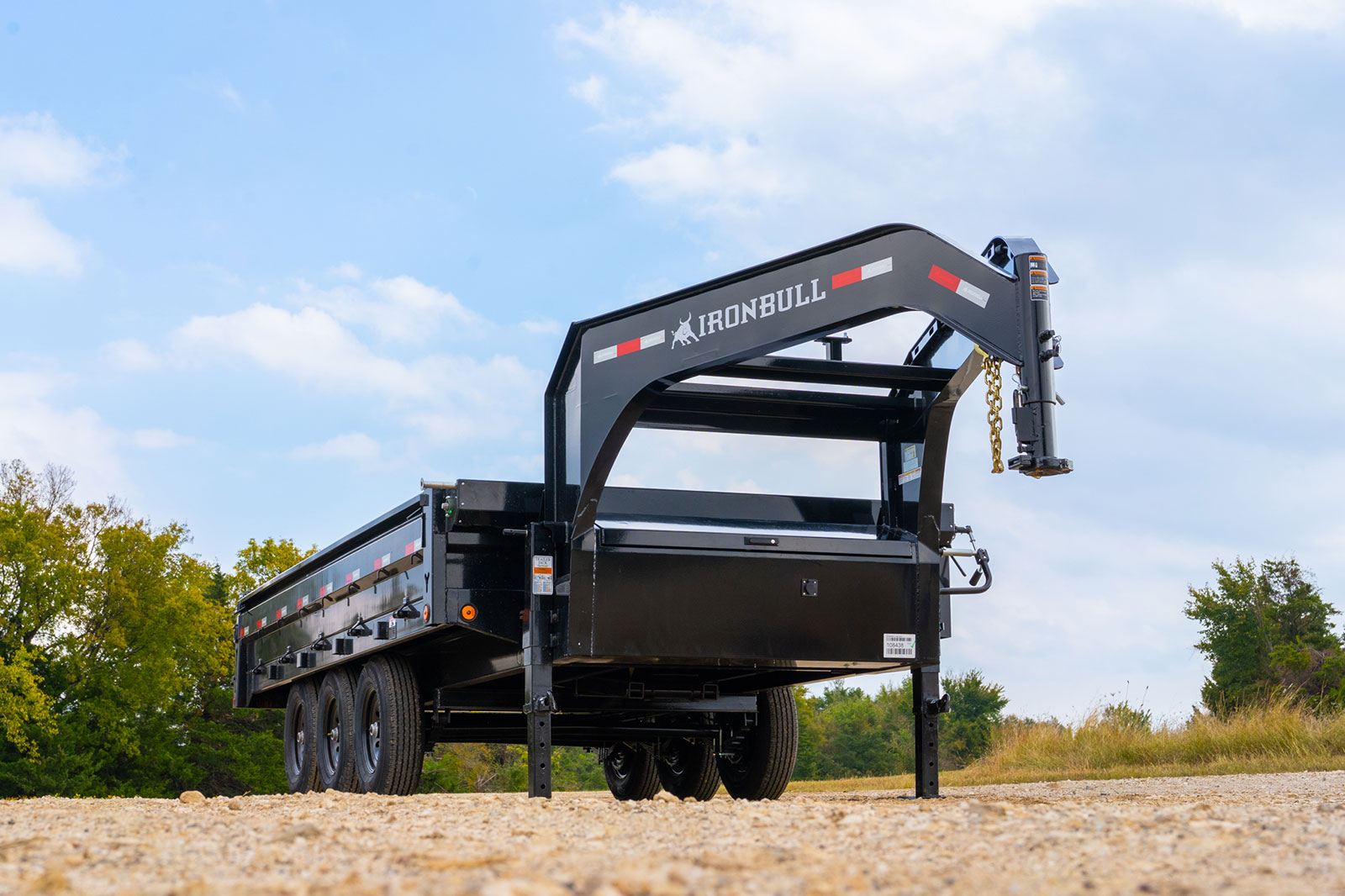

Versatility is the name of the game with the Iron Bull DDG Gooseneck Deckover Dump Trailer. Expertly made in the USA, our DDG offers a raised deck to accommodate 10 Gauge, 18" Fold Down sides and a bed width of 96”. Each Deckover is equipped standard with 10” I-Beam frame, 3” channel crossmembers, 10 gauge smooth steel floor, 2 5/16” couplers, a 3-way spreader gate and so much more.

Available in gooseneck or bumper pull models, each deckover is equipped standard with 10” I beam frame, and neck with a 12” riser on gooseneck models. 3” channel crossmembers span the 10 gauge smooth steel floor. 2 5/16” couplers are equipped standard on each model, with a 7k drop leg jack and locking pump box to secure the trailer components. A standard scissor hoist with 520 cylinder lifts this unit to a near 45 degree dump angle - and the retractable tarp system ensures your cargo will stay in your load and off the road. Three-way gate functionality gives you the flexibility to have a spreader gate, barn door gate, or truck style tailgate on your trailer. Every Iron Bull trailer is equipped with cambered brake axles and radial tires for a smooth, dependable ride. Every trailer is backed by our industry best IronClad warranty, providing 3 years structural, 2 years comprehensive components, and 2 years free roadside assistance that extends to the tow vehicle.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
072
DDG

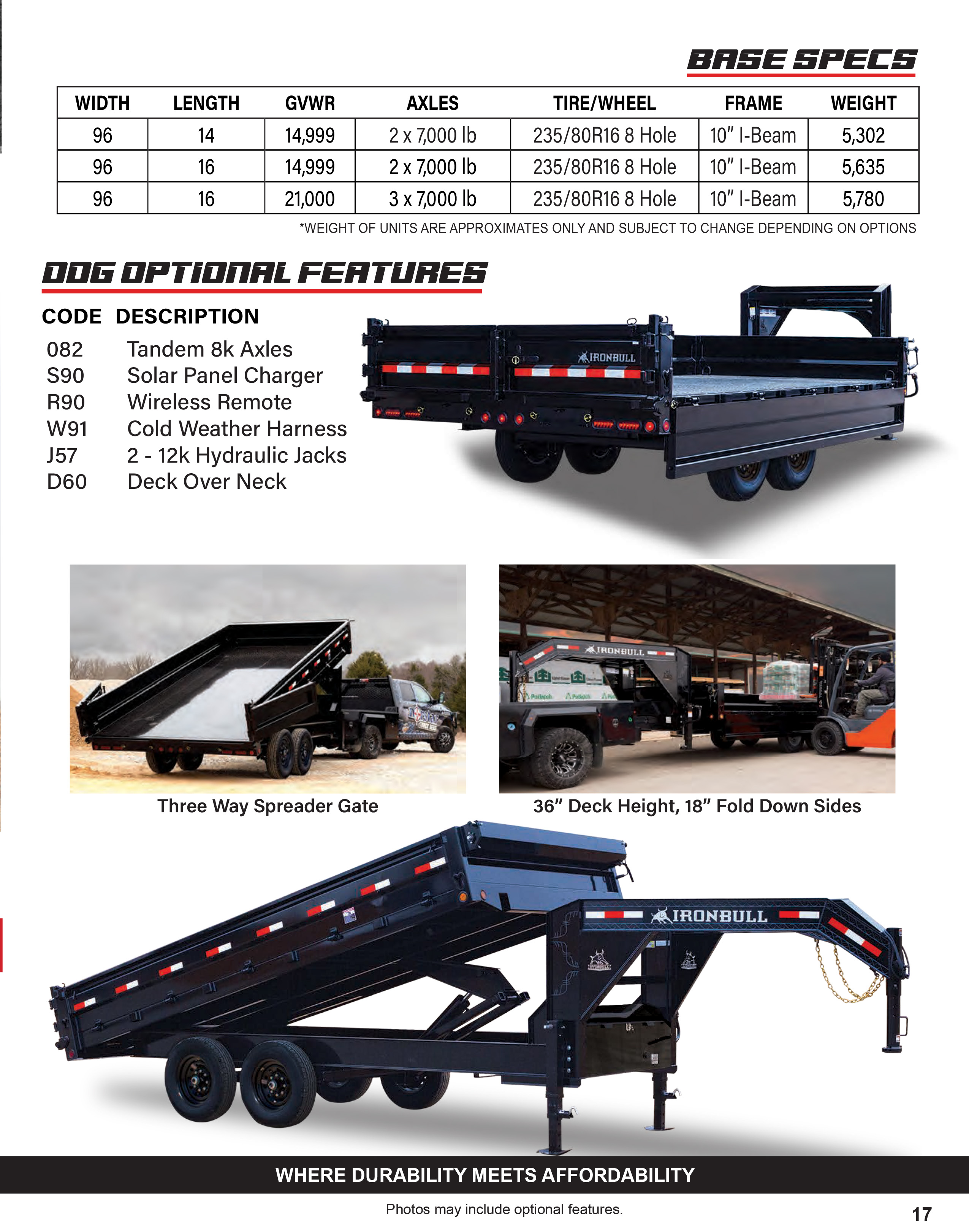

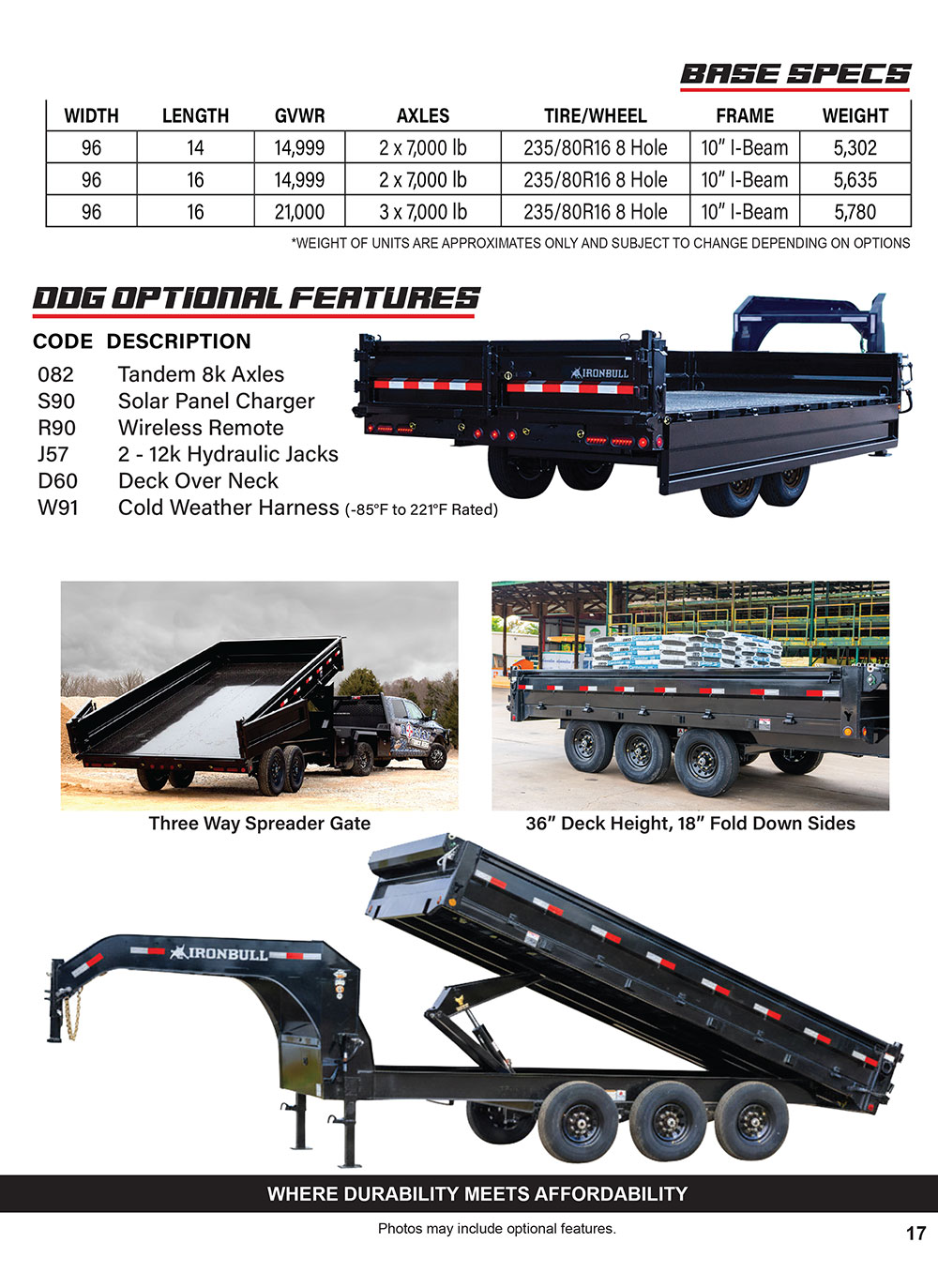

Specifications

WIDTH: 96
LENGTH: 14
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
FRAME: 10" I-Beam

WEIGHT: 5,302



WIDTH: 96
LENGTH: 16
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
FRAME: 10" I-Beam

WEIGHT: 5,635

WIDTH: 96
LENGTH: 16
GVWR: 21,000
AXLES: 3 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
FRAME: 10" I-Beam

WEIGHT: 5,780

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

10" x 12lb | - Beam Frame

Standard Stake Pockets

Double Acting Power Unit

ST235/80 R16 LRE Radial Tires

Cambered Spring Axles

Four 1/2" D-Rings

25/16" Adjustable Auto Latching Coupler

Three-Way Spreader Gate

Black Mod Wheels*

3" Structural Crossmembers

Standard Retractable Tarp Kit

All Lighting DOT Approved

10 Gauge Floor.

Slide-in Ramps

Molded Sealed Harness with Resistors

18" Fold-Down Sides

2 - 10k Drop-Leg Jack

7-Way Receiver Female Plug with Adapter

Multi-leaf Slipper Spring Suspension

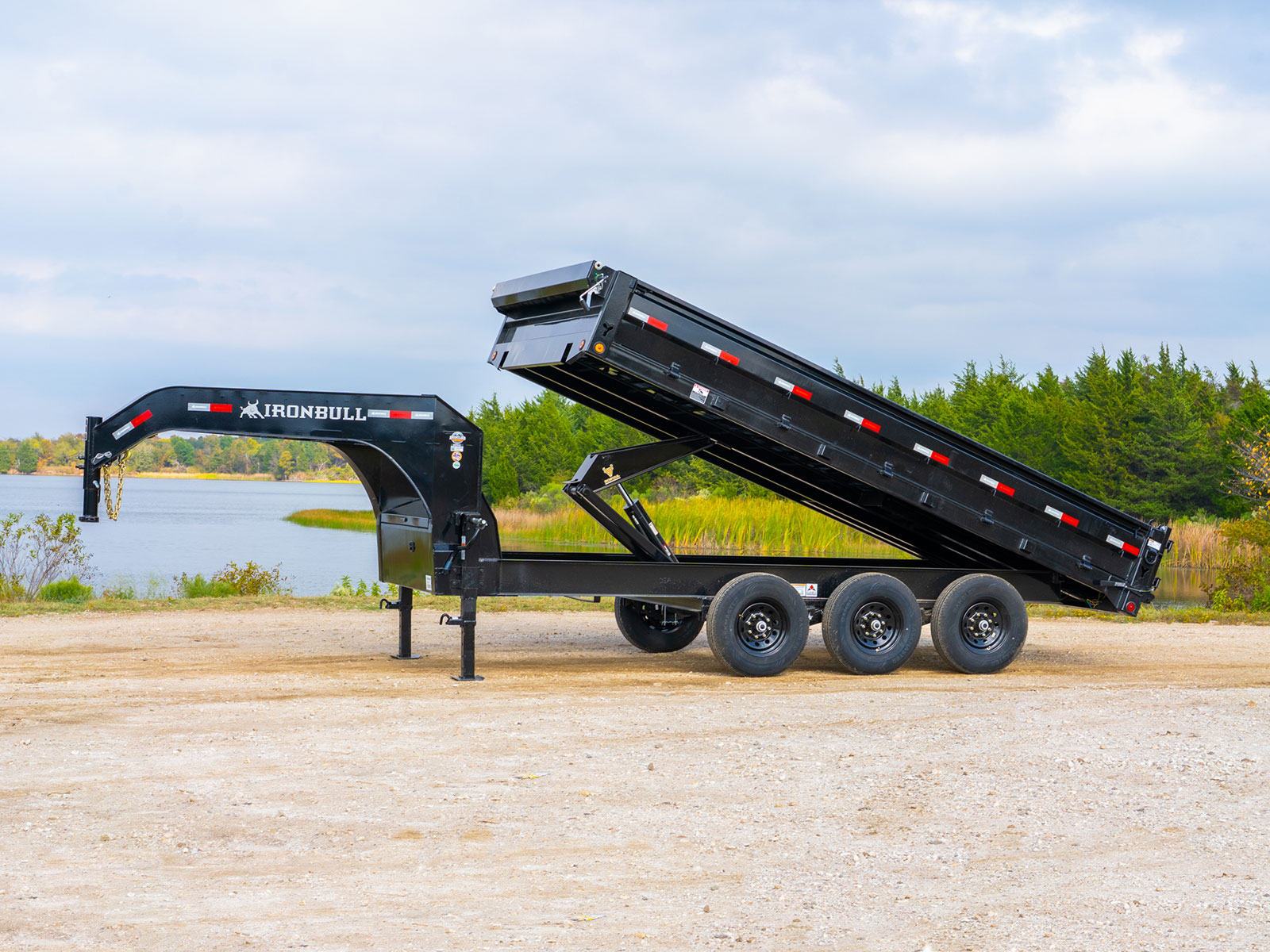

Scissor Hoist with 520 Cylinder

Powder Coat and Primer

E-Z Lube Hubs

2 - 7k Electric Brake Axles

Flow Control Valve

36" Deck Height

options

Ramps 16”x80”

Tandem 8k Axles

Solar Panel

Cold Weather Harness

Deck Over Neck

Wireless Remote

3-Way Pump

2 12k Hydraulic Jacks

bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
