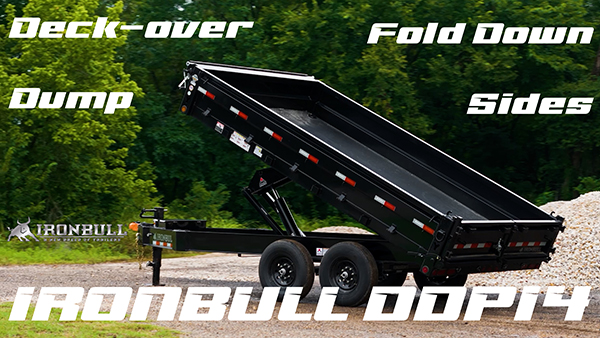

Deckover Dump With Fold Down Sides
SIZES
96 x 14--16'
GVWR
14,000 -- 21,000 lb

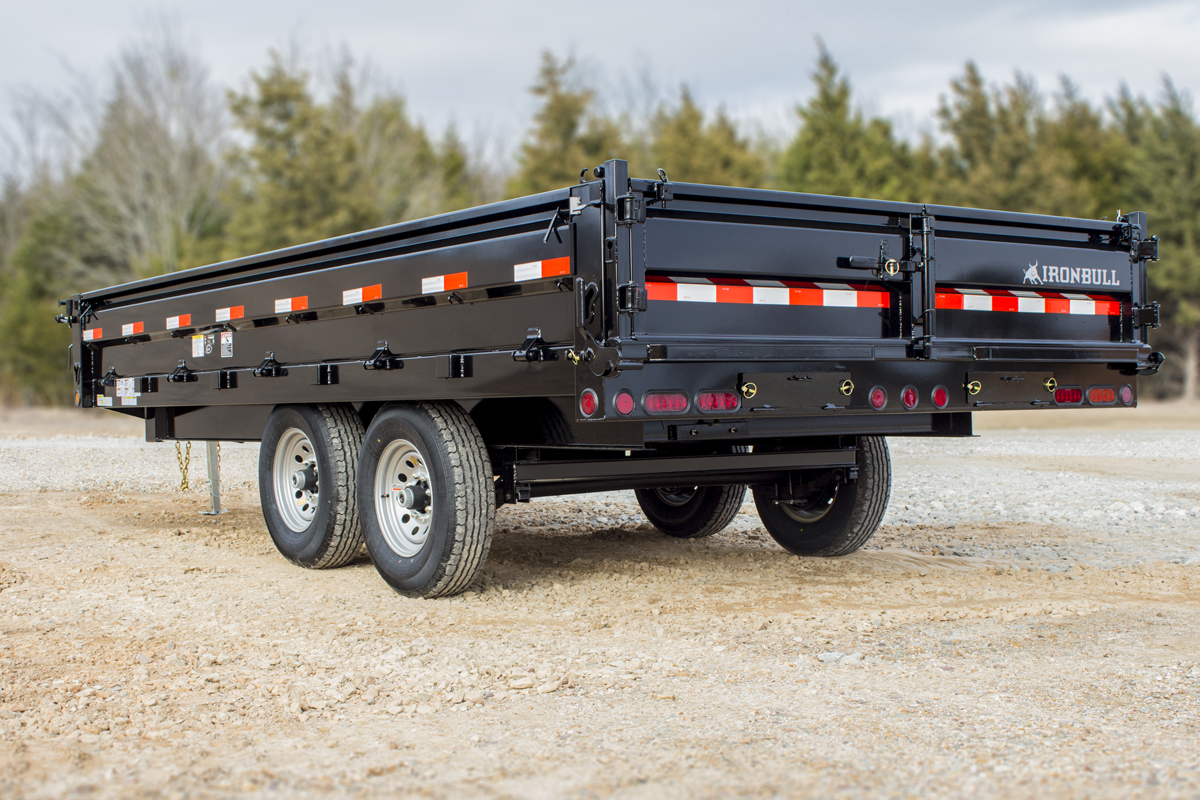

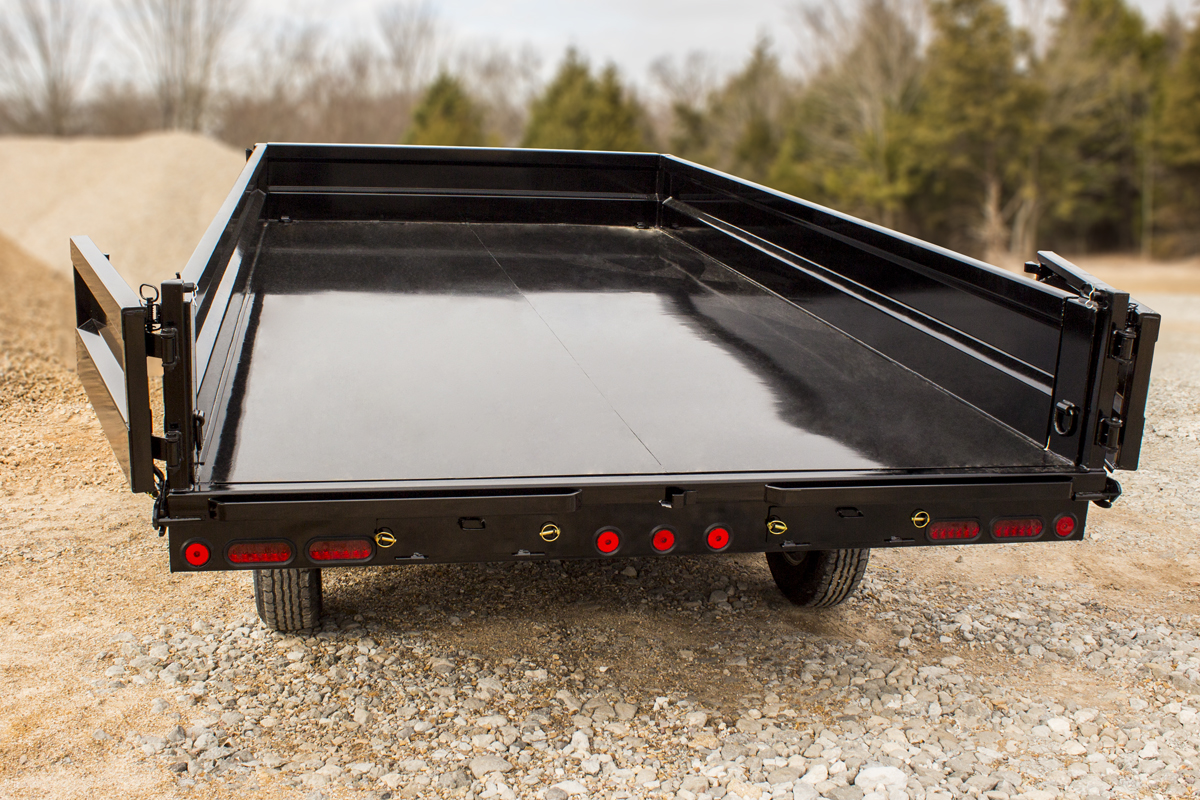

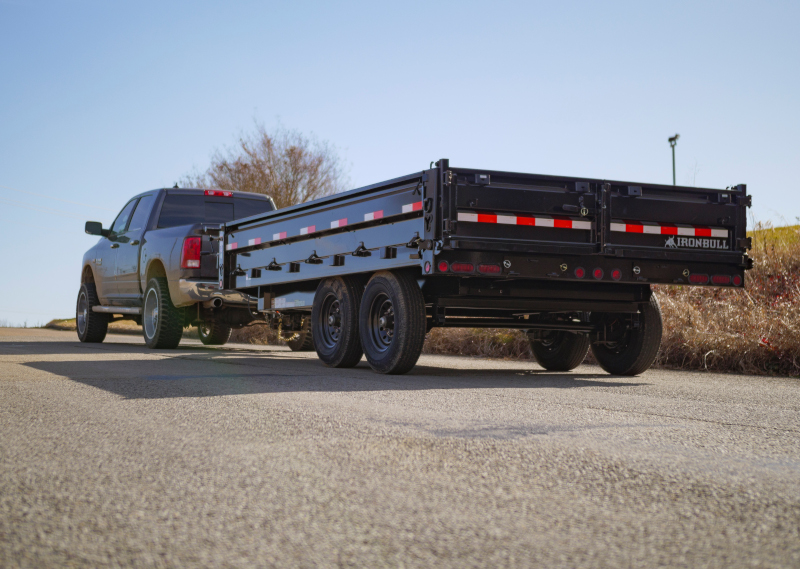

Iron Bull is happy to offer one of the best Deckover Dump Trailers on the market, expertly made in the USA. Our DDP offers a raised deck to accommodate 10 Gauge, 18" fold down sides and a bed width of 96”. Each deckover is equipped standard with 10” I-Beam frame, 3” channel crossmembers, 10 Gauge smooth steel floor, 2 5/16” couplers, a 10k Drop-Leg jack and more. Combine ramps with our standard fold down sides and this trailer can be used for almost any task.

Our deckover dumps offer a raised deck (above the tires) to accommodate 10 gauge fold down sides and a bed width of 96”. Available in gooseneck or bumper pull models, each deckover is equipped standard with 10” I beam frame and neck with a 12” riser on gooseneck models. 3” channel crossmembers span the 10 gauge smooth steel floor. 2 5/16” couplers are equipped standard on each model, with a10k drop leg jack and locking pump box to secure the trailer components. A standard scissor hoist with 520 cylinder lifts this unit to a near 45 degree dump angle - and the retractable tarp system ensures your cargo will stay in your load and off the road.Three-way gate functionality gives you the flexibility to have a spreader gate, barn door gate, or truck style tailgate on your trailer.

Every Iron Bull trailer is equipped with cambered brake axles and radial tires for a smooth, dependable ride. Every trailer is backed by our industry best IronClad warranty, providing 3 years structural, 2 years comprehensive components, and 2 years free roadside assistance that extends to the tow vehicle.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
072
DDP
Specifications

WIDTH: 96
LENGTH: 14
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
FRAME: 8" I-Beam

WEIGHT: 4,762



WIDTH: 96
LENGTH: 16
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
FRAME: 8" I-Beam

WEIGHT: 5,071

WIDTH: 96
LENGTH: 16
GVWR: 21,000
AXLES: 3 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
FRAME: 8" I-Beam

WEIGHT: 5,423

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

10" x 12lb I-Beam Frame

Cambered Spring Axles

ST235/80 R16 LRE Radial Tires.

Three-Way Spreader Gate

25/16" Adjustable Auto Latching Coupler

Standard Retractable Tarp Kit

3" Structural Crossmembers

Locking Pump Box

10 Gauge Floor

Built In 5 Amp Charger

18" Fold-Down Sides

Standard Stake Pockets

Multi-leaf Slipper Spring Suspension

10k Drop-Leg Jack

E-Z Lube Hubs

Scissor Hoist with 520 Cylinder

2 - 7k Electric Brake Axles

Four 1/2" D-Rings

Double Acting Power Unit w/ Gravity Down

Flow Control Valve

Black Mod Wheels*

DOT Approved Lifetime LED Lighting

LED Voltage Indicator in Remote

Molded Sealed Harness with Resistors

7-Way Receiver Female Plug with Adapter

Powder Coat and Primer

36" Deck Height

Slide-in Ramps

options

Ramps (14k, 21k) 16”x80” (for deckover dump)

Tandem 8k Axles

Solar Panel

Cold Weather Harness

Hydraulic 12k Jack

Wireless Remote

Triple Axle Available

bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
