DHG22
DHG 22,000 Lb GVWR Super Single 10k
No items found.
22,000 Lb GVWR Super Single 10k
SIZES
83 x 16'
GVWR
22,000 Lb

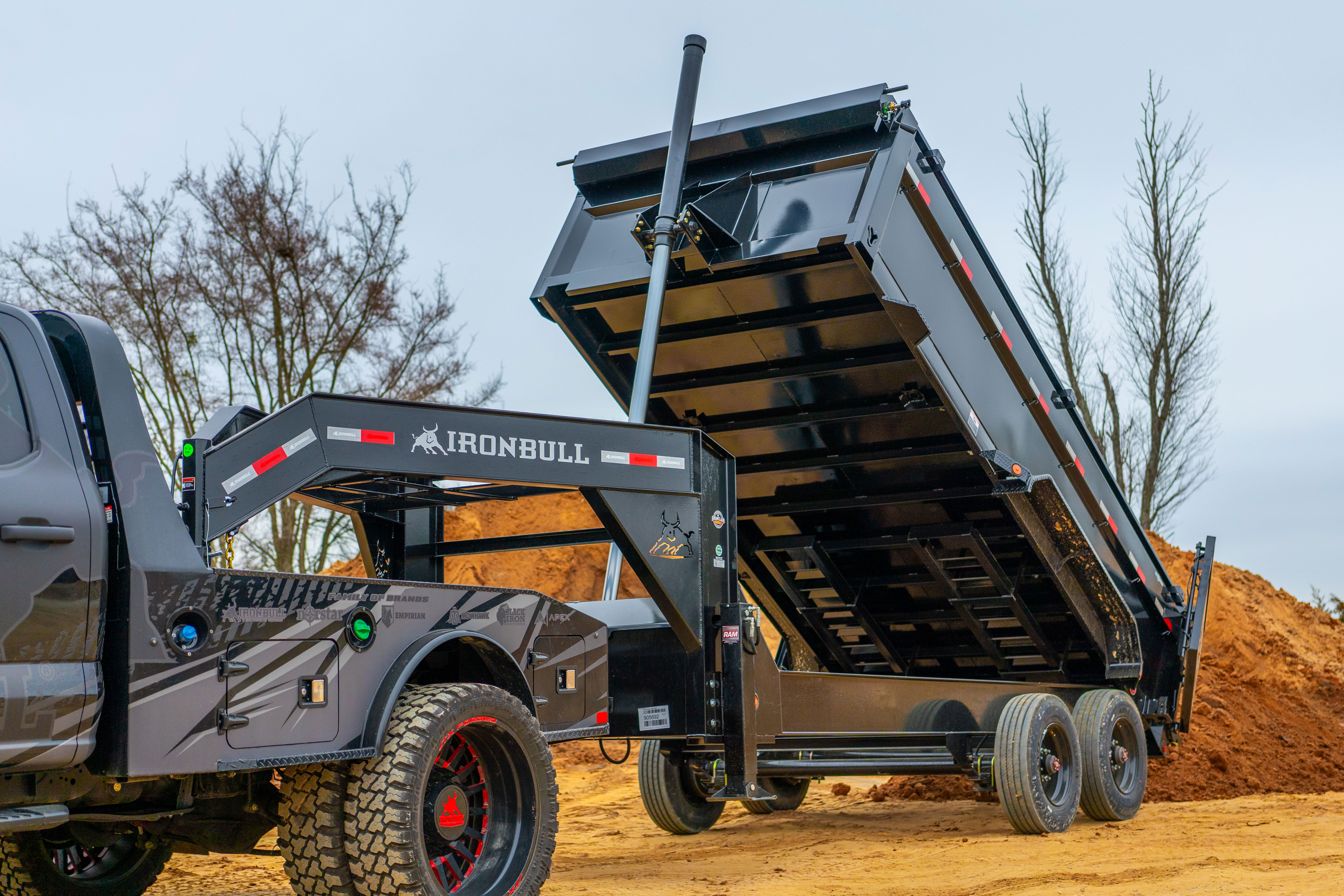

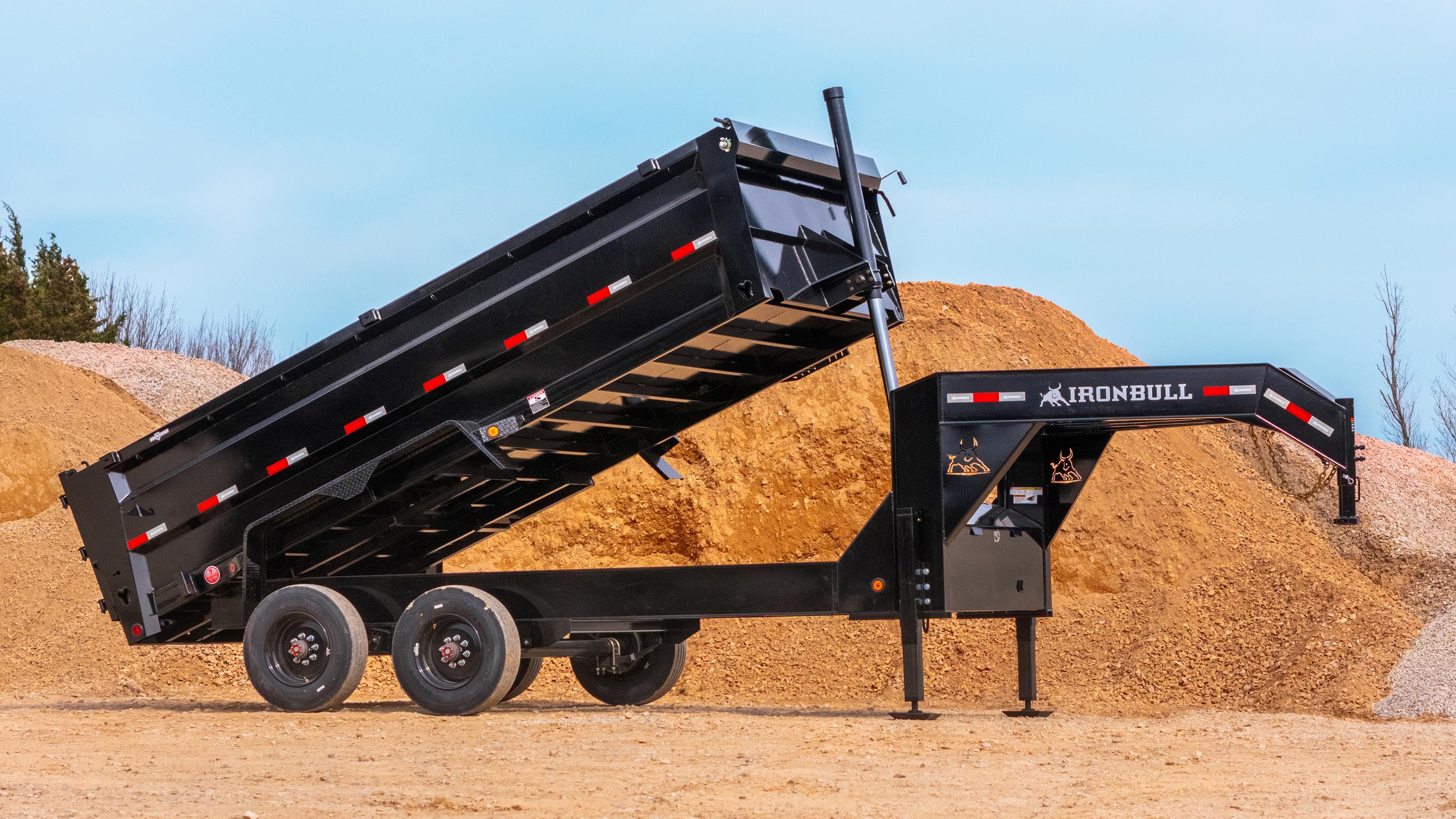

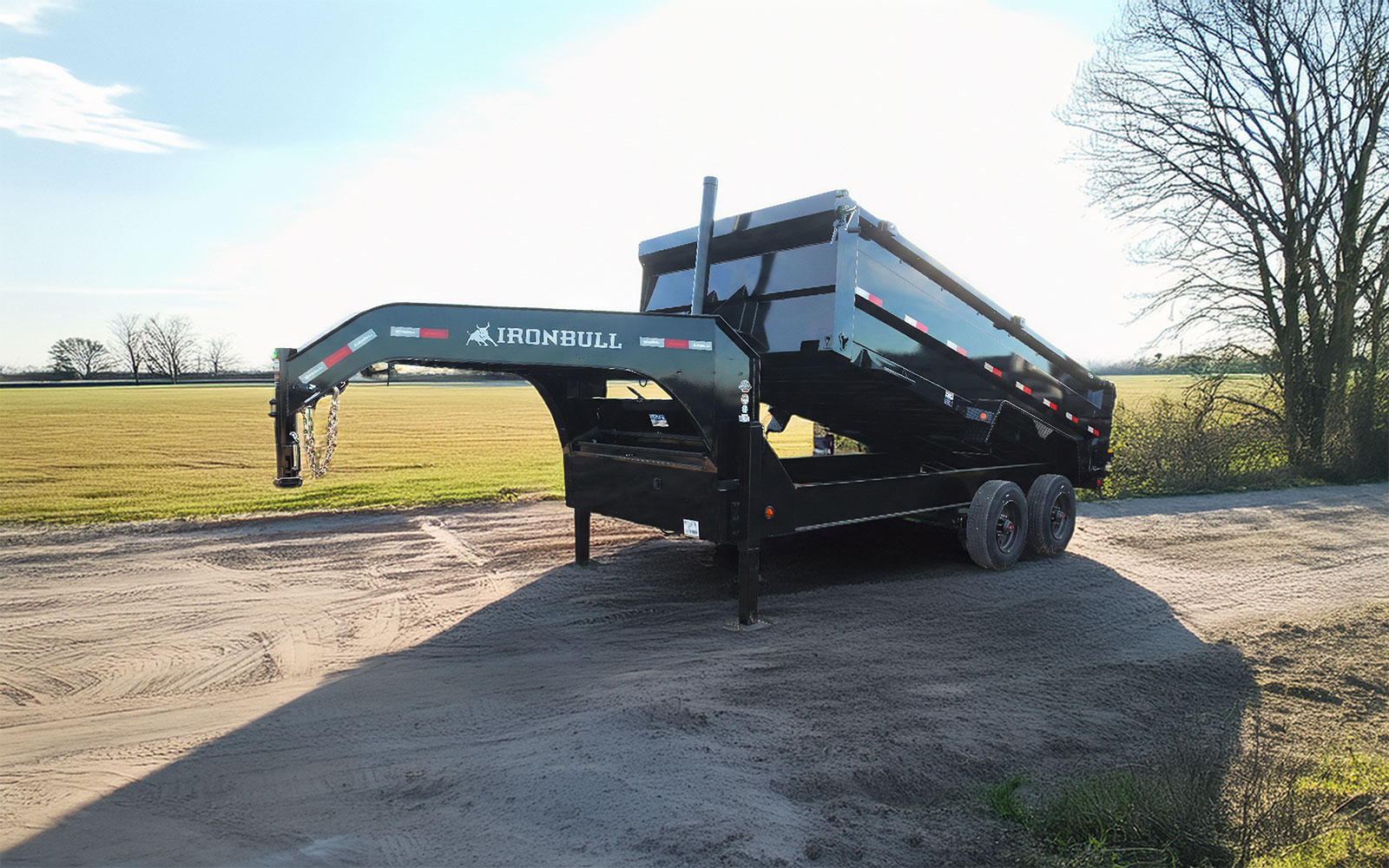

The Iron Bull DHG Dump Trailer Beast Models—engineered for maximum performance and built to tackle the toughest jobs with ease! These heavy-duty dump trailers are designed to work as hard as you do, featuring a robust a 12" I-Beam frame, neck and risers, up to 22k of GVWR and 2 - 10k spring axles, these top tier components come together with the most rugged construction on the market to deliver a dump trailer like no other!

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
102
DHG
Specifications

WIDTH: 83
LENGTH: 16
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/75 R17.5
SIDES: 24"

WEIGHT: 6,263

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

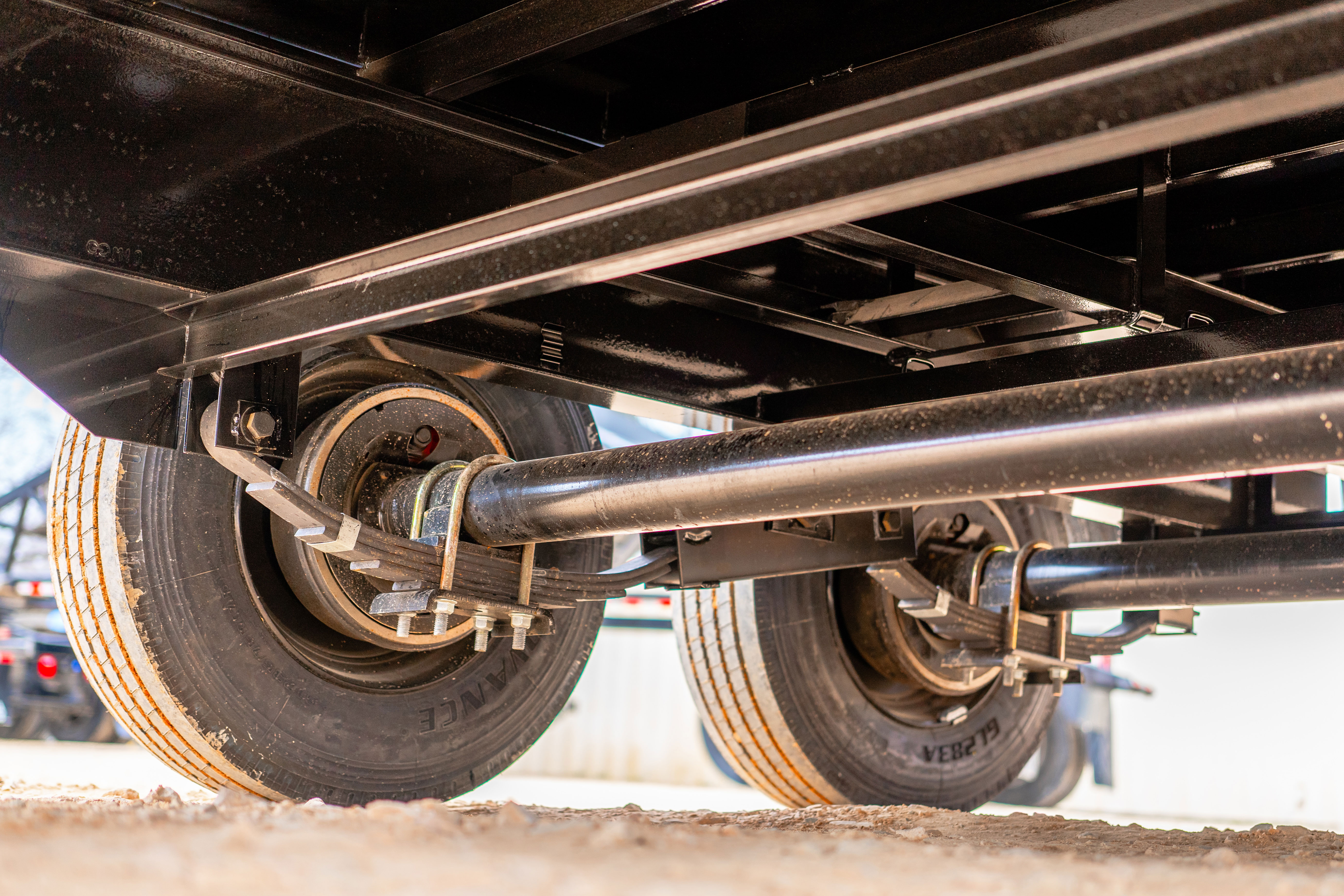

2 - 10,000 lb Spring Axles (2 Elec. Brakes)

ST235/75 R17.5 LRJ Radial Tires

12" I-Beam Frame

12" I-Beam Riser

12" I-Beam Neck

36" 10 ga. Dump Sides Std.

Gooseneck Coupler 2 5/16 Adjustable Rd. 25k

Heavy Duty 16" x 96" Slide-In Ramps

Diamond Plate Fenders (Weld On)

Jack Spring Loaded Drop Leg 2-10k

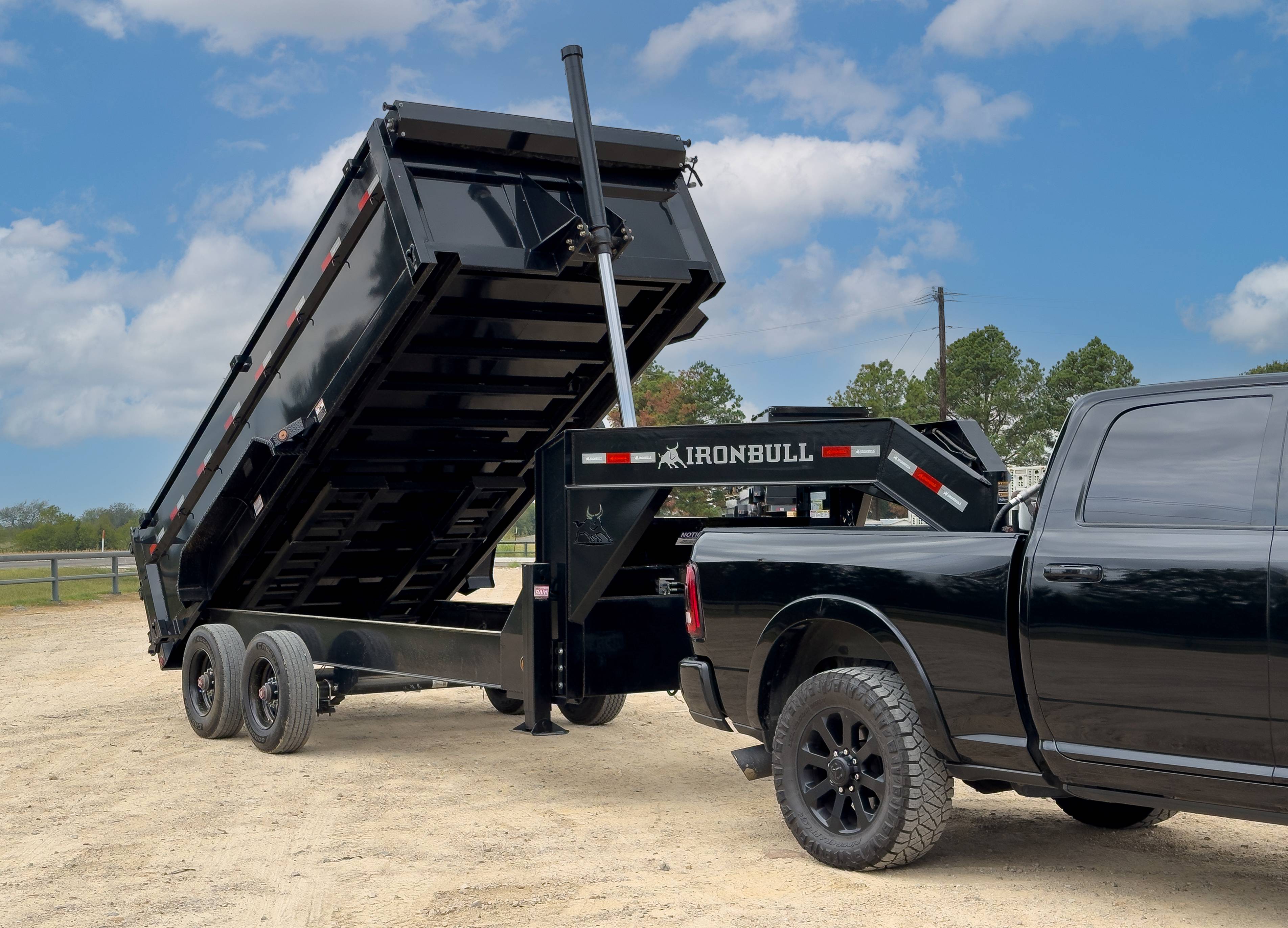

Telescopic 12 tons x 144"

Tarp System (Front Mount)

Standard Wiring Harness

D-Rings 3" x 5/8" Weld On (4ech) Std.

Spare Tire Mt. (Weld On)

Side Step Plate

Powder Coat and Primer

36" Deck Height

options

4' Sides

Rear Stabilizer Jacks

Deck Over Neck

Solar Charger (1.5Amp)

Wireless Remote

Hydraulic 2-12k Jack
