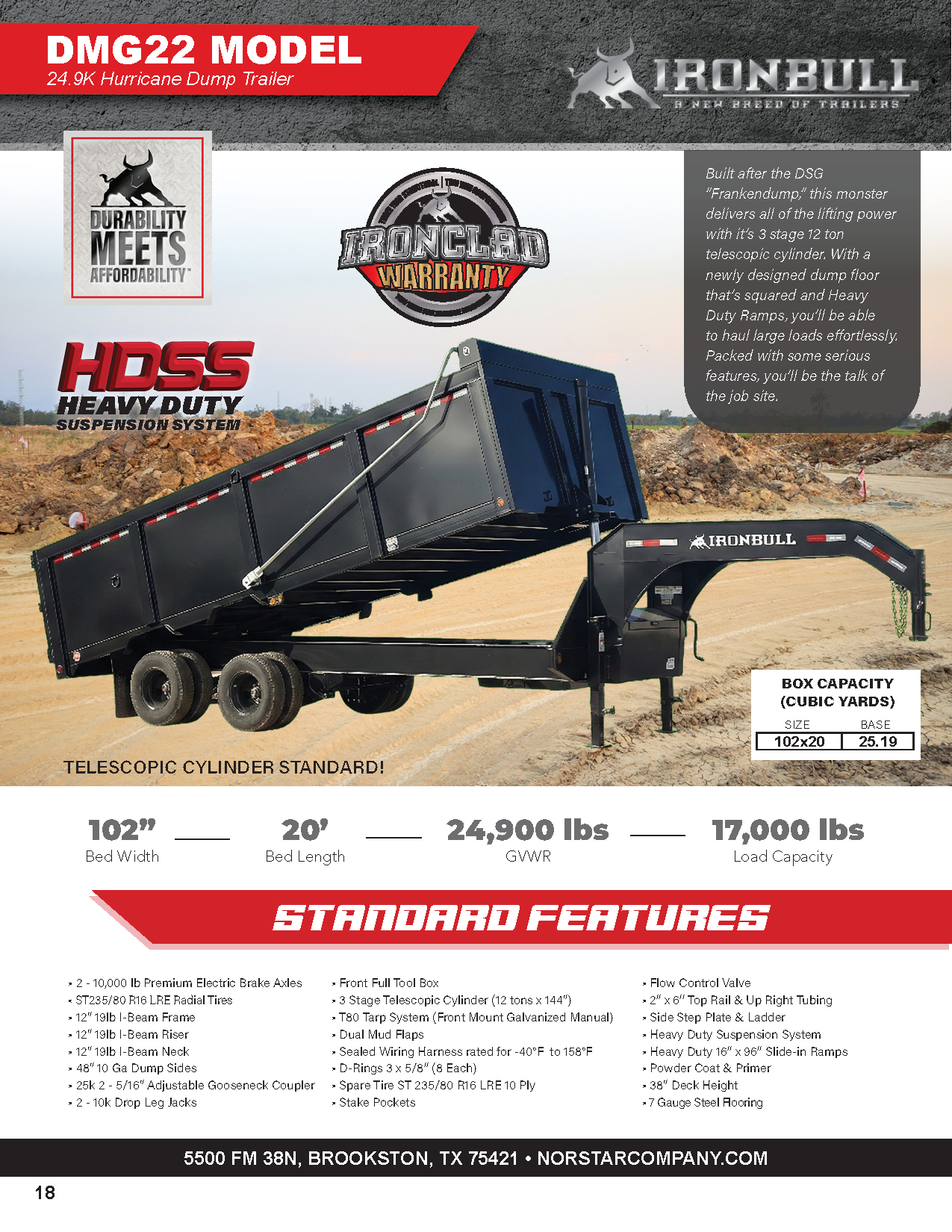

DMG22

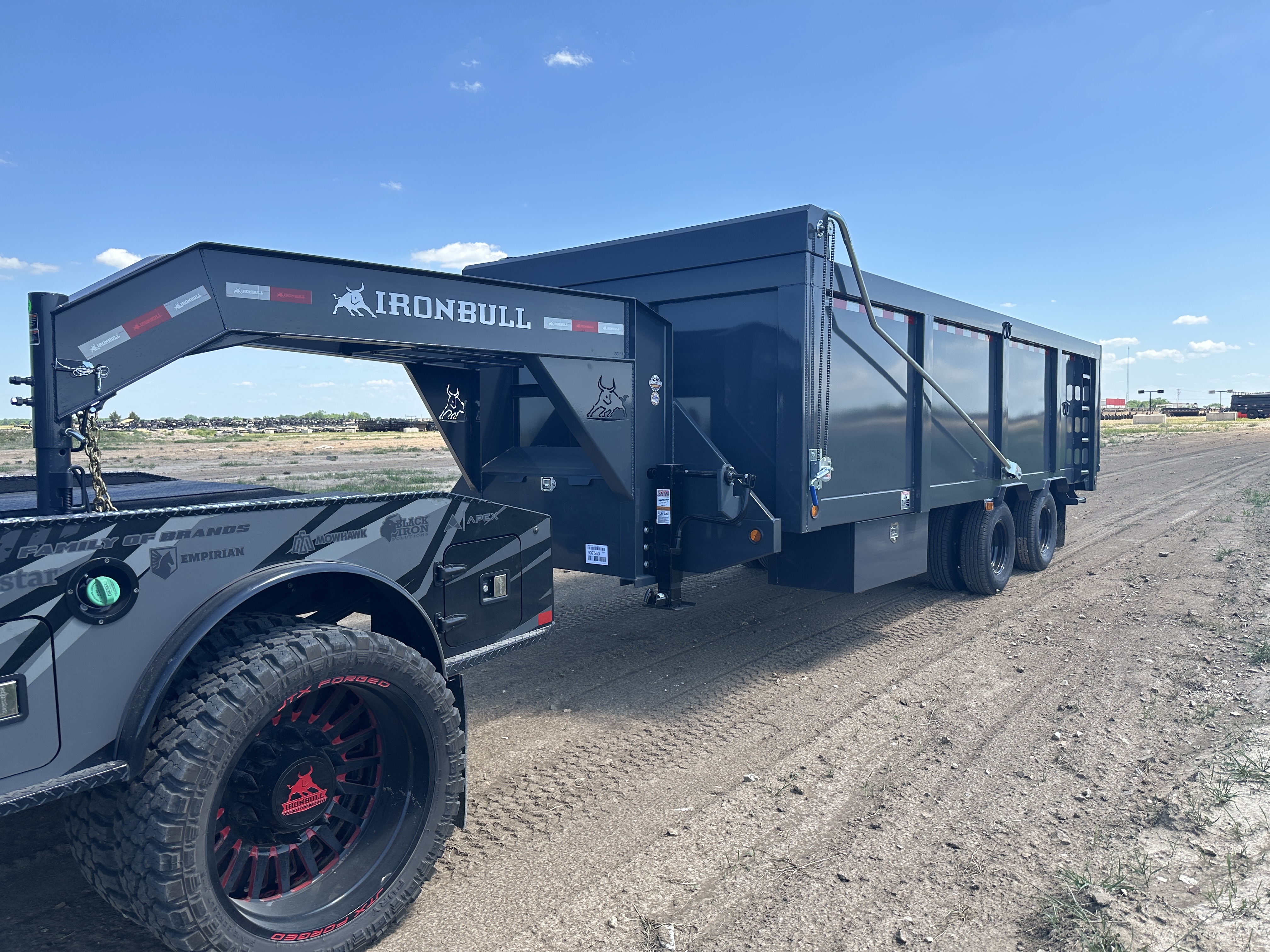

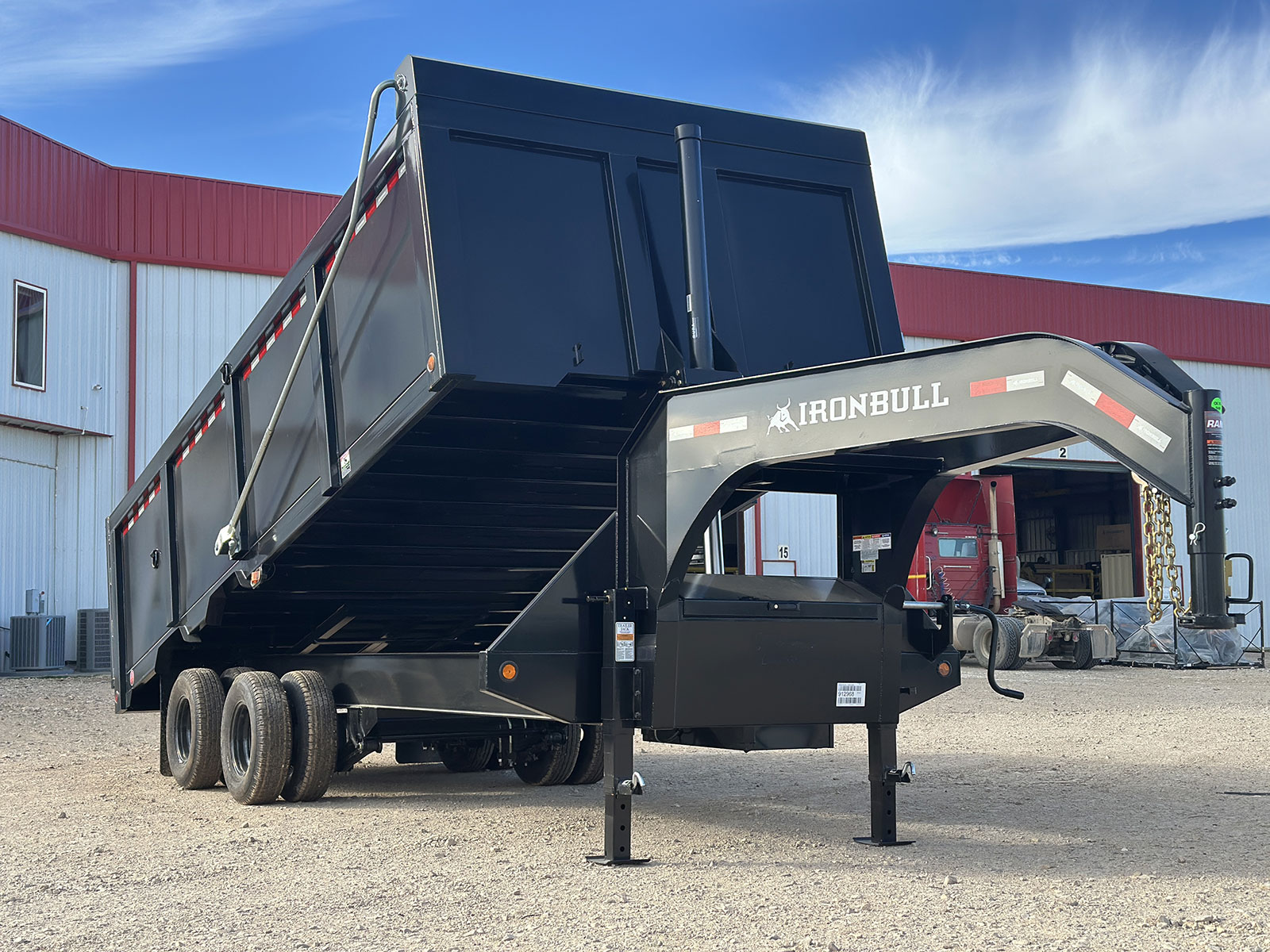

Gooseneck Hurricane Dump Trailer
No items found.
24,900 Lb GVWR Dump trailer
SIZES
102 x 20'
GVWR
24,900 lb

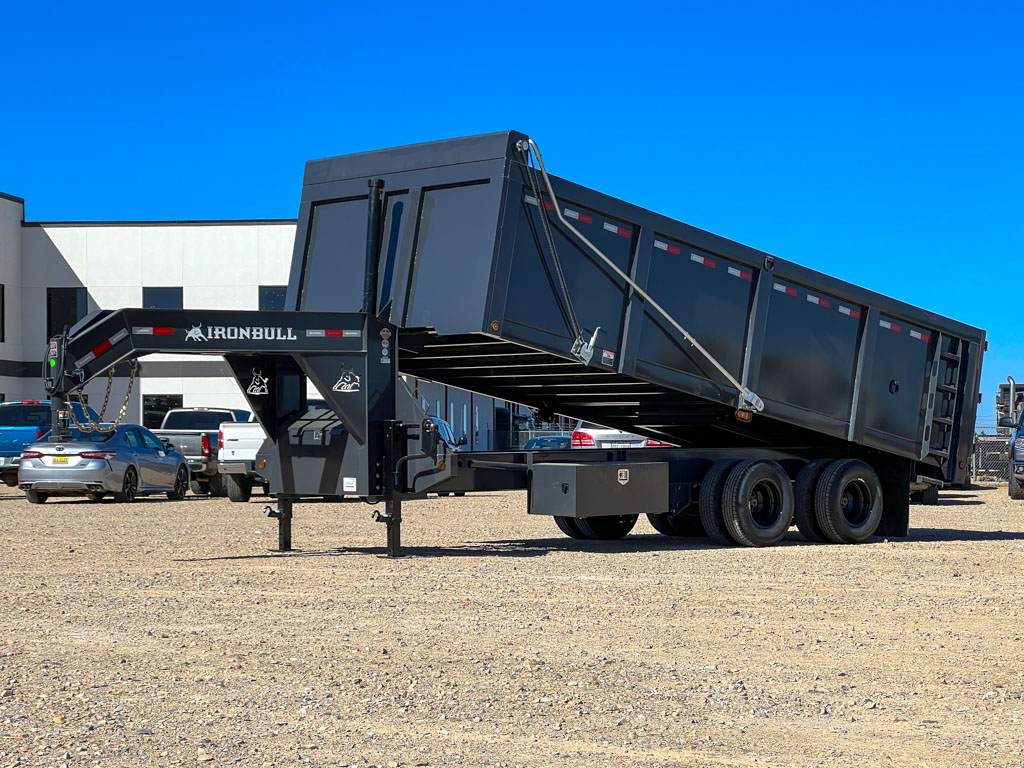

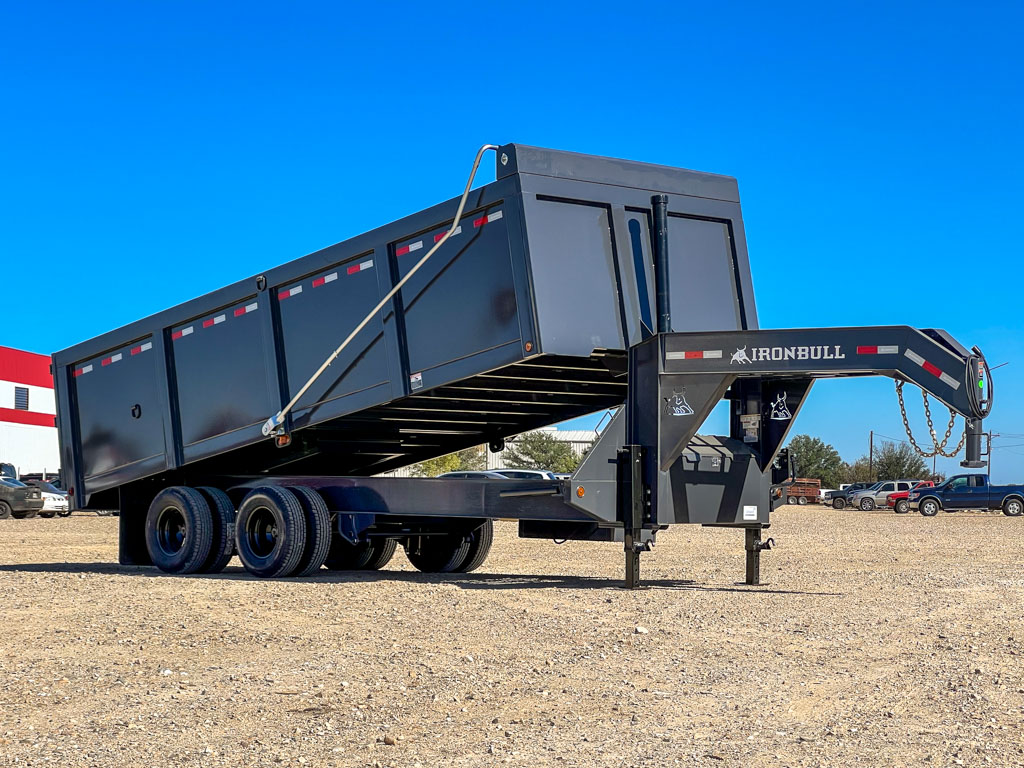

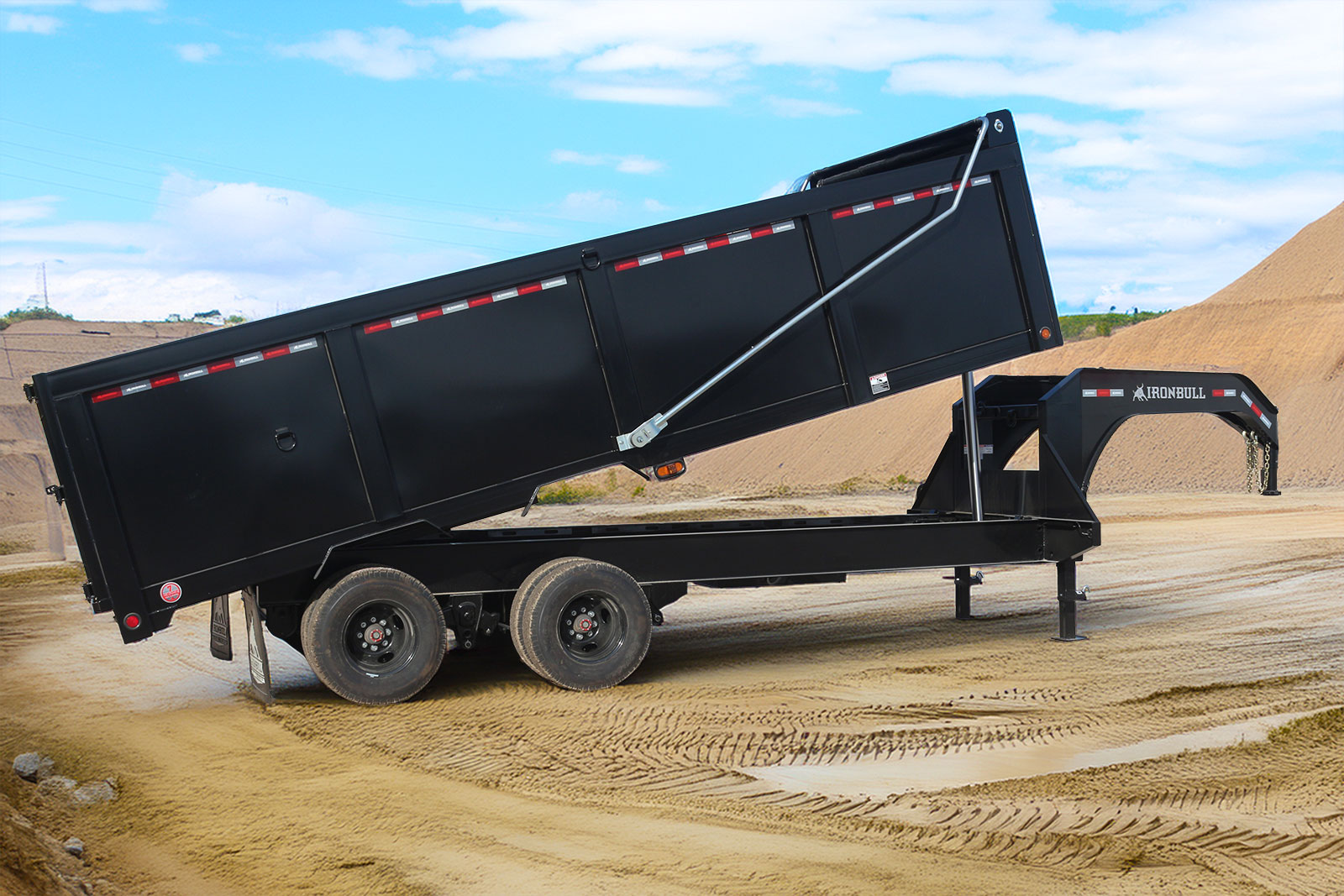

The DMG is not your average dump trailer. Built after the DSG but with a square bottom, there isn't anything this trailer can't haul. The distinctive feature of the square bottom design is that the trailer bed has a flat, even surface, as opposed to a V-shaped or sloped bottom. This design allows for efficient and uniform unloading of various materials such as gravel, sand, or other bulk items. With a 7 gauge flooring and the standard 3 stage 12 ton telescopic cylinder on this beast lifts the entire bed and enables the contents to be easily and evenly emptied.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
102
DMG
Specifications

WIDTH 102

LENGTH 20

GVWR 24,000

AXLES 2 x 10,000 lb

TIRE/WHEEL ST235/80R16

SIDES  48"

LOAD CAPACITY 17,000

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.

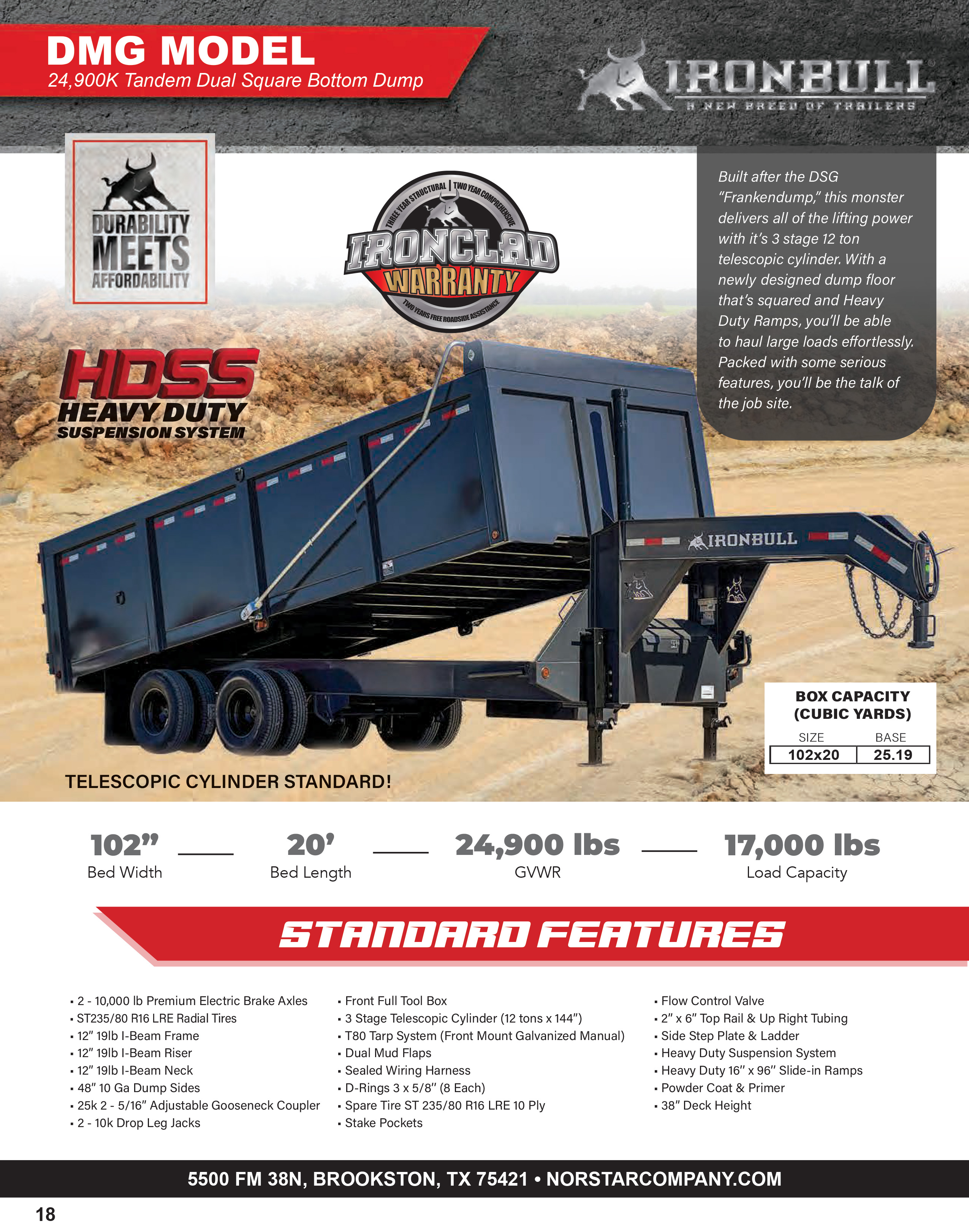

Standard Features

2 - 10,000 lb Premium Electric Brake Axles.

ST235/80 R16 LRE Radial Tires

12" 19|b I-Beam Frame

12" 19lb I-Beam Riser

12" 19lb I-Beam Neck

48" 10 Ga Dump Sides

25k 2 - 5/16" Adjustable Gooseneck Coupler

2 - 10k Drop Leg Jacks

Front Full Tool Box

3 Stage Telescopic Cylinder (12 tons X 144").

T80 Tarp System (Front Mount Galvanized Manual)

Dual Mud Flaps

Sealed Wiring Harness

D-Rings 3 x 5/8" (8 Each)

Spare Tire ST 235/80 R16 LRE 10 Ply

Stake Pockets

Flow Control Valve

2" x 6" Top Rail and Up Right Tubing

Side Step Plate & Ladder

Heavy Duty Suspension System

Heavy Duty 16" x 96" Slide-in Ramps.

Powder Coat and Primer

38" Deck Height

7 Ga flooring

options

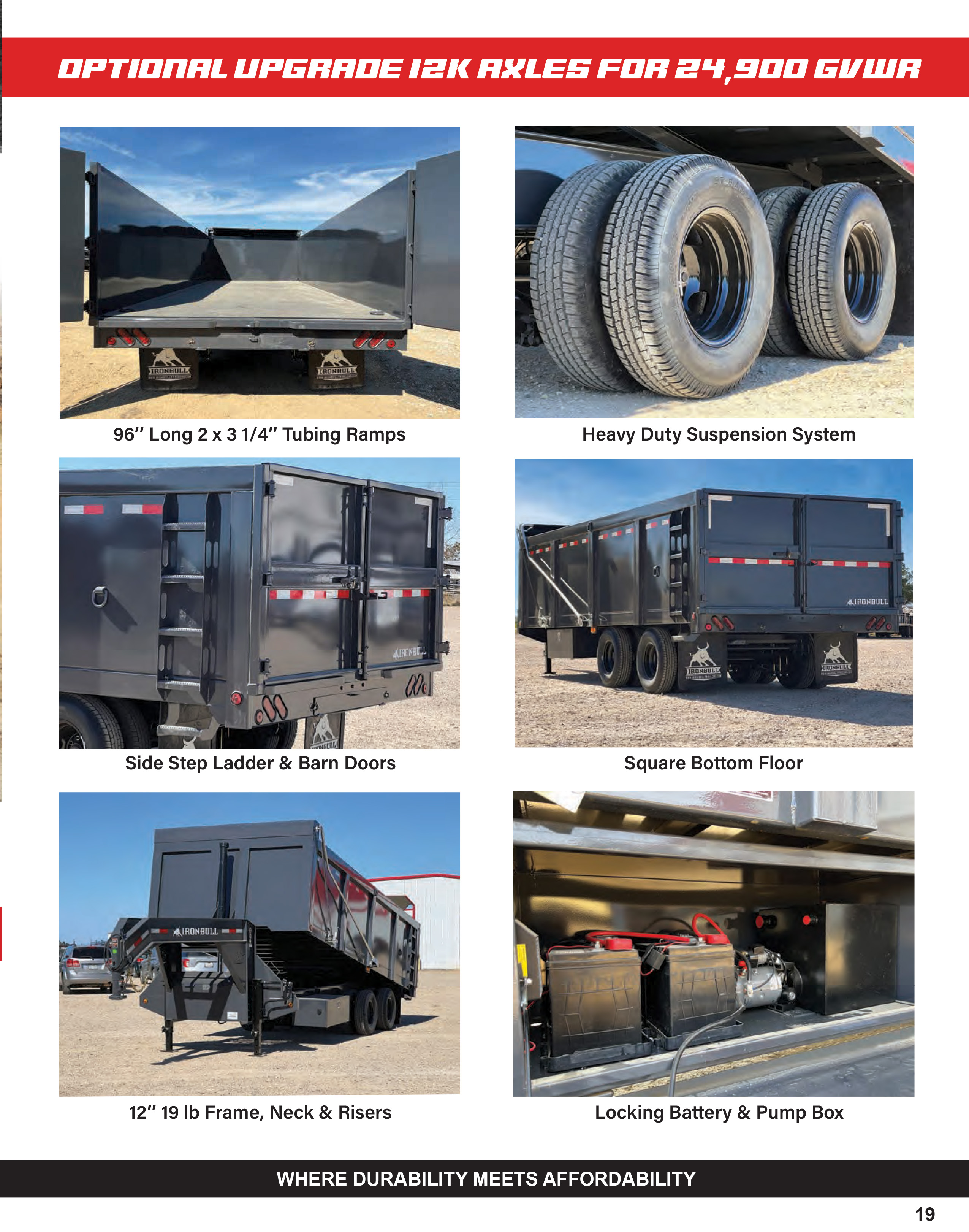

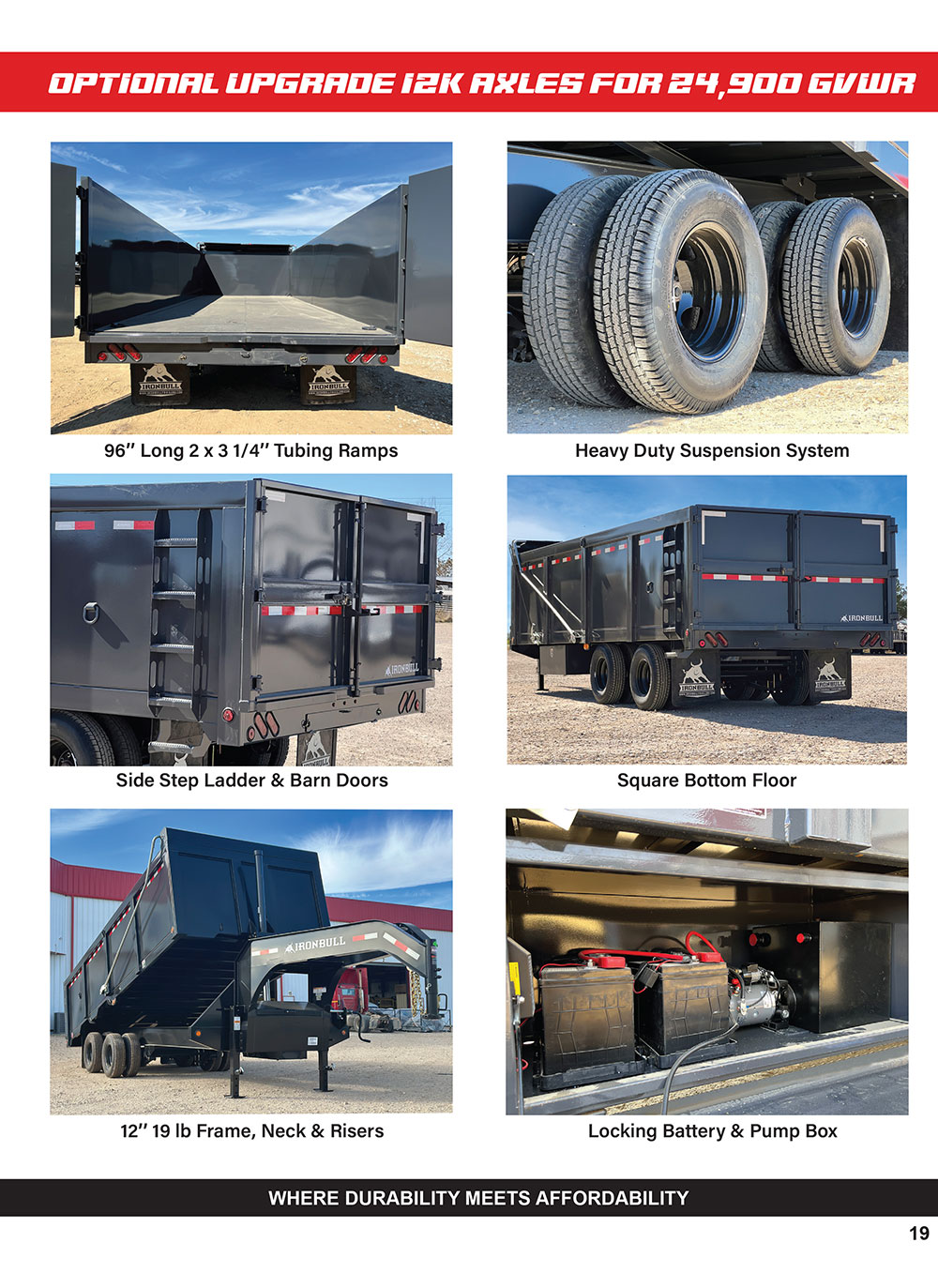

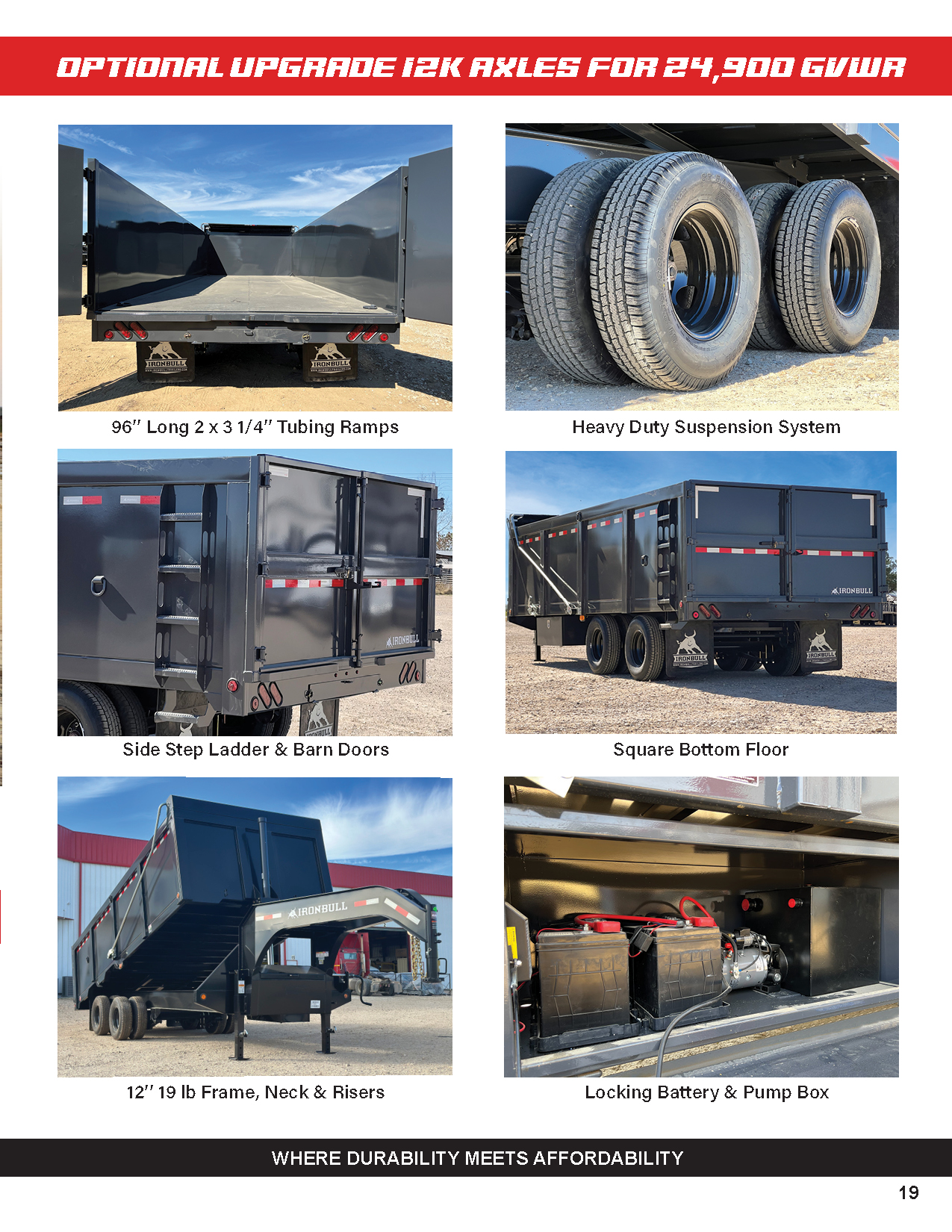

2 -12K Axles for 24,900 GVWR
