DTG14

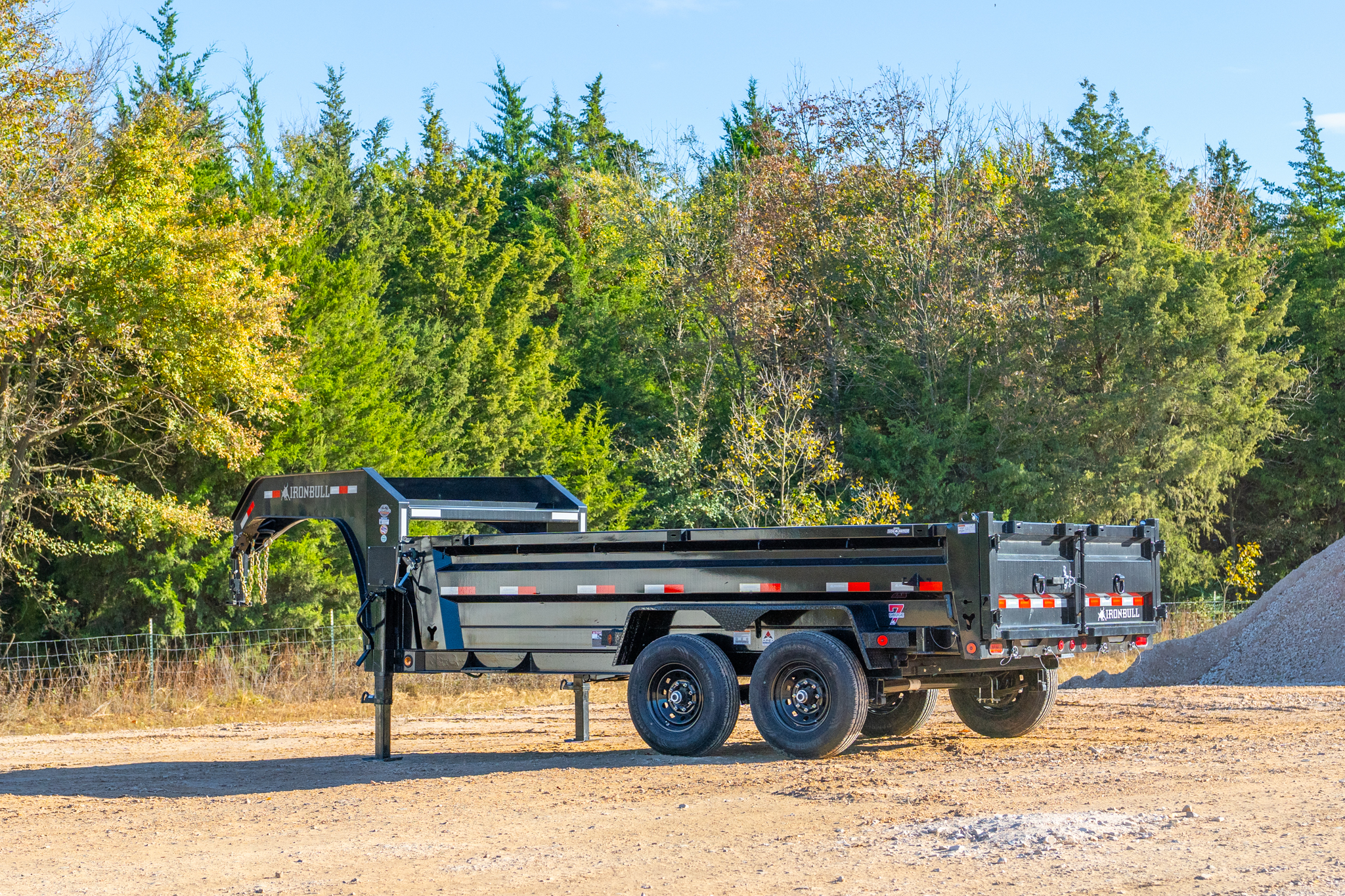

DTG I-Beam Gooseneck Dump Trailer
No items found.
14,999lb GVWR Gooseneck Dump Trailer
SIZES
83 x 12'--16'
GVWR
14,999-21,000 lb

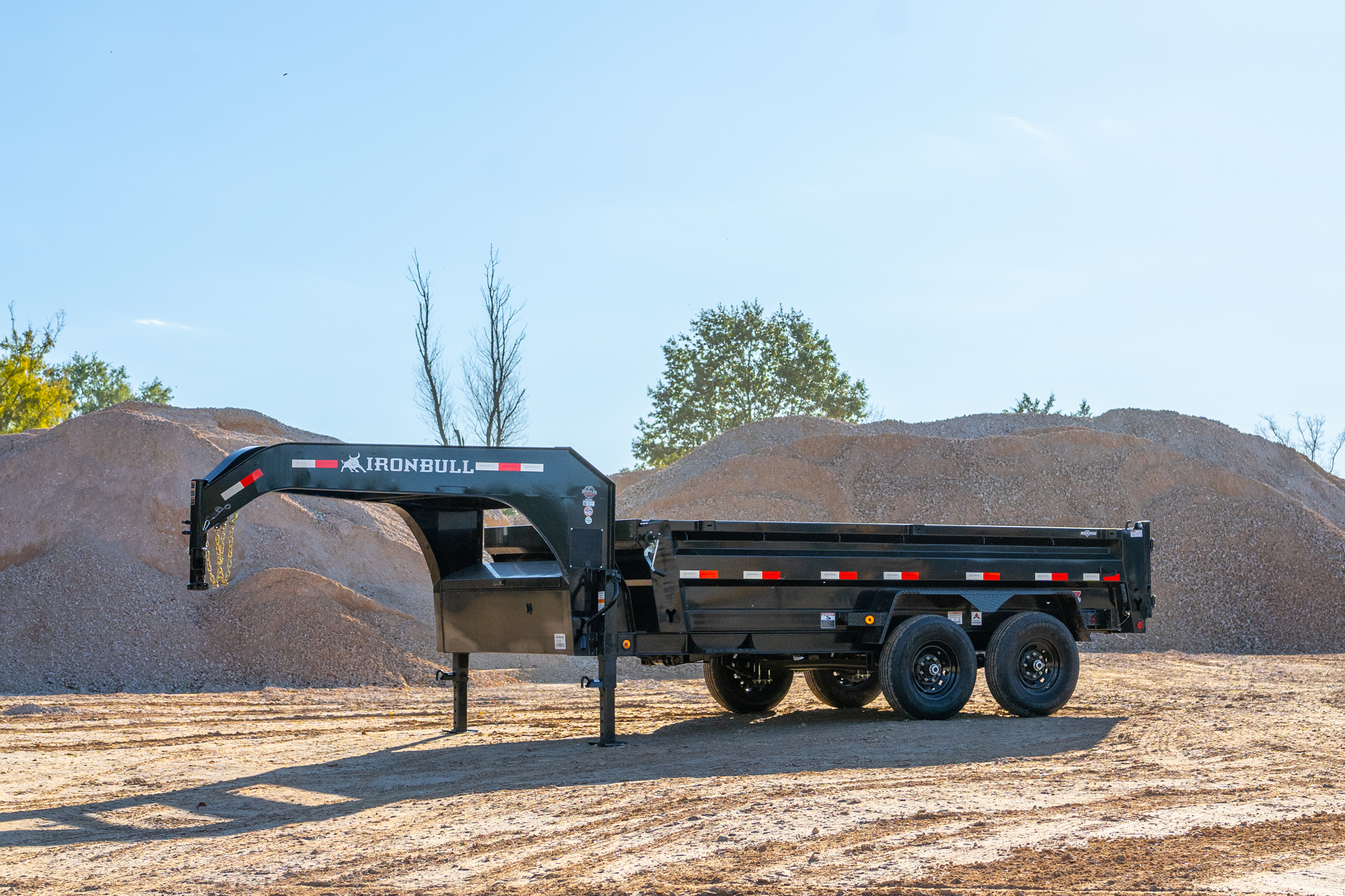

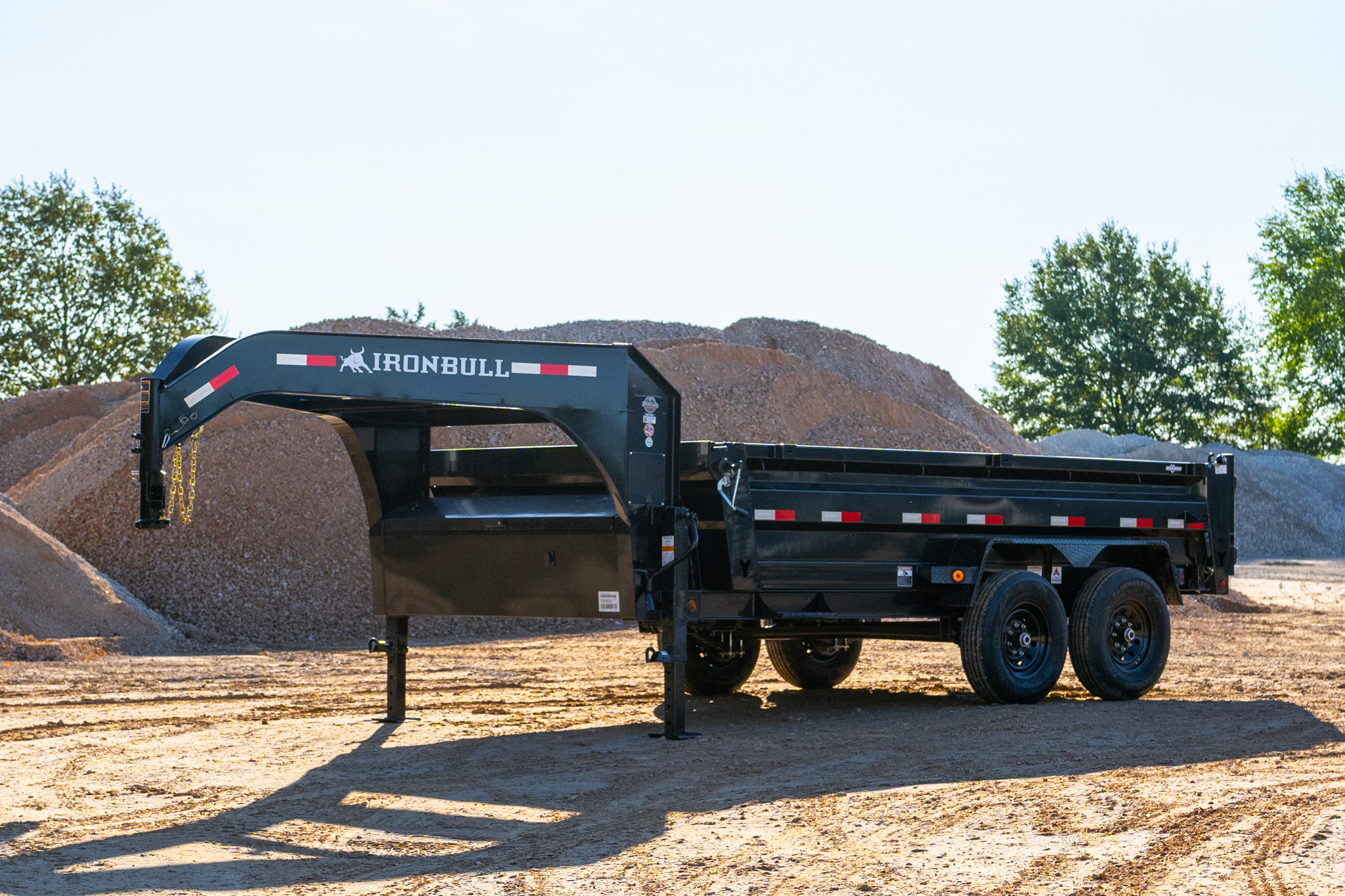

The IronBull DTG Dump Trailer is engineered for those who demand unmatched strength and reliability on every job. Featuring a heavy-duty 12" I-beam neck and risers, this trailer boasts a GVWR range from 14,000 to 21,000 pounds, providing the power you need for the toughest hauls. Reinforced with sturdy 3" channel crossmembers spaced 16" on center, the DTG delivers exceptional structural integrity and durability. Adding to its rugged build, this model includes the advanced Side Armor™ System — designed to protect the trailer’s sides from impact and wear, extending its lifespan and maintaining a clean, professional appearance even under the harshest conditions. Iron Bull combines top-tier components and innovative engineering to create a dump trailer that stands apart from the competition, ready to tackle any job with confidence and ease.

This trailer is an 83" Wide Gooseneck Dump Trailer with two 7k axles. Other features include standard tarp kit and scissor lift. 12" I-Beam necks and 14,000 lbs of GVWR have enough lifting power to ensure you can always get your job done. Top tier components come together with the most rugged construction on the market, delivering a dump trailer like no other. 7k electric brake axles and radial tires provide a solid foundation for each Iron Bull dump trailer and ample grip for stopping power. A fresh coat of primer and powder coat gives each trailer a rugged finish with a showroom shine. Hydraulic cylinders are the muscle for each Iron Bull dump trailer with remote operated hydraulic pumps that feed the beast.

These trailers come with lifetime LEDs provided by TecNic lighting, and all units are powered by a deep cycle battery. Each Iron Bull Trailer also comes equipped with stake pockets, locking pump box, 5 position adjustable coupler, multi-function gate and 110v wall outlet charging receptacle for your battery.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
072
DTG

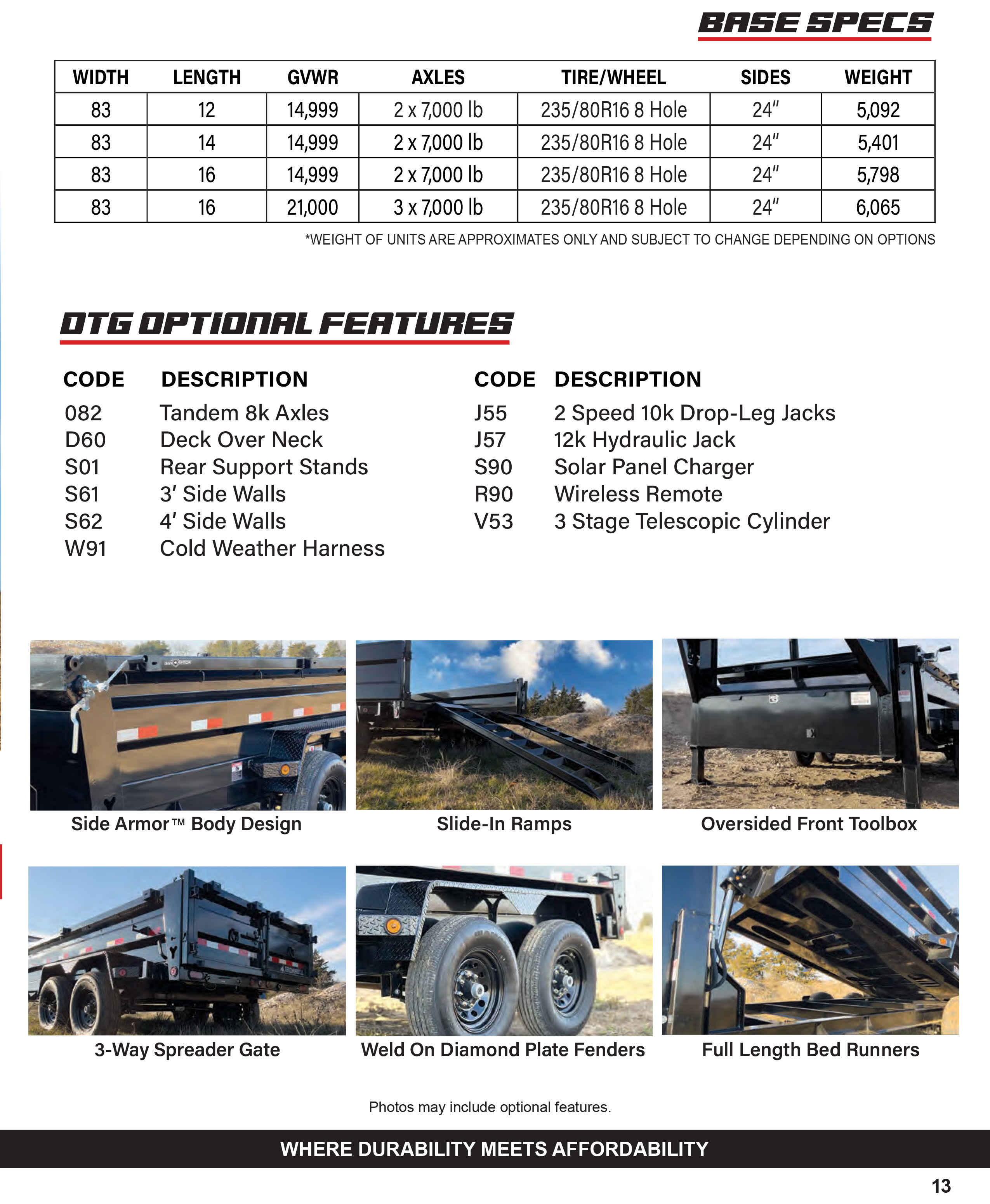

Specifications

WIDTH: 83
LENGTH: 12
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

SIDES: 24"
WEIGHT: 5,092



WIDTH: 83
LENGTH: 14
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

SIDES: 24"
WEIGHT: 5,401

WIDTH: 83
LENGTH: 16
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

SIDES: 24"
WEIGHT: 5,798



WIDTH: 83
LENGTH: 16
GVWR: 21,000
AXLES: 3 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

SIDES: 24"
WEIGHT: 6,065

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

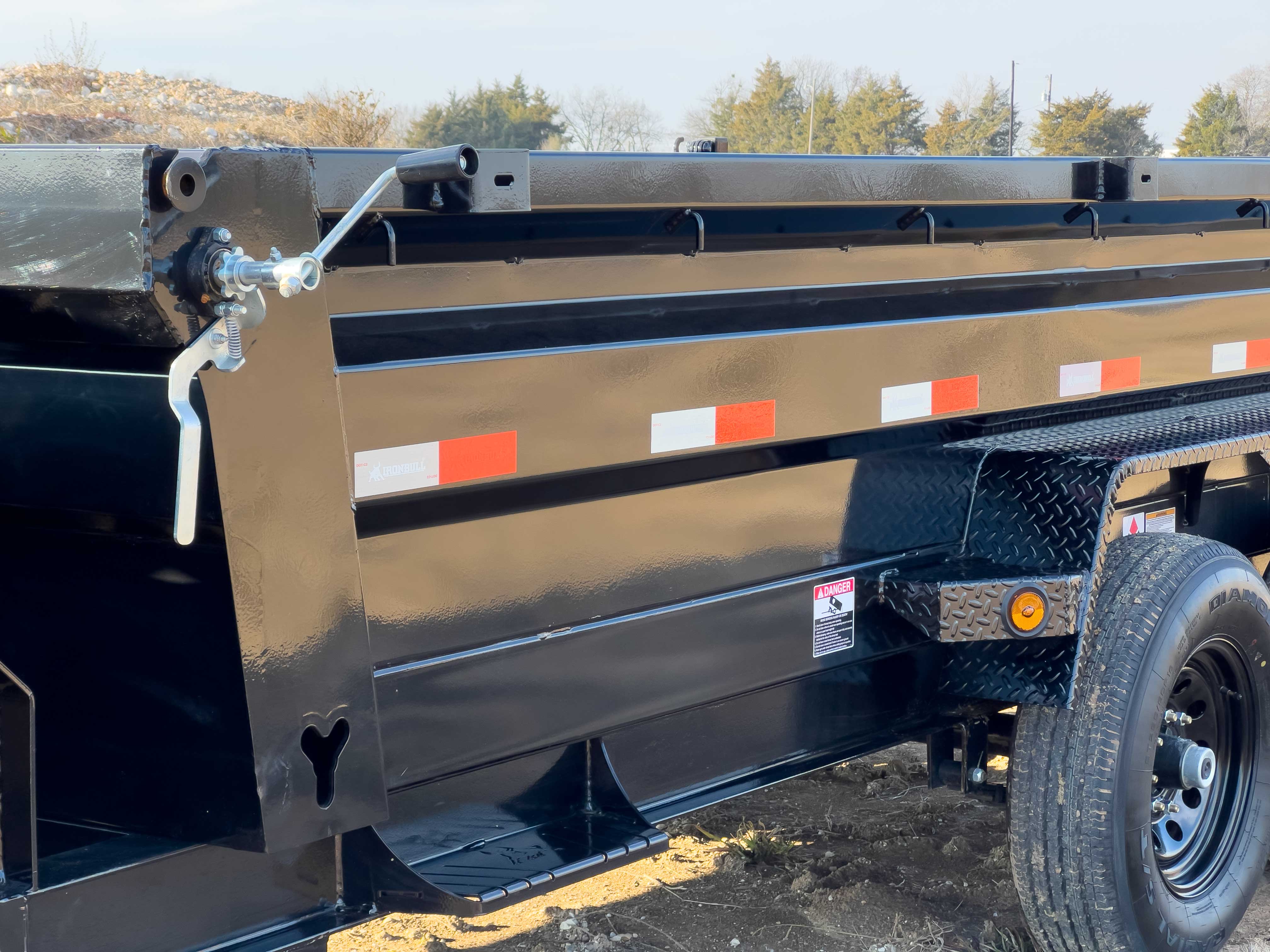

Side Armor™ Body Design

2 5/16" Adjustable Auto Latching Coupler

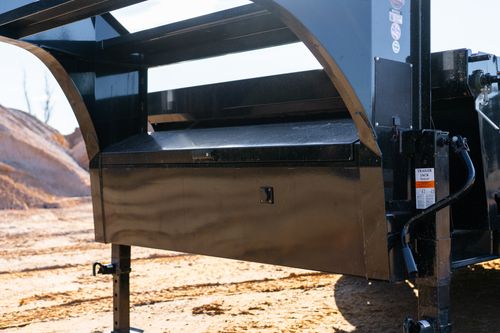

Locking Pump Box

ST235/80 R16 LRE Radial Tires

7k Cambered Brake Axles

Standard Stake Pockets

Reinforced Top Rail

Multi-leaf Slipper Spring Suspension

Weld On Diamond Plate Fenders

Slide-In Ramps

Black Mod Wheels*

Four Floor Mounted 1/2" D-Rings

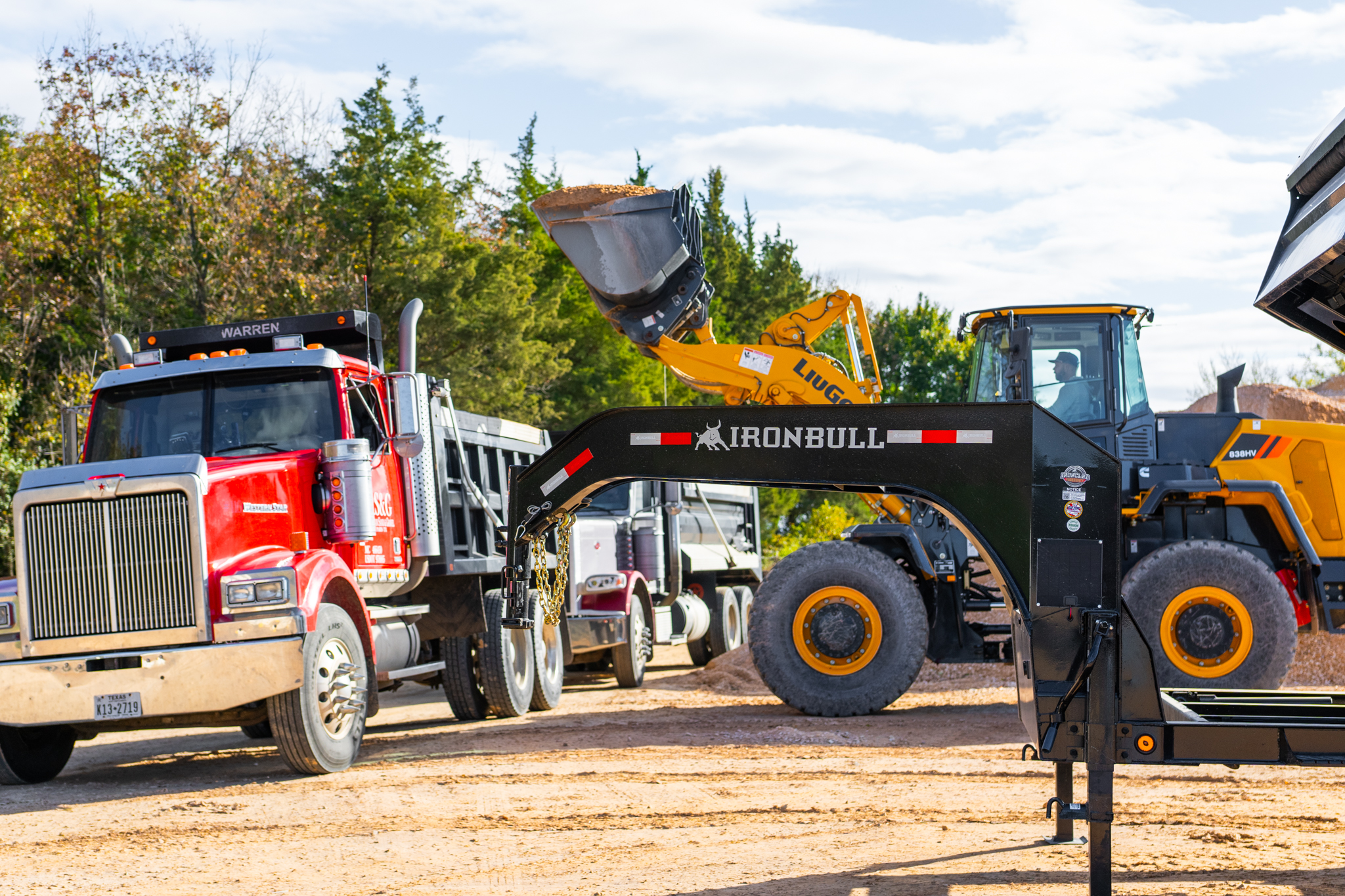

12" I - Beam Neck and Risers

Spare Tire Mount

DOT Approved Lifetime LED Lighting

7 Gauge Steel Flooring

Rear Support Stand Bracket

Molded Sealed Harness with Resistors

4" Tubing Bed Frame.

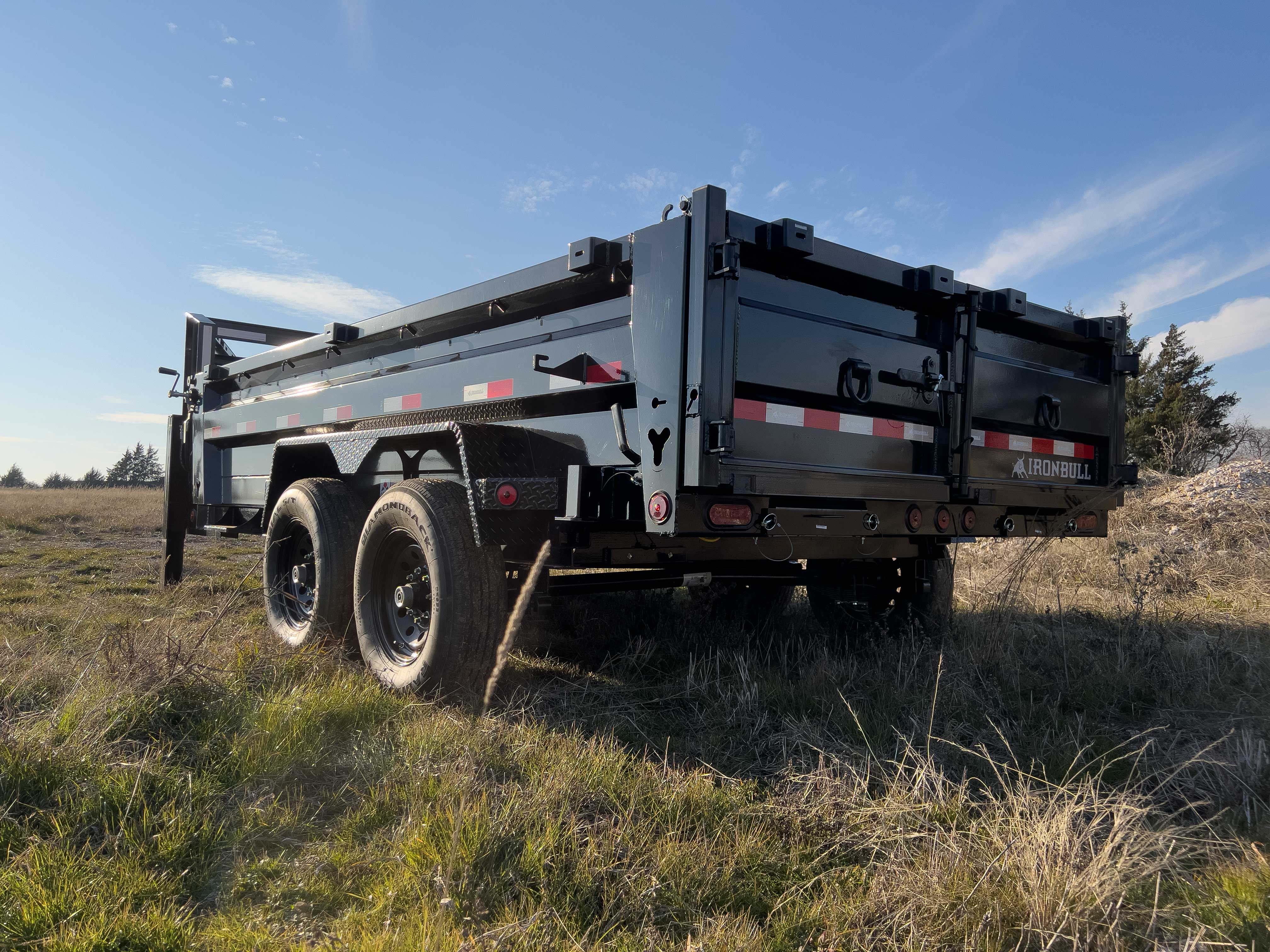

Three-Way Spreader Gate

LED Voltage Indicater in Remote

Full Length Bed Runners and Ramp Pockets

Powder Coat & Primer

Built-In 5 amp Battery Charger

10 Gauge 24" Steel Sides

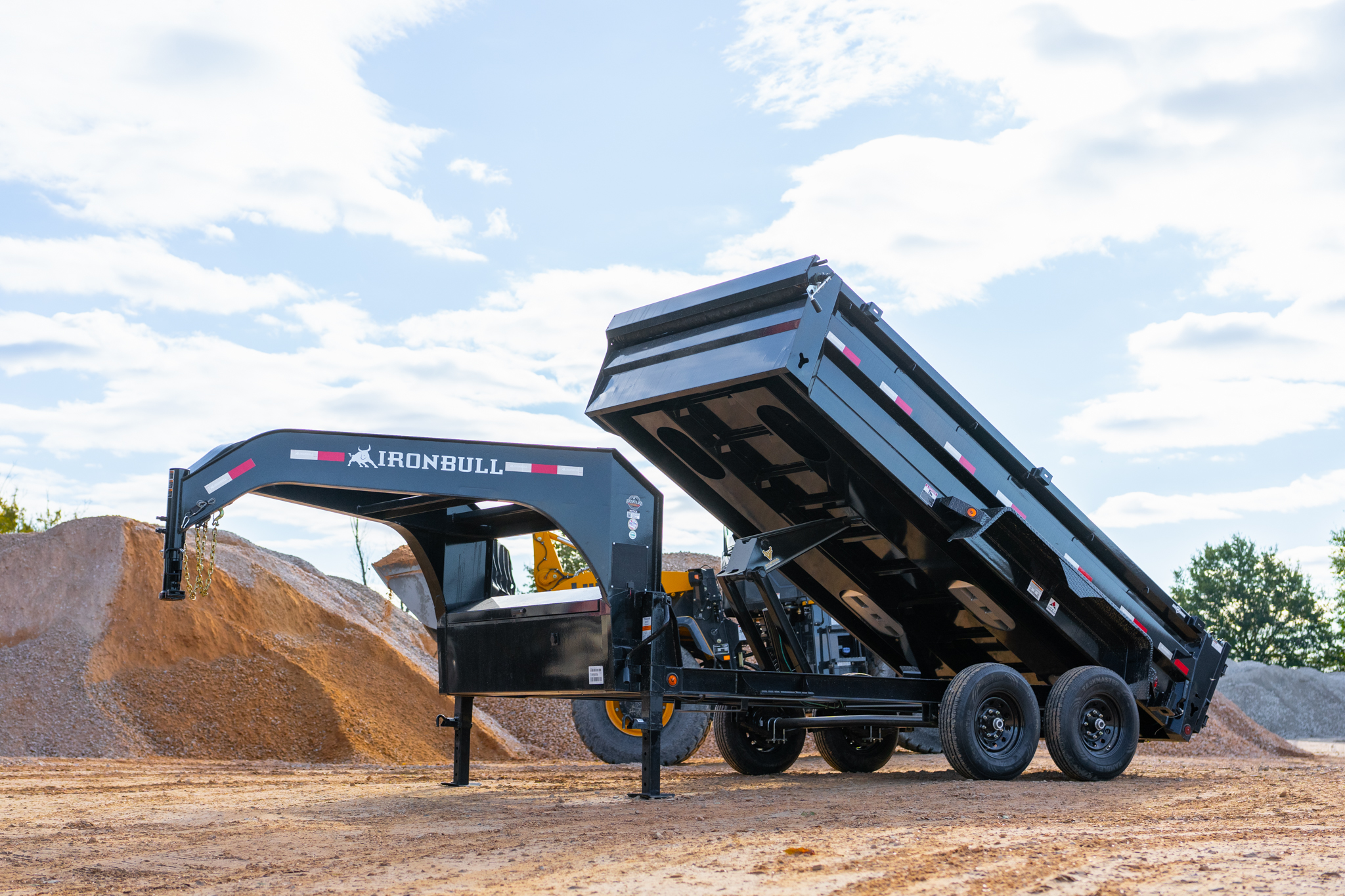

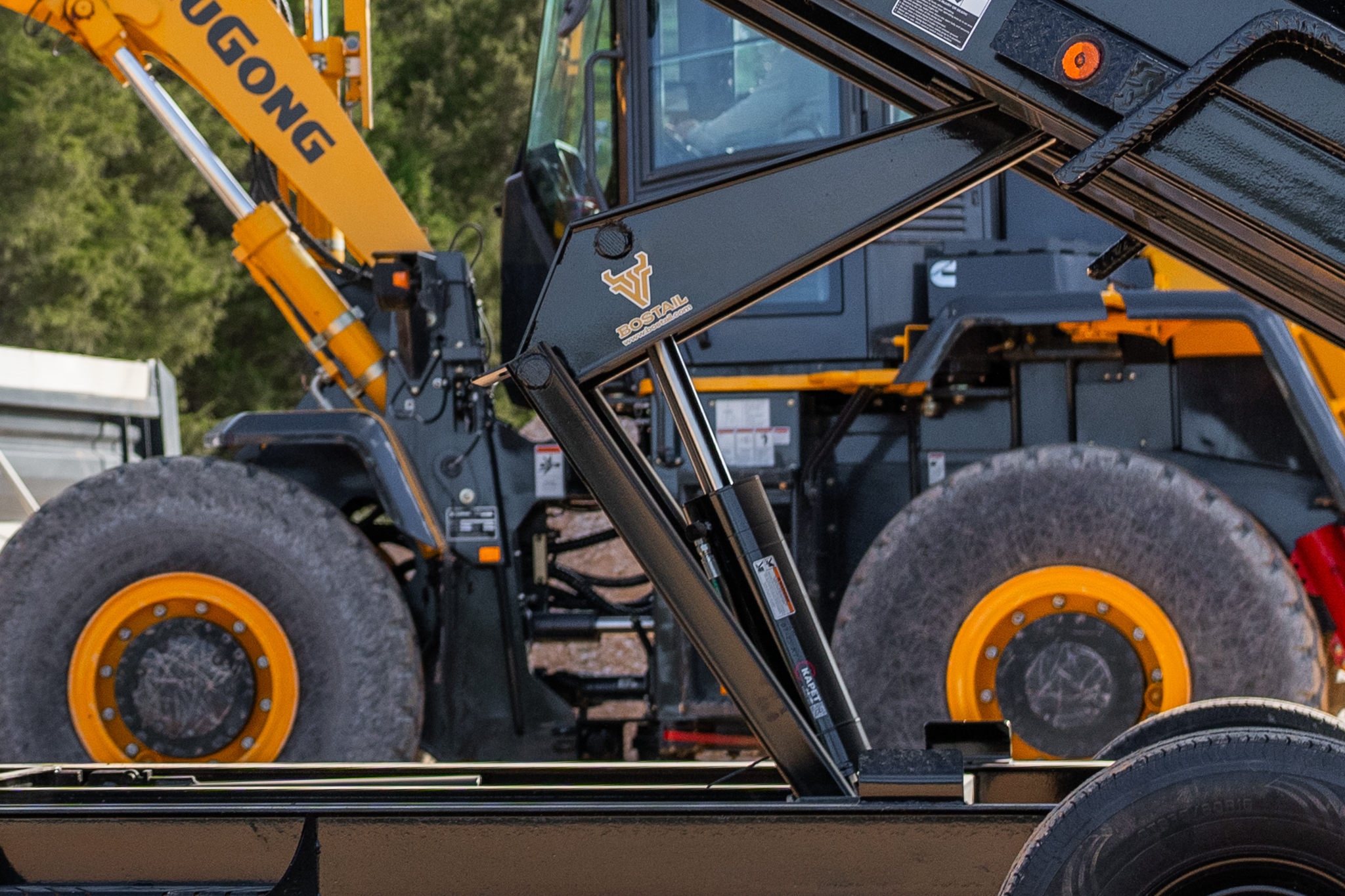

Scissor Hoist with 516 Cylinder

7-Way Receiver Female Plug with Adapter

Standard Retractable Tarp Kit

Double Acting Pump Unit w/ Gravity Down

32" Deck Height

Dual 10k Drop-Leg Jacks

Flow Control Valve

options

Ramps (14k, 21k) 16" x 80"

3 Stage Telescopic Cylinder

Rear Stabilizer Jacks

2 Speed 10K Drop-Leg Jacks

2 12K Hydraulic Jacks

Solar Charger (1.5Amp)

Deck Over Neck

Cold Weather Harness

Wireless Remote

3-Way Pump

24" Solid Side Extensions

3' - 4' Side Walls

Triple Axle Available
