0.9
17
6
DWB14
83 x 12-14-16
SIZES
14,999 lb
GVWR
DWB14
14k Mono Frame I-Beam
No items found.
14,000lb Dump Trailer with 8” I-Beam Frame
SIZES
83 x 12-14-16
GVWR
14,999 lb

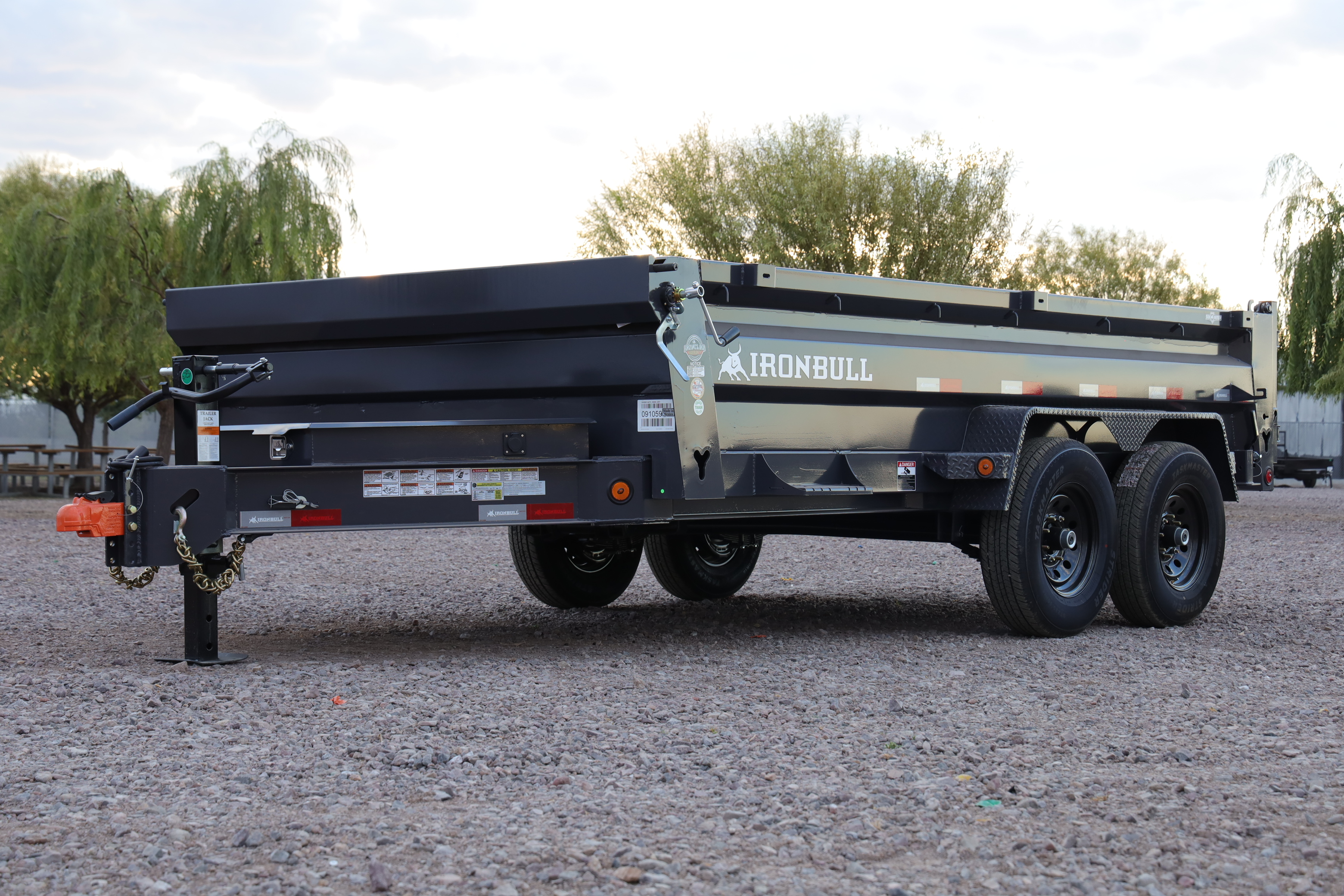

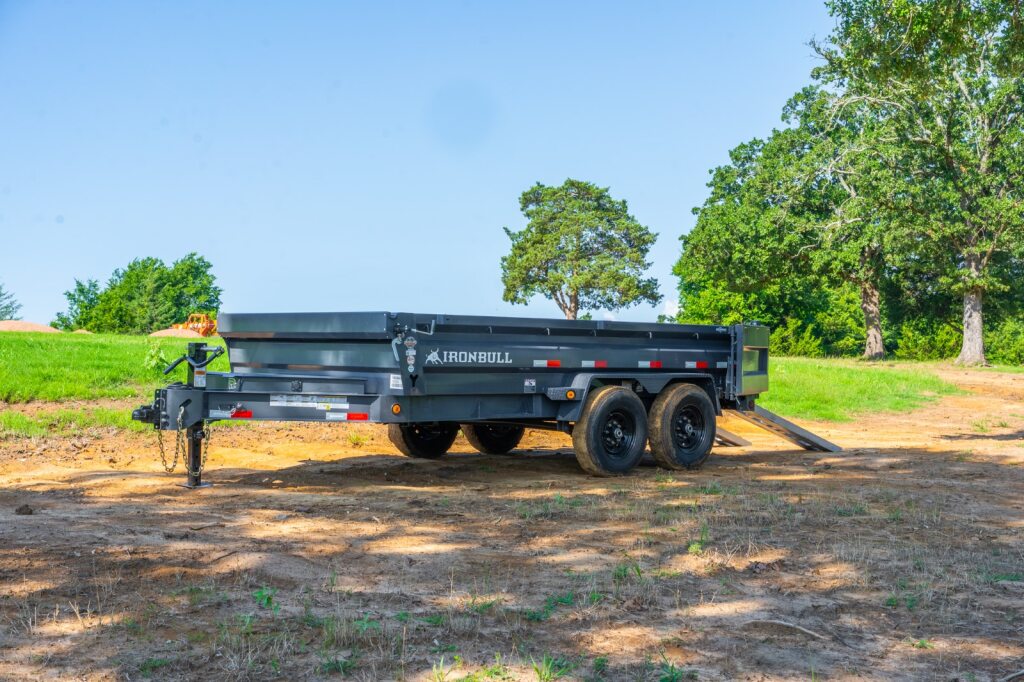

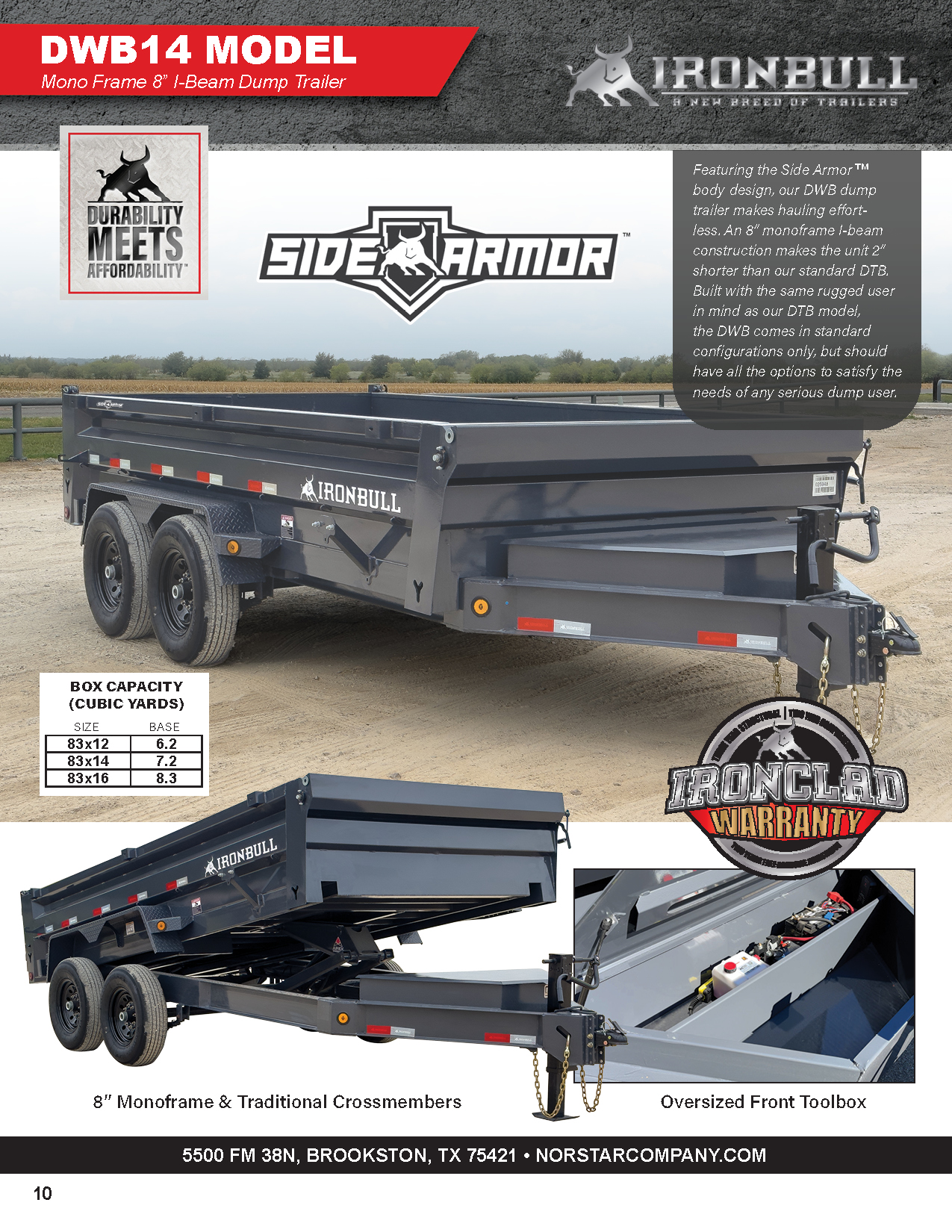

The Iron Bull DWB Dump Trailer is a powerhouse of durability and efficiency. It comes equipped with a robust 8” monoframe I-beam construction and heavy-duty 7-gauge steel flooring, making it more than capable of handling demanding loads with ease. While it's 2 inches shorter than our DTB model, the DWB is built with the same rugged, performance-driven user in mind. Designed for those who demand strength and simplicity, the DWB is available in standard configurations only, but don't let that fool you—it’s packed with all the essential features you need!

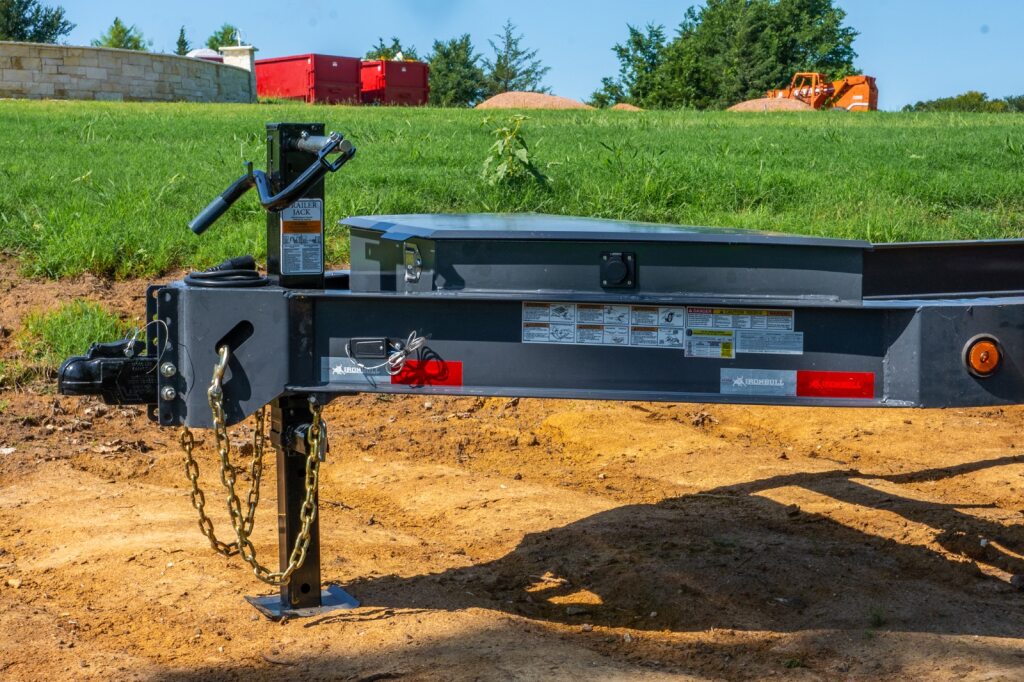

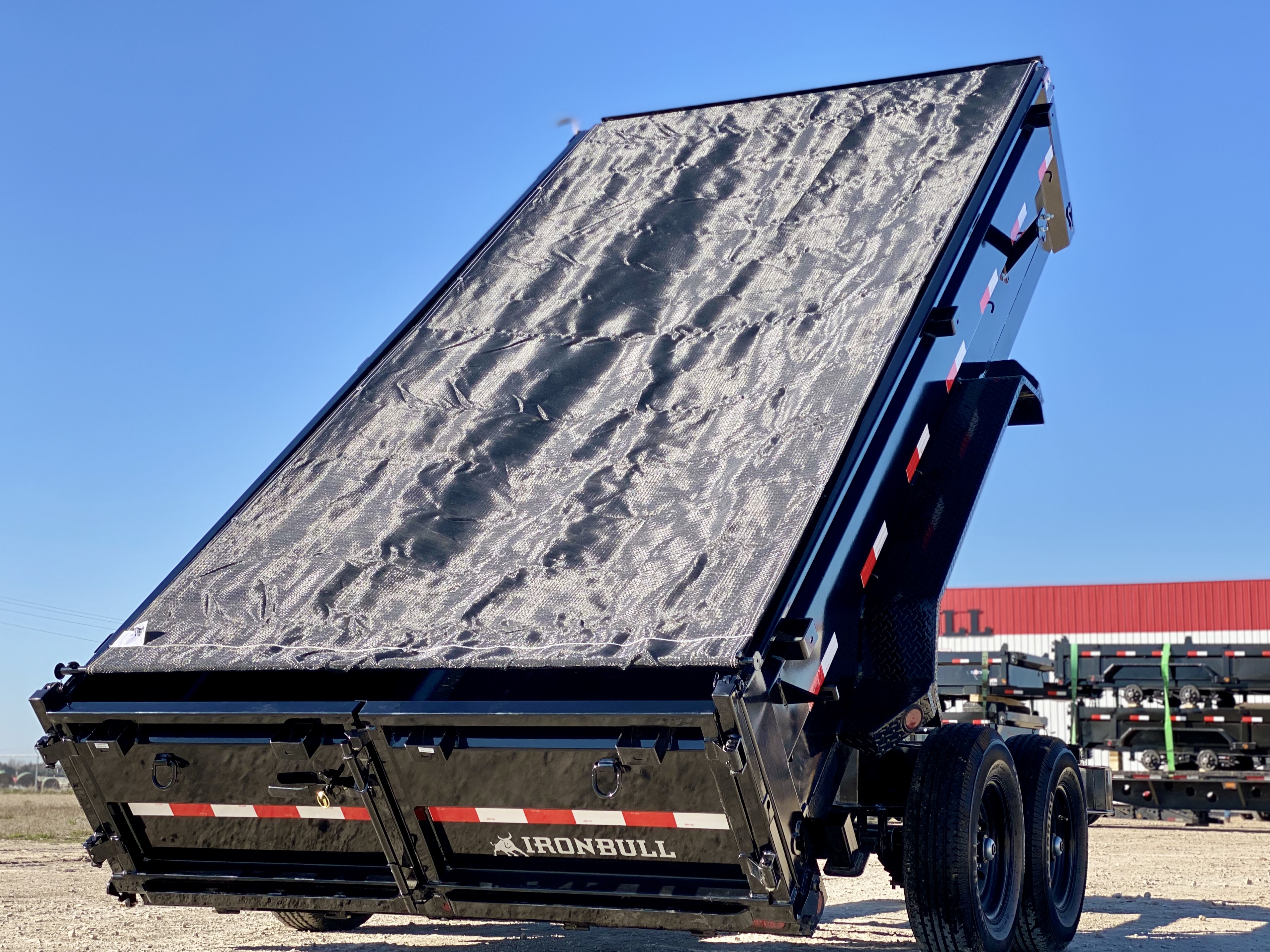

The models include a beefy 8” I-beam frame, 7-gauge floor, 24" 10 gauge sides with 7k machined brakes that will not bend, bow, or buckle even under the most demanding conditions. An supersized locking front toolbox with a divider ensures ample storage that will not interfere with your pump or battery. The front is capped off with a reinforced 2 5/16” coupler and standard 10k jack. A three way gate will ensure maximum flexibility for transport and dumping, while the standard tarp will make sure your loads make it to their destination. D-rings, Y-hooks, and stake pockets are also thrown in for multiple tie-down options.

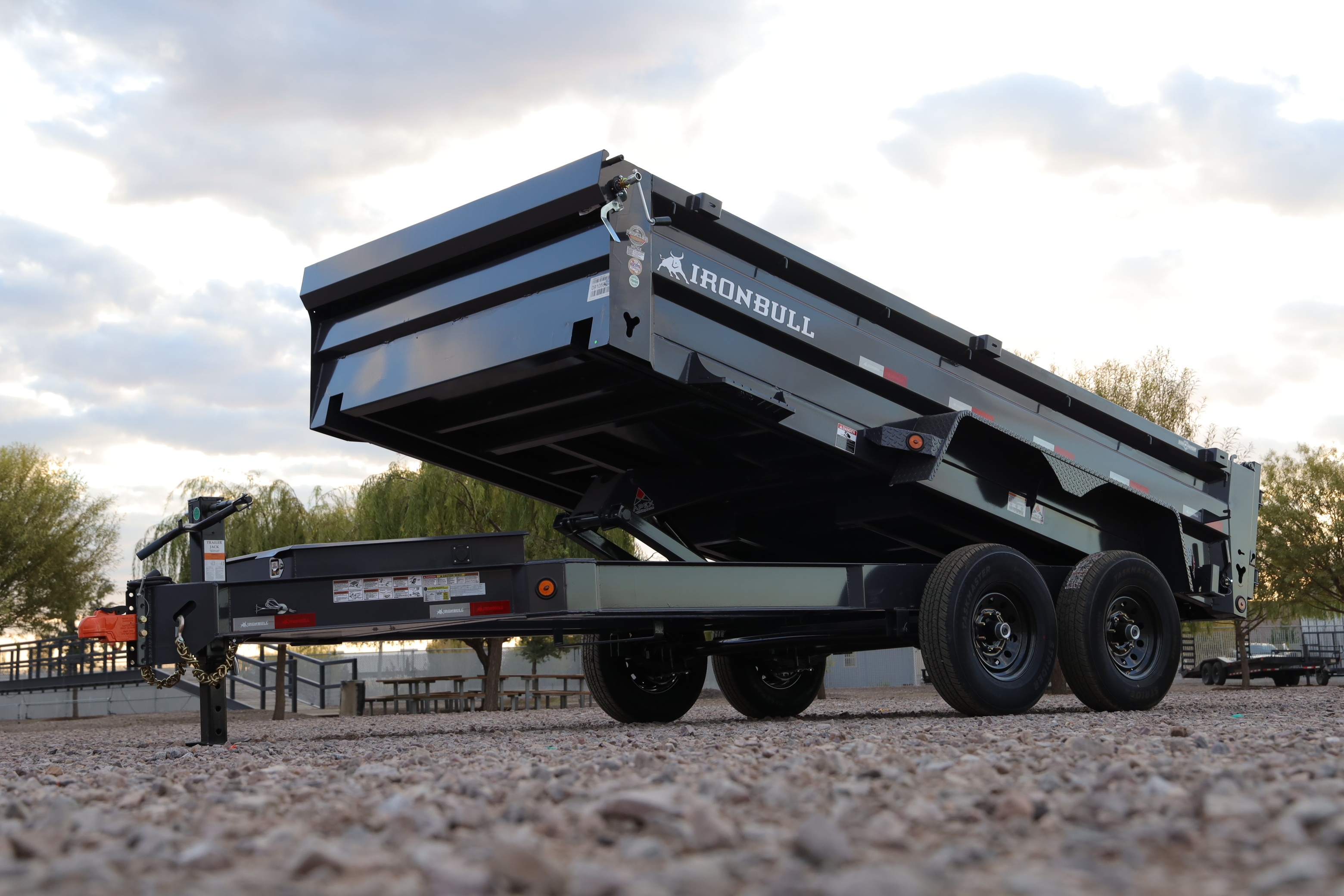

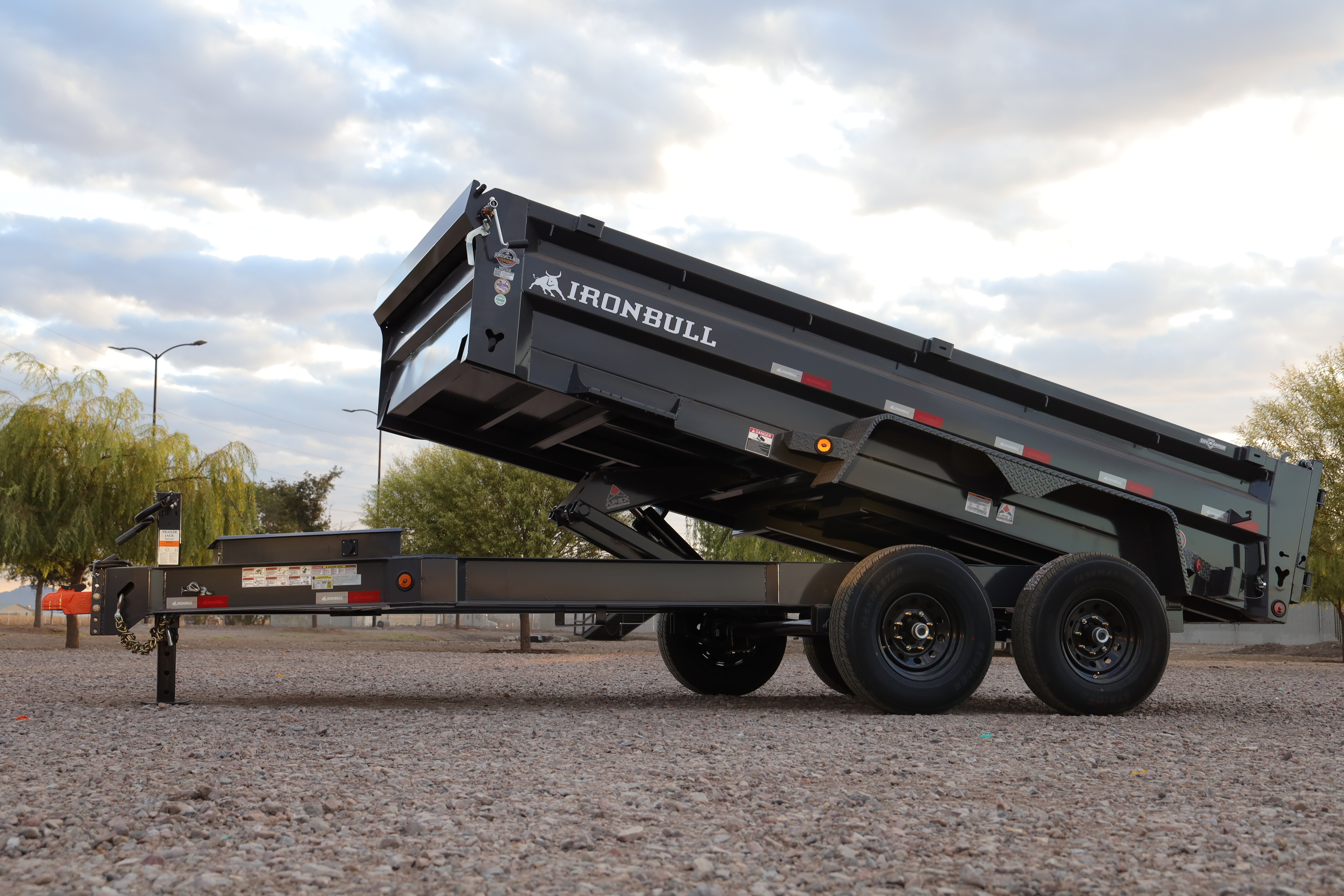

This model also comes equipped with slide-in ramps, 7k electric brake axles, radial tires, and a 5 amp wall charger. 5/16 cylinder scissor hoists give you maximum lift power. All lights are sealed lifetime LEDs, and all trailers are equipped with sealed wire harnesses. These units are also backed by our industry-best IronClad warranty which covers every unit with a three year structural, two year component warranty, and two years free roadside assistance. So grab a bull by the horns and hook up to a DWB today.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
072
DWB

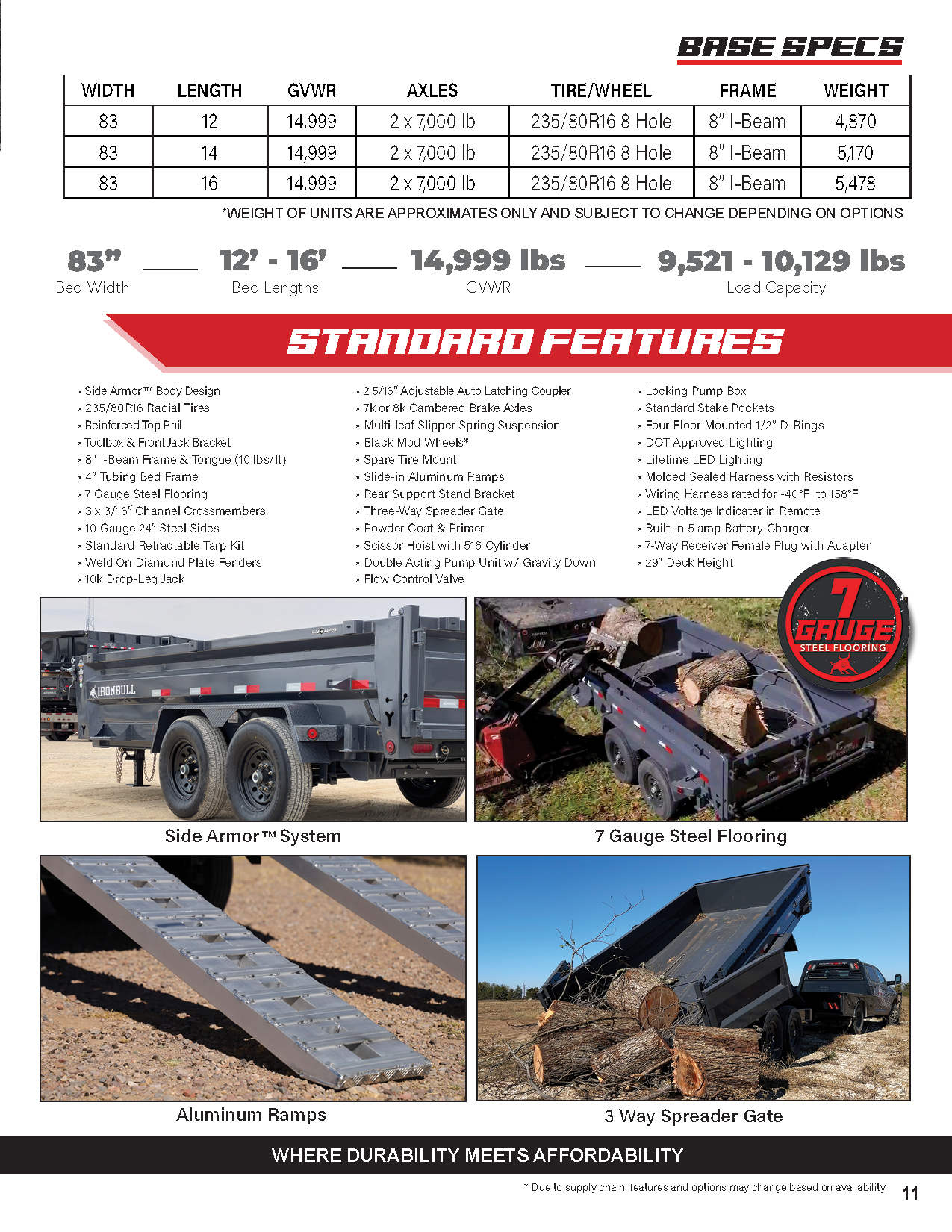

Specifications

WIDTH: 83
LENGTH: 12
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 8" IBEAM
WEIGHT: 4,870



WIDTH: 83
LENGTH: 14
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 8" IBEAM
WEIGHT: 5,170

WIDTH: 83
LENGTH: 16
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 8" IBEAM
WEIGHT: 5,478

Weight of unit are approximates only and subject to change depending on options

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

Side Armor™ Body Design

235/80R16 Radial Tires

Reinforced Top Rail

Toolbox and Front Jack Bracket

8" I-Beam Frame and Tongue (10 lbs/ft)

4" Tubing Bed Frame

7 Gauge Steel Flooring

3 x 3/16" Channel Crossmembers

10 Gauge 24" Steel Sides

Standard Retractable Tarp Kit

Weld On Diamond Plate Fenders

10k Drop-Leg Jack

25/16" Adjustable Auto Latching Coupler

7k or 8k Cambered Brake Axles

Multi-leaf Slipper Spring Suspension

Black Mod Wheels*

Spare Tire Mount

Slide-in Ramps

Rear Support Stand Bracket

Three-Way Spreader Gate

Powder Coat and Primer

Scissor Hoist with 516 Cylinder

Double Acting Pump Unit w/ Gravity Down

Flow Control Valve

Locking Pump Box

Standard Stake Pockets

Four Floor Mounted 1/2" D-Rings

DOT Approved Lighting

Lifetime LED Lighting

Molded Sealed Harness with Resistors

LED Voltage Indicater in Remote

Built-In 5 amp Battery Charger

7-Way Receiver Female Plug with Adapter

29" Deck Height
