22,000 lb Super Single 10K

GVWR

22,000

WIDTH/LENGTH

83" 20' - 102" 28'

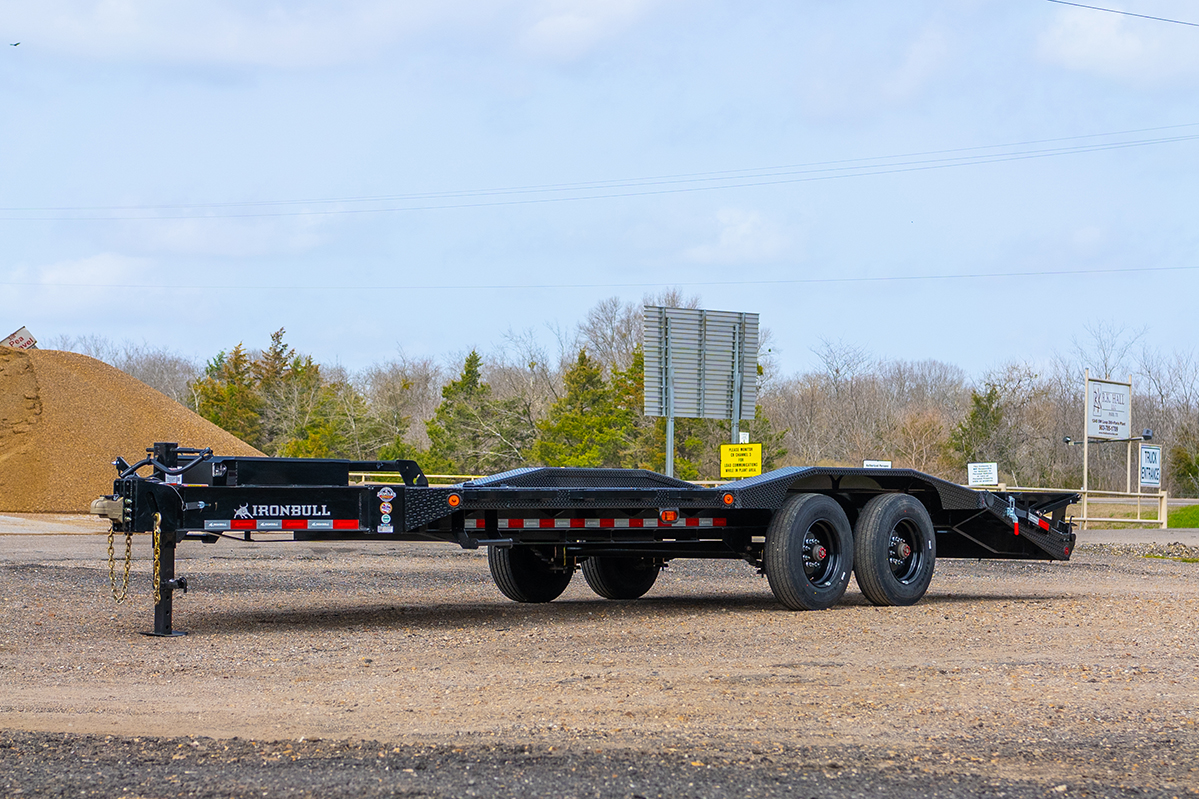

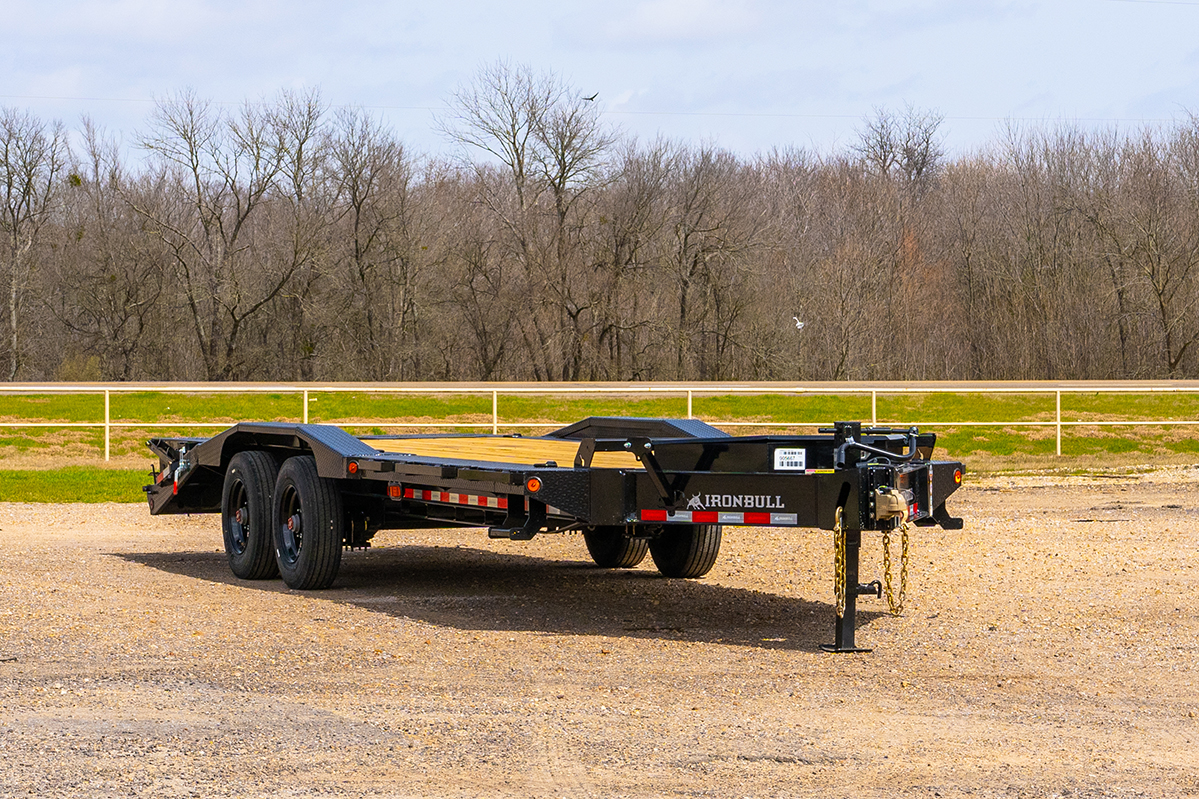

Engineered for heavy-duty hauling and rugged reliability, the EHB is your go-to solution when performance and durability are non-negotiable. This powerhouse is equipped with two 10,000 lb straight single wheel axles, including electric brakes for enhanced stopping power and control under load.

Constructed with a 10" I-beam underframe bridge, the EHB features a 83" or 102" wide straight deck supported by 16" crossmembers made of 3" 3.5 lb C-channel steel, ensuring structural integrity for the most demanding jobs. The deck is finished with treated wood flooring for long-lasting durability in all weather conditions.

For convenience and versatility, the trailer includes 8' slide-in ramps, drive-over diamond plate fenders, and a full-size front toolbox integrated into the tongue. The bumper pull adjustable 25k 2-5/16” coupler and spring-loaded drop-leg jack (10K) offer straightforward hookup and leveling, even with heavy equipment.

REQUEST A QUOTE

add review

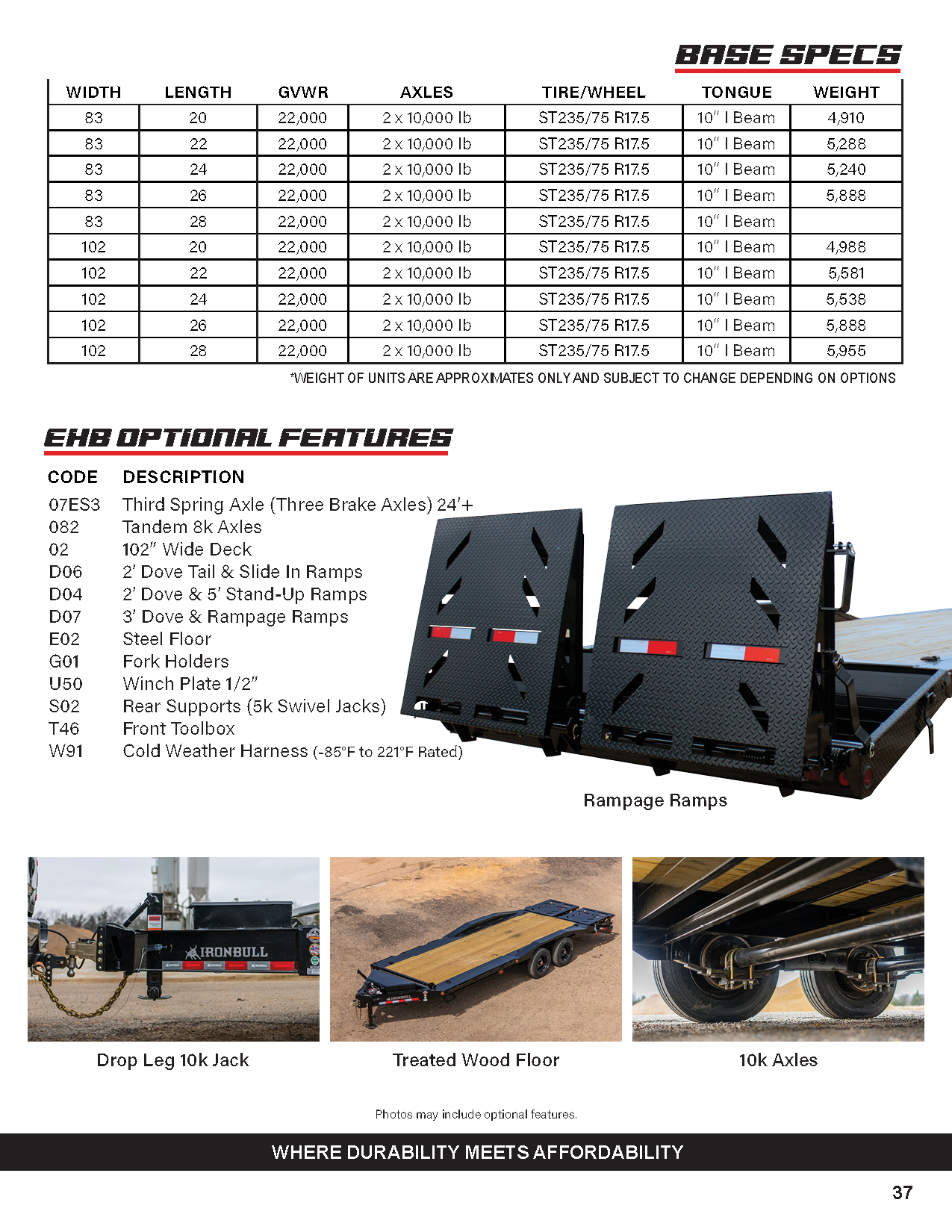

Specifications

WIDTH: 83
LENGTH: 20
GVWR: 22,000

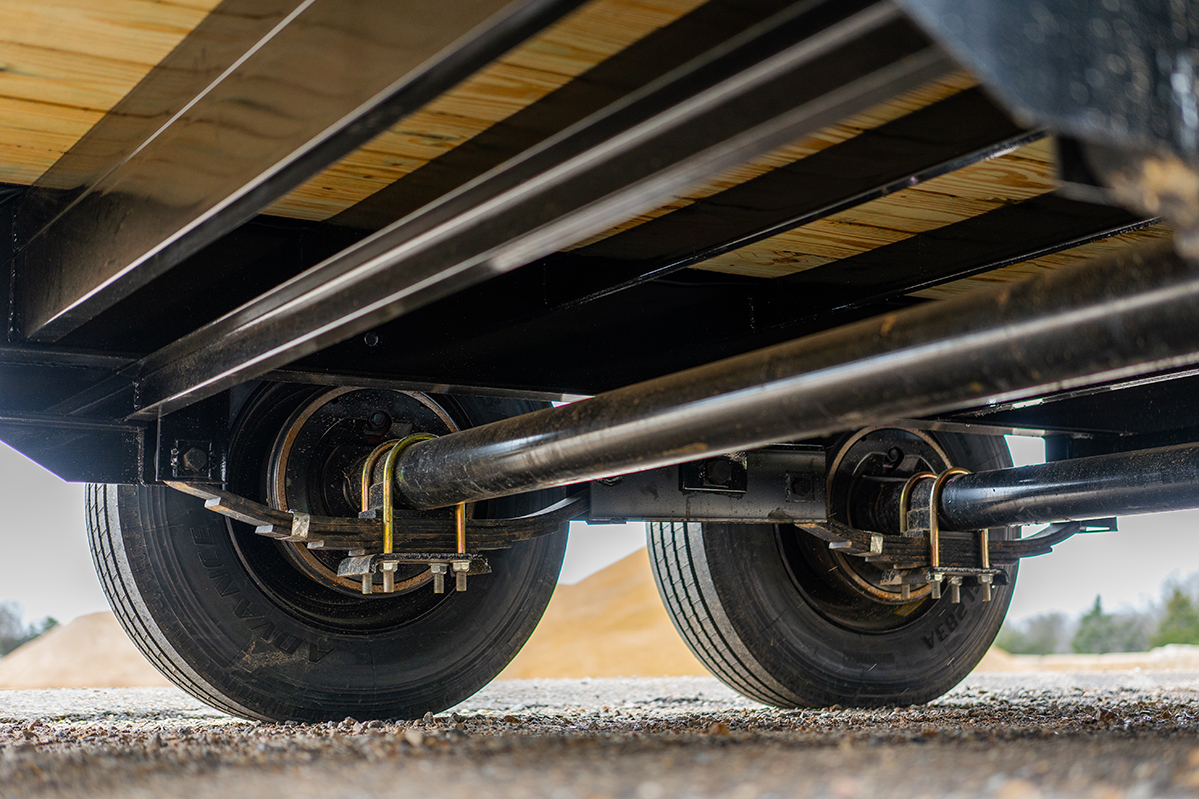

AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT:

WIDTH: 83
LENGTH: 22
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT:

‍

WIDTH: 83
LENGTH: 24
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT: 3,626

‍

WIDTH: 83
LENGTH: 26
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT:

‍

WIDTH: 83
LENGTH: 28
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT:

‍

WIDTH: 102
LENGTH: 20
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT:

‍

WIDTH: 102
LENGTH: 22
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT:

‍

WIDTH: 102
LENGTH: 24
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT: 3,675

‍

WIDTH: 102
LENGTH: 26
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT:

‍

WIDTH: 102
LENGTH: 28
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 215/75R17.5 8 HOLE
TONGUE: 10" I BEAM

WEIGHT:

‍

*Weight of units are approximates only and subject to change depending on options.

‍

*Weight of units are approximates only and subject to change depending on options.

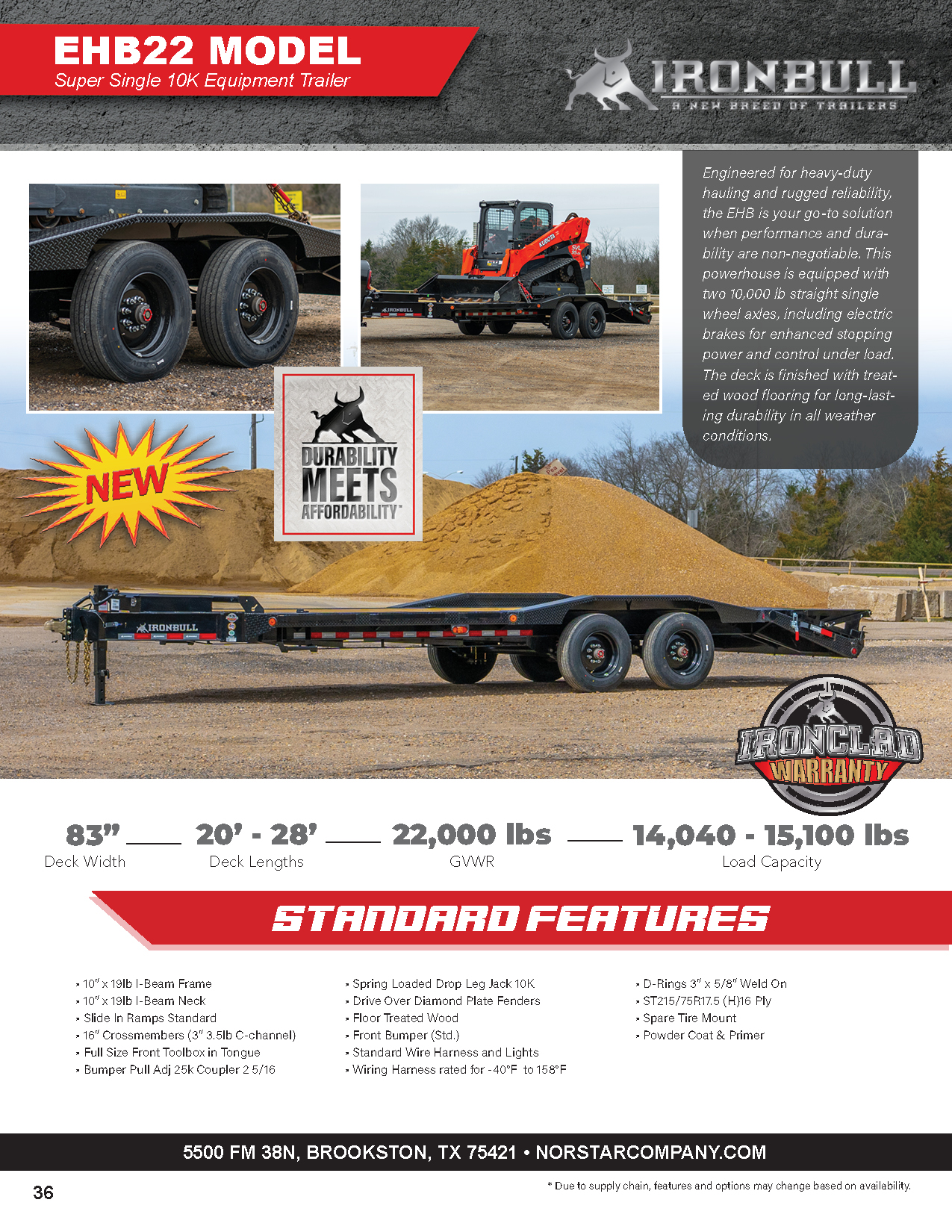

Standard Features

10" x 19lb I-Beam Frame

10" x 19lb I-Beam Neck

Slide In Ramps

16" Crossmembers (3" 3.5lb C-channel)

Full Size Front Toolbox in Tongue

Bumper Pull Adj 25k Coupler 2 5/16

Spring Loaded Drop Leg Jack 10K

Drive Over Diamond Plate Fenders

Floor Treated Wood

Front Bumper (Std.)

Standard Wire Harness and Lights

D-Rings 3" x 5/8" Weld On

ST215/75R17.5 (H)16 Ply

Spare Tire Mt.

BLK - Black

‍

options

Straight Deck with 8' Slide In Ramps

4ft Dove Tail with 8' Slide In Ramps

12" Crossmembers

Steel Floor

Blackwood Floor

Winch Plate

Rear Supports (5k Swivel)

Jack Hydraulic Atlas Assy 2 -12k

‍

bed size guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

Length: Measurement from cab to end of frame.
Width: Measurement from outside of tire to outside of tire
CTA: Measurement from cab to axle
Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
Models: ST, SF, SR, SD
Order Method: Model x Length x Width x CTA x Runner
Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

‍

Options gallery

Accessories/misc

Toolboxes

Ratchets

Sides

Jacks

Dove Tails & Ramps

Hydraulic Dove Options

Flooring

Accessories/misc

U50 - half inch winch plate in floor

this optional feature adds a winch plate into the floor of your trailer for a winch to be mounted on.

Dove Tails & Ramps

D04/D10/D11 - Dovetail with stand-up ramps

Combines dovetail with stand-up ramps making hauling efficient and hassle free.

Dove Tails & Ramps

D17 - Heavy Duty Stand Up Ramps

Stronger and more reinforced than our regular stand up ramps, these ramps are meant for bigger and heavier machinery & equipment Available in 2'x72".

Dove Tails & Ramps

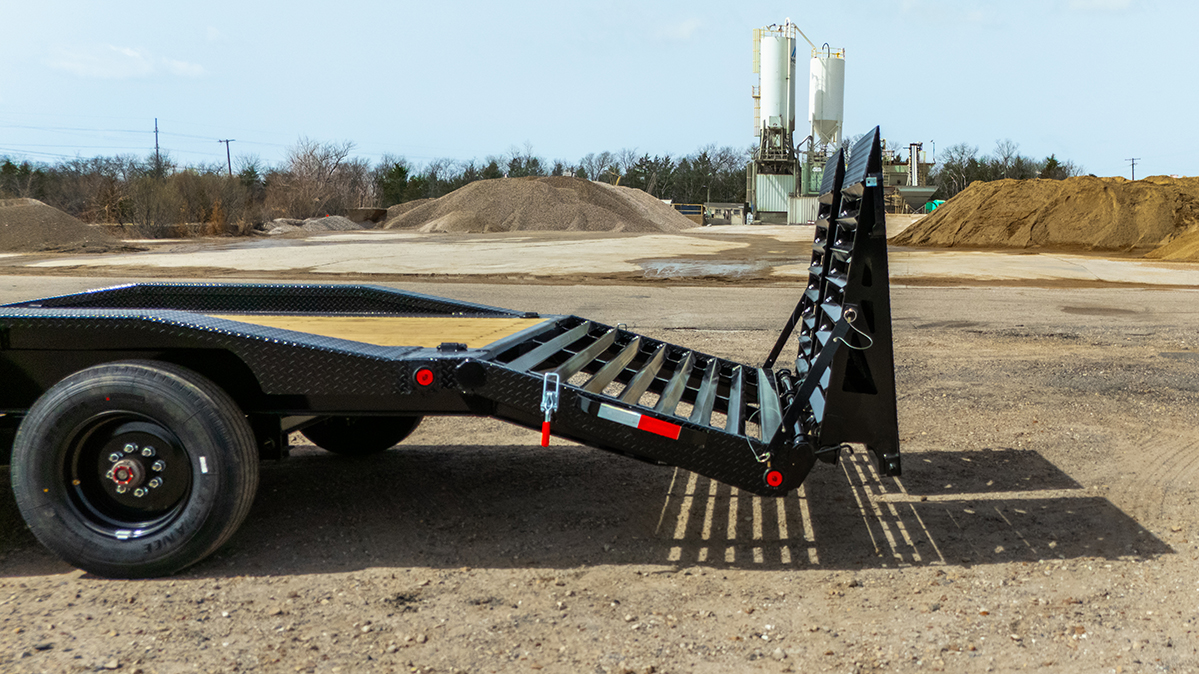

D07/D13/D30 - Rampage Ramps

Rampage Ramps are a tough, durable option for loading and unloading your trailer. Even better they are easy to use and flip over for convenient storage when not in use. Available in 3',4',5'.

Sides

P10 - Pipe Welded Sides

Adds welded pipe sides by the foot, giving your equipment trailer extra strength, containment, and durability.

Flooring

E03 - Blackwood Flooring

Blackwood flooring by the foot, combines lasting durability with enhanced traction for safer, easier loading.

Flooring

E02 - Steel Flooring

Adds a durable steel floor by the foot, delivering superior strength and long-lasting performance for heavy-duty use.

Accessories/misc

N02/N03 Extra D-Rings

Additional D-rings can be added for extra support, providing maximum tie-down options for safely securing equipment and cargo.

Jacks

J52/J56 - 12k Hydraulic Jack (if hydraulics NOT equipped)

Available in either a single or set of 2, our 12,000 lb hydraulic jacks ensuring strong, dependable litting capability for safe operation.

reviews

4.0

5.0

1k reviews

3.0

2.0

1.0

EHB

I needed to upgrade from a 7k to a 10k equipment trailer and the Iron Bull ETB10 fit the bill. The extras like the D rings and removable fenders are great and the overall build quality is awesome. Ive towed it all up and down the east coast with no issues. I would definitely recommend.

-Bryan B.

09/11/24
