EHG22
22,000 lb Super Single 10K Axle Gooseneck
No items found.
Equipment Gooseneck Trailer
WIDTH
83" - 102"
LENGTH
20' - 28'

BUILT TOUGH FOR SERIOUS HAULING. the EHG features two 10,000 lb straight axles with electric brakes, a 10" I-beam frame, and slide-in ramps. The treated wood floor, 16" crossmembers, and drive-over diamond plate fenders offer durability and ease of use. Engineered for heavy-duty hauling and rugged reliability, the EHG is your go-to solution when performance and durability are non-negotiable. This powerhouse is equipped with two 10,000 lb straight single wheel axles, including electric brakes for enhanced stopping power and control under load. Constructed with a 10" I-beam underframe bridge, the EHG features a 83" or 102" wide straight deck supported by 16" crossmembers made of 3" 3.5 lb C-channel steel, ensuring structural integrity for the most demanding jobs. The deck is finished with treated wood flooring for long-lasting durability in all weather conditions. For convenience and versatility, the trailer includes 8' slide-in ramps, drive-over diamond plate fenders, and a full-size front toolbox between the neck. The gooseneck adjustable 25k 2-5/16” coupler and spring-loaded drop-leg jacks (10K) offer straightforward hookup and leveling, even with heavy equipment.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
102
EHG

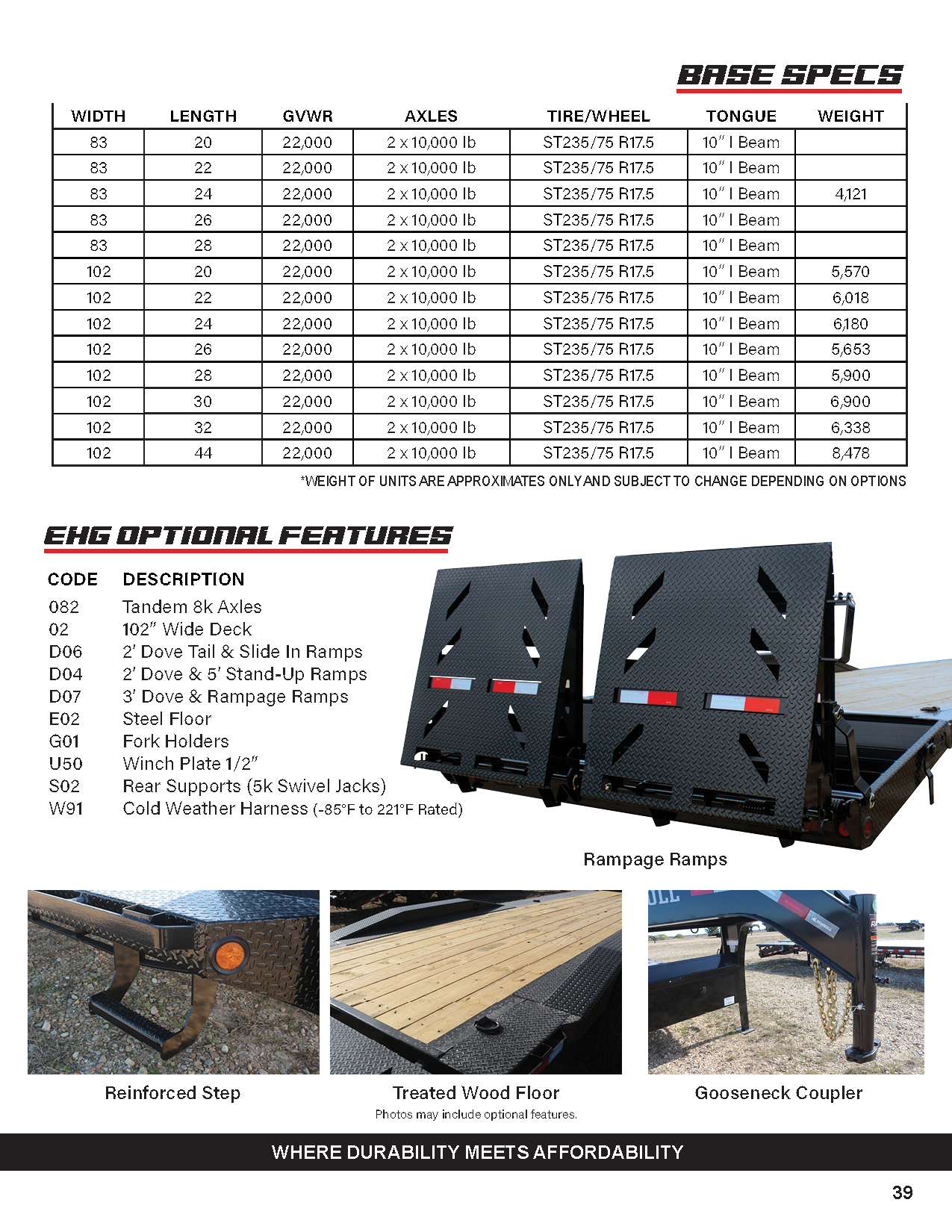

Specifications

WIDTH: 83
LENGTH: 20
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:



WIDTH: 83
LENGTH: 22
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:

WIDTH: 83
LENGTH: 24
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT: 4,121

WIDTH: 83
LENGTH: 26
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:

WIDTH: 83
LENGTH: 28
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:

WIDTH: 102
LENGTH: 20
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:

WIDTH: 102
LENGTH: 22
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:

WIDTH: 102
LENGTH: 24
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:

WIDTH: 102
LENGTH: 26
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:

WIDTH: 102
LENGTH: 28
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST215/75R17.5
TONGUE: 10" I BEAM

WEIGHT:

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.

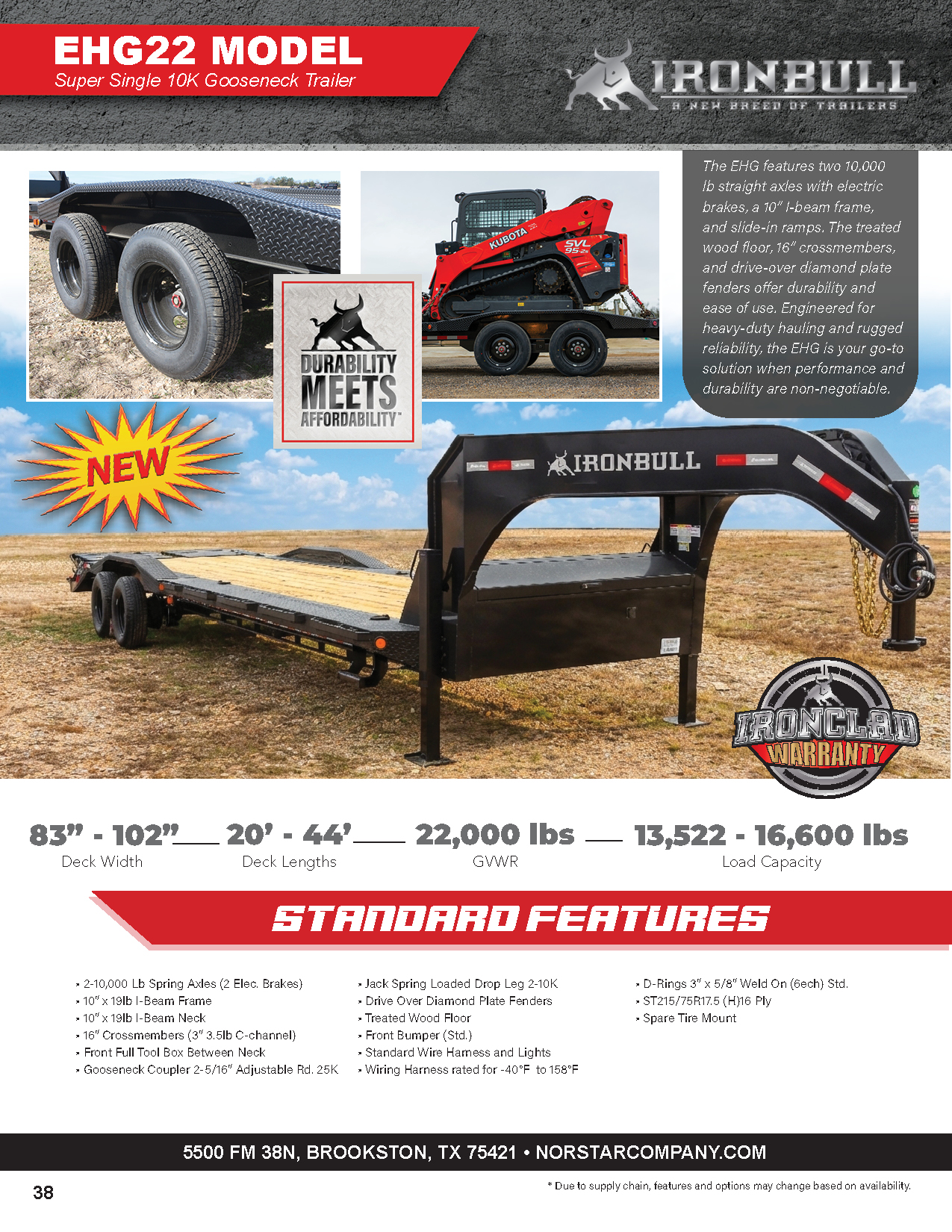

Standard Features

2-10,000 Lb Spring Axles (2 Elec. Brakes)

10" x 19lb I-Beam Frame

10" x 19lb I-Beam Neck

16" Crossmembers (3" 3.5lb C-channel)

Front Full Tool Box Between Neck

Gooseneck Coupler 2-5/16" Adjustable Rd. 25K

Jack Spring Loaded Drop Leg 2-10K

Drive Over Diamond Plate Fenders

Floor Treated Wood

Front Bumper (Std.)

Standard Wire Harness and Lights

D-Rings 3" x 5/8" Weld On (6ech) Std.

ST215/75R17.5 (H)16 Ply

Spare Tire Mt.

BLK - Black
