0.9
18
3
EWB16
83 x 20--24'
SIZES
16,000 lb
GVWR
EWB16

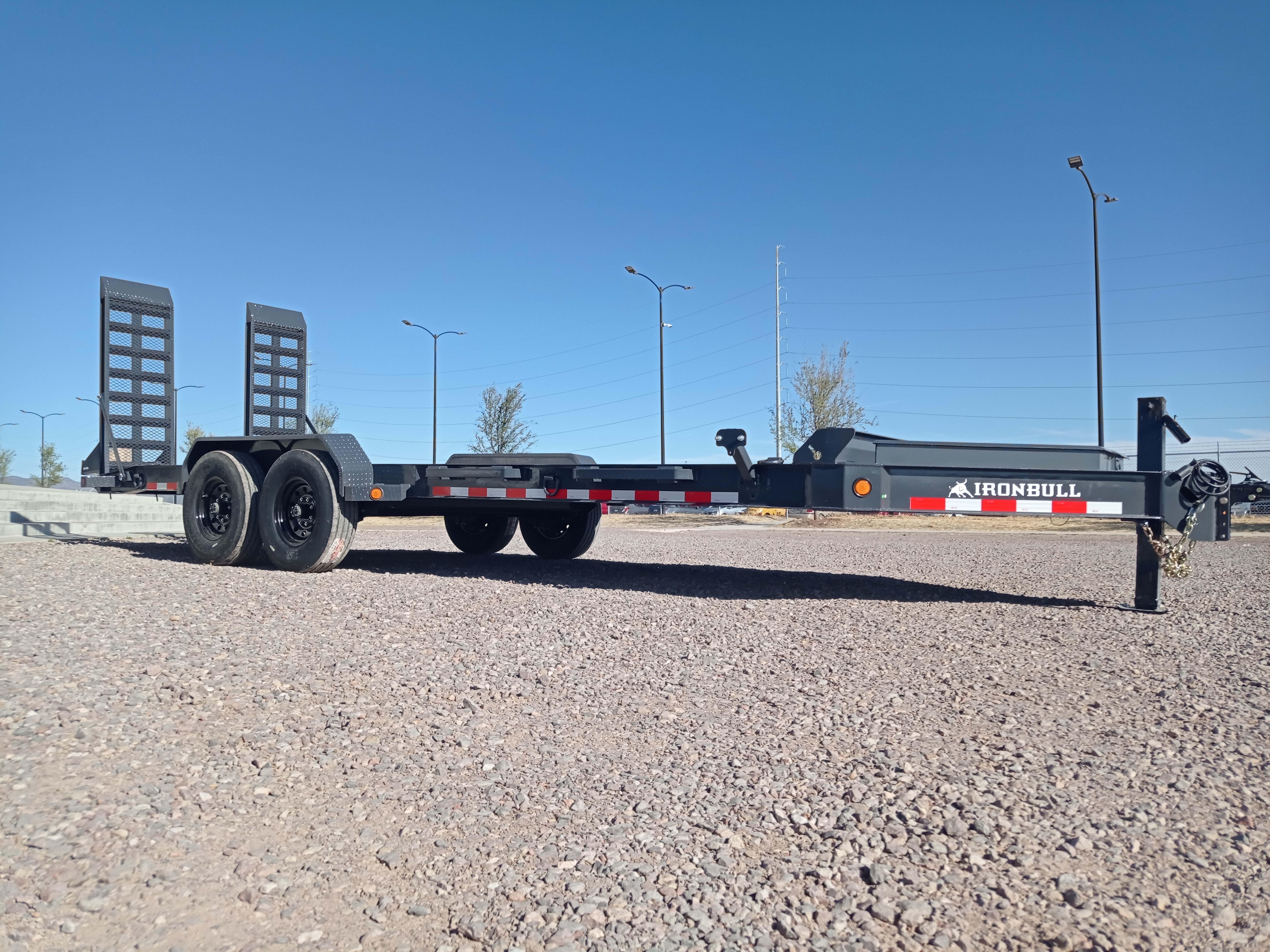

Equipment Trailer with 8” I-Beam Frame
No items found.
16k Mini Beam Hauler
SIZES
83 x 20--24'
GVWR
16,000 lb

The Ironbull EWB, available in 14k or 16k GVWR, delivers a balanced and smooth towing experience built for serious work. The oversized front toolbox offers organized storage that keeps your tools secure and easily accessible, eliminating clutter and minimizing the chance of lost or misplaced items. Built with a robust 8" I-beam frame and tongue, and available in 83" or 102" widths, this equipment hauler is ready to tackle any job efficiently and reliably.

In addition to the monobeam frame construction, this trailer also receives our new supersized full tongue front toolbox as standard equipment and can be equipped with our rampage ramps or 6’ HD ramps. You will still find several great Iron Bull standards on this trailer such as 8k brake axles and radial tires, powder coat, and USA made LEDs are provided by TecNic lighting. Each EWB trailer also comes equipped with D-Ring tie downs, removable diamond plate fenders, and adjustable coupler. And, as always, these trailers are covered by our industry-best IronClad warranty providing three year structural, two year component and two year free roadside assistance.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
082
EWB

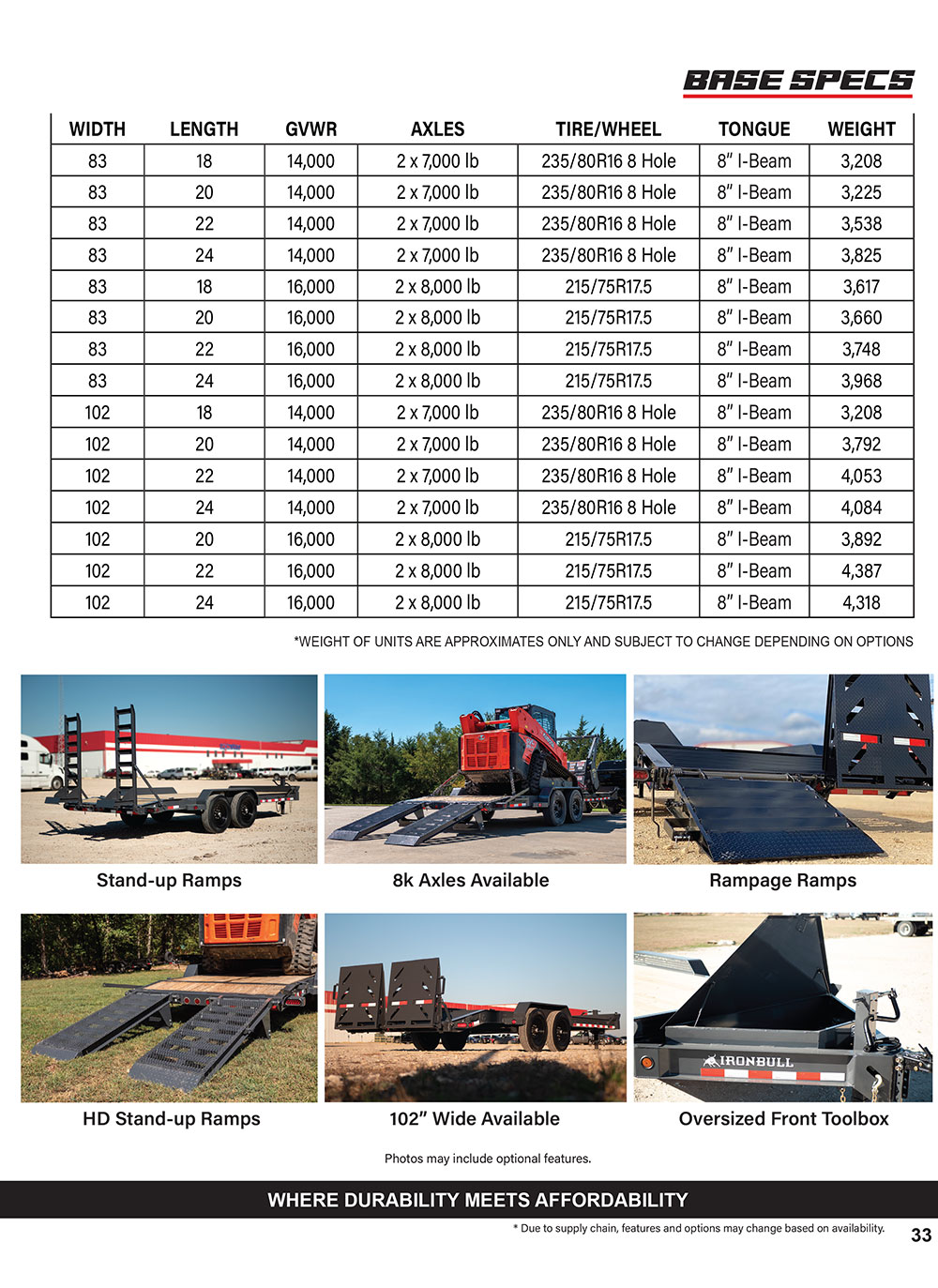

Specifications
*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.

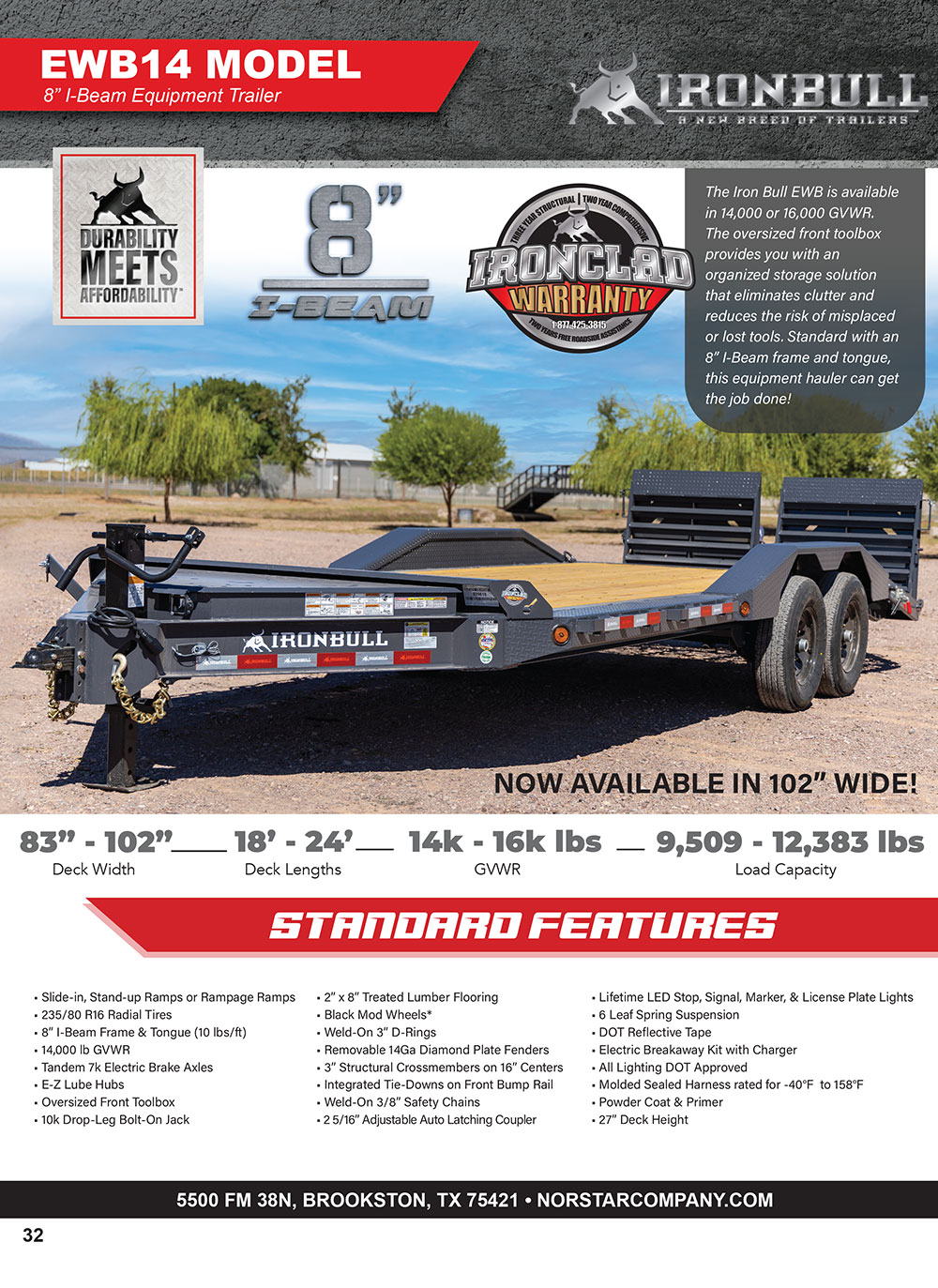

Standard Features

8” I-Beam Frame and Tongue (10 lbs/ft )

Tandem 7k Brake Axles

Super Lube Hubs

235/80 R16 Radial Tires

Oversized Front Tool Box

10k Drop-Leg Bolt-On Jack

Slide in, Stand-Up Ramps or Rampage Ramps

2x8 Treated Lumber Flooring

16” Black Wheels

6 Weld-On D-Rings

Removable 14 Ga Diamond Plate Fenders

3” Structural Crossmembers on 16” Centers

Integrated Tie-Downs on Front Bump Rail

Weld-On 3/8” Safety Chains

5 Position 2 5/16” Ball Coupler

Powder Coat and Primer

Lifetime LED Stop, Signal, Marker, License Plate Lights

6 Leaf Spring Suspension

DOT Reflective Tape

Electric Breakaway Kit with Charger

All Lighting DOT Approved

Molded Sealed Harness

options

2’ Dove with Slide-In Ramps

2’ Dove with 6’ HD Ramps

3’ Dove with Rampage Ramps

Blackwood Floor

Winch Plate (Floor)

Rear Supports (5k Swivel)

Jack Hydraulic Atlas Assy 1-12K

bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
