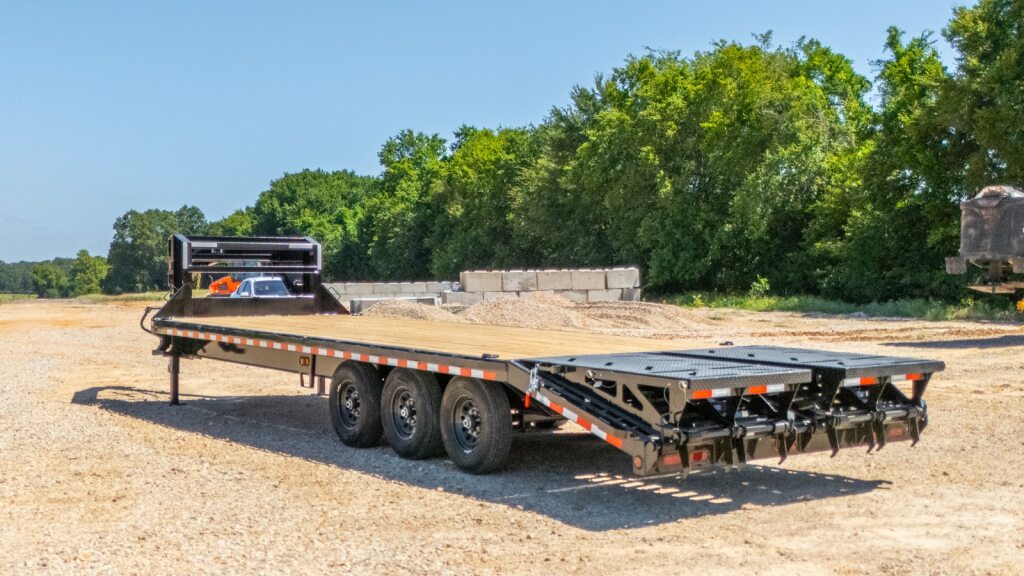

FDG Gooseneck trailer engineered neck with tractor equipment side view

No items found.

10'' I-Beam Gooseneck Deckover Equipment

SIZES

102 x 20--32'

GVWR

14,000 lb

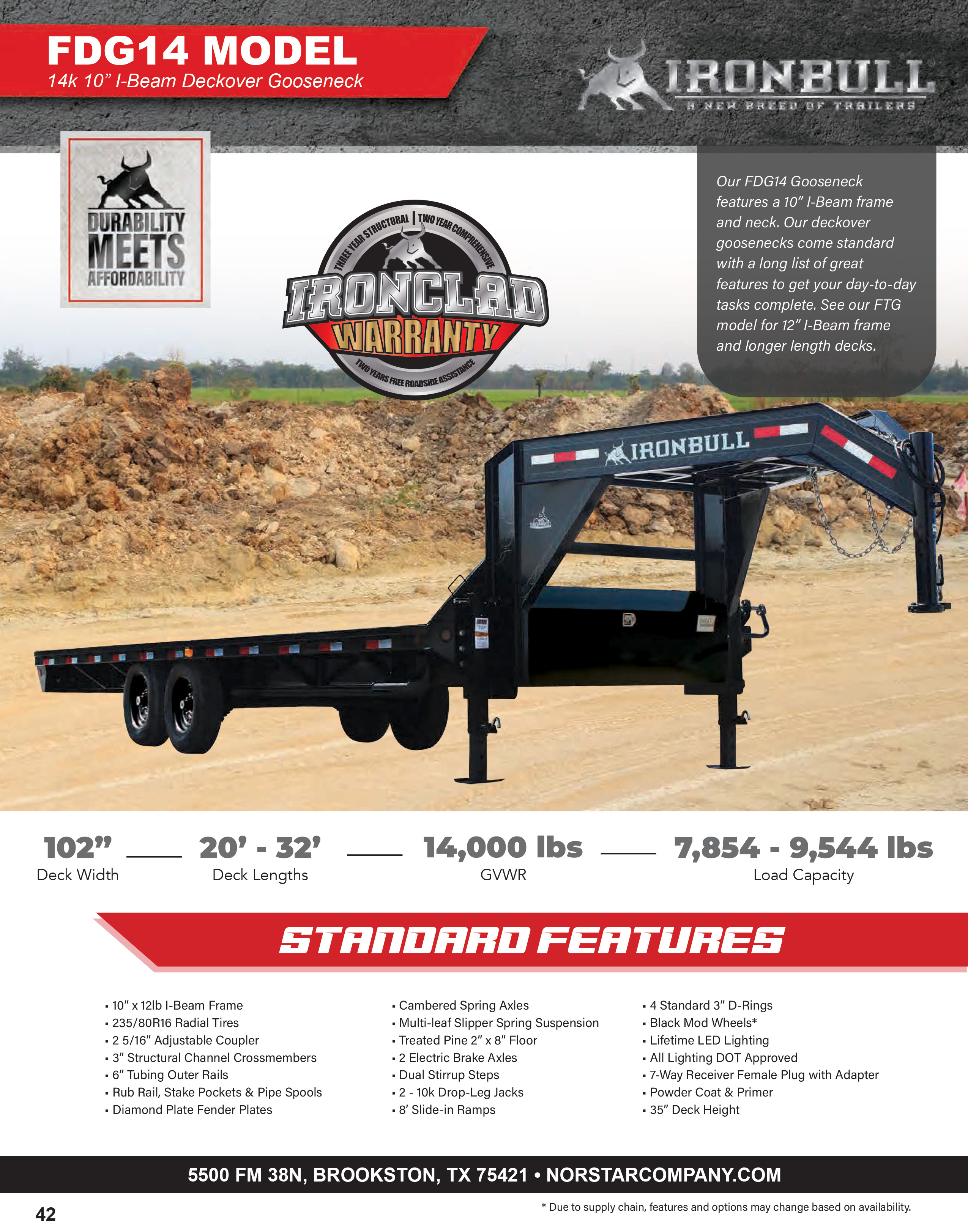

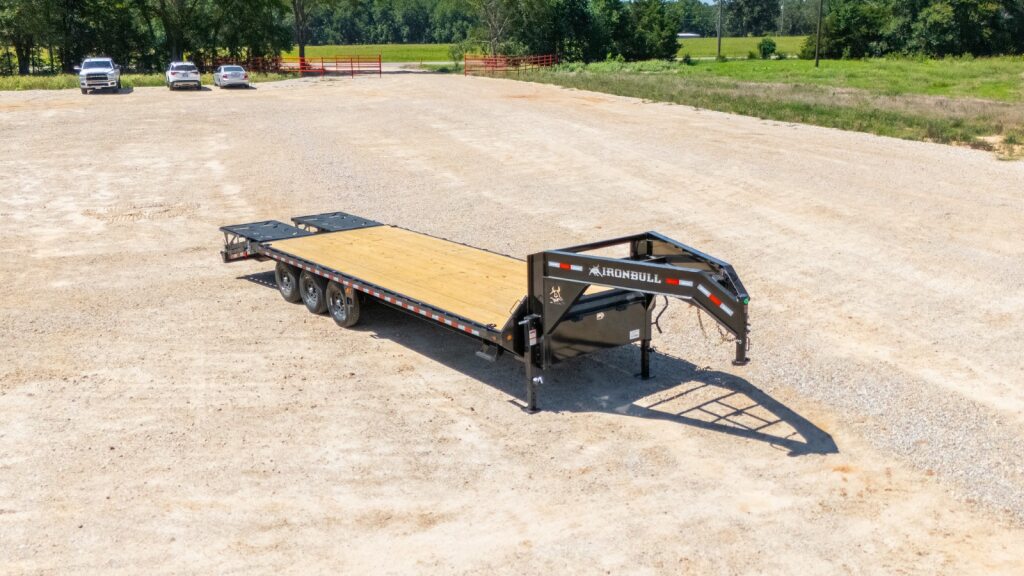

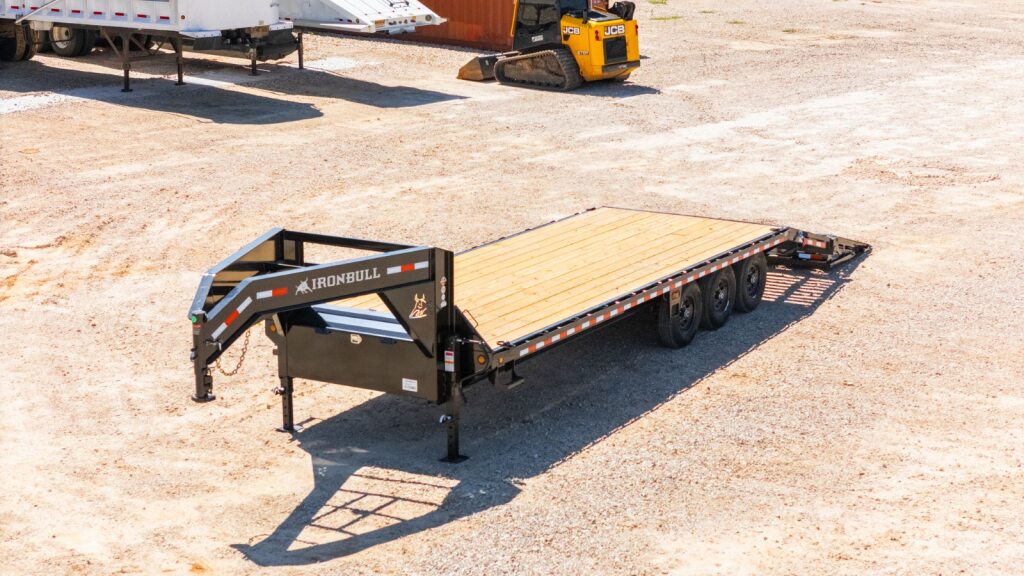

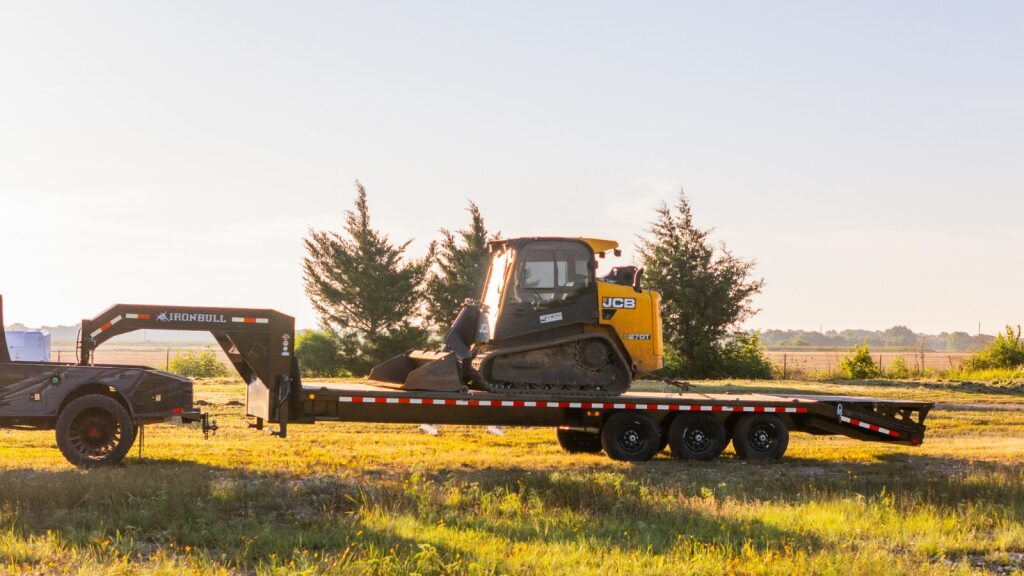

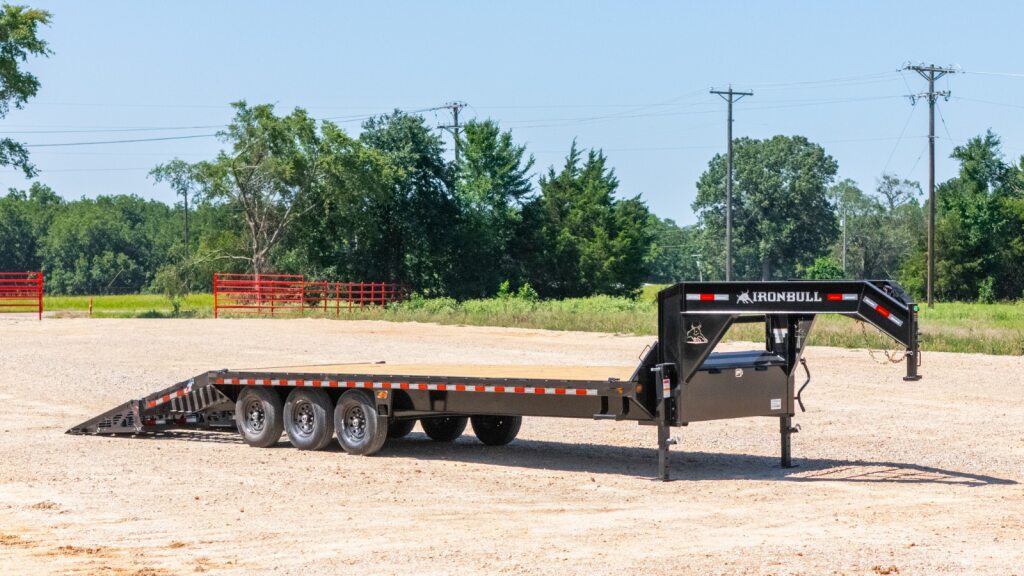

Our FDG 14k Low-Pro Gooseneck features, tandem 7k axles, 10" I-Beam frame, 10" I-beam neck, 3" channel crossmembers. Our deckover goosenecks come standard with a long list of great features to get your day-to-day tasks complete. See our FTG model for 12” I-Beam frame and longer length decks. A locking toolbox is also standard on the front of each gooseneck trailer. Two 16" side steps adorn the front of each deck.

All wiring is in a sealed harness to help shield it from the weather. Powder coat gives each trailer a rugged finish with a showroom shine. USA made, lifetime recessed LEDs are provided by TecNiq lighting. Each Iron Bull Trailer also comes equipped with stake pockets, pipe spools and rub rails as well as an adjustable coupler. All Iron Bulls are sitting on electric brake axles and roll down the road on radial tires. Select from our multiple tail options including our Rampage Ramps, slide in ramps, or stand up ramps and ride off with your new Iron Bull today.

‍

REQUEST A QUOTE

add review

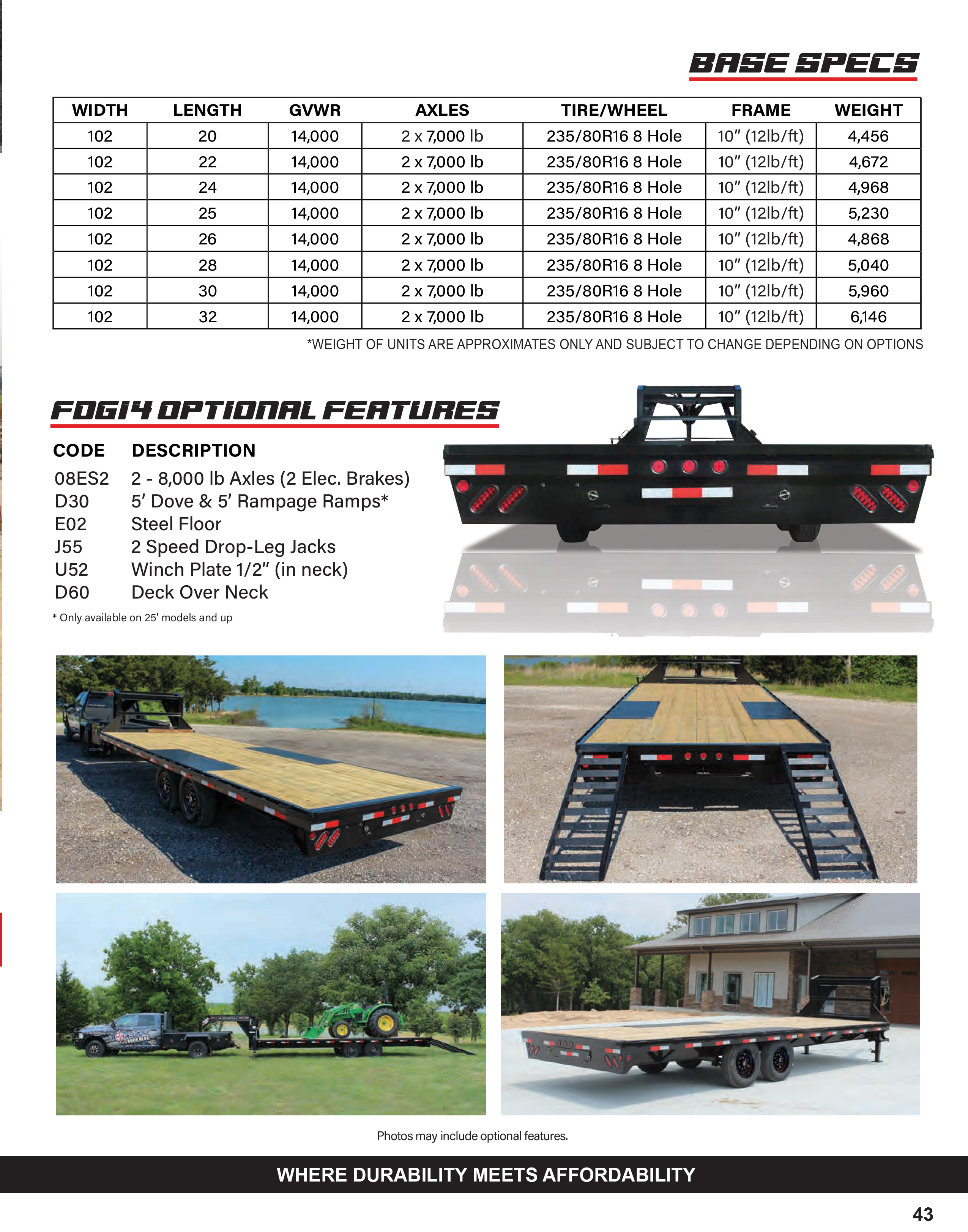

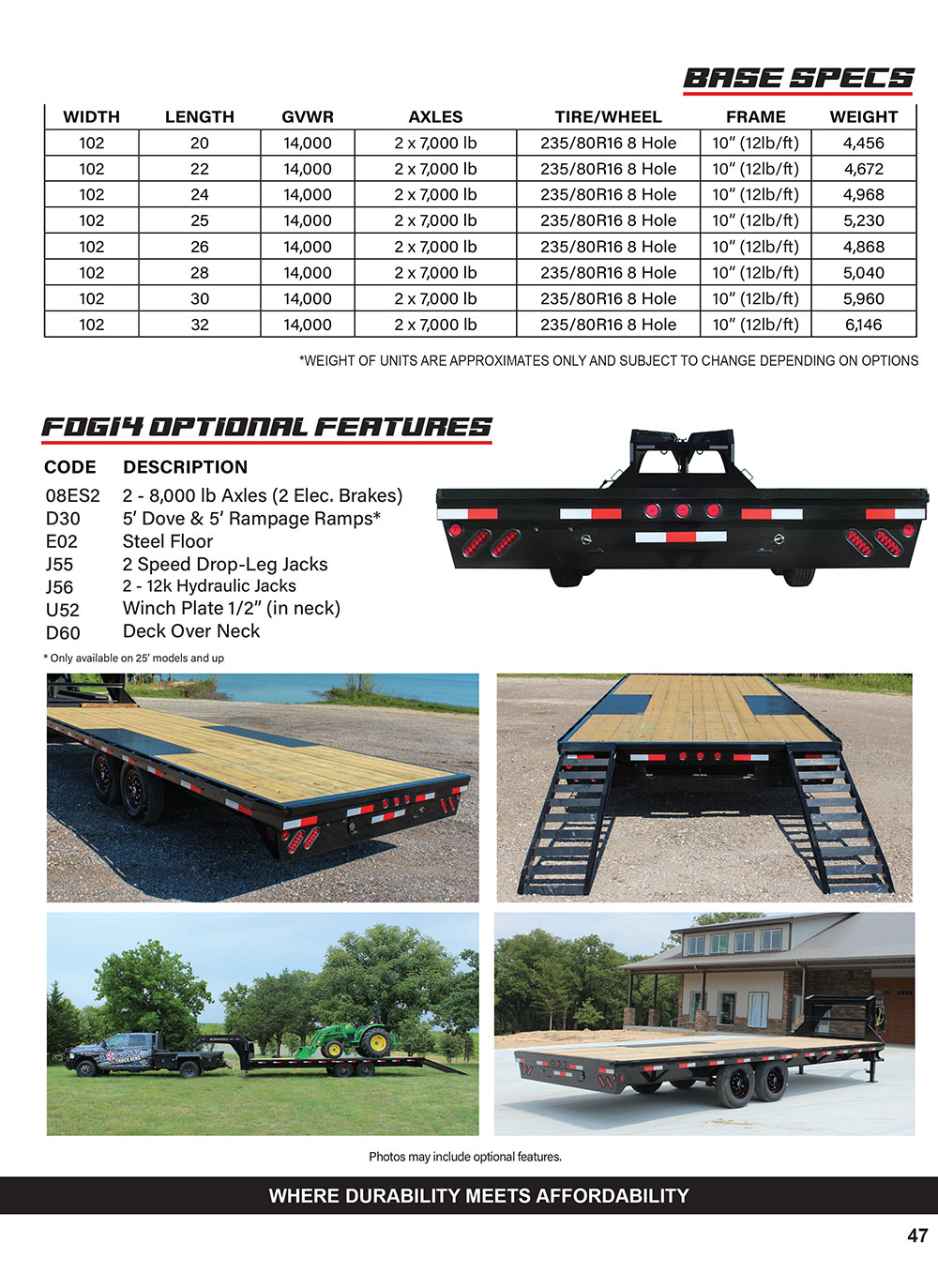

Specifications

WIDTH: 102
LENGTH: 20
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,456

WIDTH: 102
LENGTH: 22
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,672

‍

WIDTH: 102
LENGTH: 24
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,968

‍

WIDTH: 102
LENGTH: 25
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 5,230

‍

WIDTH: 102
LENGTH: 26
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,868

‍

WIDTH: 102
LENGTH: 28
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 5,040

‍

WIDTH: 102
LENGTH: 30
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 5,960

‍

WIDTH: 102
LENGTH: 32
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 6,146

‍

*Weight of units are approximates only and subject to change depending on options.

‍

*Weight of units are approximates only and subject to change depending on options.

Standard Features

10” x 12lb I-Beam Frame

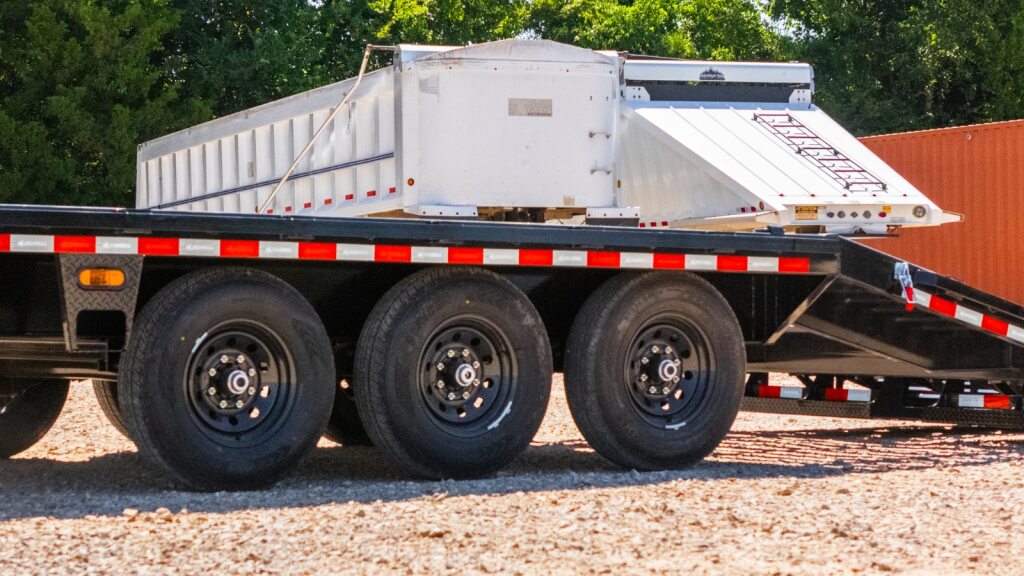

235/80R16 Radial Tires

2 5/16” Adjustable Coupler

3” Structural Channel Crossmembers

6” Tubing Outer Rails

Rub Rail, Stake Pockets & Pipe Spools

Diamond Plate Fender Plates

Cambered Spring Axles

Multi-leaf Slipper Spring Suspension

Treated Pine 2” x 8” Floor

2 Electric Brake Axles

Dual Stirrup Steps

2 - 10k Drop-Leg Jacks

8’ Slide-in Ramps

4 Standard 3” D-Rings

Black Mod Wheels*

Lifetime LED Lighting

All Lighting DOT Approved

7-Way Receiver Female Plug with Adapter

Powder Coat & Primer

34” Deck Height

‍

options

2 - 8,000 lb Axles (2 Elec. Brakes)

5’ Dove & 5’ Rampage Ramps*

Steel Floor

2 Speed Drop-Leg Jacks

Winch Plate 1/2” (in neck)

Deck Over Neck

12" Crossmembers (per ft)

Blackwood Floor

Additional Side Tool Box

Jack Hydraulic Assy 2 -12k

bed size guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

Length: Measurement from cab to end of frame.
Width: Measurement from outside of tire to outside of tire
CTA: Measurement from cab to axle
Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
Models: ST, SF, SR, SD
Order Method: Model x Length x Width x CTA x Runner
Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

‍

Options gallery

Accessories/misc

Toolboxes

Ratchets

Sides

Jacks

Dove Tails & Ramps

Hydraulic Dove Options

Flooring

Accessories/misc

U52 - half inch winch plate in gooseneck

this optional feature adds a winch plate into the gooseneck of your trailer for a winch to be mounted on.

Accessories/misc

W91 - Cold Weather Harness

the cold weather harness helps keep your trailer safely operating in wintery or cold eviroments.

Dove Tails & Ramps

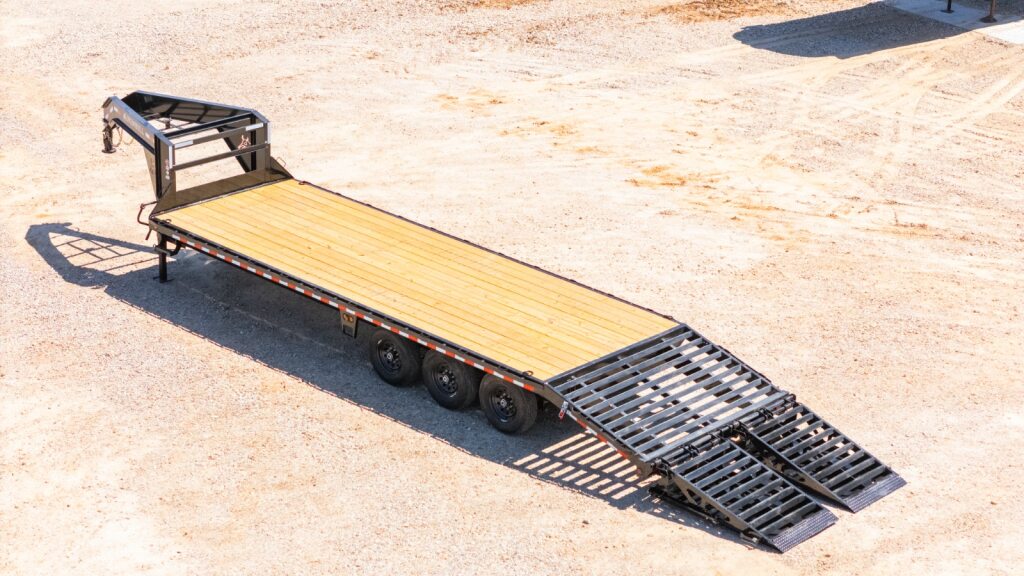

D31 - two flip-over ramps with self cleaning dove

Features a self-cleaning dove accompanied by 2 flip over ramps help you make the most of your deckover and flatdeck trailer.

Dove Tails & Ramps

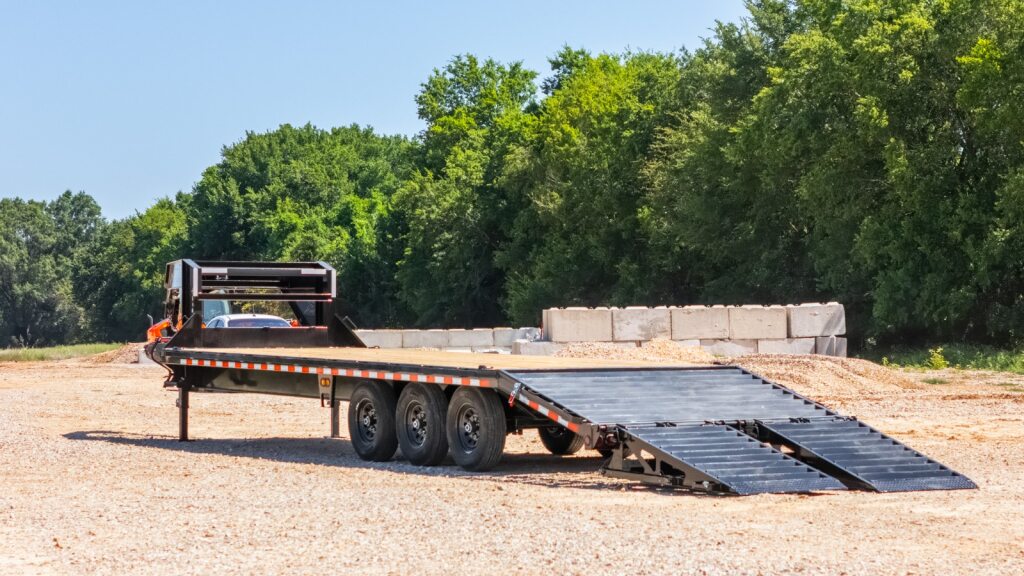

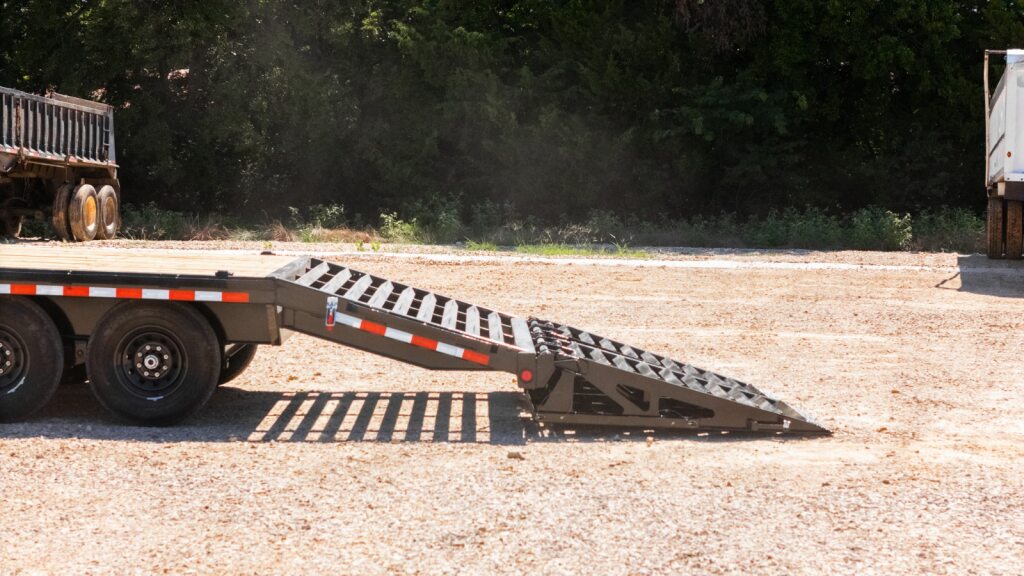

D07/D13/D30 - Rampage Ramps

Rampage Ramps are a tough, durable option for loading and unloading your trailer. Even better they are easy to use and flip over for convenient storage when not in use. Available in 3',4',5'.

Flooring

K21 - 12" Crossmembers

Adds 12-inch crossmembers by the foot, enhancing structural support and overall strength for your trailer frame.

Flooring

E04 - Rough Oak Flooring

rough oak flooring by the foot, offers a sturdy, durable surface with excellent traction for heavy-duty trailer use.

Flooring

E03 - Blackwood Flooring

Blackwood flooring by the foot, combines lasting durability with enhanced traction for safer, easier loading.

Flooring

E02 - Steel Flooring

Adds a durable steel floor by the foot, delivering superior strength and long-lasting performance for heavy-duty use.

Toolboxes

T42/T43 - Additional toolbox

Adds a toolbox on the passenger or drivers side, offering secure and convenient storage for tools and equipment.

Accessories/misc

D60 - Deck-Over Neck

An additional deck that can be added on top of any gooseneck model that provides extra loading area for small equipment items.

Accessories/misc

R90 - Wireless Remote (Two Button)

A two-button wireless remote, providing convenient, easy control for operating your trailer's electric systems.

Accessories/misc

N02/N03 Extra D-Rings

Additional D-rings can be added for extra support, providing maximum tie-down options for safely securing equipment and cargo.

Accessories/misc

R06 - 6" Raised Gooseneck

A 6-inch raised gooseneck, improving clearance and providing a better towing angle for easier loading and transport. Perfect for trucks with a large lift.

Ratchets

U30/31/32/33 - Ratchet Tracks

Available as either weld-on (every 5 feet) or adjustable, ratchet tracks provide consistent and secure tie-down points all along your trailer on either side. Availability varies by model.

Jacks

J52/J56 - 12k Hydraulic Jack (if hydraulics NOT equipped)

Available in either a single or set of 2, our 12,000 lb hydraulic jacks ensuring strong, dependable litting capability for safe operation.

Jacks

J55 - 2 Speed Jacks

These jacks feature a 2-speed system, allowing faster setup and precise control for safely lifting and stabilizing trailers.
