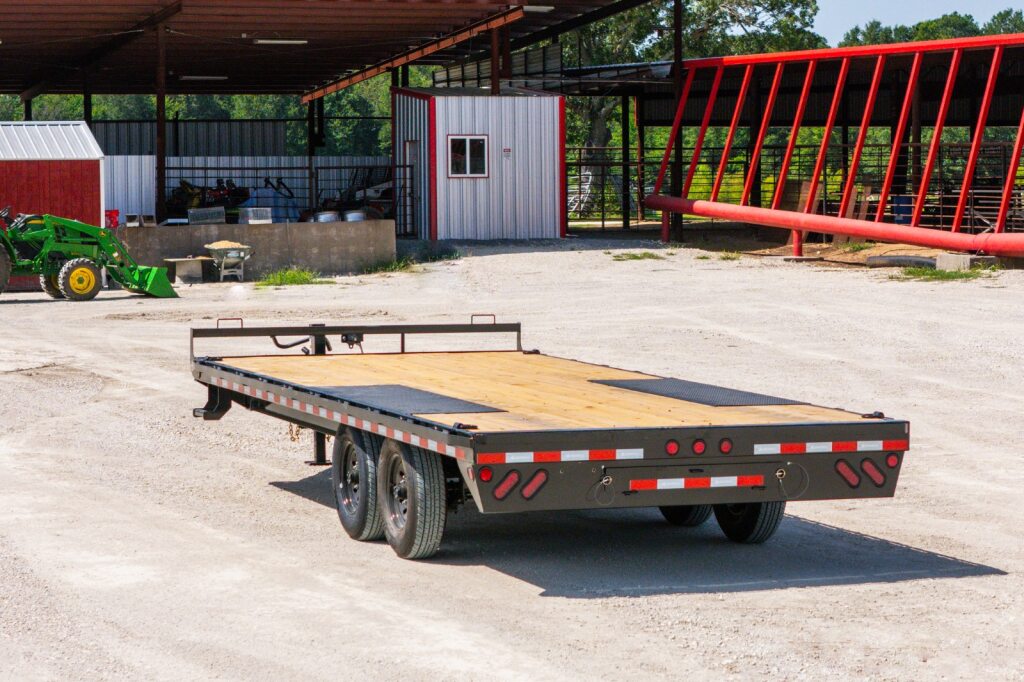

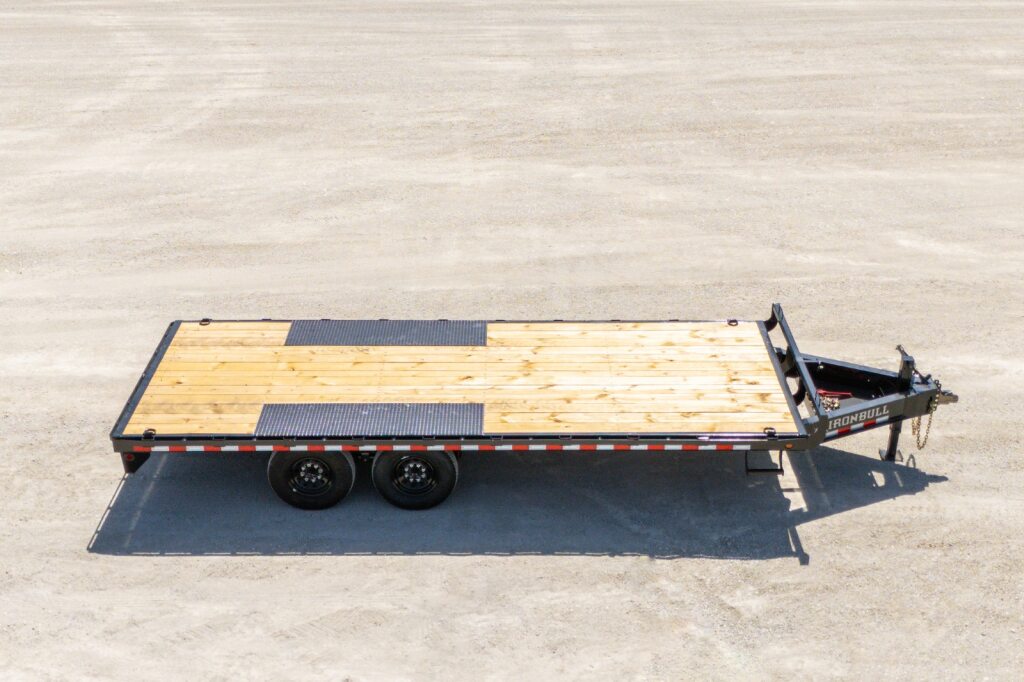

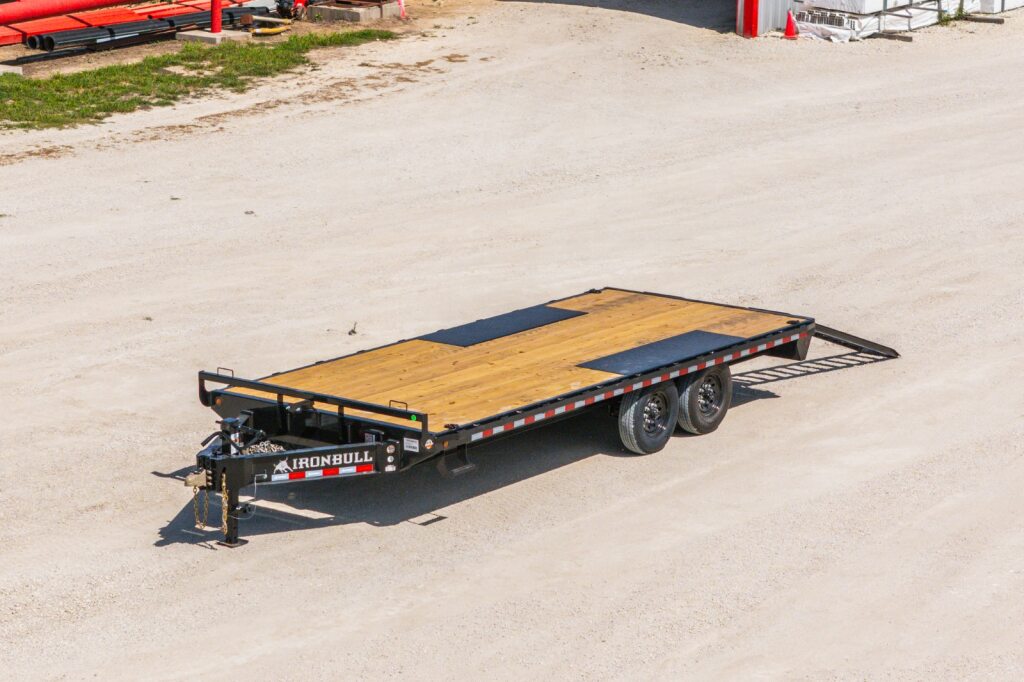

FDP 14k Deckover Trailer

SIZES

102 x 16' --32''

GVWR

14,000 lb

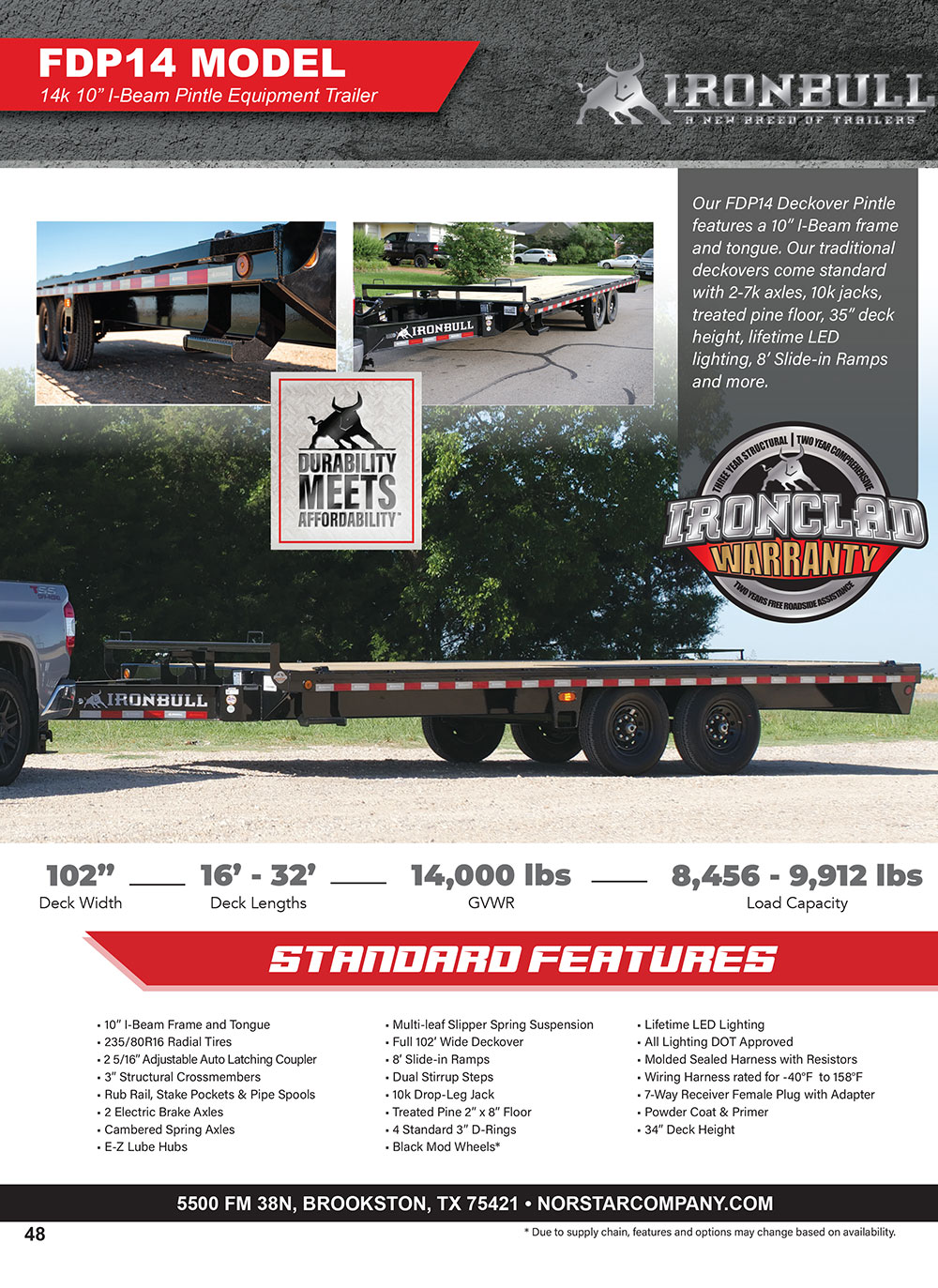

Our I-Beam tongues come standard along with treated pine floor, 33" deck height, lifetime LED lighting, 8' Slide-in Ramps and more. Our FDP14 Deckover Pintle features a 10” I-Beam frame and tongue. Our I-Beam tongues come standard along with treated pine floor, 33” deck height, lifetime LED lighting, 8’ Slide-in Ramps and more.

‍
This FDP14 Deckover Pintle features a 10” I-Beam frame and tongue. Our traditional deckovers come standard with 2-7k axles, 10k jacks, treated pine floor, 35” deck height, lifetime LED lighting, 8’ Slide-in Ramps and more.

REQUEST A QUOTE

add review

Specifications

WIDTH: 102
LENGTH: 16
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,088

WIDTH: 102
LENGTH: 18
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,224

‍

WIDTH: 102
LENGTH: 20
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,400

‍

WIDTH: 102
LENGTH: 22
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,556

‍

WIDTH: 102
LENGTH: 24
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,634

‍

WIDTH: 102
LENGTH: 25
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,712

‍

WIDTH: 102
LENGTH: 26
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 4,868

‍

WIDTH: 102
LENGTH: 28
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 5,040

‍

WIDTH: 102
LENGTH: 30
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 5,138

‍

WIDTH: 102
LENGTH: 32
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 10" (12lb/ft)
WEIGHT: 5,544

‍

*Weight of units are approximates only and subject to change depending on options.

Standard Features

10” I-Beam Frame and Tongue

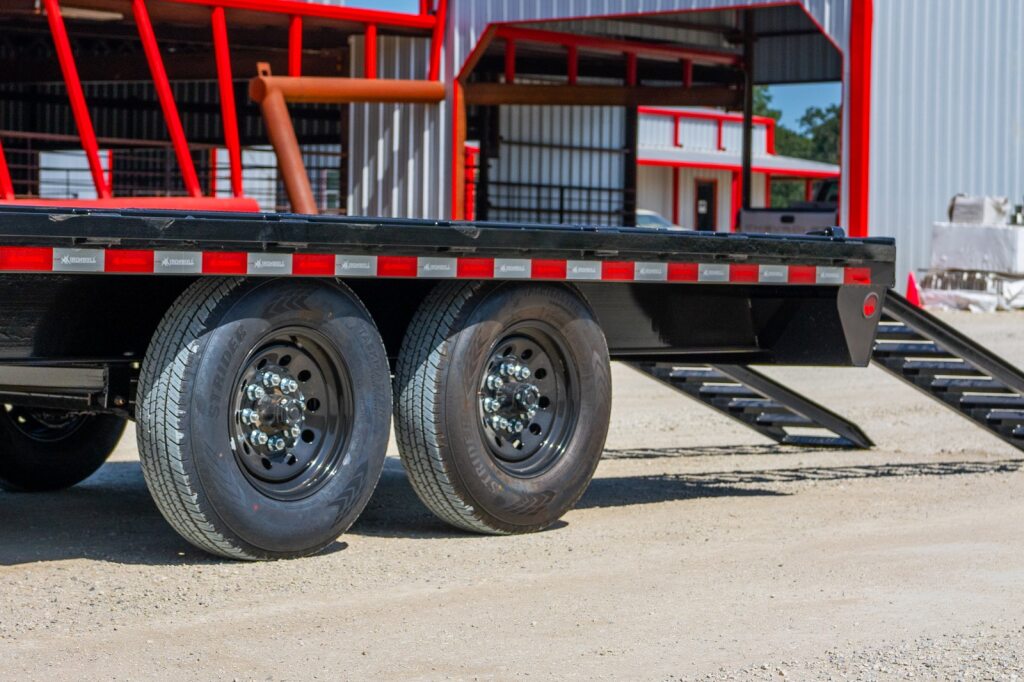

235/80R16 Radial Tires

2 5/16” Adjustable Auto Latching Coupler

3” Structural Crossmembers

Rub Rail, Stake Pockets & Pipe Spools

2 Electric Brake Axles

Cambered Spring Axles

E-Z Lube Hubs

Multi-leaf Slipper Spring Suspension

Full 102’ Wide Deckover

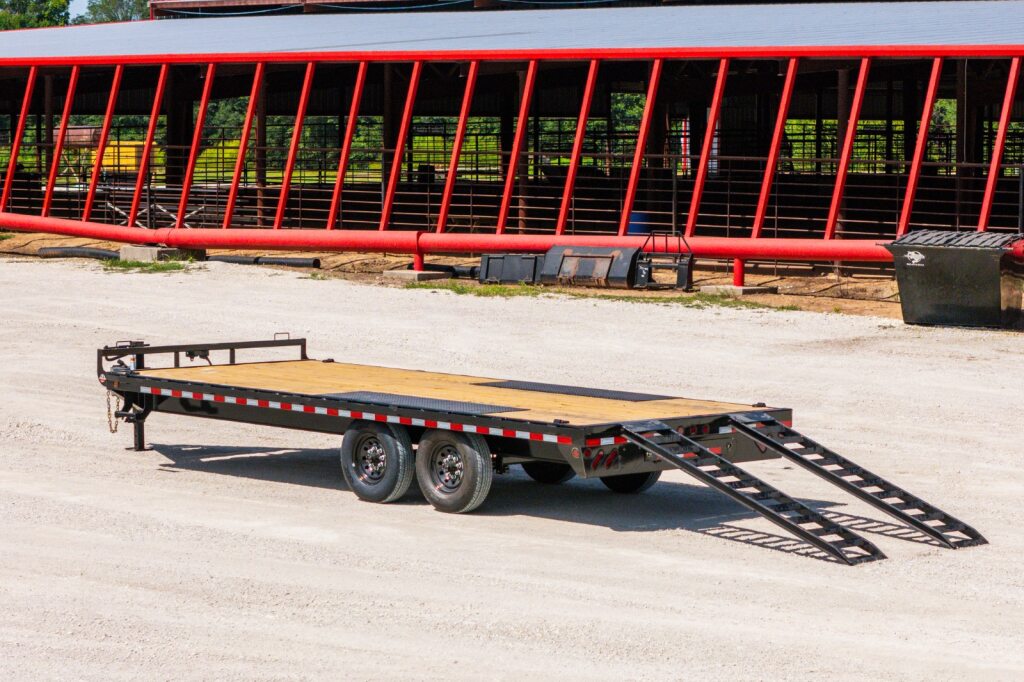

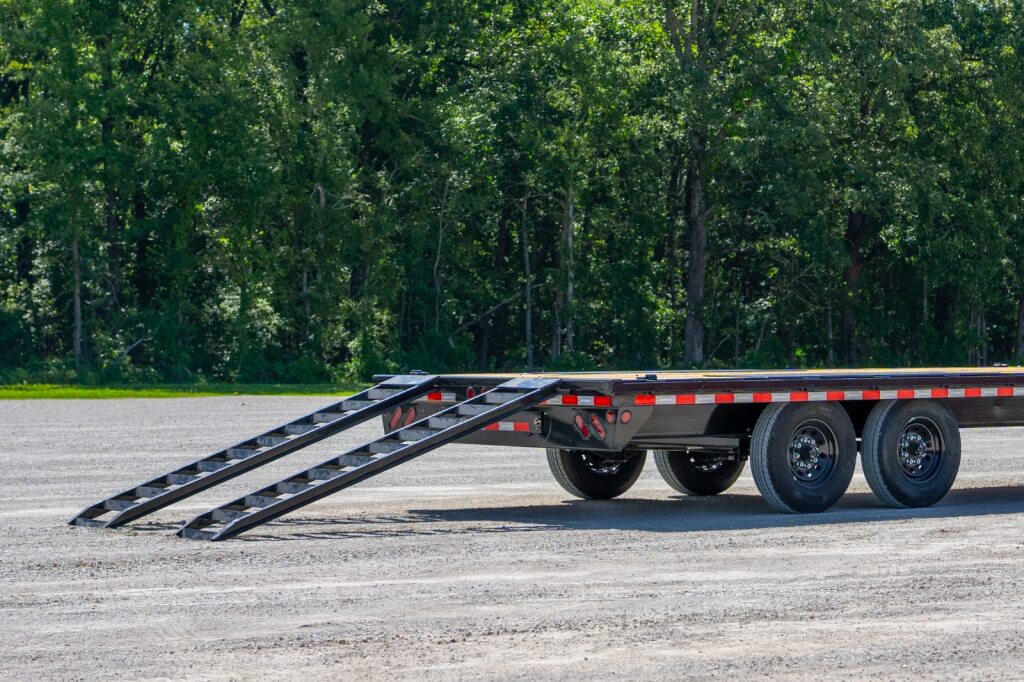

8’ Slide-in Ramps

Dual Stirrup Steps

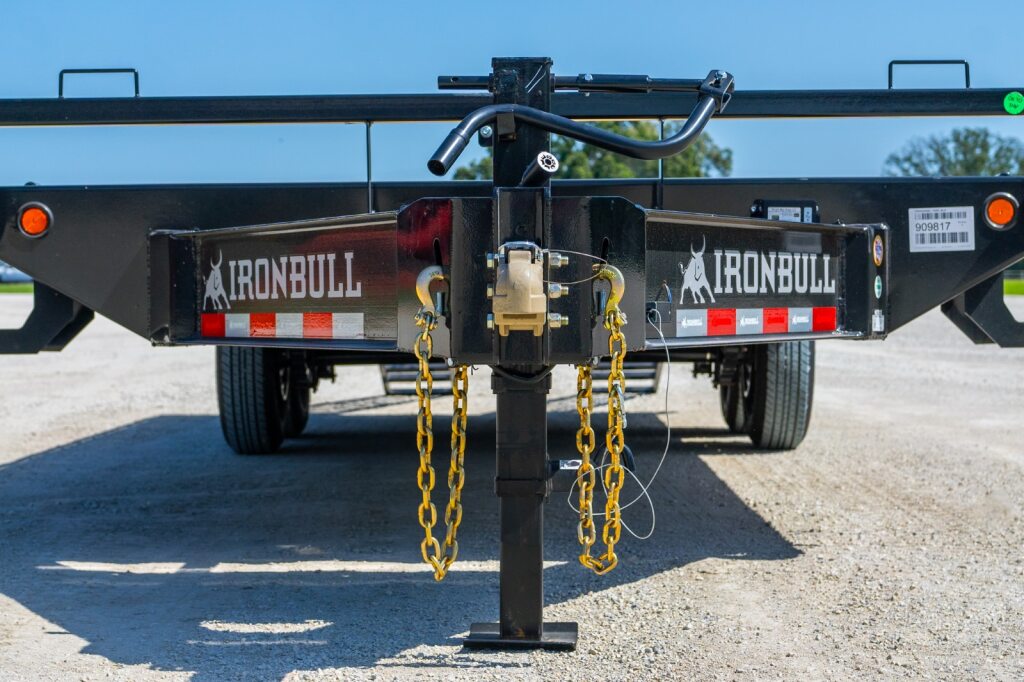

10k Drop-Leg Jack

Treated Pine 2” x 8” Floor

4 Standard 3” D-Rings

Black Mod Wheels*

Lifetime LED Lighting

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7-Way Receiver Female Plug with Adapter

Powder Coat & Primer

35" Deck height

‍

options

Third Spring Axle (Three Electric Brakes)

2 - 8,000 lb Axles (2 Elec. Brakes)

5’ Dove & 5’ Rampage Ramps *

Steel Floor

2 Speed Drop-Leg Jacks

Winch Plate (Floor)

Rough Oak Flooring

Tongue Mount Toolbox

12" Crossmembers (per ft)

Blackwood Floor

Front Tool Box

Jack Hydraulic Atlas Assy 1 -12k

bed size guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

Length: Measurement from cab to end of frame.
Width: Measurement from outside of tire to outside of tire
CTA: Measurement from cab to axle
Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
Models: ST, SF, SR, SD
Order Method: Model x Length x Width x CTA x Runner
Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

‍

Options gallery

Accessories/misc

Toolboxes

Ratchets

Sides

Jacks

Dove Tails & Ramps

Hydraulic Dove Options

Flooring

Accessories/misc

U50 - half inch winch plate in floor

this optional feature adds a winch plate into the floor of your trailer for a winch to be mounted on.

Accessories/misc

W91 - Cold Weather Harness

the cold weather harness helps keep your trailer safely operating in wintery or cold eviroments.

Dove Tails & Ramps

D31 - two flip-over ramps with self cleaning dove

Features a self-cleaning dove accompanied by 2 flip over ramps help you make the most of your deckover and flatdeck trailer.

Dove Tails & Ramps

D07/D13/D30 - Rampage Ramps

Rampage Ramps are a tough, durable option for loading and unloading your trailer. Even better they are easy to use and flip over for convenient storage when not in use. Available in 3',4',5'.

Flooring

K21 - 12" Crossmembers

Adds 12-inch crossmembers by the foot, enhancing structural support and overall strength for your trailer frame.

Flooring

E04 - Rough Oak Flooring

rough oak flooring by the foot, offers a sturdy, durable surface with excellent traction for heavy-duty trailer use.

Flooring

E03 - Blackwood Flooring

Blackwood flooring by the foot, combines lasting durability with enhanced traction for safer, easier loading.

Flooring

E02 - Steel Flooring

Adds a durable steel floor by the foot, delivering superior strength and long-lasting performance for heavy-duty use.

Toolboxes

T42/T43 - Additional toolbox

Adds a toolbox on the passenger or drivers side, offering secure and convenient storage for tools and equipment.

Toolboxes

T41 - Two Additional Toolboxes

Adds two extra toolboxes to your deckover trailer, providing convenient storage and easy access for tools and equipment.

Accessories/misc

D60 - Deck-Over Neck

An additional deck that can be added on top of any gooseneck model that provides extra loading area for small equipment items.

Accessories/misc

R90 - Wireless Remote (Two Button)

A two-button wireless remote, providing convenient, easy control for operating your trailer's electric systems.

Accessories/misc

N02/N03 Extra D-Rings

Additional D-rings can be added for extra support, providing maximum tie-down options for safely securing equipment and cargo.

Accessories/misc

S90 - Solar Charger panel

The solar charger provides a convenient, eco-friendly way to keep your trailer's battery charged and ready.

Ratchets

U30/31/32/33 - Ratchet Tracks

Available as either weld-on (every 5 feet) or adjustable, ratchet tracks provide consistent and secure tie-down points all along your trailer on either side. Availability varies by model.
