FHG22
Gooseneck Low-Pro Hydraulic Dove Tail
No items found.
Gooseneck Low-Pro Hydraulic Dove Tail Equipment Trailers
SIZES
102 x 28'--40'
GVWR
22,000 lb

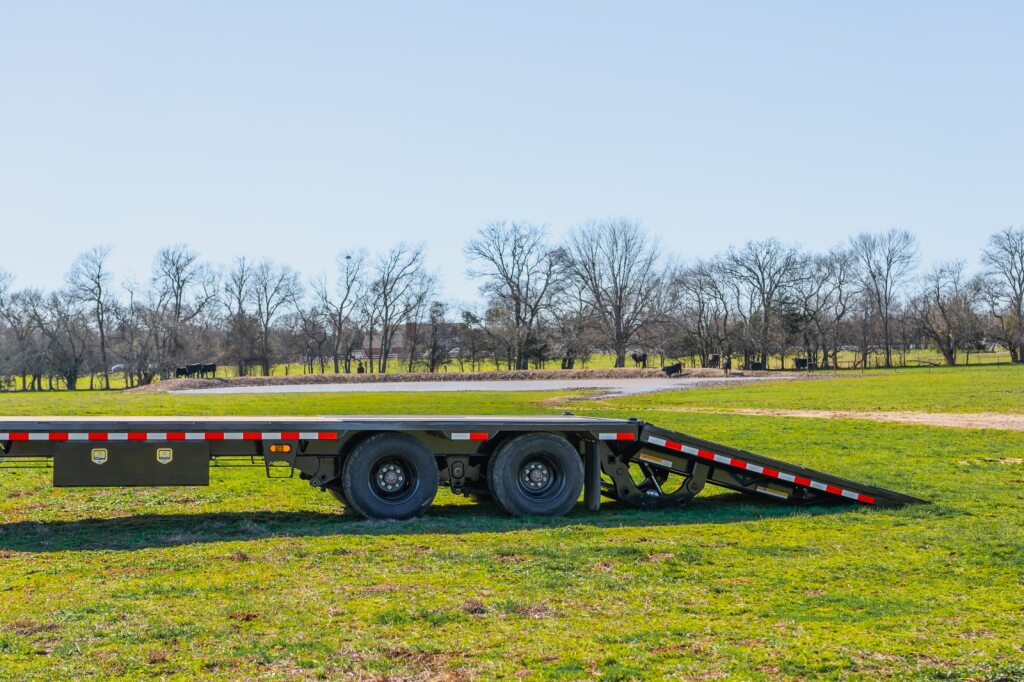

The FHG, a true workhorse for your toughest jobs, stands out with its patented, revolutionary hydraulic dovetail design. We've reimagined the traditional hydraulic dovetail to offer unparalleled ease of use and reliability, ensuring you spend less time wrestling with equipment and more time getting the job done. This innovative design isn't just an improvement; it's a complete overhaul that will quickly make the FHG the most indispensable piece of equipment in your fleet.

Decades of experience in our new manufacturing company have combined to create one of the most thought out trailers available. Each FHG comes with a standard pipe bridge to reduce torque under heavy loads. Heavy SCH40 construction outclasses thin walled pipe as seen on some of the competition. Low-Pro, pierced frame design lowers the deck 3" providing a lower center of gravity, more stable cornering, and a lower loading angle for equipment. 12" 19lb/ft I-Beam makes up the main frame of these monsters - compared to the 14lb found on the other guys. Heavy duty 10" I-beam crossmembers are located on the lower main frame to further support the pipe bridge. These important steel beams are omitted by some competitors. 3" Channel crossmembers located in the deck frame are on 16" centers, topped with 2" x 8" treated pine wood where you will find a standard locking toolbox at the front of each gooseneck trailer. Two 16" side steps adorn the front of each deck.

All wiring is in a sealed harness and runs inside the 2" x 6" upper deck frame. Fresh powder coat gives each trailer a rugged finish with a showroom shine. USA made, lifetime recessed LEDs are provided by TecNic lighting. Each Iron Bull Trailer also comes equipped with stake pockets, pipe spools and rub rails as well as an adjustable coupler.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
102
FHG
Specifications

WIDTH: 102
LENGTH: 28
GVWR: 22,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 8,355

WIDTH: 102
LENGTH: 30
GVWR: 22,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 8,605

WIDTH: 102
LENGTH: 32
GVWR: 22,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 8,880

WIDTH: 102
LENGTH: 34
GVWR: 22,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 9,130

WIDTH: 102
LENGTH: 36
GVWR: 22,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 9,405

WIDTH: 102
LENGTH: 38
GVWR: 22,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 9,655

WIDTH: 102
LENGTH: 40
GVWR: 22,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 9,930

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

12” I-Beam Frame and Neck (19 lbs/ft)

235/80R16 Radial Tires

2 5/16” Adjustable Coupler

3” Structural Crossmembers

Rub Rail, Stake Pockets & Pipe Spools

Heavy Duty Suspension System Standard

2-10k Electric Brake Axles

Multi-leaf Slipper Spring Suspension

E-Z Lube Hubs

Standard Torque Tube & Pipe Bridge

Powder Coat & Primer

Spare Tire & Mount

2 - 10k Drop-Leg Jacks

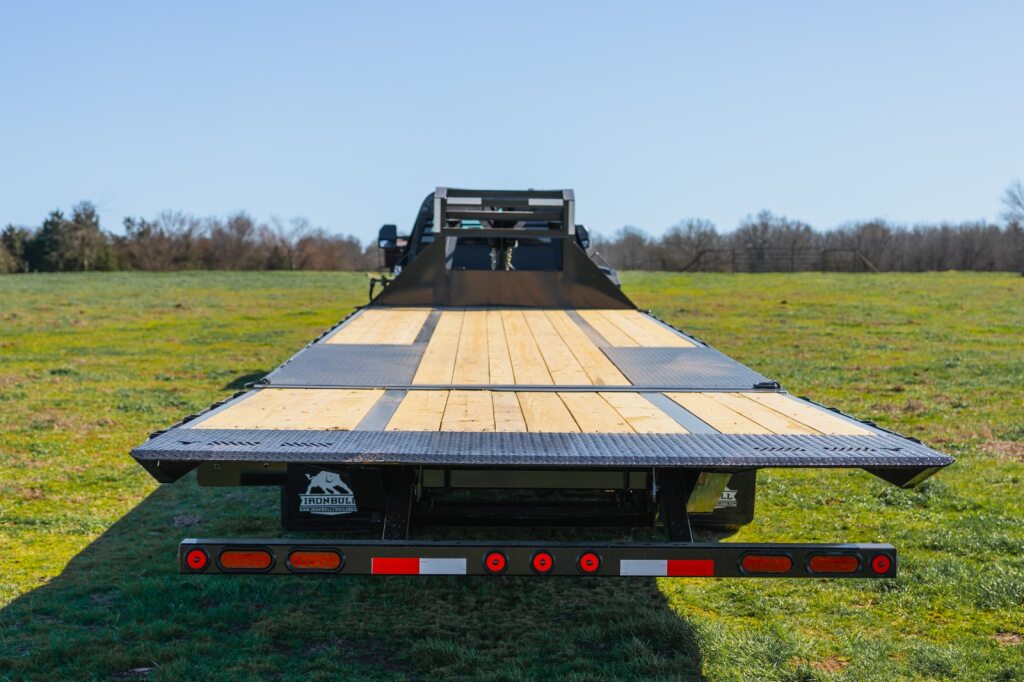

Treated Pine 2” x 8” Floor

4 Standard 3” D-Rings

Black Mod Wheels*

Lifetime LED Lighting

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7-Way Receiver Female Plug with Adapter

34” Deck Height

options

2 - 10,000 lb Electric Over Hydraulic Disc Axles

2 - 12,000 lb Electric Brake Axles

2 - 12,000 lb Electric Over Hydraulic Disc Brake

2 - 15,000 lb Electric Brake Axles

2 - 15,000 lb Air Ride Axles

3 - 10,000 lb Electric Brake Axles

3 - 10,000 lb Electric Over Hydraulic Brake Axles

3 - 12,000 lb Electric Brake Axles

3 - 12,000 lb Electric Over Hydraulic Brake Axles

9’ Hydraulic Dove Tail with Cleats on OUTSIDE ONLY

9’ Hydraulic Dove Tail with Cleats FULL TAIL

9’ Hydraulic Dove SELF CLEANING OUTSIDE ONLY

9’ Hydraulic Dove FULL SELF CLEANING

9’ Hydraulic Dove Tail Blackwood OUTSIDE ONLY

2 - 12k Hydraulic Jacks

6’ Spread Axles

12” Crossmembers (per ft)

Deck Over Neck

Additional Side Tool Box (ea.)

2 Speed Drop-Leg Jacks

Cold Weather Harness

17.5” x 6.75” Tire Upgrade (ea.)

Weld On Ratchet Track Only (per ft)

Weld On Ratchets Every 5’ (per ft)

Weld On Track with Adjustable Ratchets Every 5’

Wireless Remote

Winch Plate 1/2” (in neck)

14-Ply 235/85 Tire Upgrade (ea.)
