FLP22 HD Low Pro Pintle

No items found.

HD Low Pro Pintle

SIZES

102 x 20'--40'

GVWR

23,900 lb

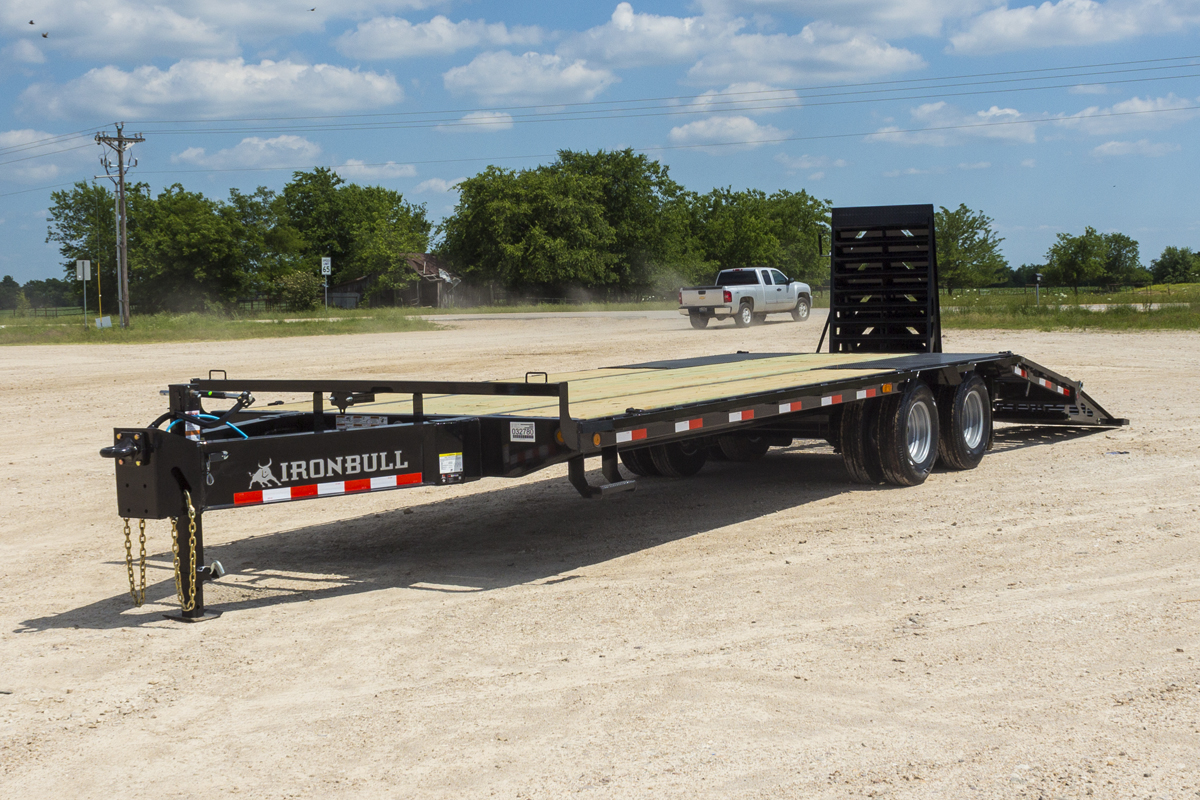

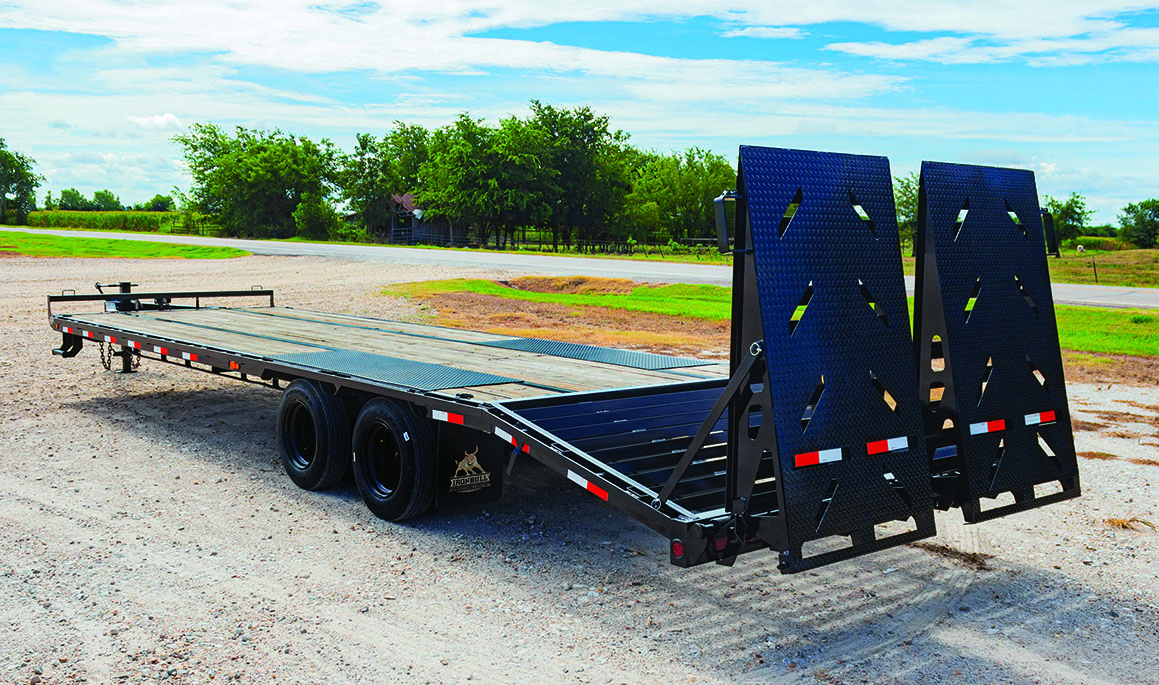

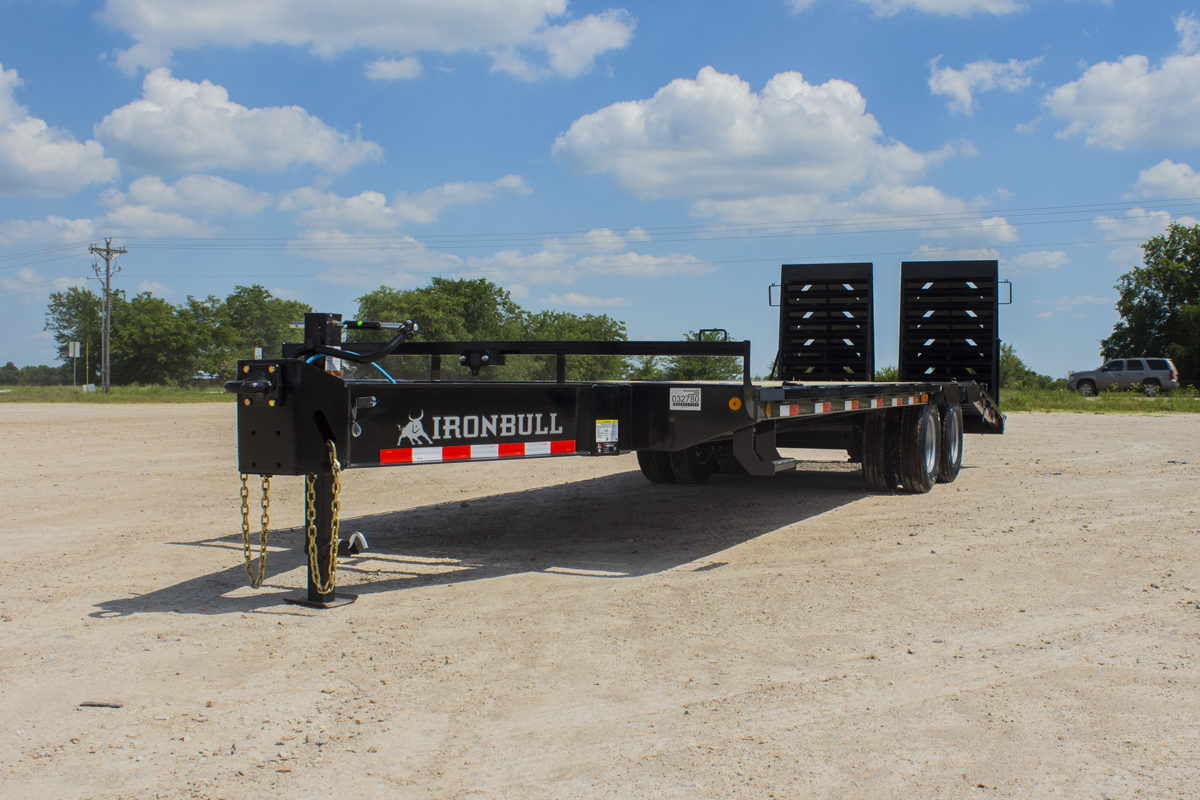

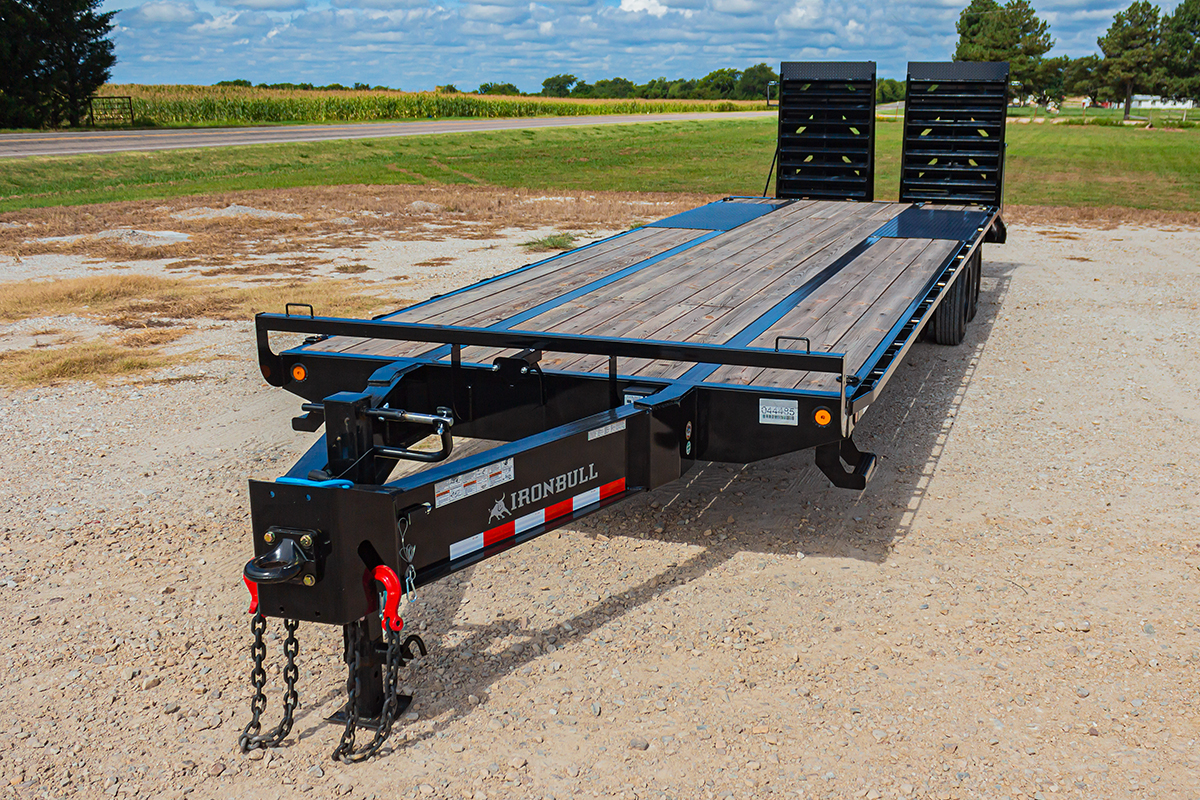

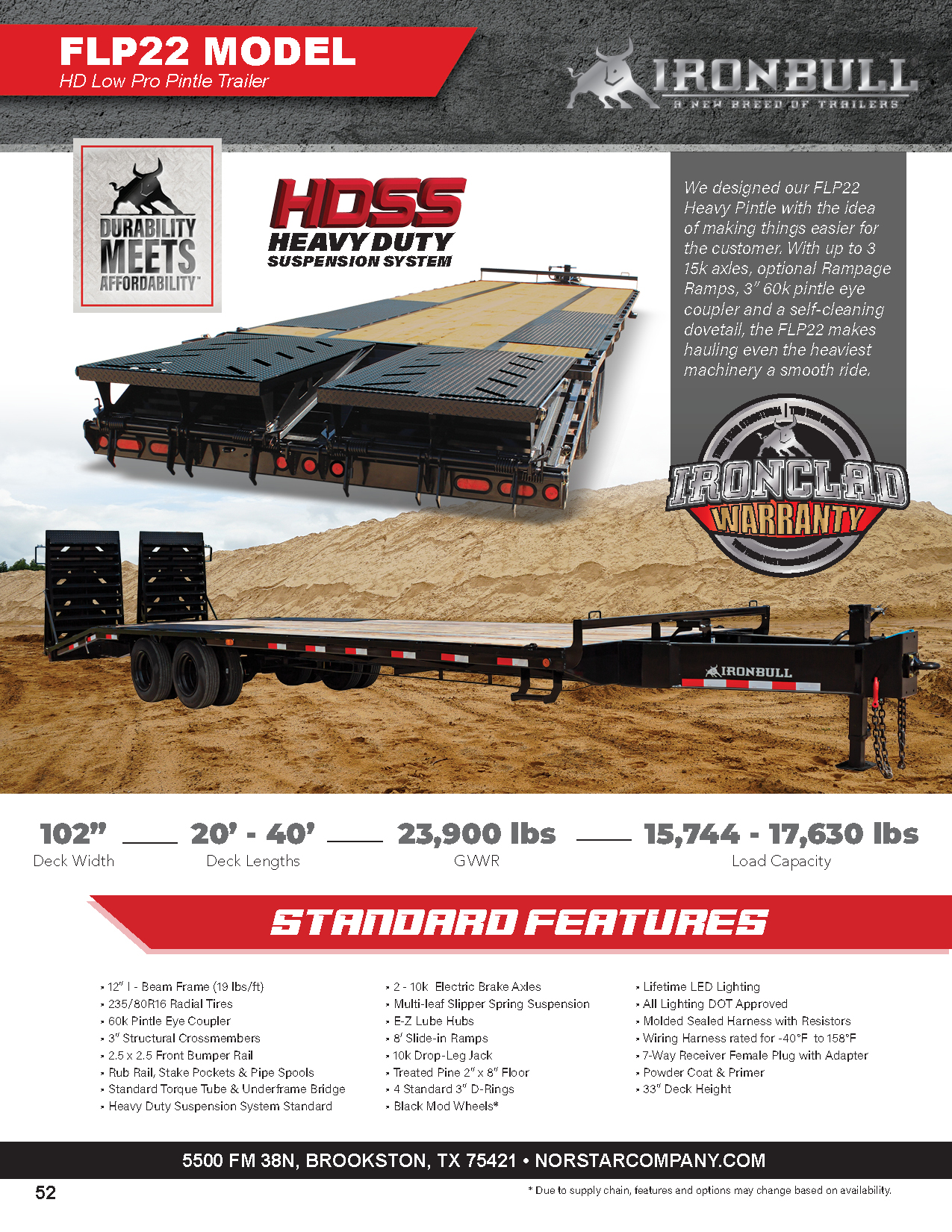

We designed our FLP22 Heavy Pintle with the idea of making things easier for the customer. With up to 3 15k axles, optional Rampage Ramps, 3” 60k pintle eye coupler and a self-cleaning dovetail, the FLP22 makes hauling even the heaviest machinery a smooth ride.

Standard equipment includes 12" 19 lb I-beam frame and 3" structural crossmembers constructed in our piercing beam low profile design. This lowers your center of gravity over traditional construction for better loading angels and maximum over the road towing and handling. Standard rub rail, standard pipe spools, and a HD front bumper give plenty of tie down options just like the big rigs. You will also find a standard pipe bridge to reduce torque under heavy loads.

Heavy SCH40 construction outclasses thin walled pipe as seen on some of the competition. This monster hauler rides on 2-10k tandem dual axles that can be upgraded all the way to triple 15k axles for maximum hauling capability. Full LED lighting and 235/80R16 radial tires and treated 2x8 pine floor are also standard. Add a set of our Rampage Ramps or even dual HD hydraulic ramps and you have a real Iron Bull all backed by our Industry best Iron Clad warranty package.

REQUEST A QUOTE

add review

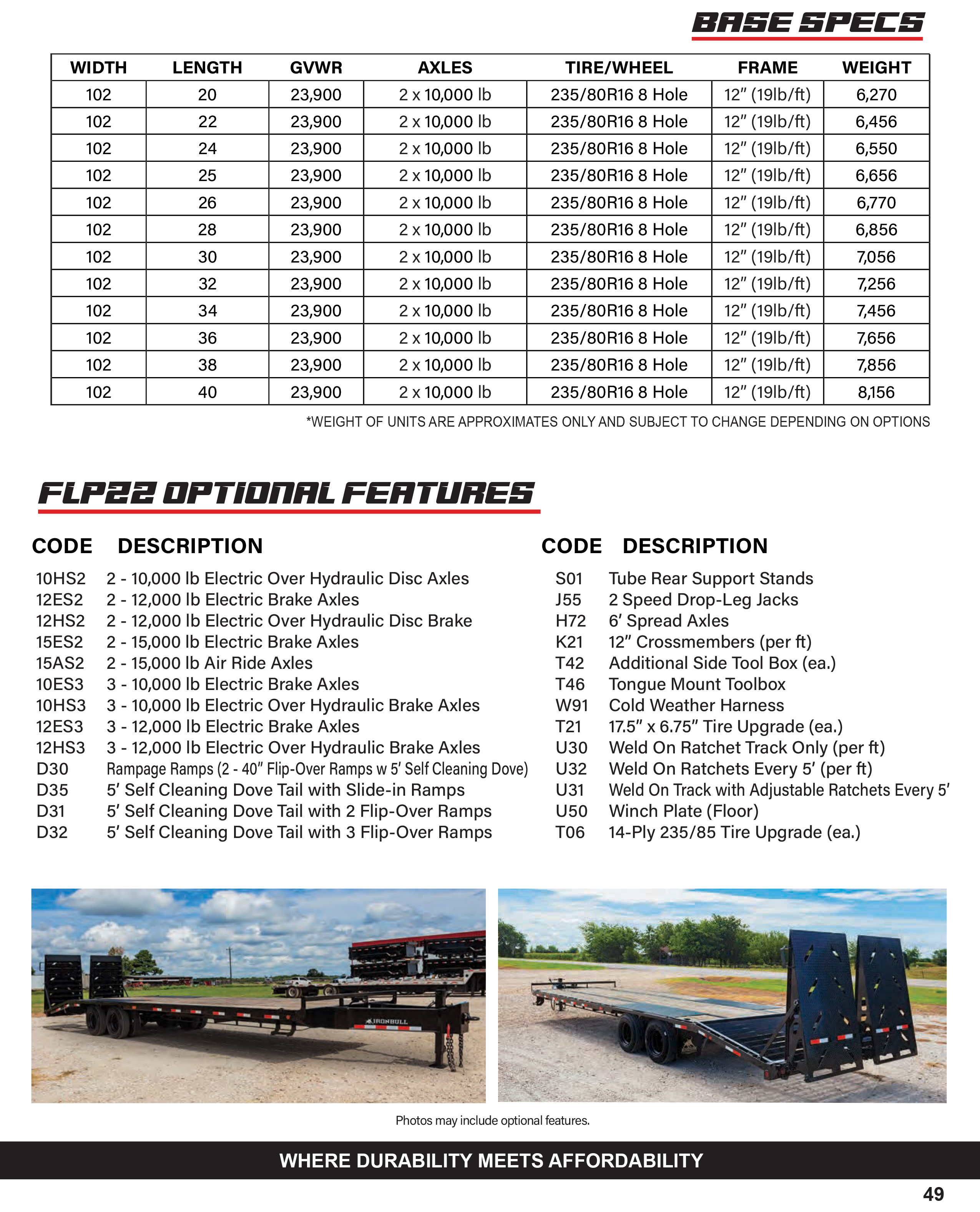

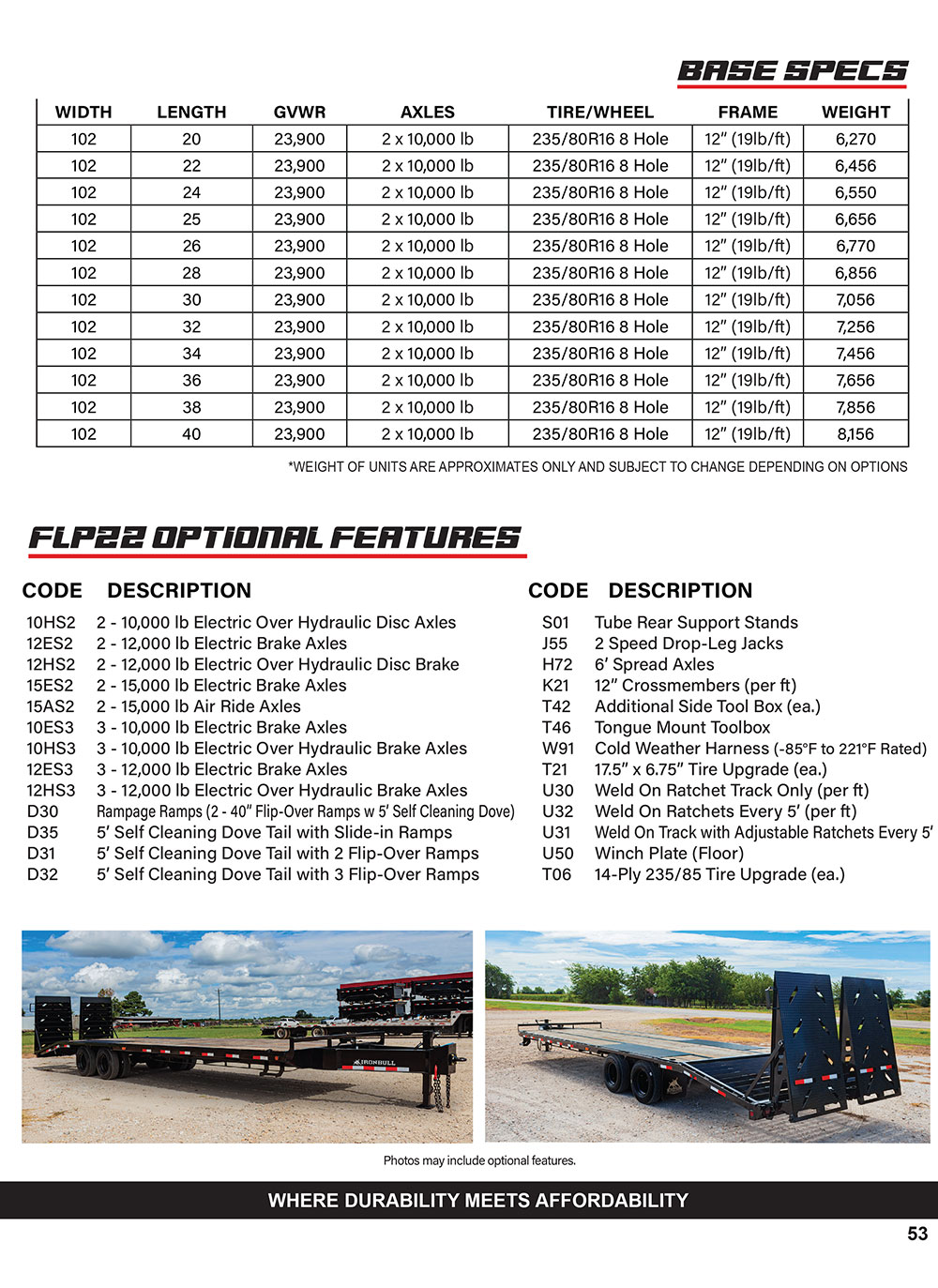

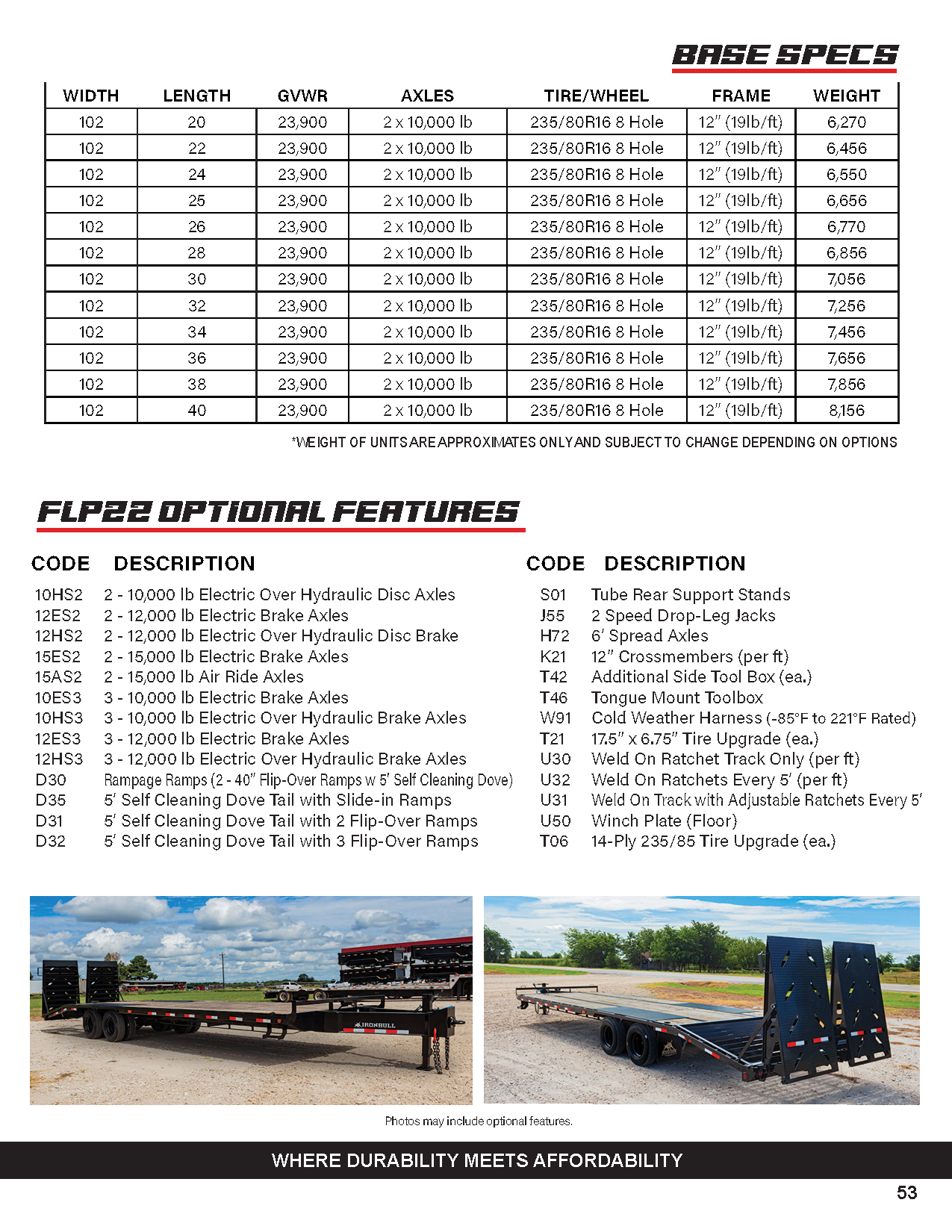

Specifications

WIDTH: 102
LENGTH: 20
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 6,270

WIDTH: 102
LENGTH: 22
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 6,456

‍

WIDTH: 102
LENGTH: 24
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 6,550

‍

WIDTH: 102
LENGTH: 25
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 6,656

‍

WIDTH: 102
LENGTH: 26
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 6,770

‍

WIDTH: 102
LENGTH: 28
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 6,856

‍

WIDTH: 102
LENGTH: 30
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 7,056

‍

WIDTH: 102
LENGTH: 32
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 7,256

‍

WIDTH: 102
LENGTH: 34
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 7,456

‍

WIDTH: 102
LENGTH: 36
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 7,656

‍

WIDTH: 102
LENGTH: 38
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 102" (19lb/ft)
WEIGHT: 7,856

‍

WIDTH: 102
LENGTH: 40
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (19lb/ft)
WEIGHT: 8,156

‍

*Weight of units are approximates only and subject to change depending on options.

‍

*Weight of units are approximates only and subject to change depending on options.

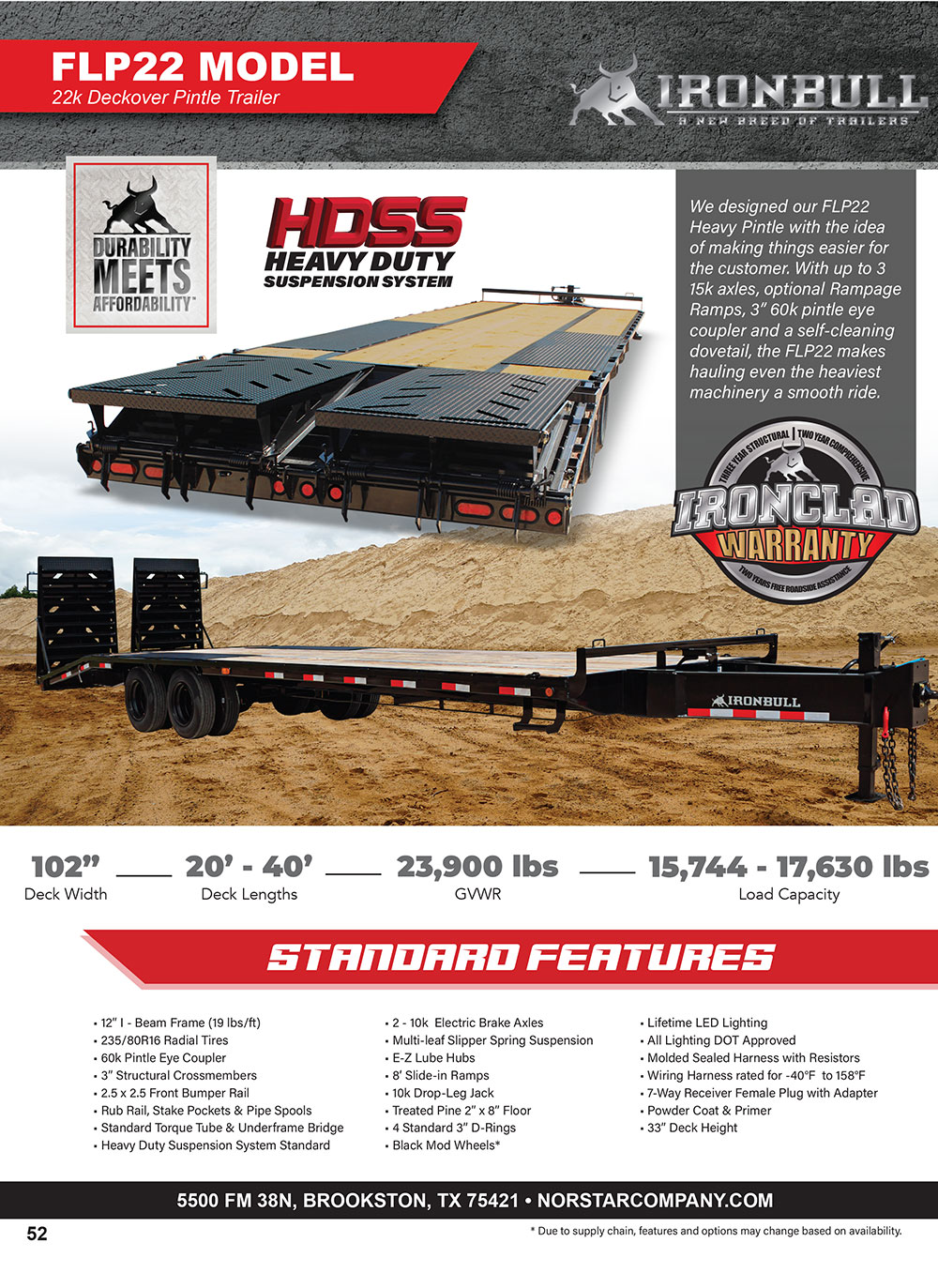

Standard Features

12” I - Beam Frame (19 lbs/ft)

235/80R16 Radial Tires

60k Pintle Eye Coupler

3” Structural Crossmembers

2.5 x 2.5 Front Bumper Rail

Rub Rail, Stake Pockets & Pipe Spools

Standard Torque Tube & Underframe Bridge

Heavy Duty Suspension System Standard

2 - 10k Electric Brake Axles

Multi-leaf Slipper Spring Suspension

E-Z Lube Hubs

8’ Slide-in Ramps

10k Drop-Leg Jack

Treated Pine 2” x 8” Floor

4 Standard 3” D-Rings

Black Mod Wheels*

Lifetime LED Lighting

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7-Way Receiver Female Plug with Adapter

Powder Coat & Primer

34” Deck Height

‍

options

2 - 10,000 lb Electric Over Hydraulic Disc Axles

2 - 12,000 lb Electric Brake Axles

2 - 12,000 lb Electric Over Hydraulic Disc Brake

2 - 15,000 lb Electric Brake Axles

2 - 15,000 lb Air Ride Axles

3 - 10,000 lb Electric Brake Axles

3 - 10,000 lb Electric Over Hydraulic Brake Axles

3 - 12,000 lb Electric Brake Axles

3 - 12,000 lb Electric Over Hydraulic Brake Axles

Rampage Ramps (2 - 40” Flip-Over Ramps w 5’ Self Cleaning Dove)

5’ Self Cleaning Dove Tail with Slide-in Ramps

5’ Self Cleaning Dove Tail with 2 Flip-Over Ramps

5’ Self Cleaning Dove Tail with 3 Flip-Over Ramps

Tube Rear Support Stands

2 Speed Drop-Leg Jacks

6’ Spread Axles

12” Crossmembers (per ft)

Additional Side Tool Box (ea.)

Tongue Mount Toolbox

Cold Weather Harness: -85°F to 221°F (Standard harness: -40°F to 158°F)

17.5” x 6.75” Tire Upgrade (ea.)

Weld On Ratchet Track Only (per ft)

Weld On Ratchets Every 5’ (per ft)

Weld On Track with Adjustable Ratchets Every 5’

Winch Plate (Floor)

14-Ply 235/85 Tire Upgrade (ea.)

‍

Options gallery

Accessories/misc

Toolboxes

Ratchets

Sides

Jacks

Dove Tails & Ramps

Hydraulic Dove Options

Flooring

Accessories/misc

U50 - half inch winch plate in floor

this optional feature adds a winch plate into the floor of your trailer for a winch to be mounted on.

Accessories/misc

W91 - Cold Weather Harness

the cold weather harness helps keep your trailer safely operating in wintery or cold eviroments.

Dove Tails & Ramps

D31 - two flip-over ramps with self cleaning dove

Features a self-cleaning dove accompanied by 2 flip over ramps help you make the most of your deckover and flatdeck trailer.

Dove Tails & Ramps

D07/D13/D30 - Rampage Ramps

Rampage Ramps are a tough, durable option for loading and unloading your trailer. Even better they are easy to use and flip over for convenient storage when not in use. Available in 3',4',5'.

Flooring

K21 - 12" Crossmembers

Adds 12-inch crossmembers by the foot, enhancing structural support and overall strength for your trailer frame.

Flooring

E04 - Rough Oak Flooring

rough oak flooring by the foot, offers a sturdy, durable surface with excellent traction for heavy-duty trailer use.

Flooring

E03 - Blackwood Flooring

Blackwood flooring by the foot, combines lasting durability with enhanced traction for safer, easier loading.

Flooring

E02 - Steel Flooring

Adds a durable steel floor by the foot, delivering superior strength and long-lasting performance for heavy-duty use.

Toolboxes

T42/T43 - Additional toolbox

Adds a toolbox on the passenger or drivers side, offering secure and convenient storage for tools and equipment.

Toolboxes

T41 - Two Additional Toolboxes

Adds two extra toolboxes to your deckover trailer, providing convenient storage and easy access for tools and equipment.

Accessories/misc

R90 - Wireless Remote (Two Button)

A two-button wireless remote, providing convenient, easy control for operating your trailer's electric systems.

Accessories/misc

N02/N03 Extra D-Rings

Additional D-rings can be added for extra support, providing maximum tie-down options for safely securing equipment and cargo.

Accessories/misc

S90 - Solar Charger panel

The solar charger provides a convenient, eco-friendly way to keep your trailer's battery charged and ready.

Ratchets

U30/31/32/33 - Ratchet Tracks

Available as either weld-on (every 5 feet) or adjustable, ratchet tracks provide consistent and secure tie-down points all along your trailer on either side. Availability varies by model.

Jacks

J52/J56 - 12k Hydraulic Jack (if hydraulics NOT equipped)

Available in either a single or set of 2, our 12,000 lb hydraulic jacks ensuring strong, dependable litting capability for safe operation.
