Loading and unloading is half the battle, and we thought about that too with a 6' self-cleaning dove tail and HD spring assist ramps std. The FLP almost makes it look easy.
WIDTH: 102
LENGTH: 25
GVWR: 48,000
AXLES: 2 x 22,500 lb
TIRE/WHEEL: ST215/75R17.5 LRH
FRAME: 14" (26lb/ft)
WEIGHT: 7,095
WIDTH: 102
LENGTH: 26
GVWR: 48,000
AXLES: 2 x 22,500 lb
TIRE/WHEEL: ST215/75R17.5 LRH
FRAME: 14" (26lb/ft)
WEIGHT: 7,295
WIDTH: 102
LENGTH: 28
GVWR: 48,000
AXLES: 2 x 22,500 lb
TIRE/WHEEL: ST215/75R17.5 LRH
FRAME: 14" (26lb/ft)
WEIGHT: 7,495
WIDTH: 102
LENGTH: 30
GVWR: 48,000
AXLES: 2 x 22,500 lb
TIRE/WHEEL: ST215/75R17.5 LRH
FRAME: 14" (26lb/ft)
WEIGHT: 7,695

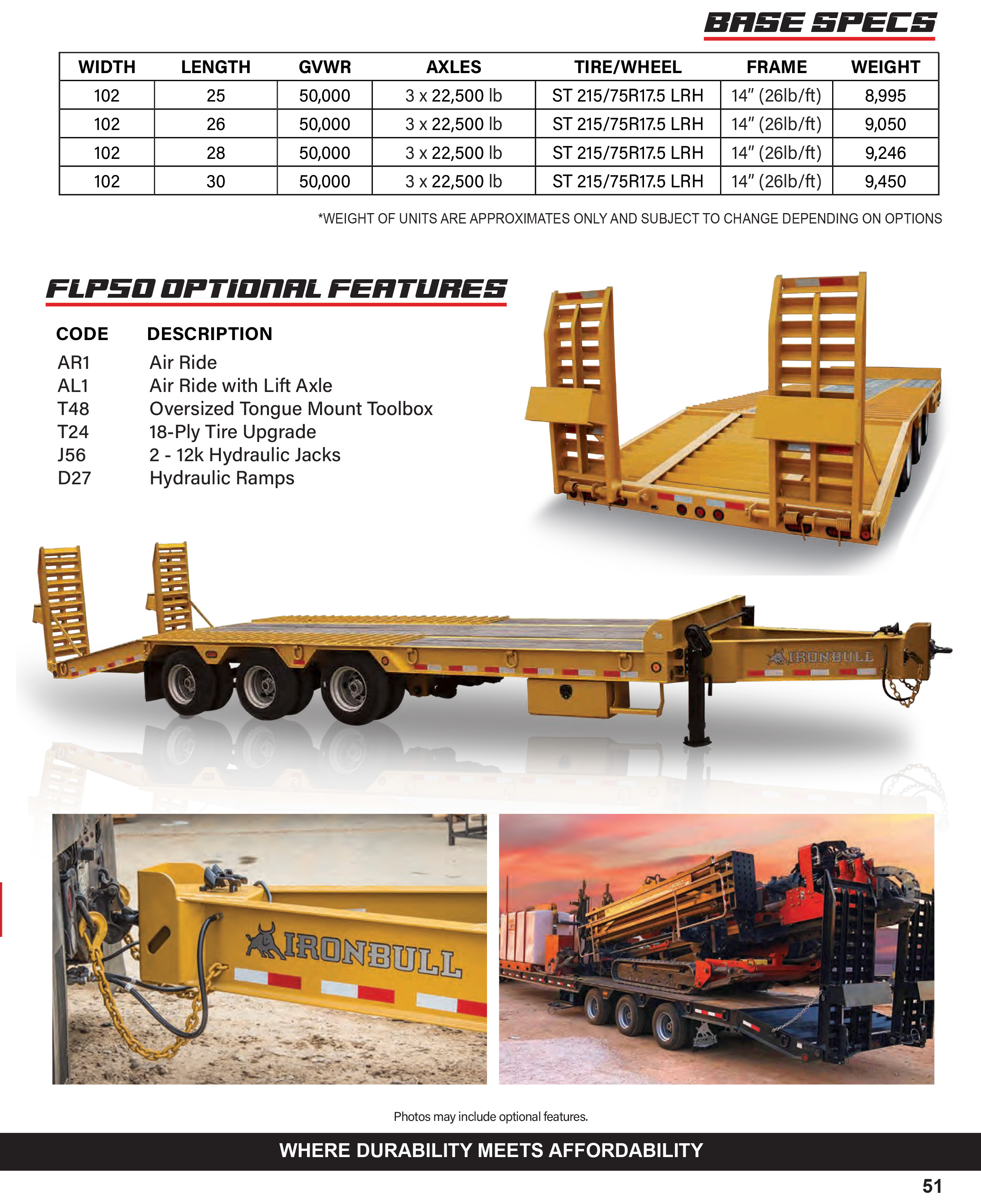

WIDTH: 102
LENGTH: 25
GVWR: 50,000
AXLES: 3 x 22,500 lb
TIRE/WHEEL: ST215/75R17.5 LRH
FRAME: 14" (26lb/ft)
WEIGHT: 8,995
WIDTH: 102
LENGTH: 26
GVWR: 50,000
AXLES: 3 x 22,500 lb
TIRE/WHEEL: ST215/75R17.5 LRH
FRAME: 14" (26lb/ft)
WEIGHT: 9,050
WIDTH: 102
LENGTH: 28
GVWR: 50,000
AXLES: 3 x 22,500 lb
TIRE/WHEEL: ST215/75R17.5 LRH
FRAME: 14" (26lb/ft)
WEIGHT: 9,246
WIDTH: 102
LENGTH: 30
GVWR: 50,000
AXLES: 3 x 22,500 lb
TIRE/WHEEL: ST215/75R17.5 LRH
FRAME: 14" (26lb/ft)
WEIGHT: 9,450
*Weight of units are approximates only and subject to change depending on options.

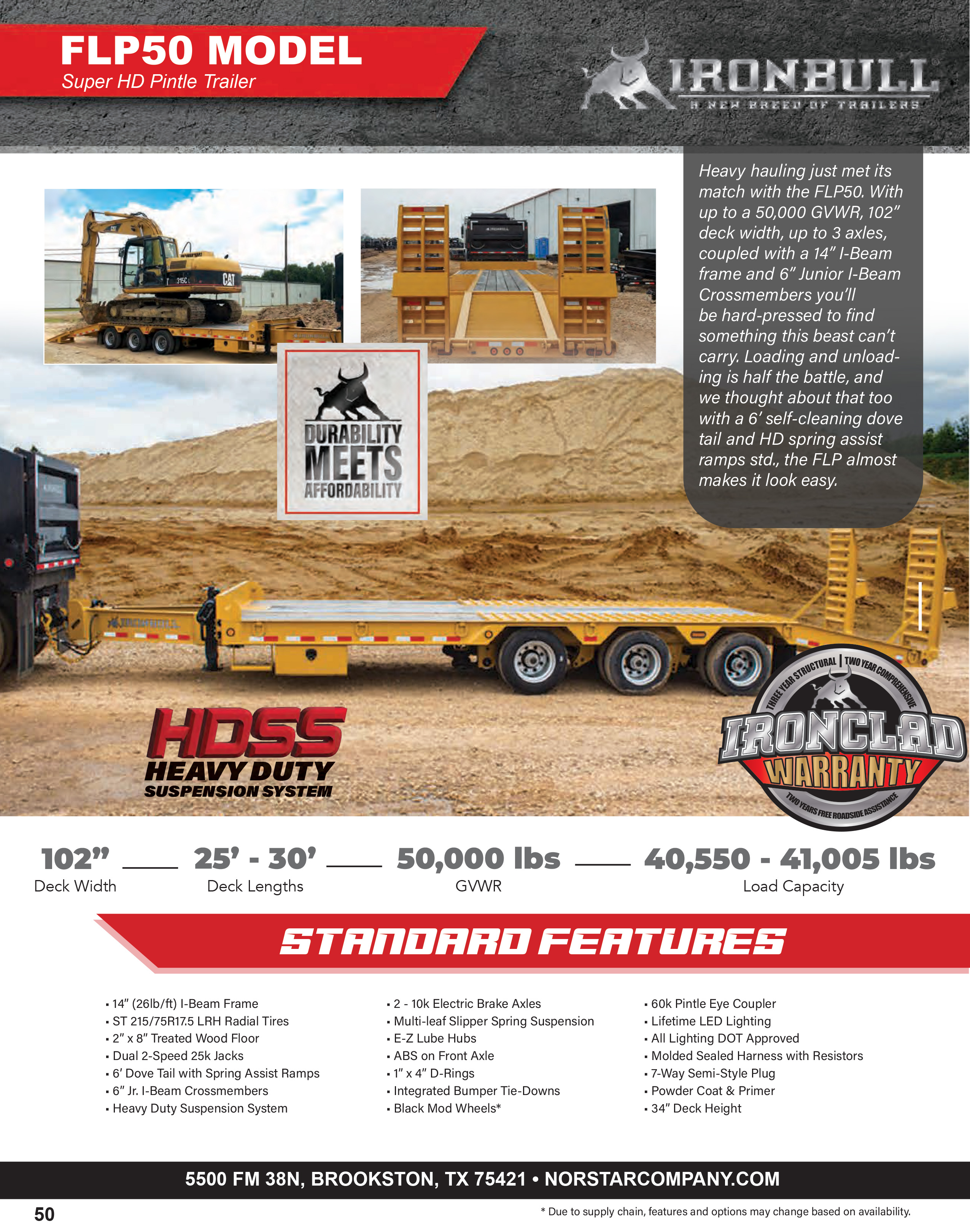

14” (26lb/ft) I-Beam Frame
ST 215/75R17.5 LRH Radial Tires
2” x 8” Treated Wood Floor
Dual 2-Speed 25k Jacks
6’ Dove Tail with Spring Assist Ramps
6” Jr. I-Beam Crossmembers
Heavy Duty Suspension System
Multi-leaf Slipper Spring Suspension
E-Z Lube Hubs
ABS on Front Axle
1” x 4” D-Rings
Integrated Bumper Tie-Downs
Black Mod Wheels*
60k Pintle Eye Coupler
Lifetime LED Lighting
All Lighting DOT Approved
Molded Sealed Harness with Resistors
7-Way Semi-Style Plug
Powder Coat & Primer
37” Deck Height
