FTG14 Deckover Trailer

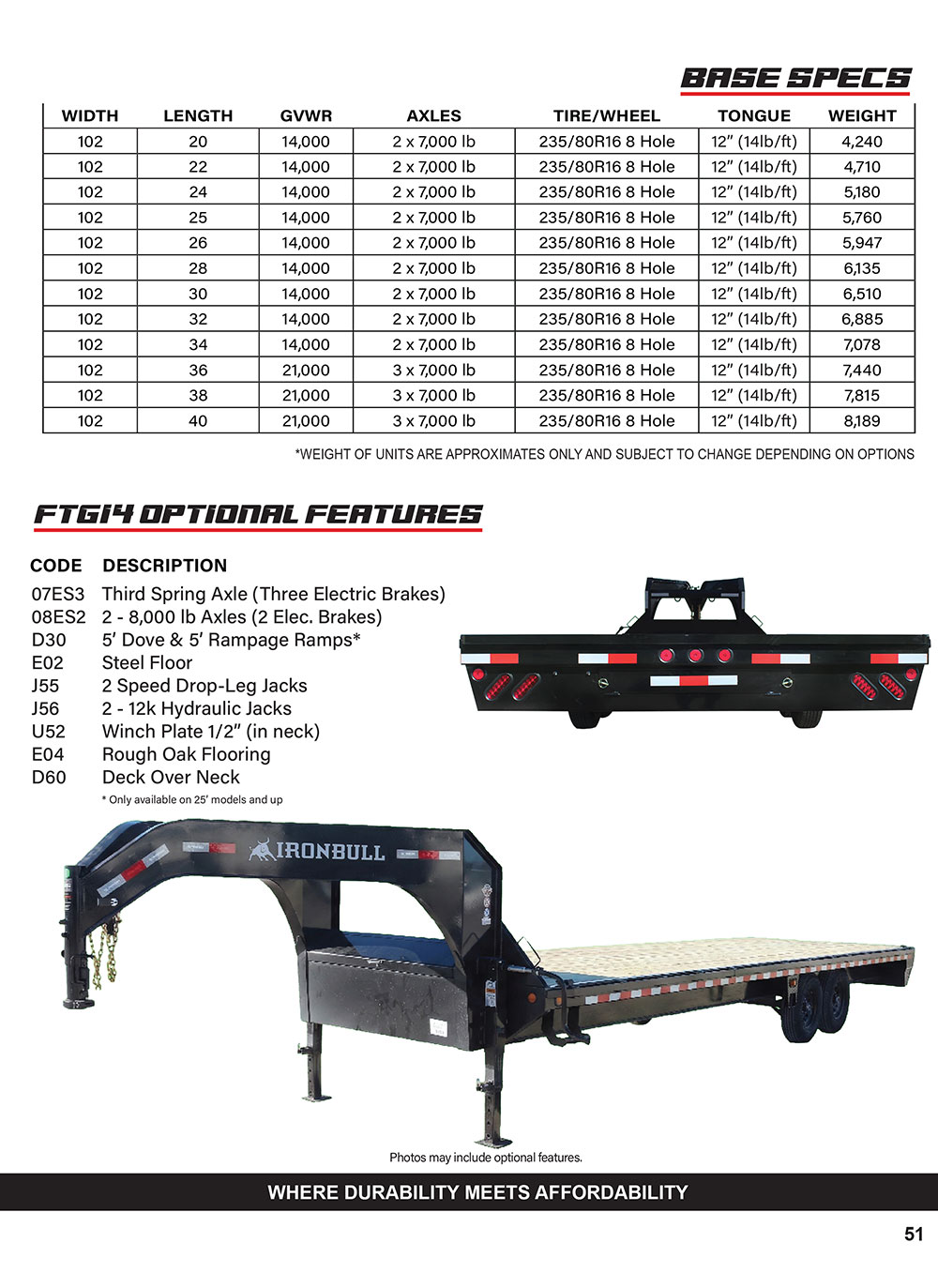

Specifications

WIDTH: 102
LENGTH: 20
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 4,240

WIDTH: 102
LENGTH: 22
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 4,710

‍

WIDTH: 102
LENGTH: 24
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 5,180

‍

WIDTH: 102
LENGTH: 25
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 5,760

‍

WIDTH: 102
LENGTH: 26
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 5,947

‍

WIDTH: 102
LENGTH: 28
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 6,135

‍

WIDTH: 102
LENGTH: 30
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 6,510

‍

WIDTH: 102
LENGTH: 32
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 6,885

‍

WIDTH: 102
LENGTH: 34
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 7,078

‍

WIDTH: 102
LENGTH: 36
GVWR: 21,000
AXLES: 3 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 7,440

‍

WIDTH: 102
LENGTH: 38
GVWR: 21,000
AXLES: 3 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 7,815

‍

WIDTH: 102
LENGTH: 40
GVWR: 21,000
AXLES: 3 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 12" (14lb/ft)
WEIGHT: 8,189

‍

*Weight of units are approximates only and subject to change depending on options.

‍

*Weight of units are approximates only and subject to change depending on options.

Standard Features

12” x 14lb I-Beam Frame

235/80R16 Radial Tires

2 5/16” Adjustable Coupler

3” Structural Channel Crossmembers

6” Tubing Outer Rails

Rub Rail, Stake Pockets & Pipe Spools

Diamond Plate Fender Plates

Cambered Spring Axles

Multi-leaf Slipper Spring Suspension

Treated Pine 2” x 8” Floor

2 Electric Brake Axles

Dual Stirrup Steps

2 - 10k Drop-Leg Jacks

8’ Slide-in Ramps

4 Standard 3” D-Rings

Black Mod Wheels*

Lifetime LED Lighting

All Lighting DOT Approved

7-Way Receiver Female Plug with Adapter

Powder Coat & Primer

37” Deck Height

‍

options

Third Spring Axle (Three Electric Brakes)

2 - 8,000 lb Axles (2 Elec. Brakes)

5’ Dove & 5’ Rampage Ramps*

Steel Floor

2 Speed Drop-Leg Jacks

Winch Plate 1/2” (in neck)

Rough Oak Flooring

Deck Over Neck

12" Crossmembers (per ft)

Blackwood Floor

8ft Deck on the Neck

Jack Hydraulic Assy 2 -12k

‍

Options gallery

Accessories/misc

Toolboxes

Ratchets

Sides

Jacks

Dove Tails & Ramps

Hydraulic Dove Options

Flooring

Accessories/misc

U52 - half inch winch plate in gooseneck

this optional feature adds a winch plate into the gooseneck of your trailer for a winch to be mounted on.

Accessories/misc

W91 - Cold Weather Harness

the cold weather harness helps keep your trailer safely operating in wintery or cold eviroments.

Dove Tails & Ramps

D31 - two flip-over ramps with self cleaning dove

Features a self-cleaning dove accompanied by 2 flip over ramps help you make the most of your deckover and flatdeck trailer.

Dove Tails & Ramps

D07/D13/D30 - Rampage Ramps

Rampage Ramps are a tough, durable option for loading and unloading your trailer. Even better they are easy to use and flip over for convenient storage when not in use. Available in 3',4',5'.

Flooring

K21 - 12" Crossmembers

Adds 12-inch crossmembers by the foot, enhancing structural support and overall strength for your trailer frame.

Flooring

E04 - Rough Oak Flooring

rough oak flooring by the foot, offers a sturdy, durable surface with excellent traction for heavy-duty trailer use.

Flooring

E03 - Blackwood Flooring

Blackwood flooring by the foot, combines lasting durability with enhanced traction for safer, easier loading.

Flooring

E02 - Steel Flooring

Adds a durable steel floor by the foot, delivering superior strength and long-lasting performance for heavy-duty use.

Toolboxes

T42/T43 - Additional toolbox

Adds a toolbox on the passenger or drivers side, offering secure and convenient storage for tools and equipment.

Toolboxes

T41 - Two Additional Toolboxes

Adds two extra toolboxes to your deckover trailer, providing convenient storage and easy access for tools and equipment.

Accessories/misc

D60 - Deck-Over Neck

An additional deck that can be added on top of any gooseneck model that provides extra loading area for small equipment items.

Accessories/misc

R90 - Wireless Remote (Two Button)

A two-button wireless remote, providing convenient, easy control for operating your trailer's electric systems.

Accessories/misc

N02/N03 Extra D-Rings

Additional D-rings can be added for extra support, providing maximum tie-down options for safely securing equipment and cargo.

Accessories/misc

R06 - 6" Raised Gooseneck

A 6-inch raised gooseneck, improving clearance and providing a better towing angle for easier loading and transport. Perfect for trucks with a large lift.

Accessories/misc

S90 - Solar Charger panel

The solar charger provides a convenient, eco-friendly way to keep your trailer's battery charged and ready.

Ratchets

U30/31/32/33 - Ratchet Tracks

Available as either weld-on (every 5 feet) or adjustable, ratchet tracks provide consistent and secure tie-down points all along your trailer on either side. Availability varies by model.

Jacks

J52/J56 - 12k Hydraulic Jack (if hydraulics NOT equipped)

Available in either a single or set of 2, our 12,000 lb hydraulic jacks ensuring strong, dependable litting capability for safe operation.

Jacks

J55 - 2 Speed Jacks

These jacks feature a 2-speed system, allowing faster setup and precise control for safely lifting and stabilizing trailers.
