FXG22k
Gooseneck Low-Pro
No items found.
22k Tandem Dual Deckover
SIZES
102 x 25--40
GVWR
22,000

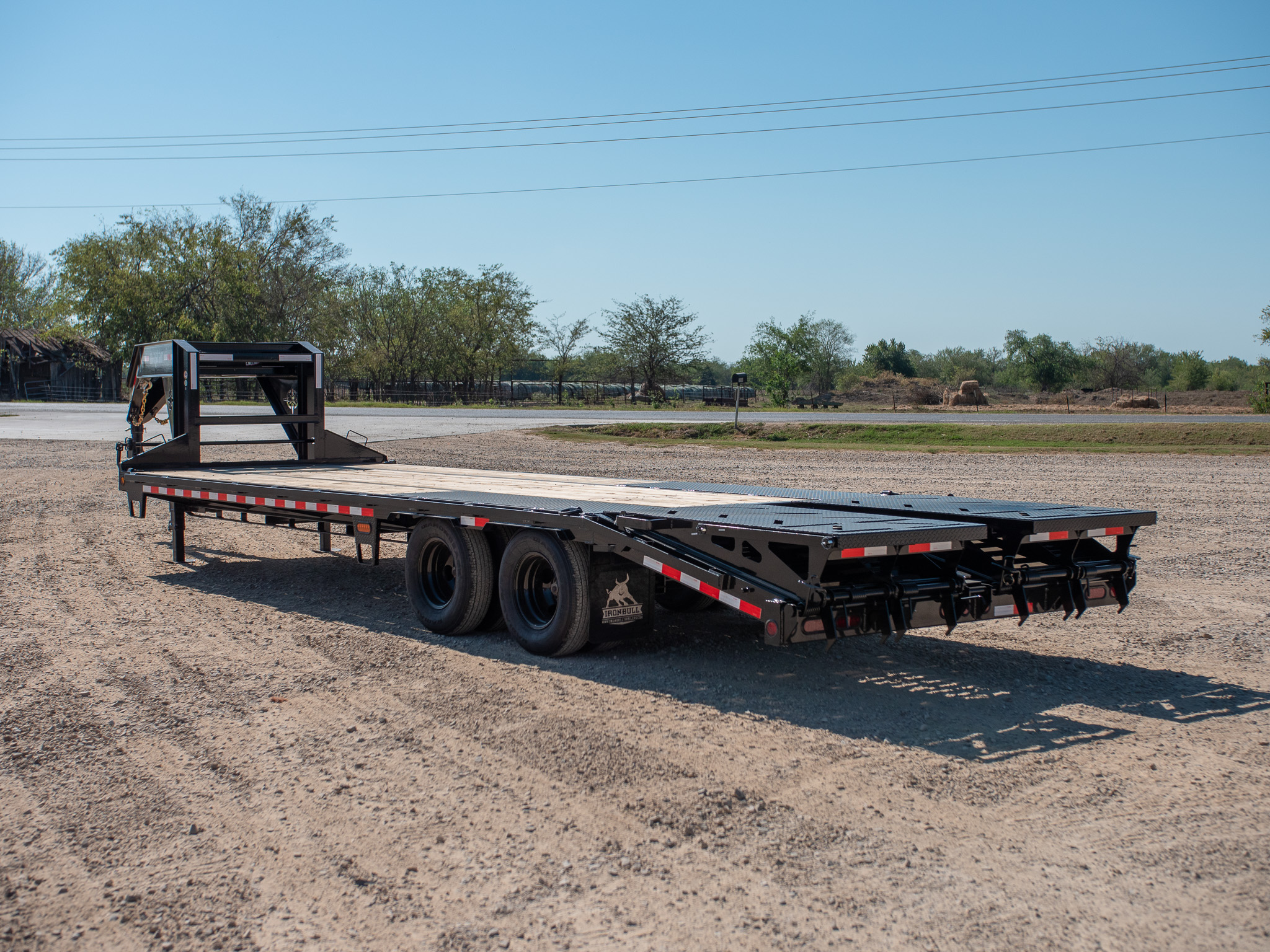

A new take on a classic design- Norstar has come out with the all-new FXG Gooseneck Low-Pro Equipment Trailer. With a 22,000 GVWR, 2- 10K electric brake axles, 12'' 19lb I-beam neck and frame and tons more as standard.

This trailer has it all!

Norstar Gooseneck Trailers deliver the same quality, usablity and reliability  as you’ve come to expect from IronBull. Decades of experience contributed to create one of the most  durable trailers available on the market today. Norstar Goosenecks are built to haul and get you there and back again and again.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
102
FXG

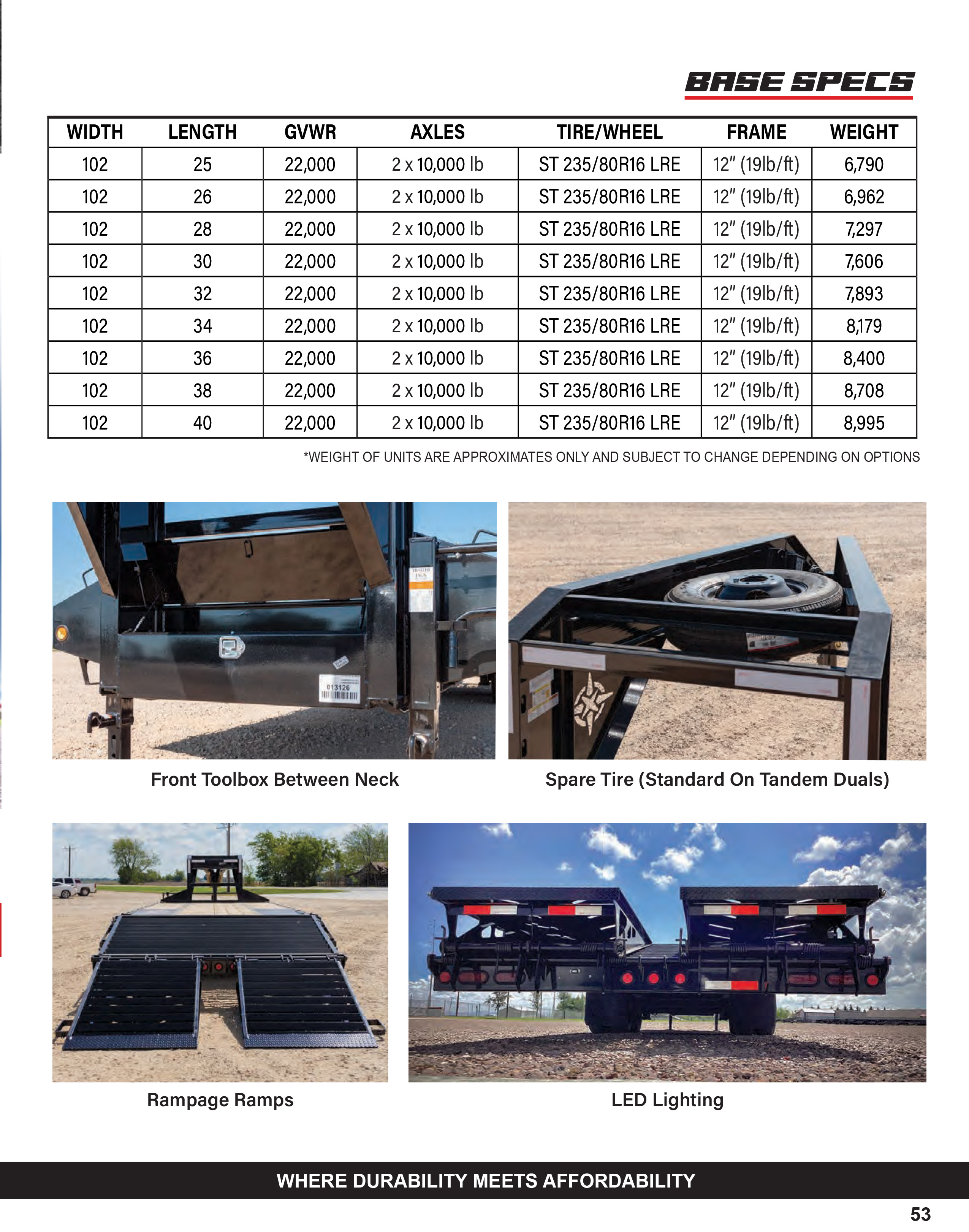

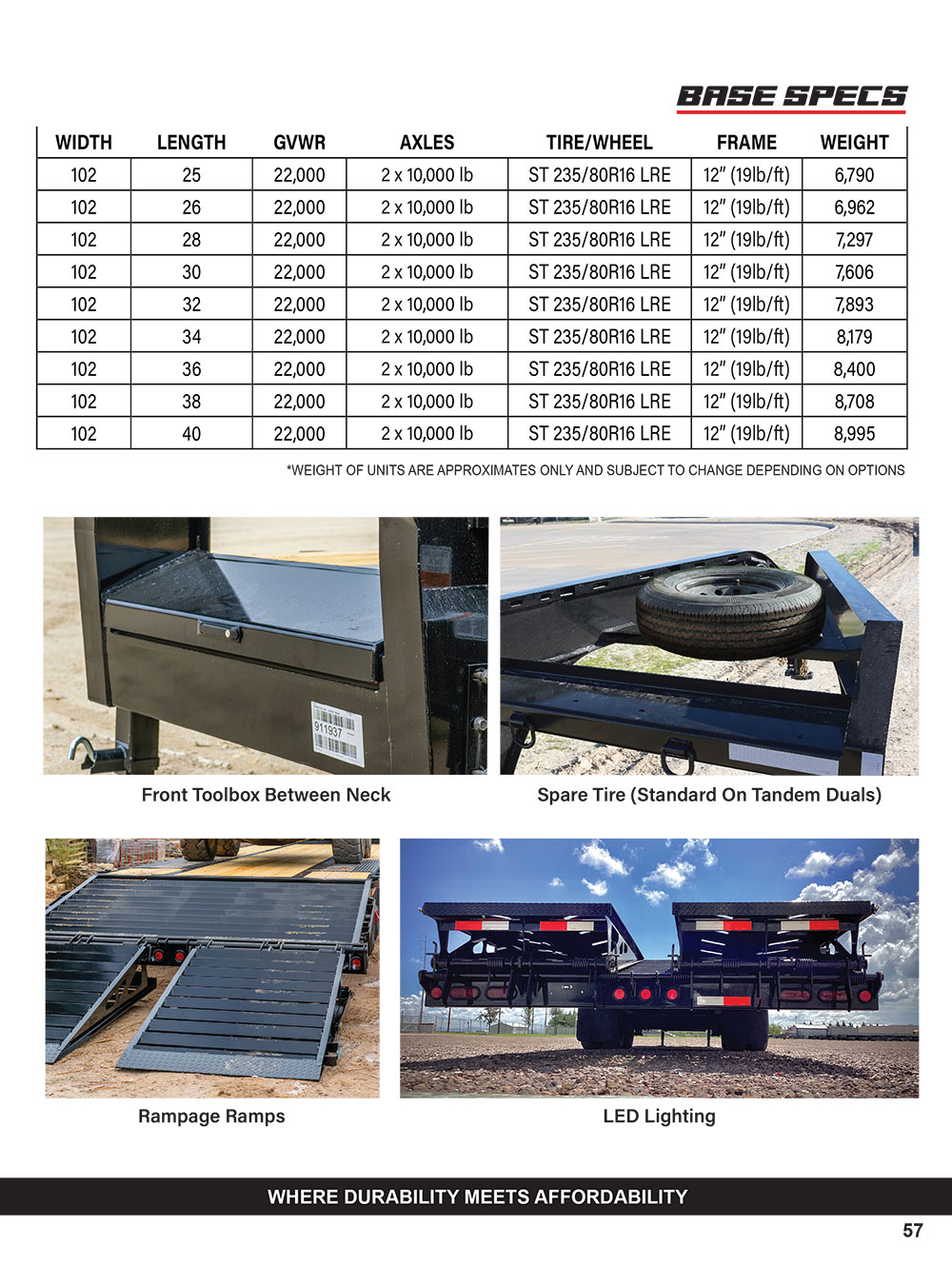

Specifications

WIDTH: 102
LENGTH: 25
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 6,790



WIDTH: 102
LENGTH: 26
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 6,962

WIDTH: 102
LENGTH: 28
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 7,297

WIDTH: 102
LENGTH: 30
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 7,606

WIDTH: 102
LENGTH: 32
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 7,893

WIDTH: 102
LENGTH: 34
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 8,179

WIDTH: 102
LENGTH: 36
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 8,400

WIDTH: 102
LENGTH: 38
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 8,708

WIDTH: 102
LENGTH: 40
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST 235/80R16 8 LRE

FRAME: 12" (19LB/FT)
WEIGHT: 8,995

*WEIGHT OF UNITS ARE APPROXIMATES ONLY AND SUBJECT TO CHANGE DEPENDING ON OPTIONS

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

2 - 10,000 Lb Electric Brake Axles

ST235/80 R16 LRE 10 Ply. (Dual)

12” 19lb I-Beam Frame & Neck

6” Channel Side Rail

16” Crossmembers (3” 3.5lb C-channel)

5 1/2” Torque Tube

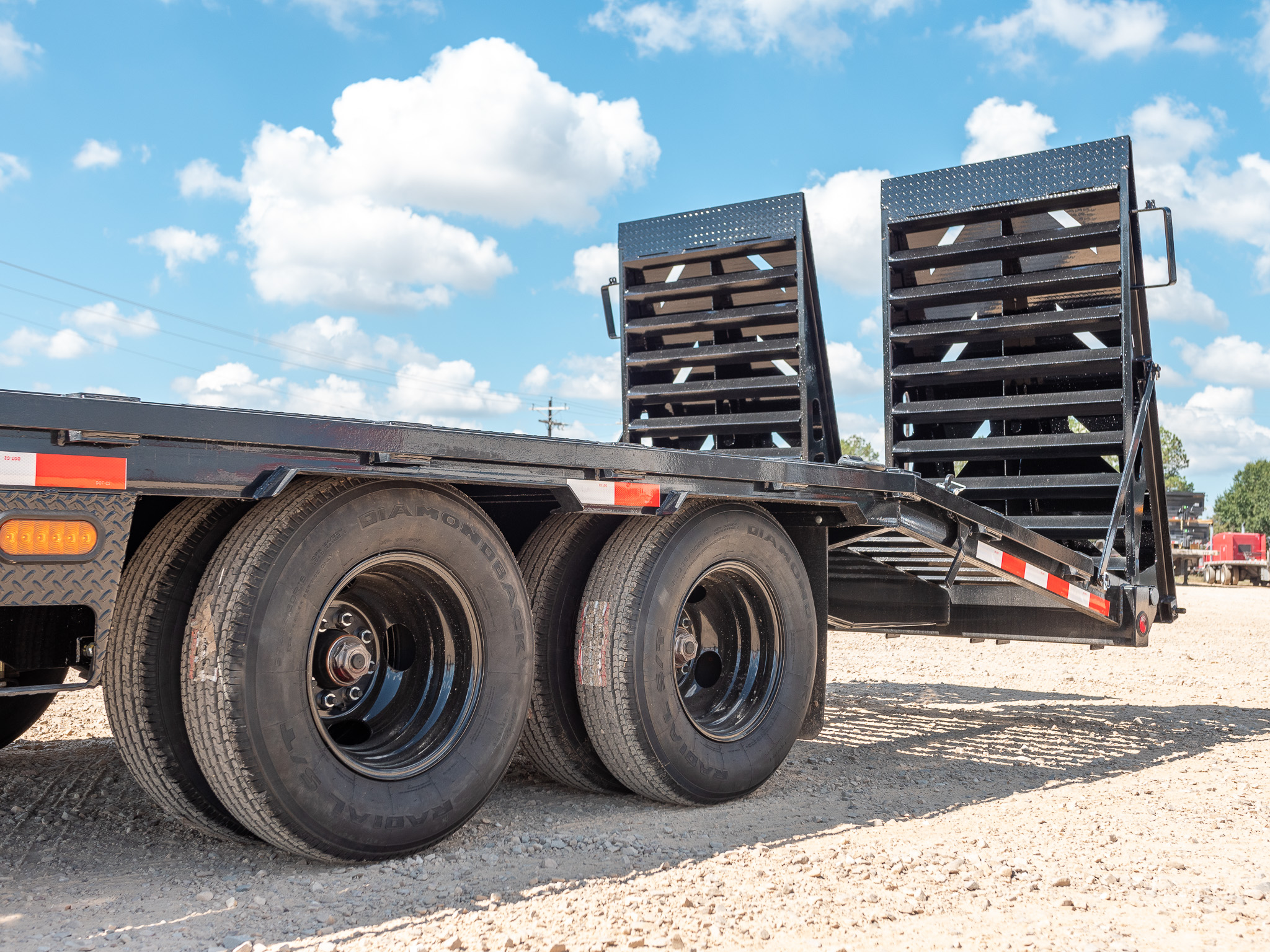

102” X 5’ Self Cleaning Dove Tail w/ Rampage Ramps

Under Frame Bridge

Front Tool Box

Rub Rails w/Stake Pockets & Pipe Spools

2-5/16” Gooseneck Coupler Adjustable Rd. 25K

Treated Wood Floor

Spring Loaded Drop Leg Jack 2-10K

D-Rings 3” x 5/8” Weld On (4 ea)

Spare Tire ST235/80 R16 LRE 10 Ply. (Dual)

Mud Flaps with Norstar Logo (Dual Tires)

Standard Wire Harness

New Diamond Plate Steps

Powder Coat & Primer

One Year Warranty

32” Deck Height

options

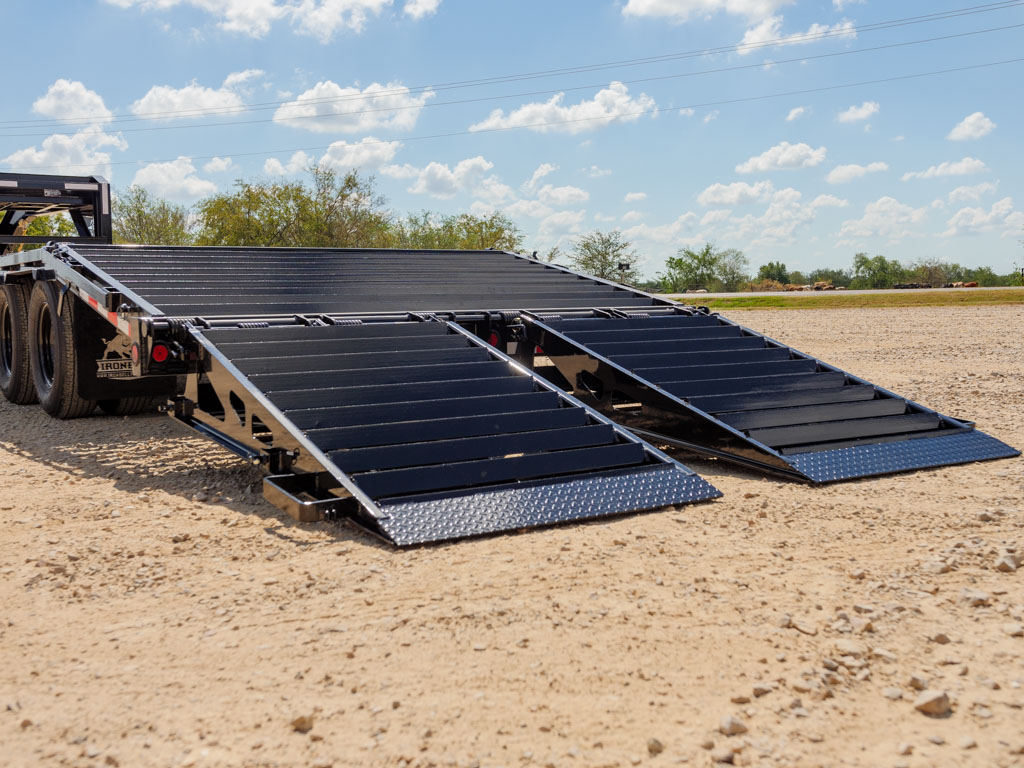

Rampage Ramps

bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
