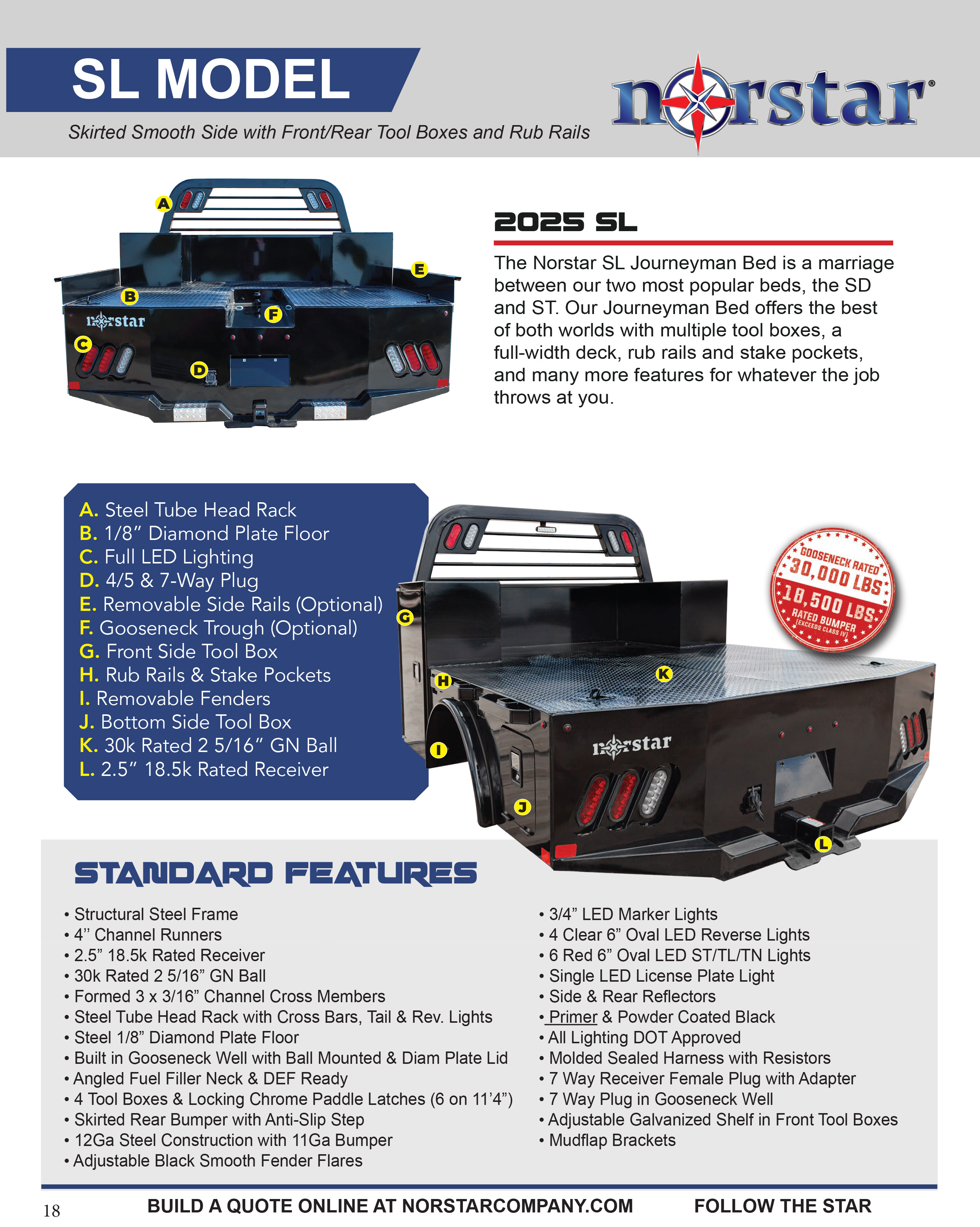

Standard Features

Structural Steel Frame

4" Channel Runners

2.5" 18.5k Rated Receiver

30k Rated 2 5/16" GN Ball

Formed 3 x 3/16 Channel Cross Members

Steel Tube Head Rack with Cross Bars, Tail & Rev. Lights

Steel 1/8 Diamond Plate Floor

Built in Gooseneck Well with Ball Mounted & Diam Plate Lid

Angled Fuel Filler Neck & DEF Ready

4 Tool Boxes & Locking Chrome Paddle Latches (6 on 11'4")

Skirted Rear Bumper with Anti-Slip Step

12Ga Steel Construction with 11Ga Bumper

Adjustable Black Smooth Fender Flares

3/4" LED Marker Lights

4 Clear 6" Oval LED Reverse Lights

6 Red 6" Oval LED ST/TL/TN Lights

Single LED License Plate Light

Side & Rear Reflectors

Primer & Powder Coated Black

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7 Way Receiver Female Plug with Adapter

Way Plug in Gooseneck Well

Adjustable Galvanized Shelf in Front Tool Boxes

Mudflap Brackets

‍

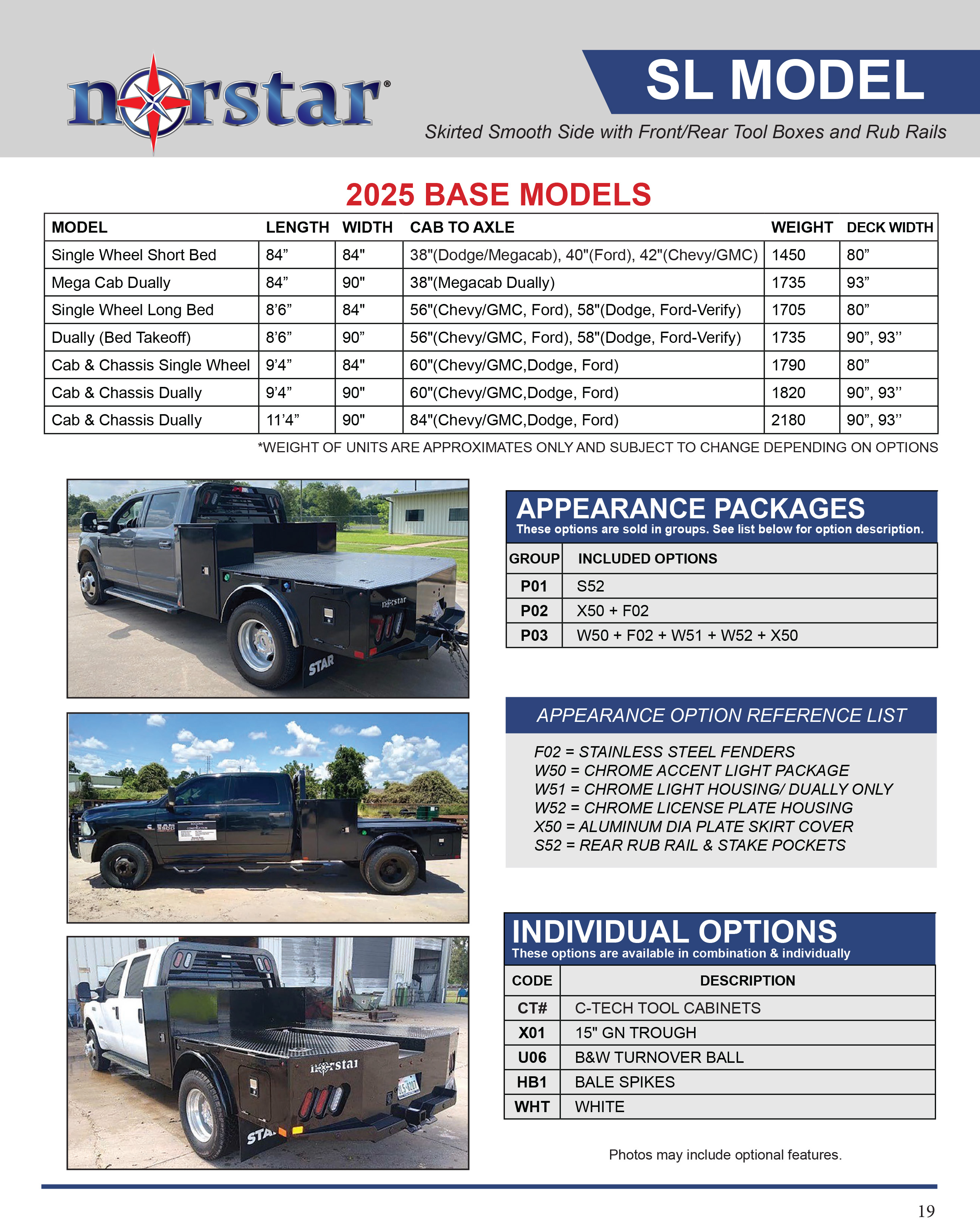

options

Stainless Steel Fenders

Chrome Accent Light Package

Chrome Light Housing/ Dually only

Chrome License Plate Housing

Aluminum Diamond Plate Skirt Cover

Rear Rub Rail & Stake Pockets

C-TECH Tool Cabinets

15" GN Trough

B&W Turnover Ball

Bale Spikes

White

‍

bed size guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

Length: Measurement from cab to end of frame.
Width: Measurement from outside of tire to outside of tire
CTA: Measurement from cab to axle
Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
Models: ST, SF, SR, SD
Order Method: Model x Length x Width x CTA x Runner
Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

‍

1998-Present

Dually – 8’6”L x 97”W x 56” CTA x 38” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner
Cab & Chassis – 9’4”L x 94”/97''W x 60”CTA x 34” Runners
F-450 & 550 are 94” & 97”W with Standard Headache Rack
2015 F650 Runners 34.5”

‍

2001-Present

Dually – 8’6”L x 97”W x 56”CTA x 42” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner
Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners
(Prior to 2000 measurements will be required)
4500 & 5500 is 94”W with 60” Headache Rack

‍

03-Present

2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner
Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners
Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners
Dually – 8’6”L x 97”W x 58”CTA x 42” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner
2002 and earlier will have 56” CTA and 38” Runners on long bed

‍

Plug N Play

Installation Adapters

The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:

1001010 WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)
1001009 WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)
1001011 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)
1001013 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)
1001012 WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)
1001014 WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)

‍
