TDP 14k Deckover Pintle Tilt
No items found.
14K Tilt Deckover Pintle Trailer
SIZES
102 x 22'--30'
GVWR
14,000 lb

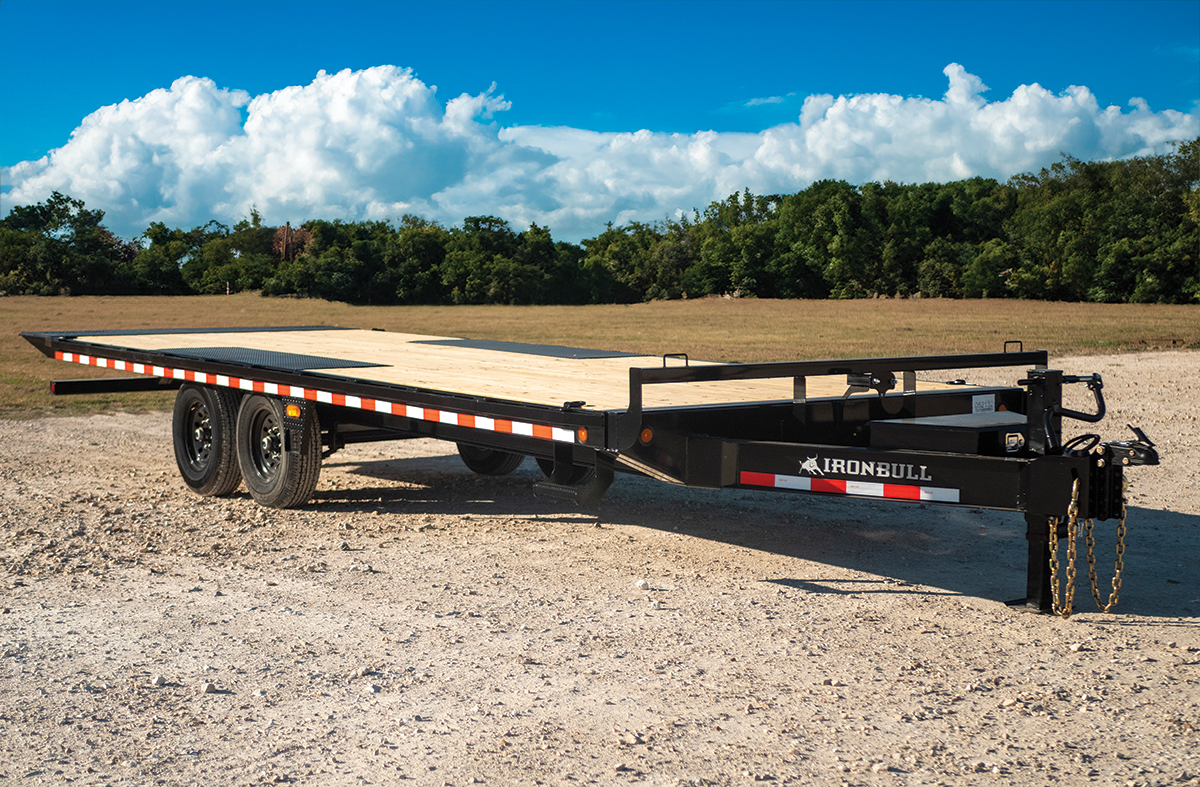

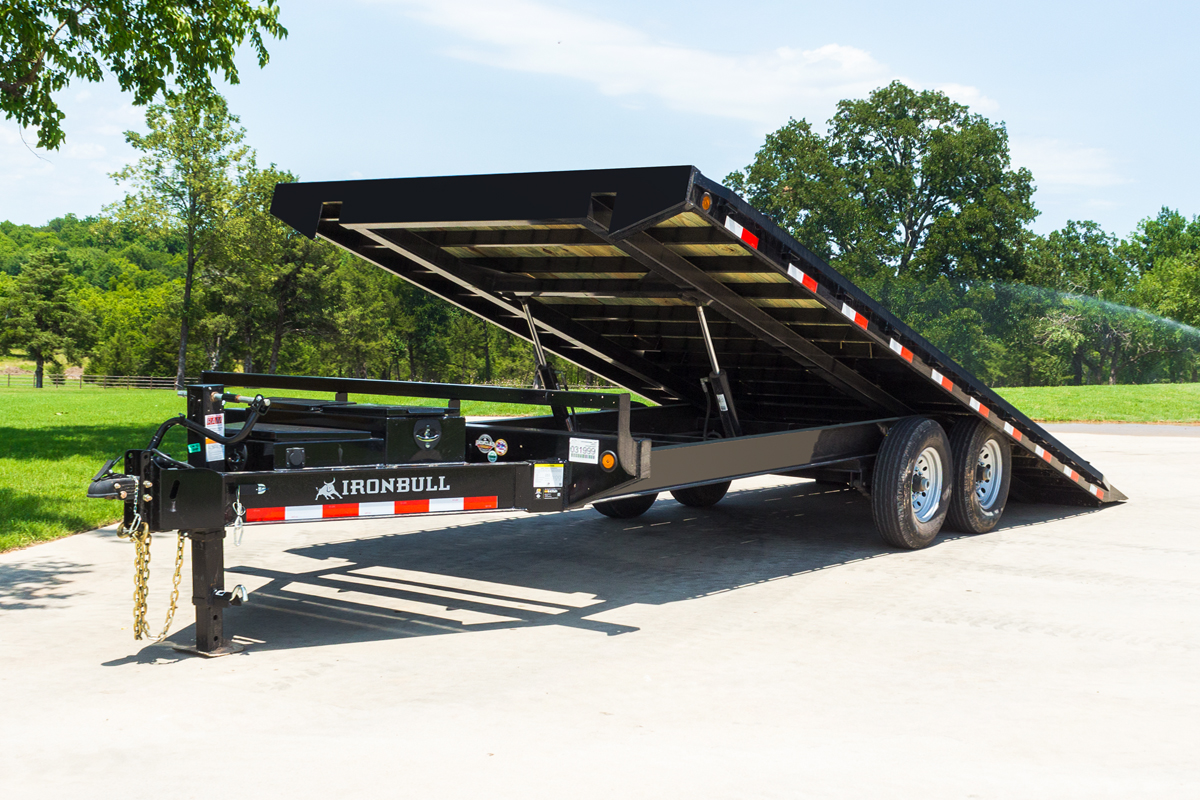

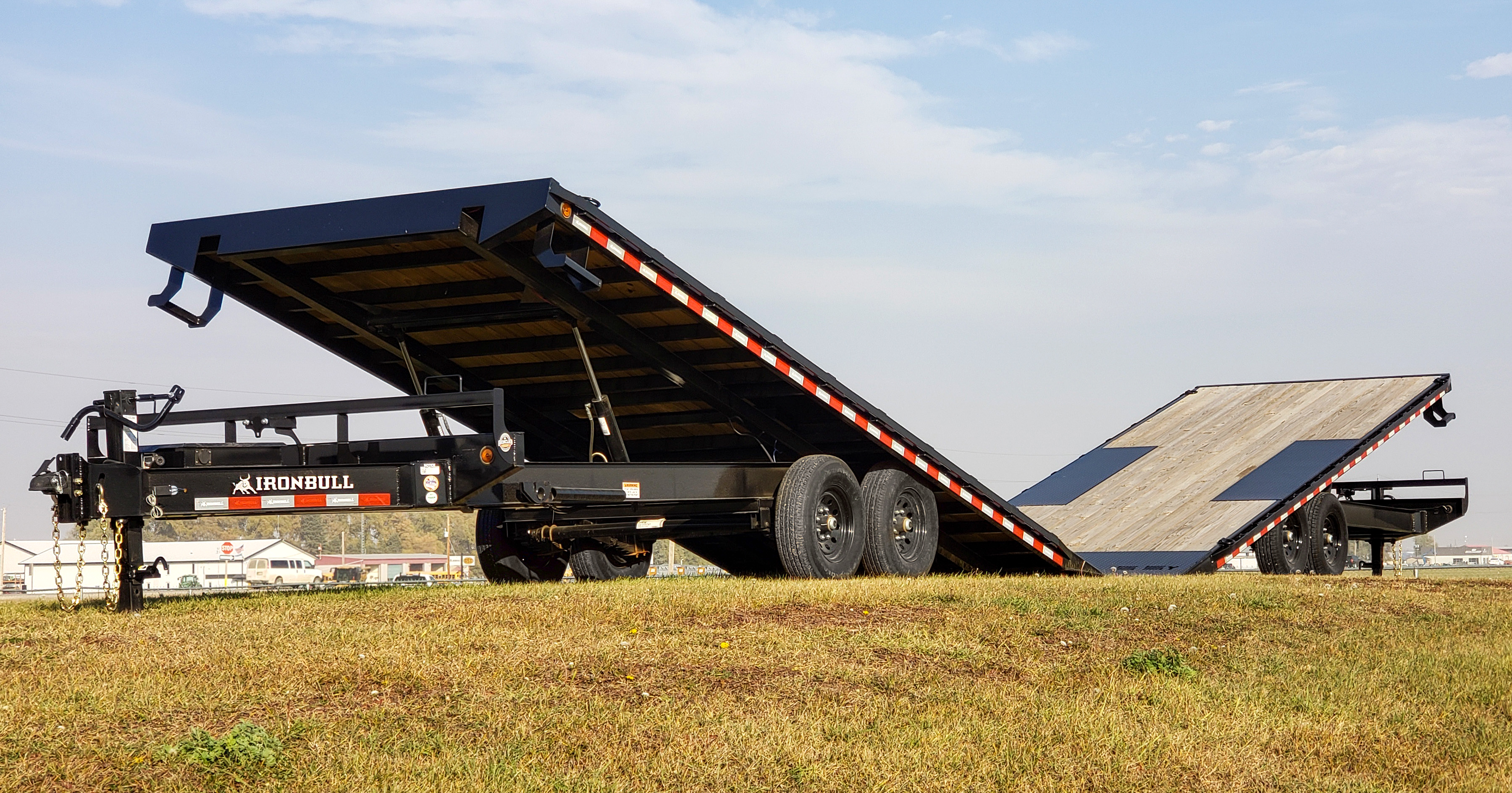

Our 102" wide 14k Deckover Pintle Tilt is tough enough for any task. With two 7k axles and tons of standard features, this model will strongly perform for your hauling needs. This bull is built to deliver maximum performance and versitility with 14k GVWR and dual hydraulic cylinders.

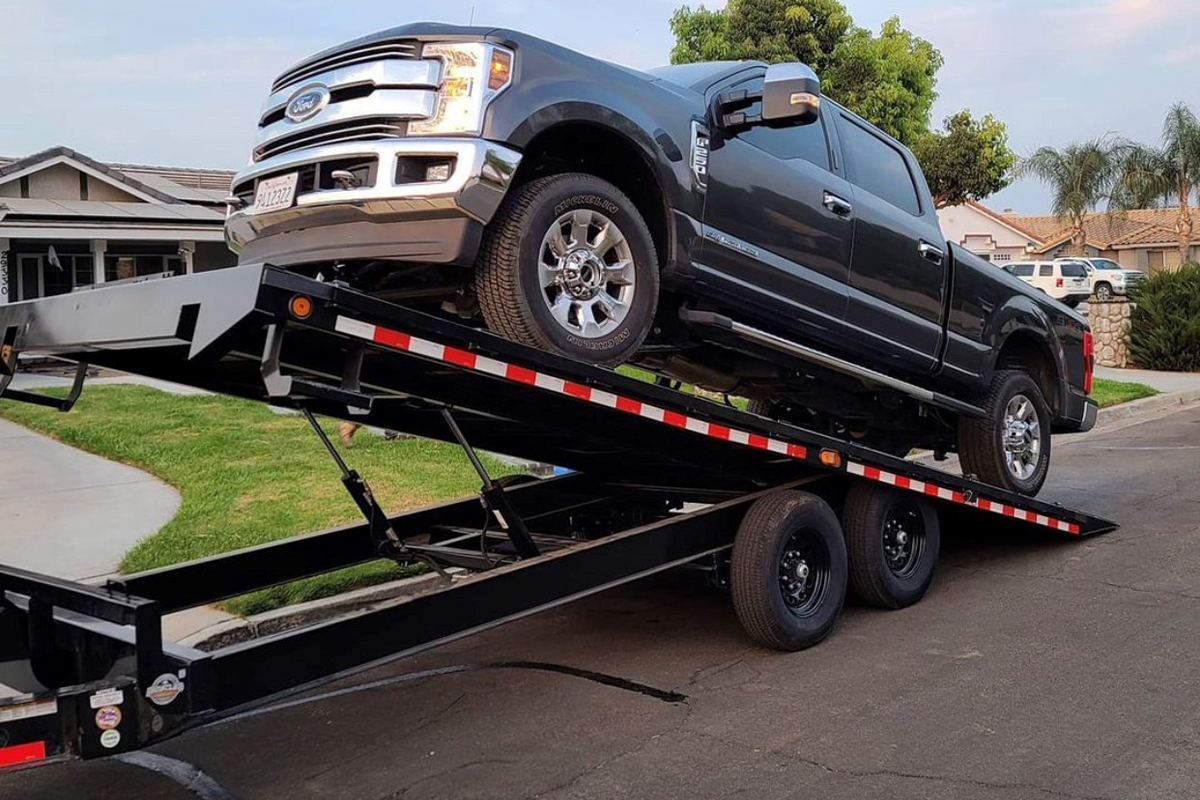

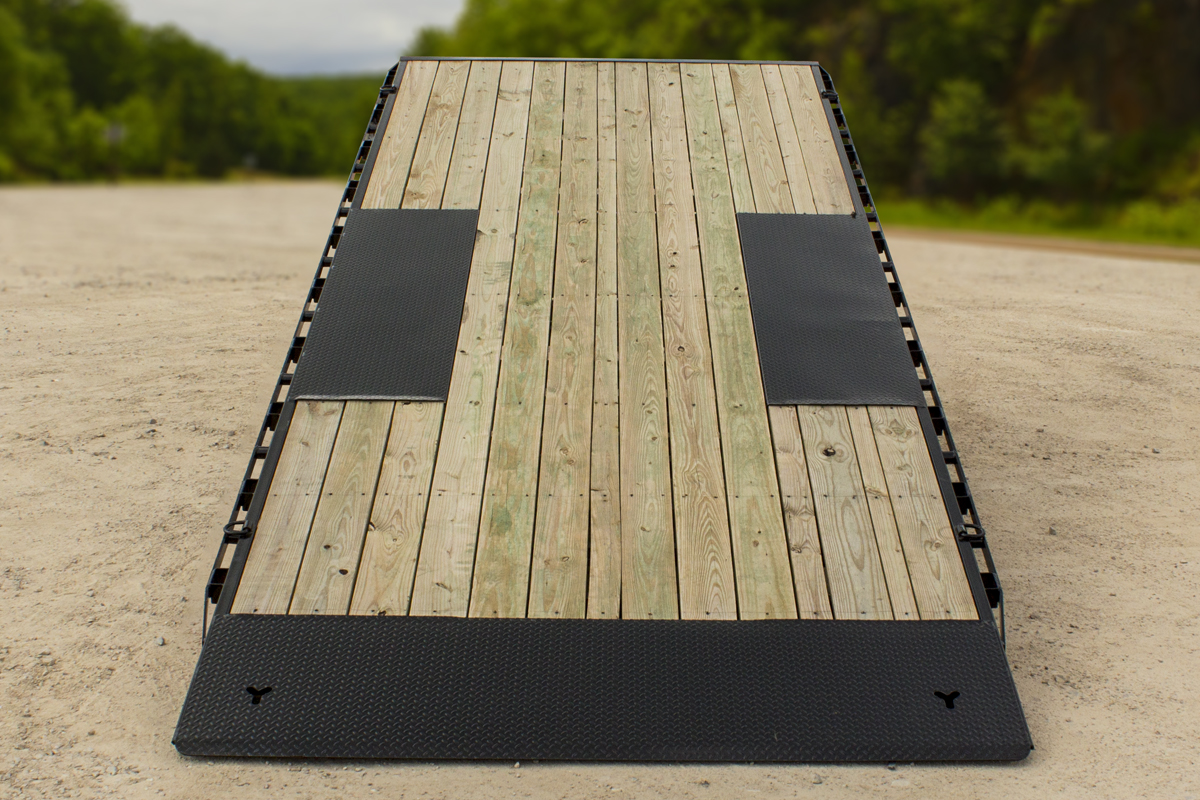

The TDP14 Deckover features a 8" I-Beam neck and frame. This I-Beam necks come standard along with a long list of other great standard features. Go full tilt with your trailering. 7k brake axles and radial tires provide a solid foundation for each IronBull tilt trailer and ample grip for stopping power. The knife-edge tail rests level with the ground, eliminating the need to drive over any raised bumps. This feature proves beneficial when loading equipment with small wheels, loading in wet/slippery conditions or winching vehicles onto the deck. Fresh powder coat gives each trailer a rugged finish with a showroom shine.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
072
TDP
Specifications

WIDTH: 102
LENGTH: 22
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 8" I-Beam
WEIGHT: 4,300



WIDTH: 102
LENGTH: 24
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 8" I-Beam
WEIGHT: 4,800

WIDTH: 102
LENGTH: 26
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 8" I-Beam
WEIGHT: 5,170

WIDTH: 102
LENGTH: 28
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 8" I-Beam
WEIGHT: 5,370

WIDTH: 102
LENGTH: 30
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE

FRAME: 8" I-Beam
WEIGHT: 5,680

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

8” I-Beam Frame (10 lbs/ft)

235/80R16 Radial Tires

2 5/16” Adjustable Auto Latching Coupler

3” Structural Crossmembers

4” Tube Frame Runners

Rub Rail, Stake Pockets & Pipe Spools

Cambered Spring Axles

Multi-leaf Slipper Spring Suspension

E-Z Lube Hubs

2 Electric Brake Axles

10k Drop-Leg Jack

Treated Pine 2” x 8” Floor

4 Standard 3” D-Rings

Black Mod Wheels*

Lifetime LED Lighting

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7-Way Receiver Female Plug with Adapter

Powder Coat & Primer

Dual Cylinder Lift

35” Deck Height

options

Third Spring Axle (Three Electric Brakes)

Tandem 8k Axles

Hydraulic 12k Jack

Steel Floor

Blackwood Floor

12” Crossmembers

3” Adjustable Pintle Ring

Weld on Spare Tire Mount

Winch Plate 1/2” (in floor)

Cold Weather Harness

Scissor Hoist TH-516
