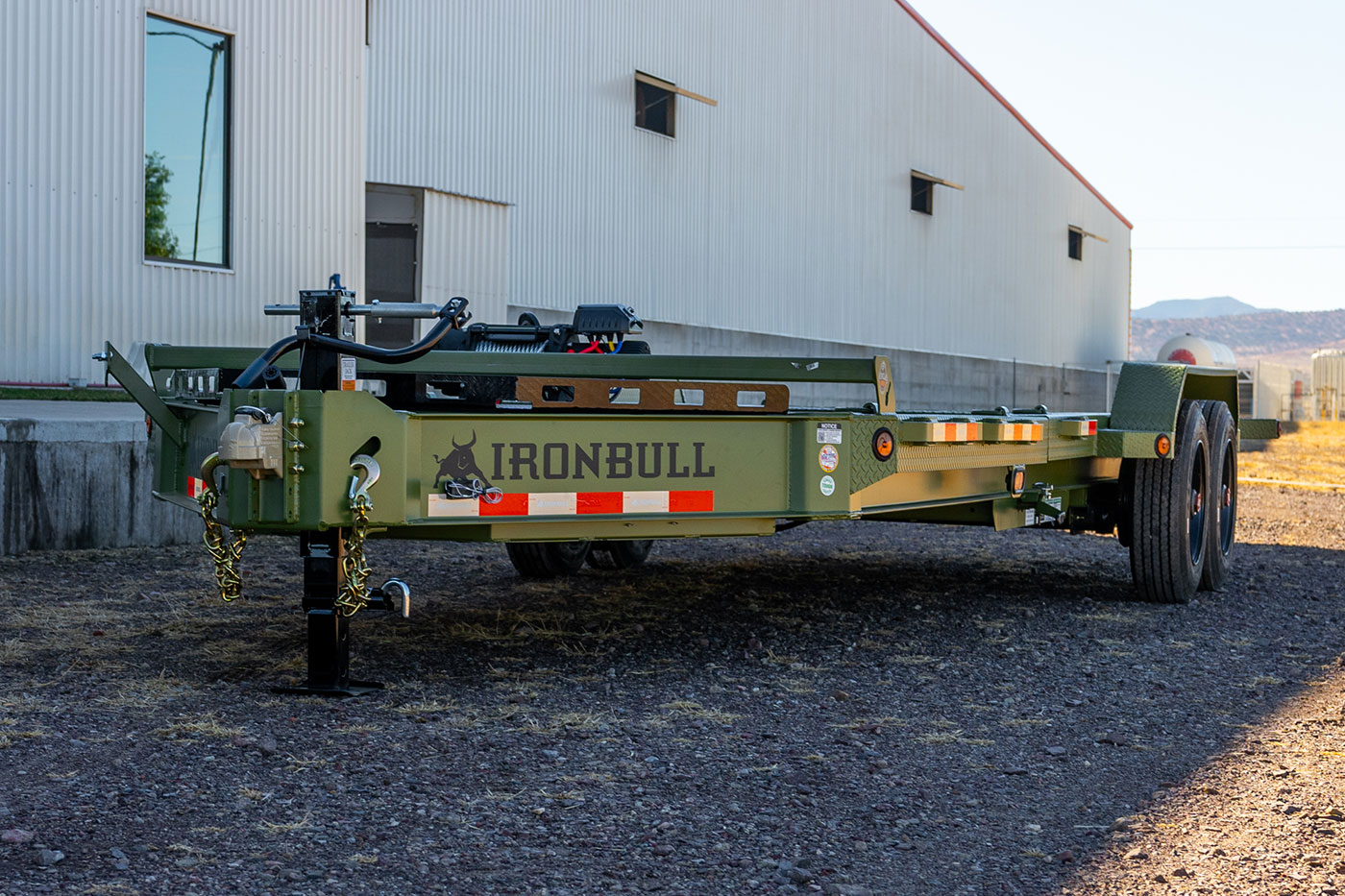

The Ironbull THB is a high-capacity 20,000 Ib GVWR trailer in Military Green, featuring tandem 10,000 Ib torsion axles and a 16' gravity tilt deck. Built with a 10" beam frame, black wood floor, and 14-ply tires, it comes fully equipped with a 10k drop leg jack, eight D-rings, and diamond plate fenders for ultimate job-site durability.
LENGTH: 20'
GVWR: 20,000
AXLES: 2 x 10,000 lb
DECK HEIGHT: 26"
WEIGHT:
LENGTH: 22'
GVWR: 20,000
AXLES: 2 x 10,000 lb
DECK HEIGHT: 26"
WEIGHT:
LENGTH: 24'
GVWR: 20,000
AXLES: 2 x 10,000 lb
DECK HEIGHT: 26"
WEIGHT:
LENGTH: 26'
GVWR: 20,000
AXLES: 2 x 10,000 lb
DECK HEIGHT: 26"
WEIGHT:
2 - 10,000 Lb Tors Axles (UP)(2 Elec Brakes)
10" I-Beam Frame, 12 Lb/ft, w/ Stationary Deck
16" Crossmembers (3" 3.5lb C-channel)
Coupler Adj. 2-5/16" Cast 25K
Jack Spring Loaded Drop Leg 1-10K
Diamond Plate Fenders (Removable Bolt On)
Black Wood Floor (per ft)

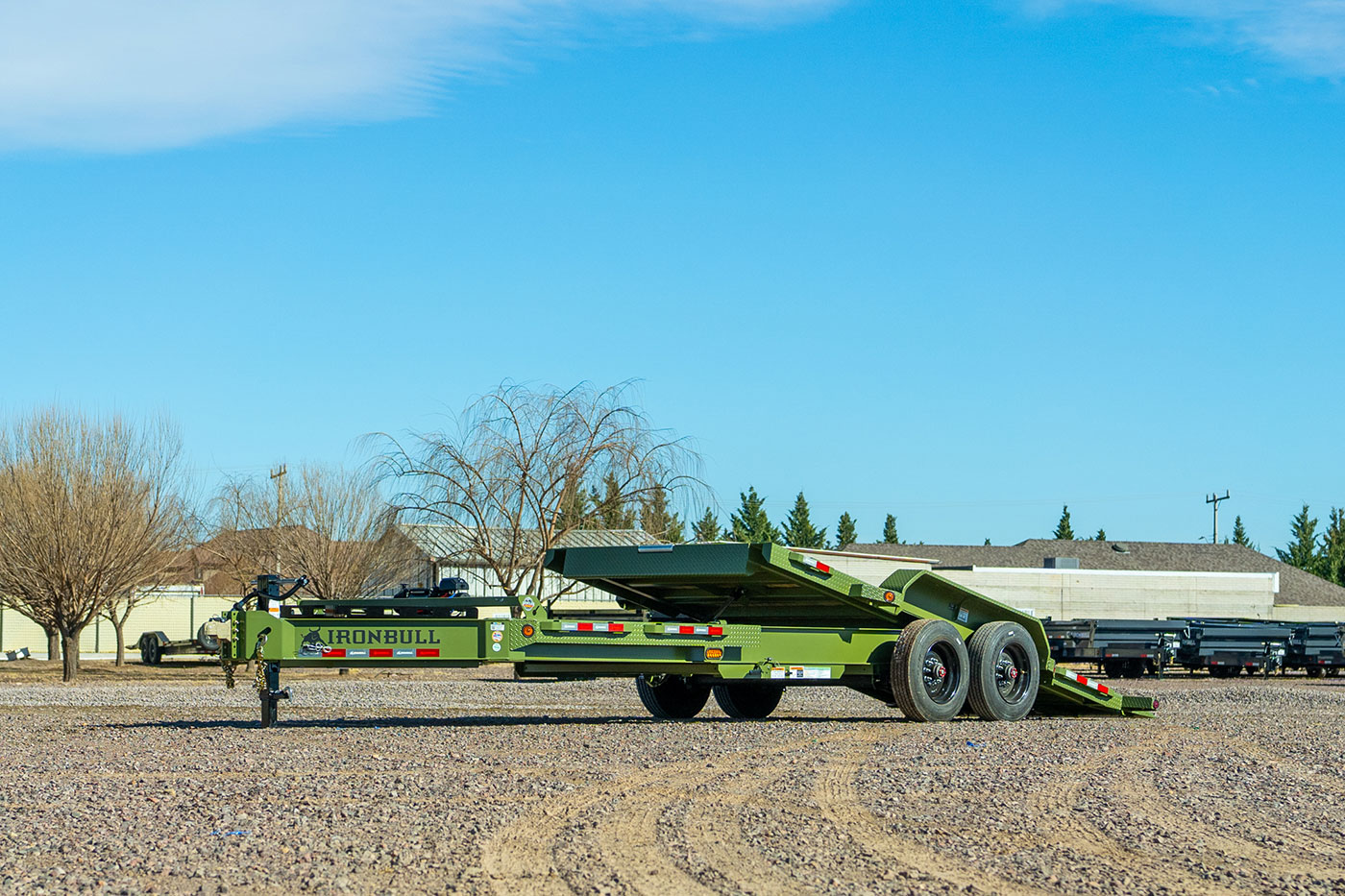

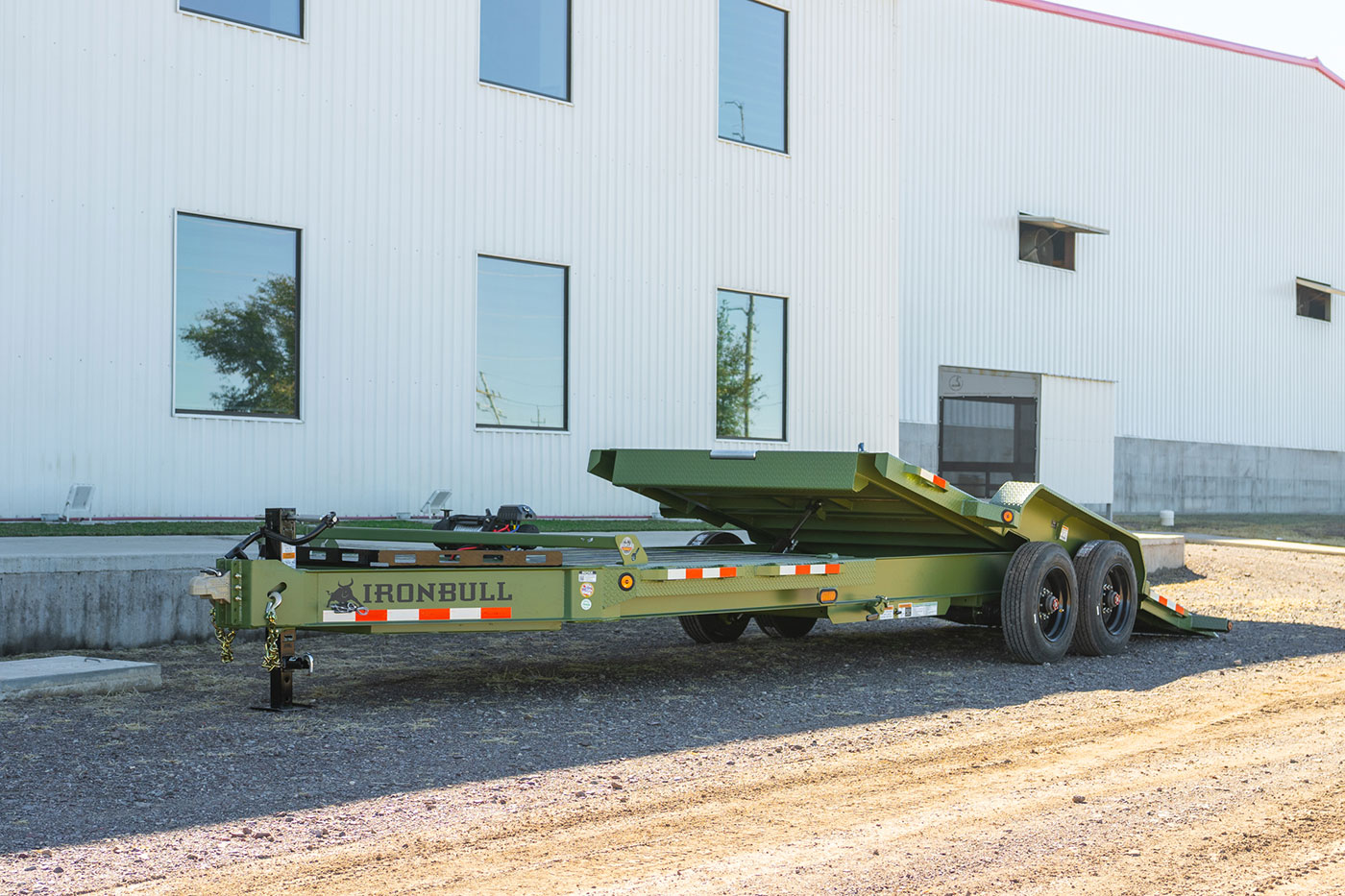

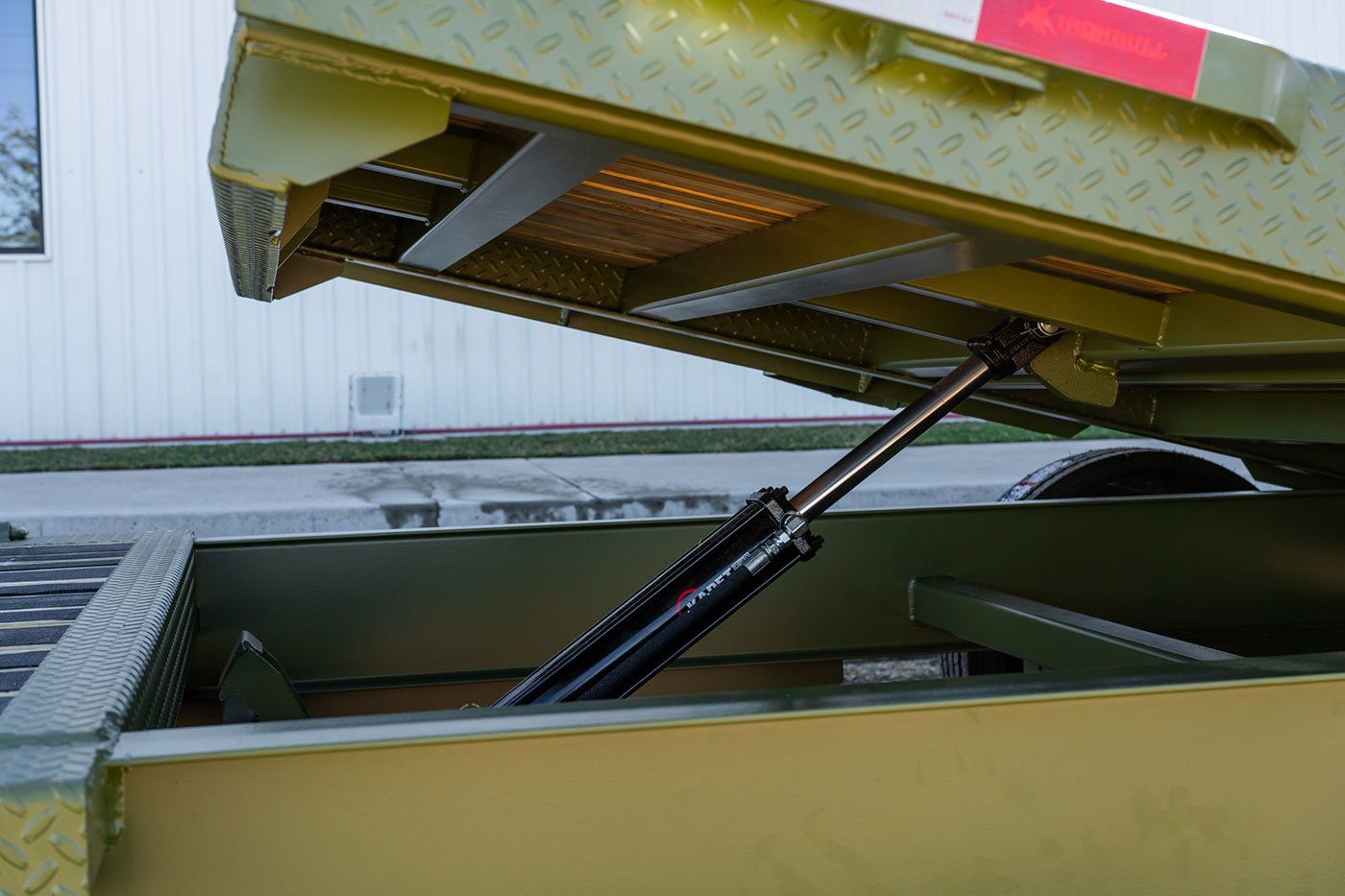

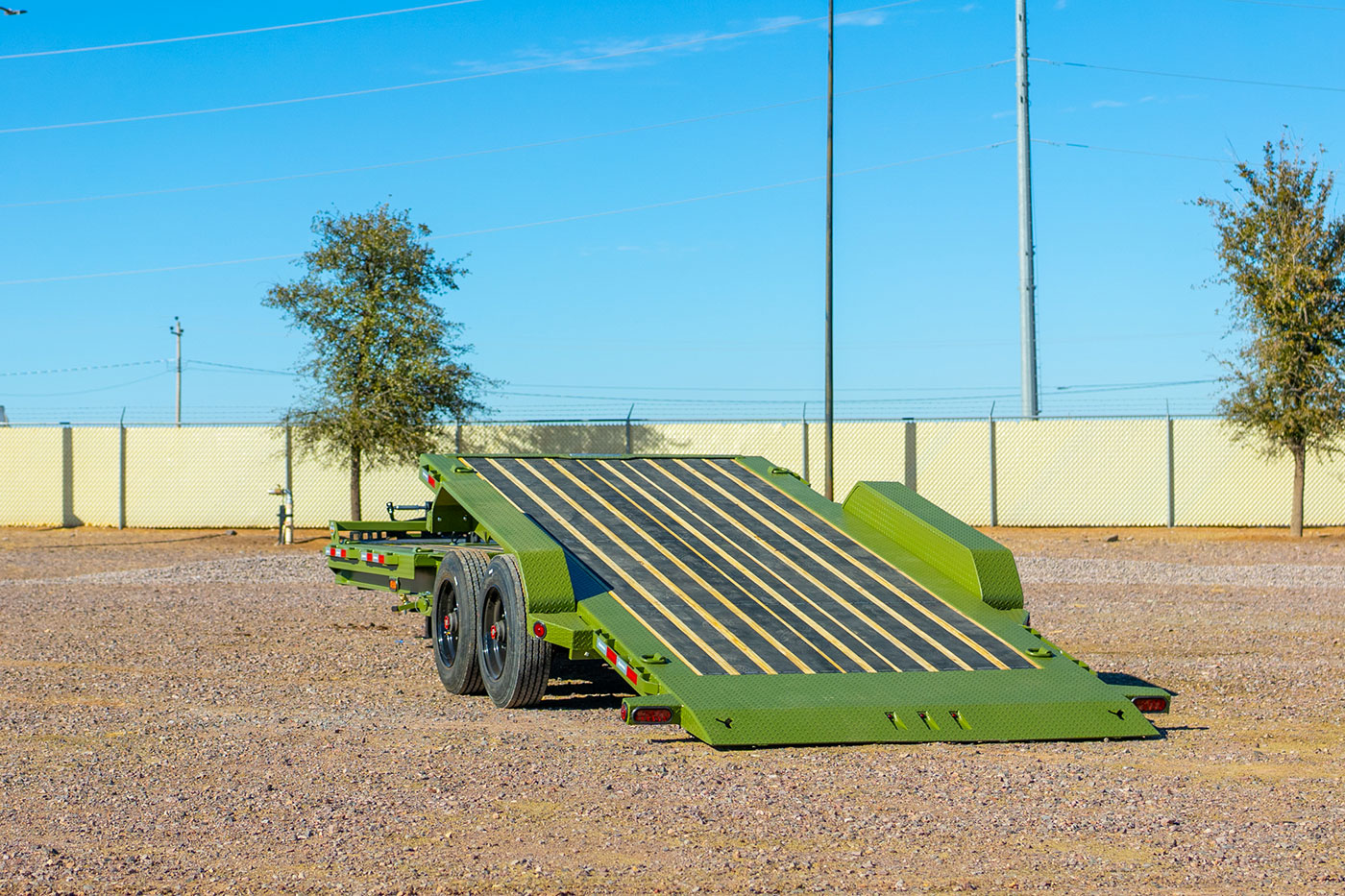

16' Gravity Tilt Deck
Standard Wire Harness & Lights
Spare Tire Mount (Weld On)
8 - D-Rings 3" X 5/8" Weld On
ST235/75 R17.5 LRE 14 Ply.
