THG22 10k Gooseneck Tilt
No items found.
Super Single 10k Tilt Gooseneck
SIZES
102" x 30'
GVWR
22,000 lb

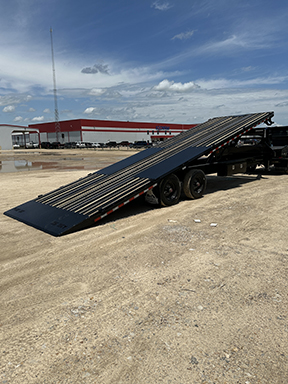

The Ironbull THG Tilt Trailer is built for heavy-duty performance with super single 10K axles and rugged 16" crossmembers for unmatched strength and durability. Its hydraulic tilt deck allows for easy loading and unloading, making it ideal for transporting equipment with speed and efficiency. Whether on the jobsite or the highway, the THG delivers reliable hauling power with a tough, low-maintenance design.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
102
THG
Specifications

WIDTH: 102
LENGTH: 30
GVWR: 22,000
AXLES: 2 x 10,000 lb
TIRE/WHEEL: ST235/75 R17.5 LRJ 18Ply



*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

ET2 - 2 - 10,000 Lb Tors Axles (LEVEL)(2 Elec. Brakes)

12" 19LB I-Beam Frame

12" 19LB I-Beam Neck

10" 19LB I-Beam Deck Frame

16" Crossmembers (3" 3.5lb C-channel)

Gooseneck Coupler 2 5/16 Adjustable Rd. 25k

Floor Treated Wood

Scissor Hoist TH-520

Jack Spring Loaded Drop Leg 2-10K

LED Lighting

Standard Wire Harness

D-Rings 3" X 5/8" Weld On (4ech) Std.

Spare Tire Mt.

Standard 2 Front Steps

options

Steel Floor (per ft)

Blackwood Floor

12" Crossmembers (per ft)

Winch Plate 1/2" (in floor)

Cold Weather Harness

*Photos Shown may have optional features equipped.

bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
