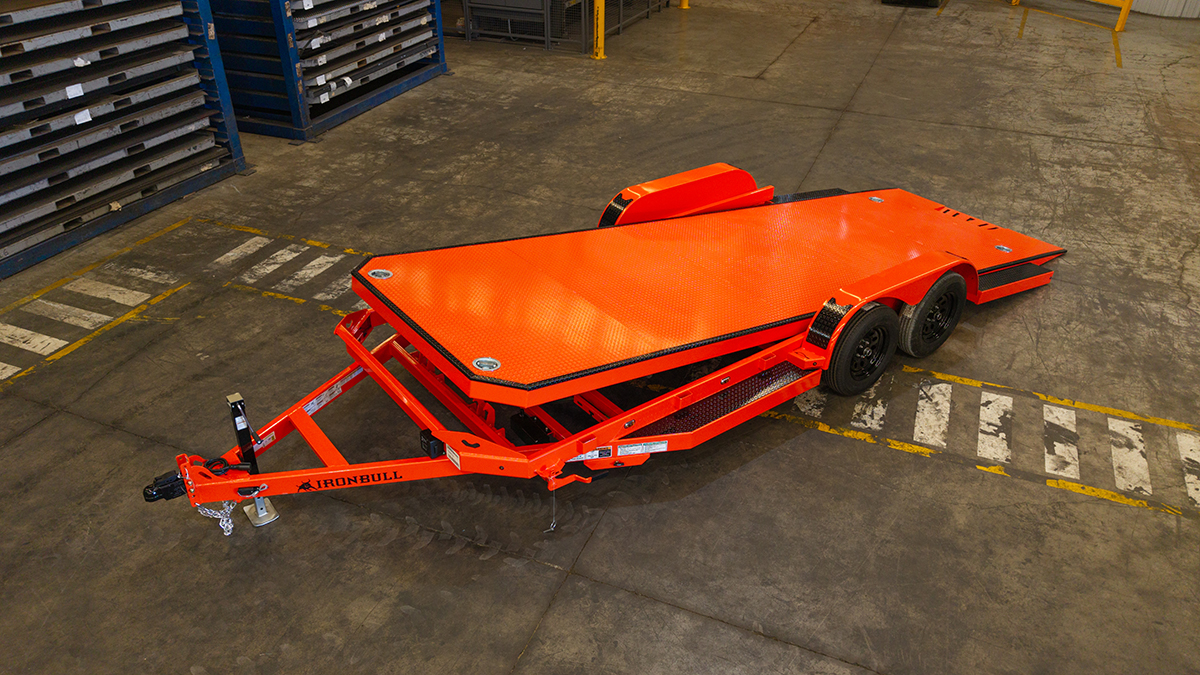

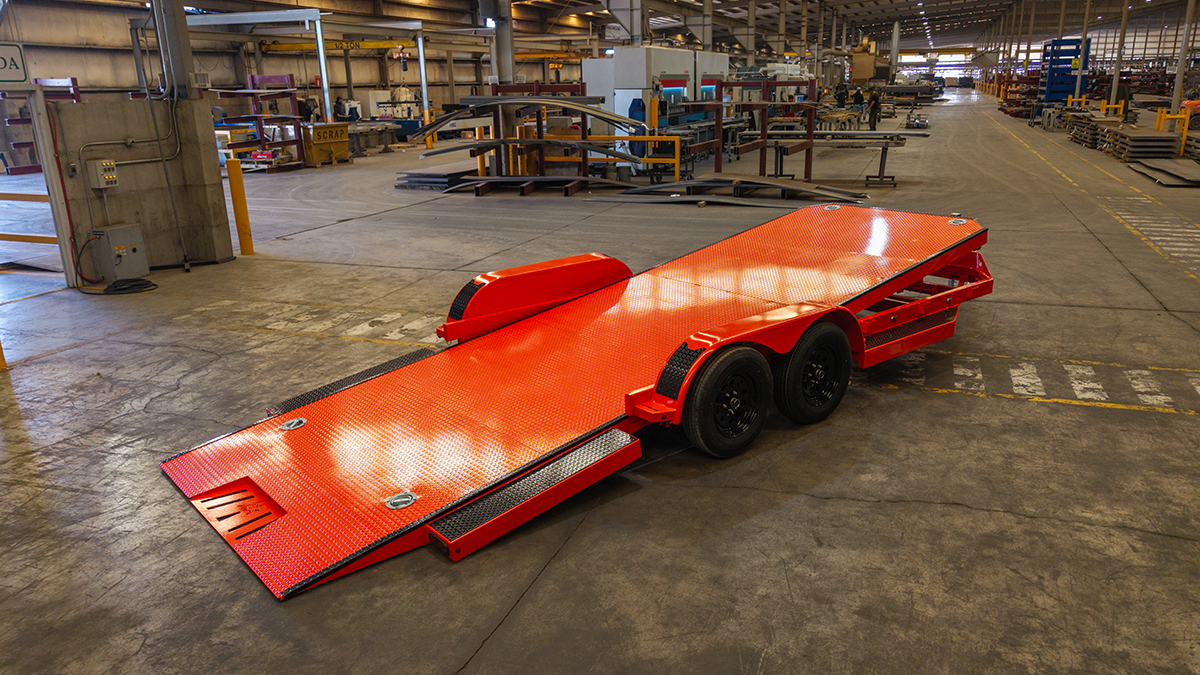

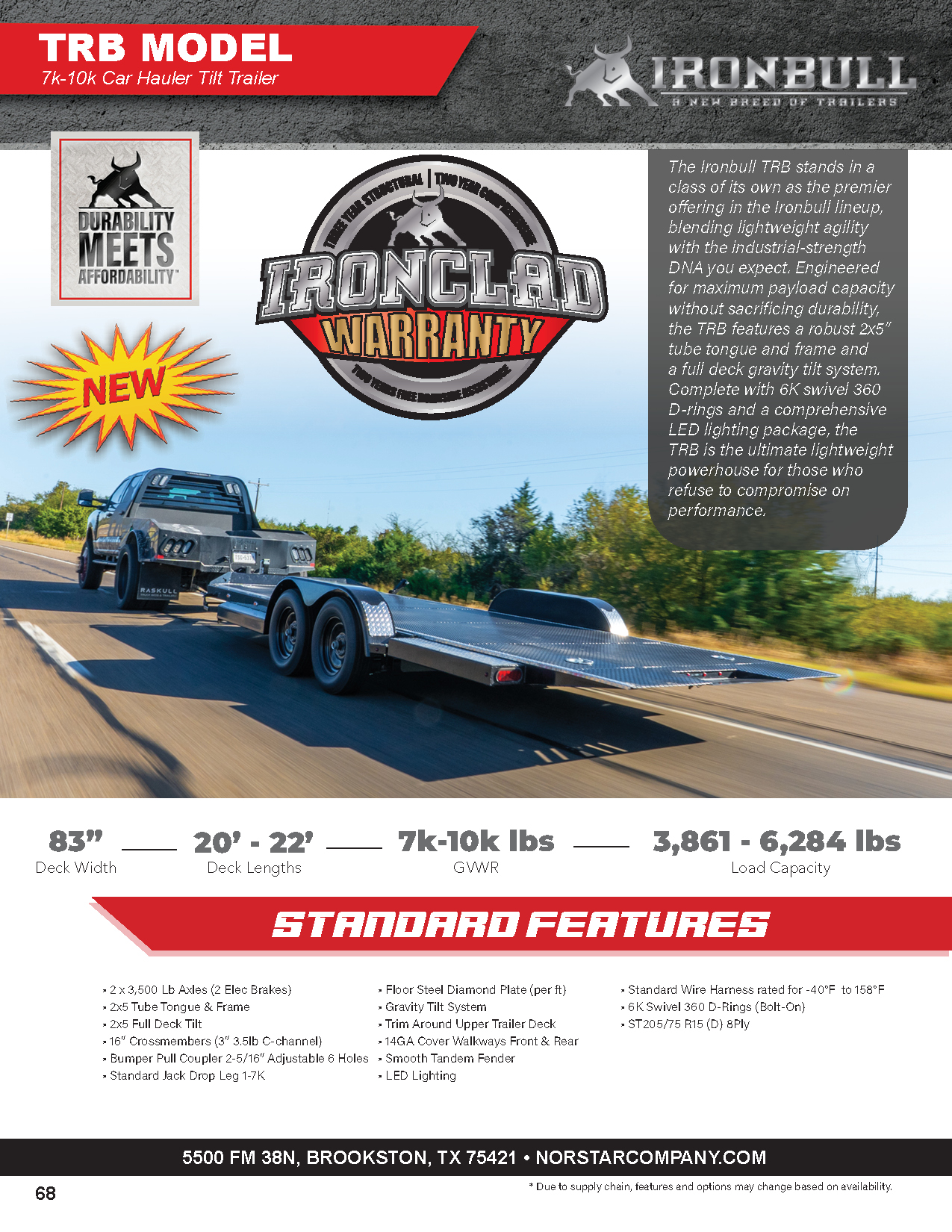

The Ironbull TRB stands in a class of its own in the Ironbull lineup, blending lightweight agility with the industrial-strength DNA you expect. Engineered for maximum payload capacity without sacrificing durability, the TRB features a robust 2x5 tube tongue and frame and a full deck gravity tilt system that streamlines your operation by eliminating the need for heavy hydraulic pumps. The high-traction steel diamond plate floor—complemented by premium trim around the upper deck and 14GA cover walkways—provides a professional finish and a safe workspace in any environment. Underneath, two 3,500 lb axles with electric brakes and 8-ply radial tires provide a smooth, stable ride, while the adjustable 2-5/16" coupler ensures your rig stays level on the road. Complete with 6K swivel 360 D-rings and a comprehensive LED lighting package, the Ironbull TRB is the ultimate lightweight powerhouse for those who refuse to compromise on performance.

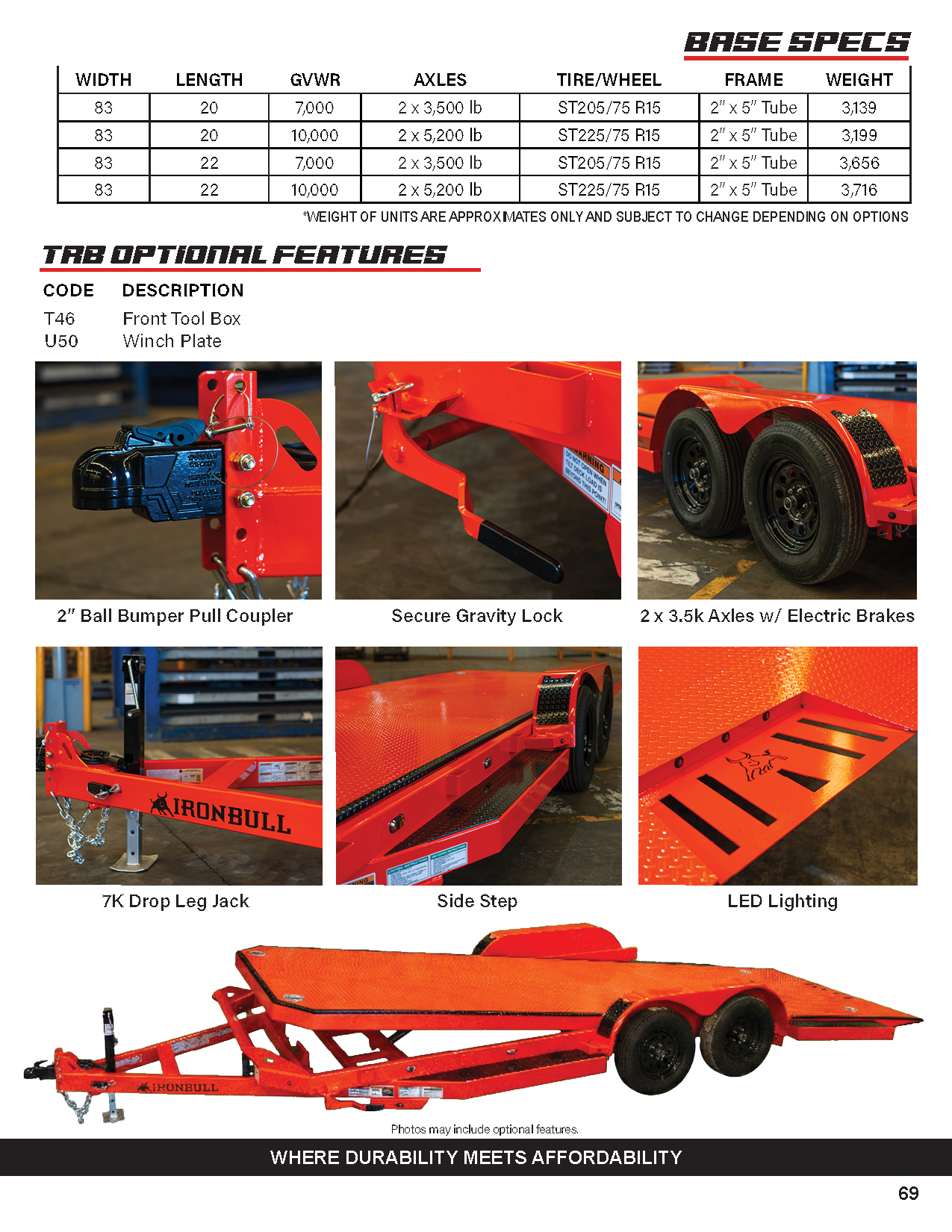

LENGTH: 20'
GVWR: 7,000
AXLES: 2 x 3,500 lb
TILT DEGREE: 10° ±1°
DECK HEIGHT: 21 ¾”
WEIGHT:3,139 Lbs
LENGTH: 22'
GVWR: 10,000
AXLES: 2 x 5,200 lb
TILT DEGREE: 10° ±1°
DECK HEIGHT: 21 ¾”
WEIGHT:3,459 Lbs
2 x 3,500 Lb Axles (2 Elec Brakes)
2x5 Tube Tongue & Frame
2x5 Full Deck Tilt
16" Crossmembers (3" 3.5lb C-channel)
Bumper Pull Coupler 2-5/16" Adjustable 6 Holes
Standard Jack Drop Leg 1-7K
Floor Steel DP (per ft)
Gravity Tilt
Trim Around Upper Trailer Deck
14GA Cover Walkways Front & Rear
Smooth Tandem Fender
LED Lighting
Standard Wire Harness
6K Swivel 360 D-Rings (Bolt-On)
ST205/75 R15 (D) 8Ply
