TSB 7k Single Axle Gravity Tilt
No items found.
Single Axle 7K Gravity Tilt
SIZES
80" x 12'
GVWR
7,000 lb

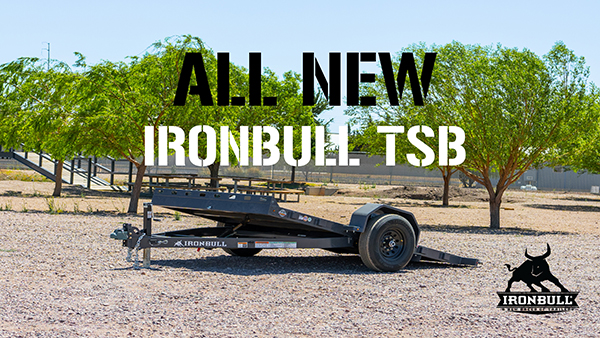

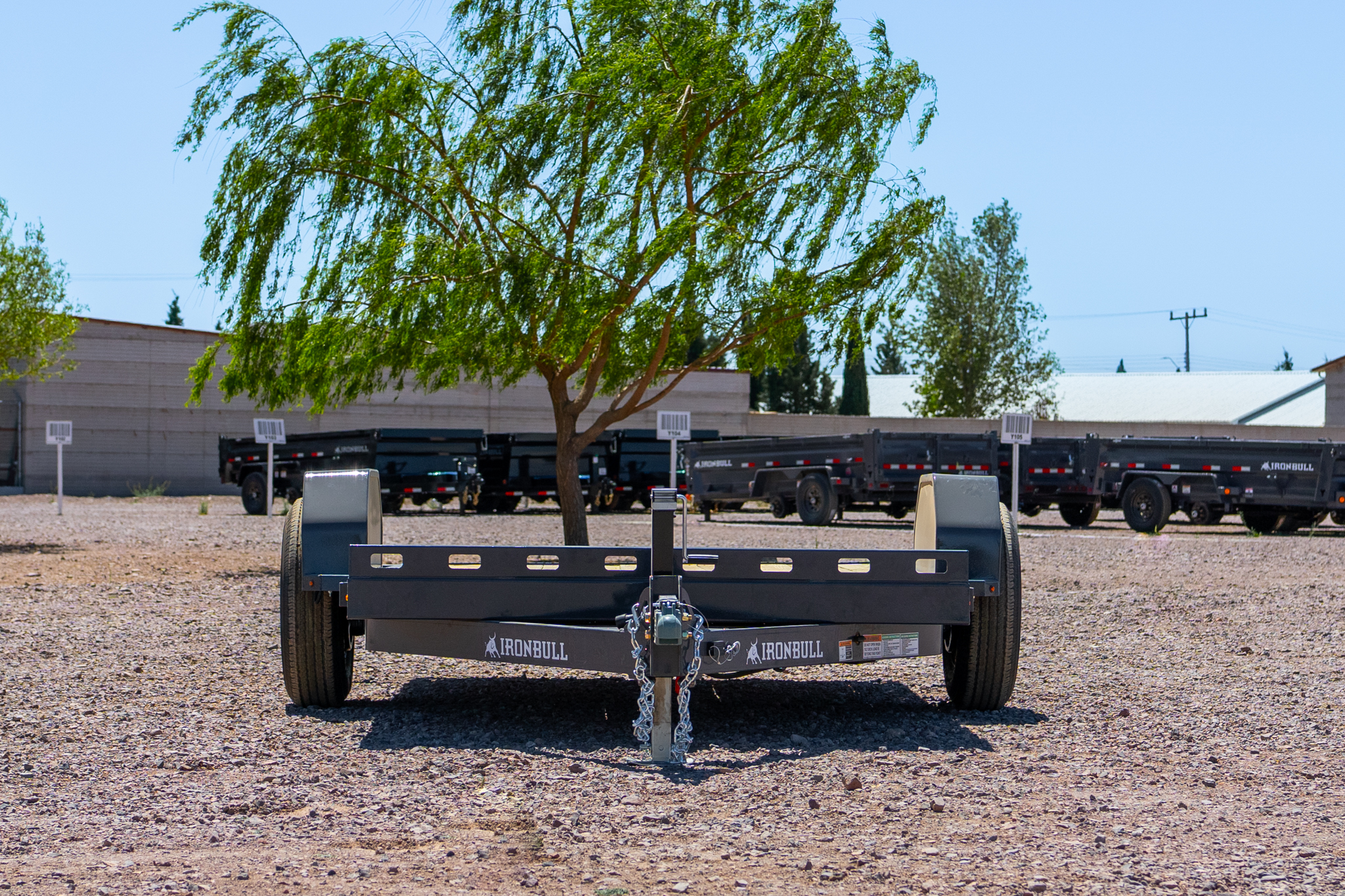

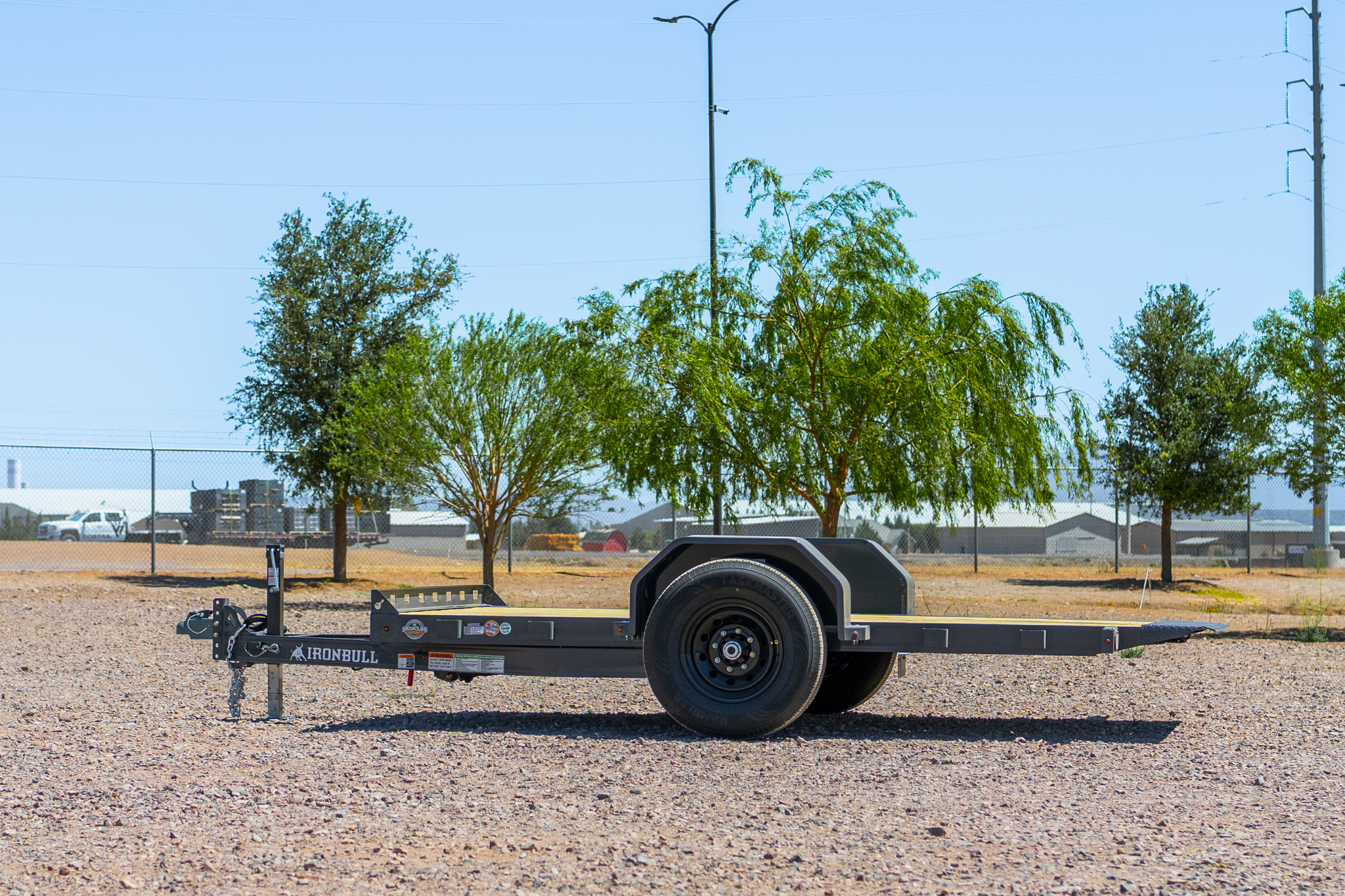

The newest bull in the herd, the Ironbull TSB7 single axle gravity tilt trailer. A small and compact bumper pull tilt trailer that boasts a 7,000 GVWR, perfect for loading small machinery and equipment!

The Ironbull TSB is a new single-axle tilt trailer. This trailer features a 1-7,000 lb Tors Axle (UP) with electric brakes, gravity tilt, a 5" channel frame and tilt deck, and 20" crossmembers (2.5" x 3/16" angle). It includes an adjustable 10k bumper pull coupler (2" ball), a 7k drop leg jack, a smooth single fender that is removable with a bolt-on design, and treated wood flooring. The trailer is equipped with a sealed wire harness and ST235/80 R16 LRE 10 ply radial tires. The dimensions are 80" x 12'. The Ironclad warranty includes three years of structural coverage and two years of comprehensive coverage, along with two years of free roadside assistance.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
071
TSB

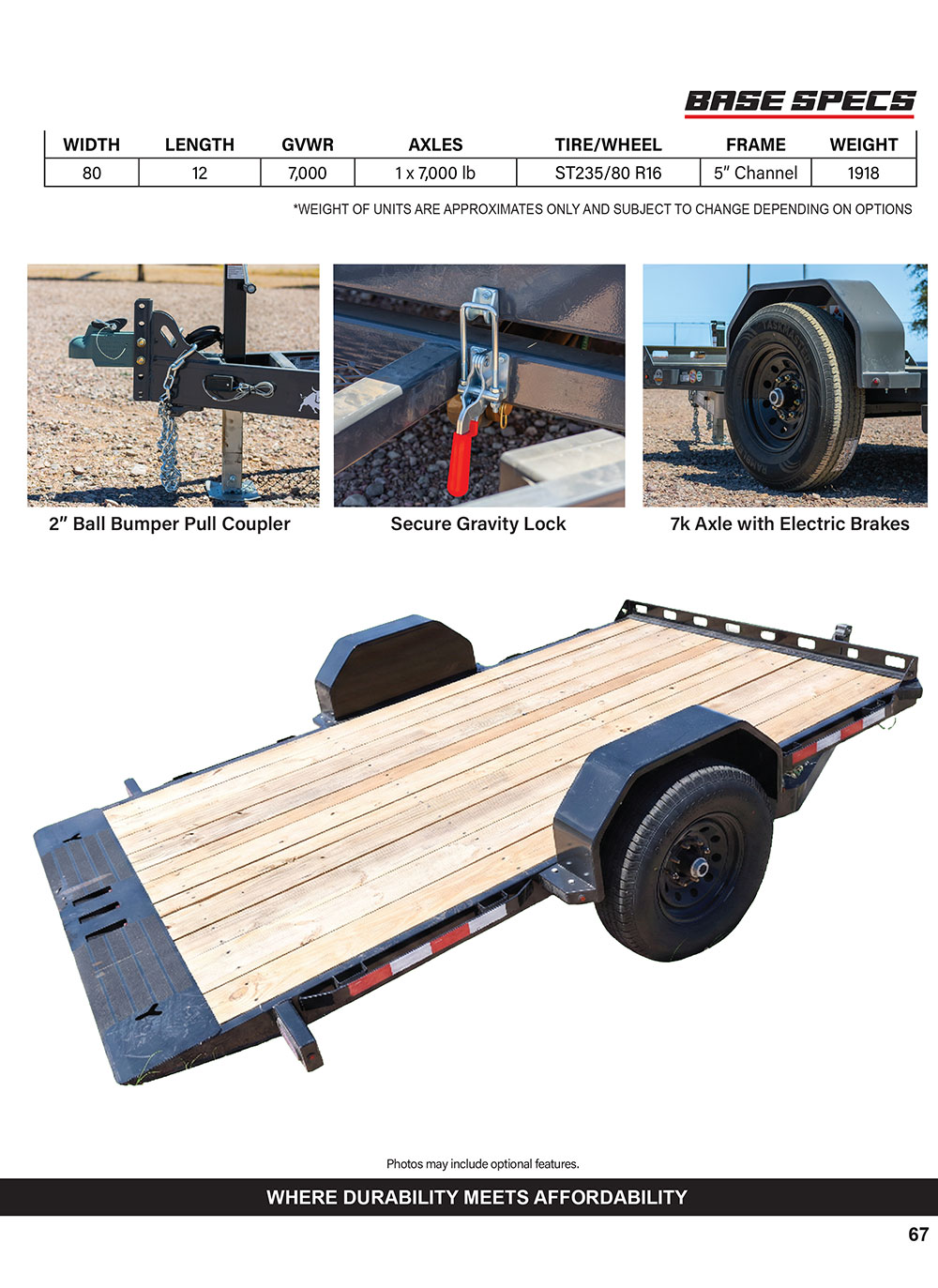

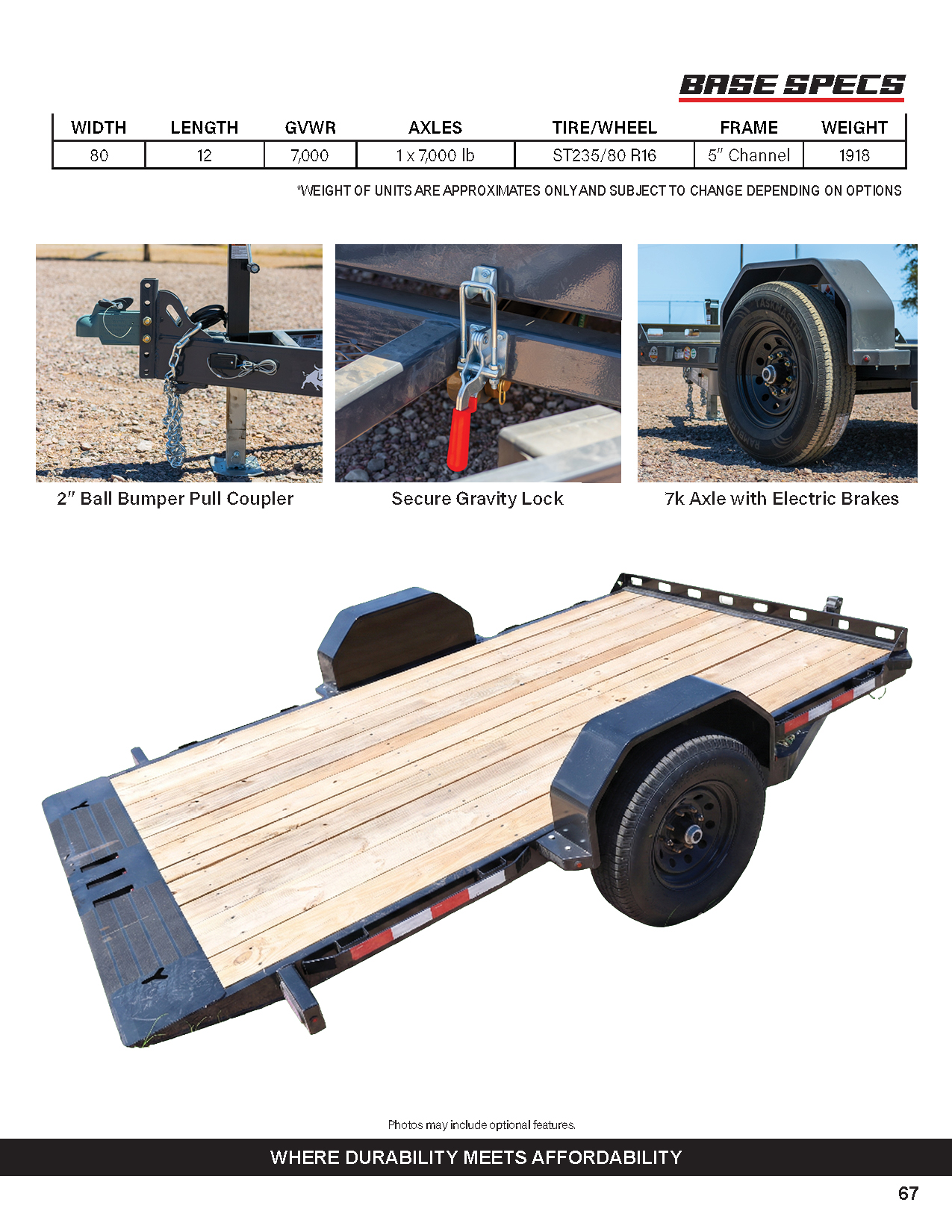

Specifications

WIDTH: 80
LENGTH: 12
GVWR: 7,00
AXLES: 1 x 7,000 lb
TIRE/WHEEL: ST235/80 R16
TILT ANGLE: 11 DEGREES



*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.

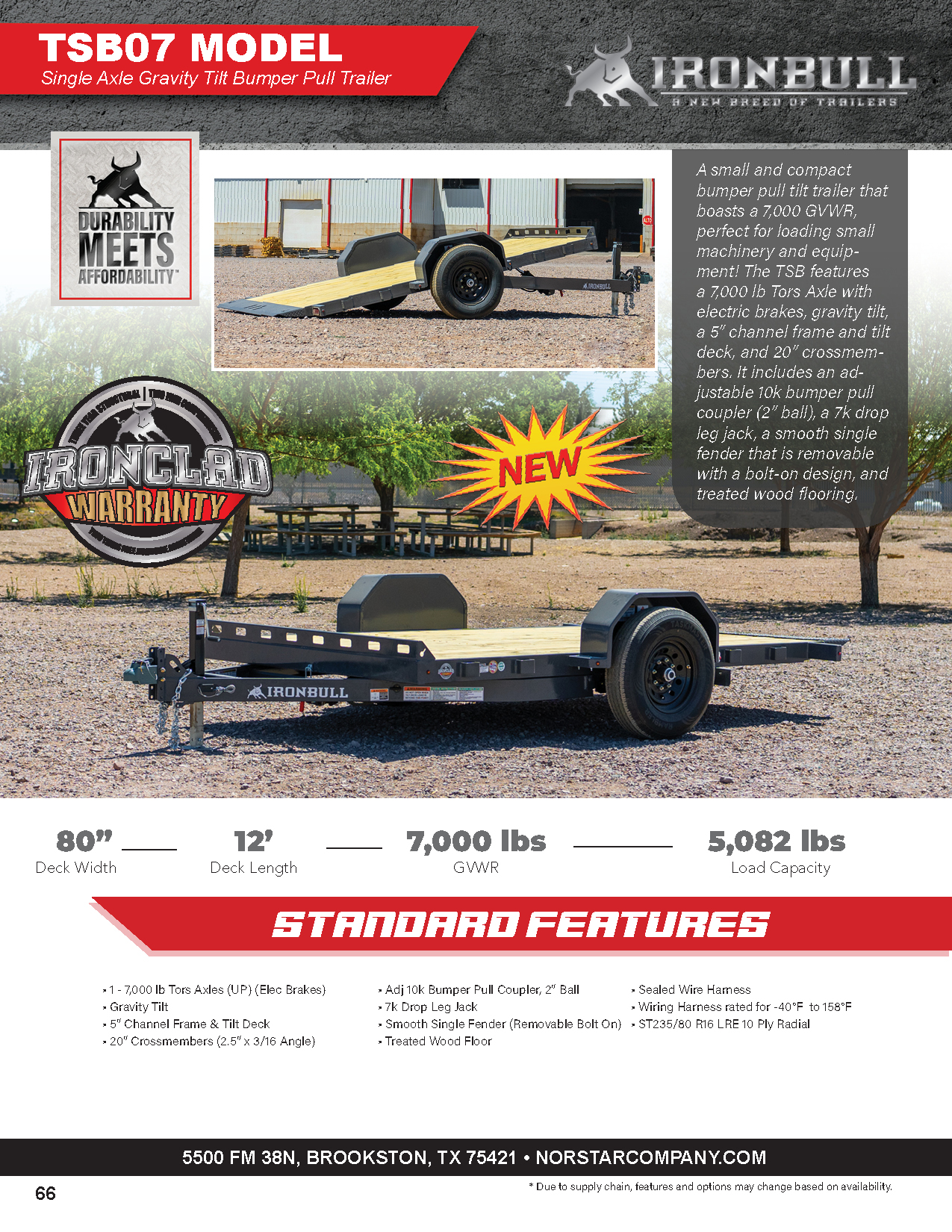

Standard Features

1 - 7,000 lb Tors Axles (UP) (Elec Brakes)

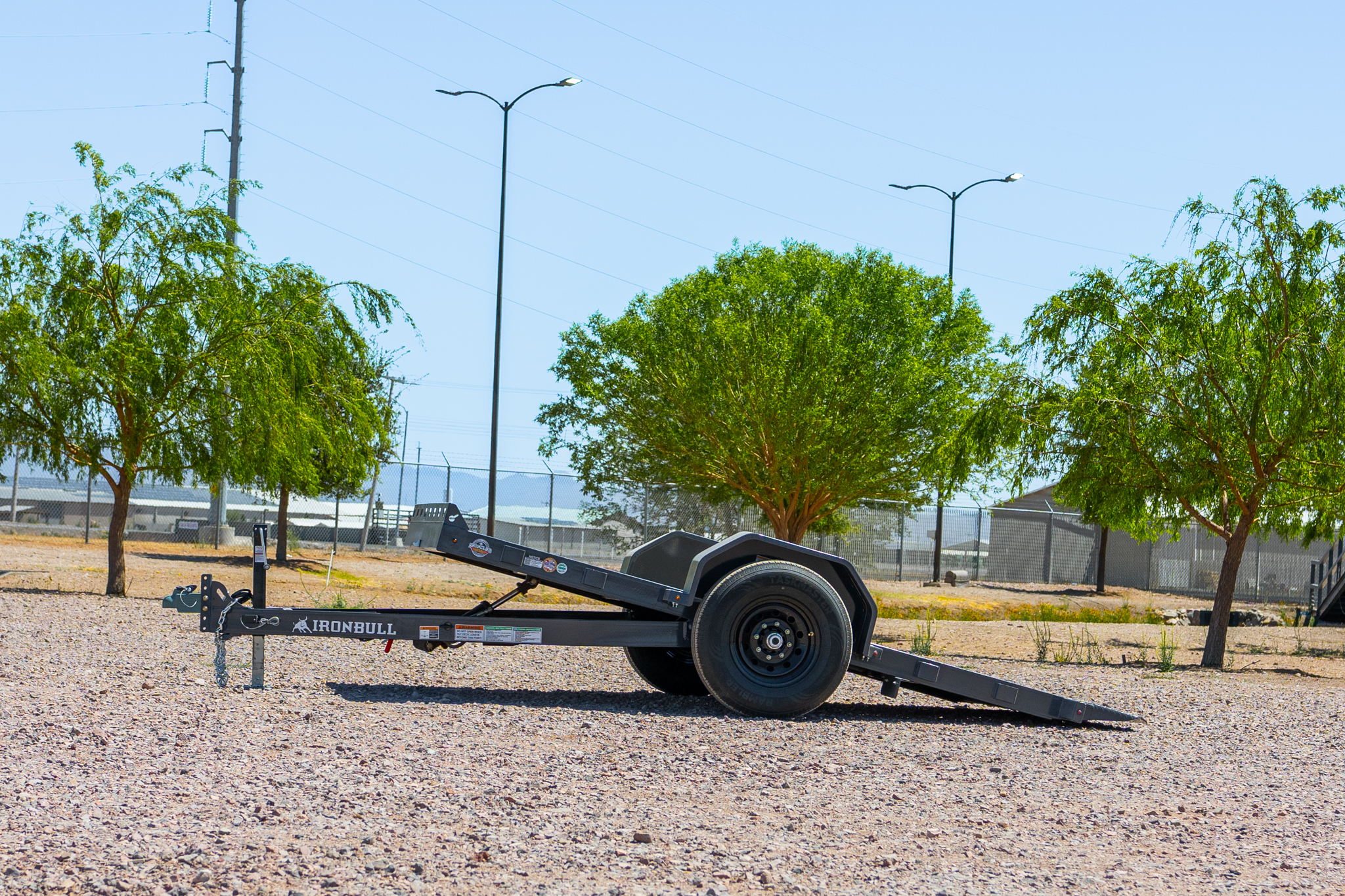

Gravity Tilt

5" Channel Frame & Tilt Deck

20" Crossmembers (2.5" x 3/16 Angle)

Adj 10k Bumper Pull Coupler, 2" Ball

7k Drop Leg Jack

Smooth Single Fender (Removable Bolt On)

Treated Wood Floor

Sealed Wire Harness

ST235/80 R16 LRE 10 Ply Radial
