1.1
10
WH
18,500
Bumper Rating
30,000
Gooseneck Rating
1/8"
Diamond Plated Floor
WH
Western Deluxe Truck Bed
No items found.
Western Deluxe
Bumper Rating
18,500
Gooseneck Rating
30,000

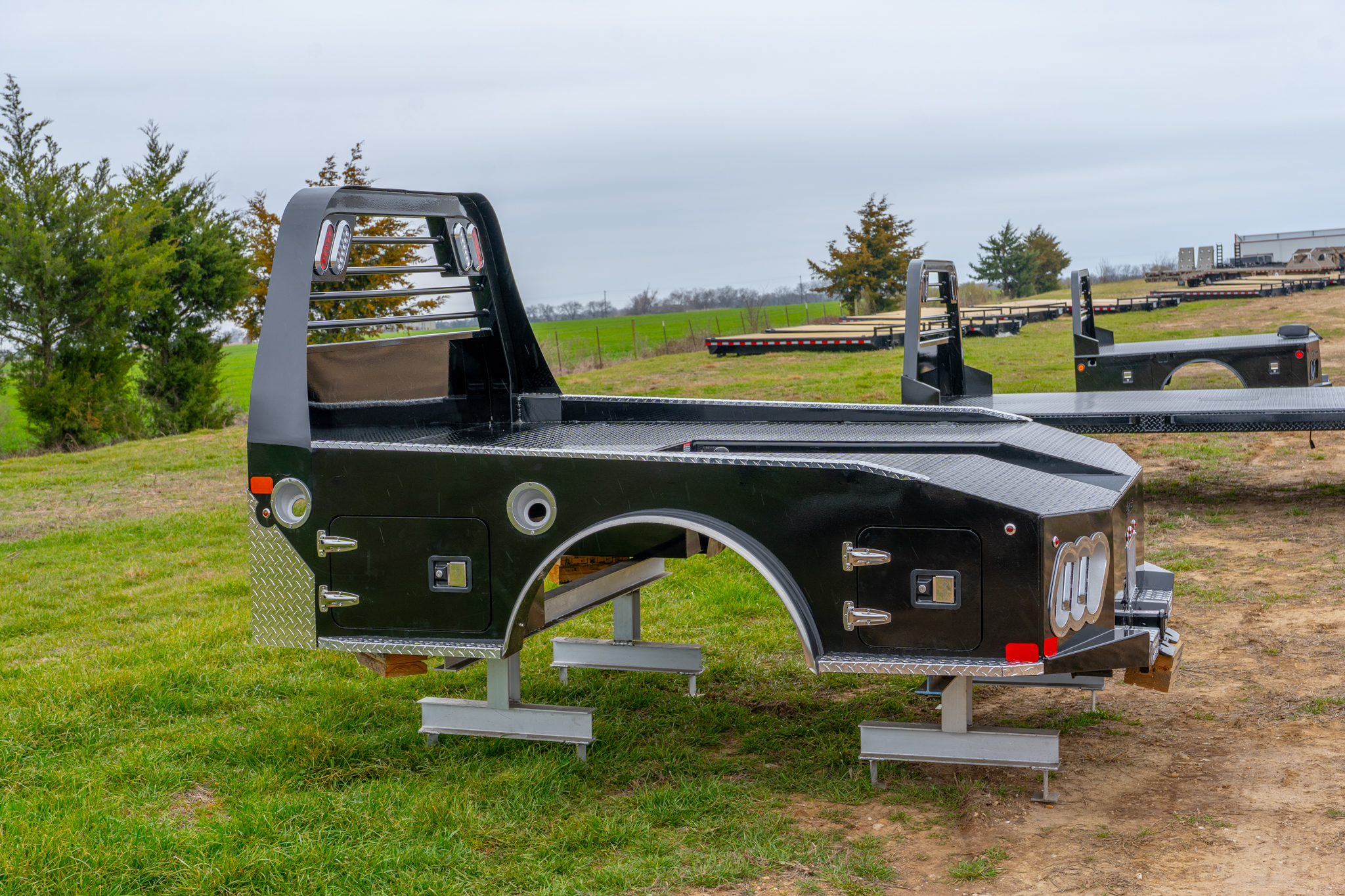

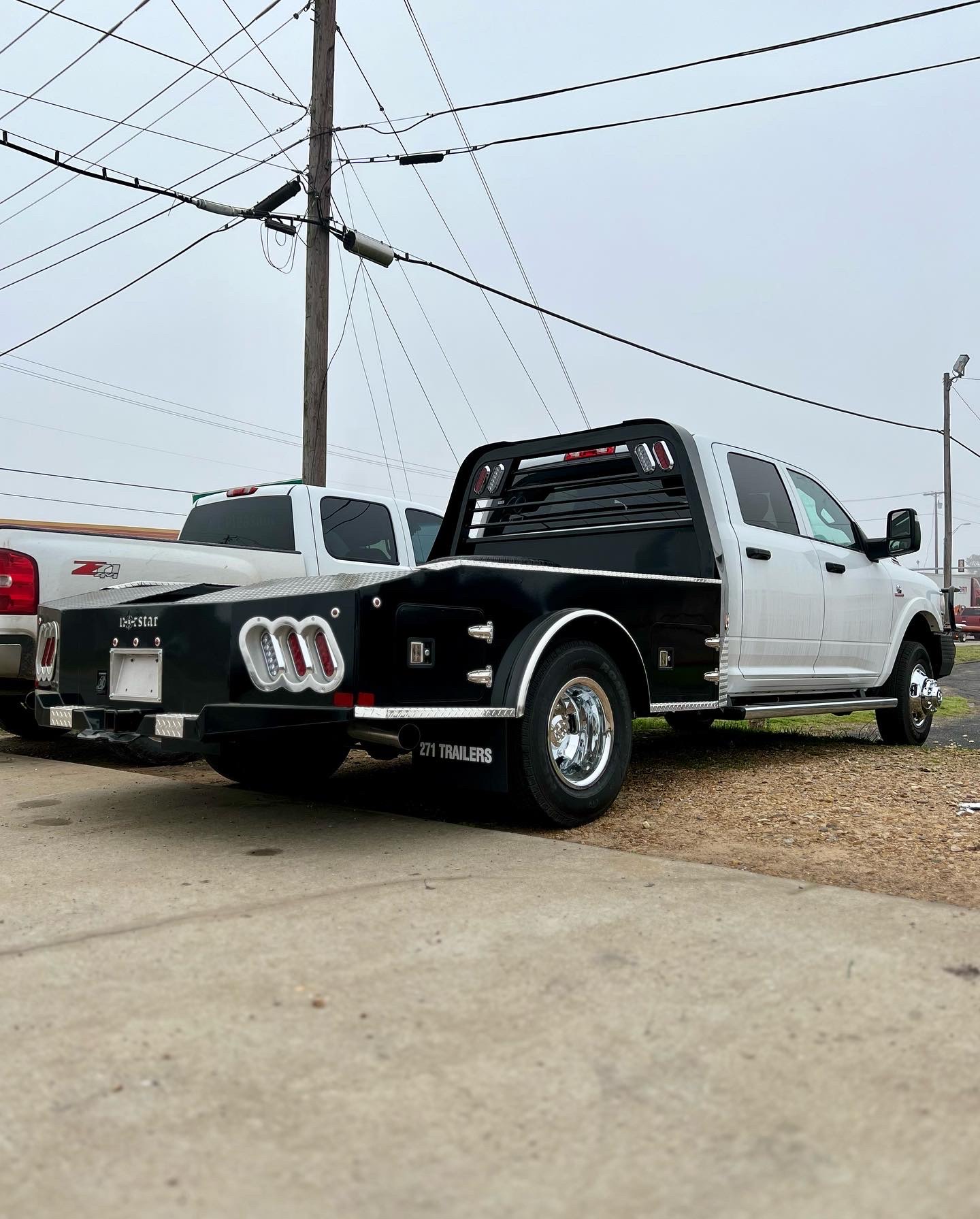

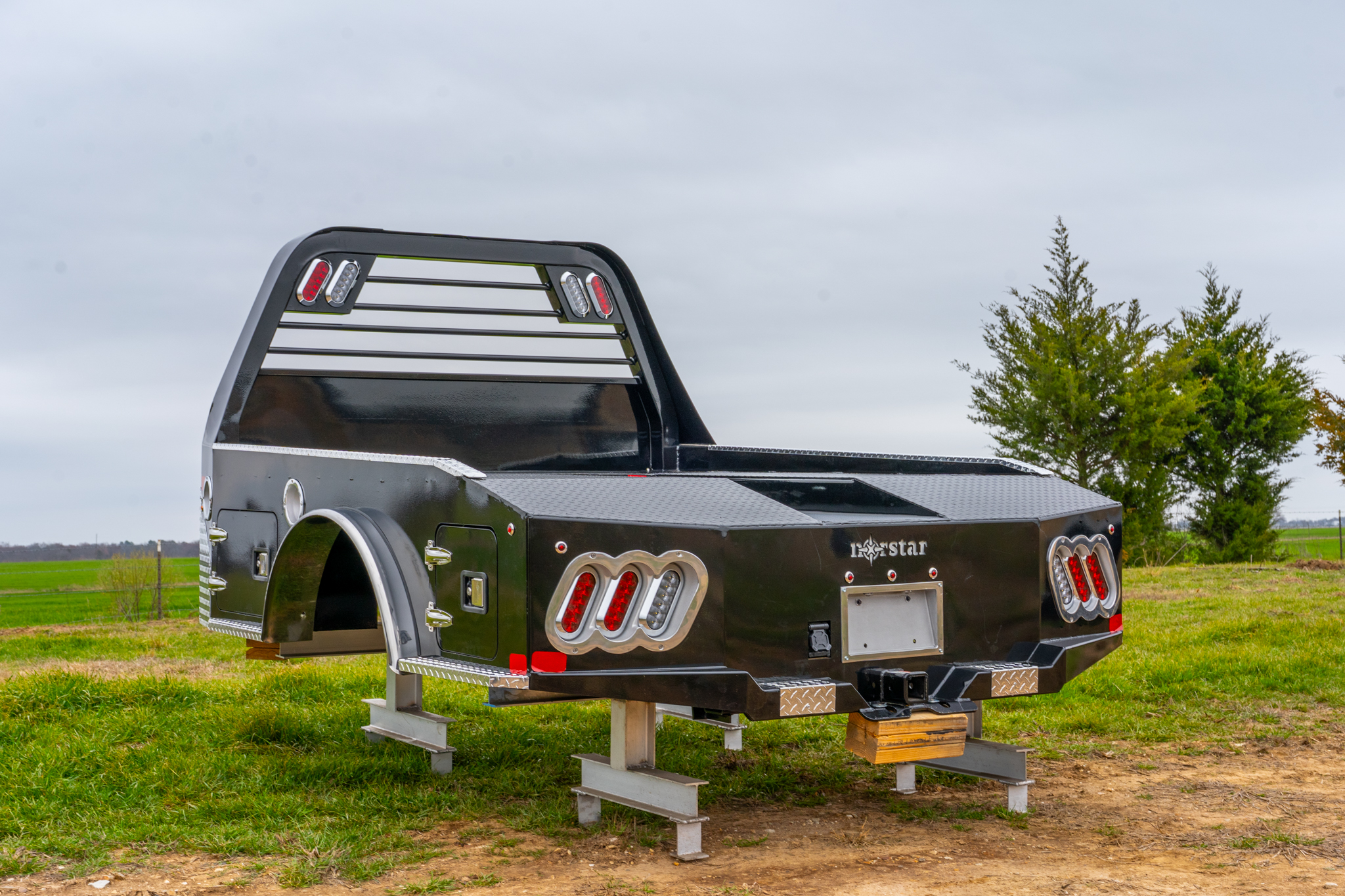

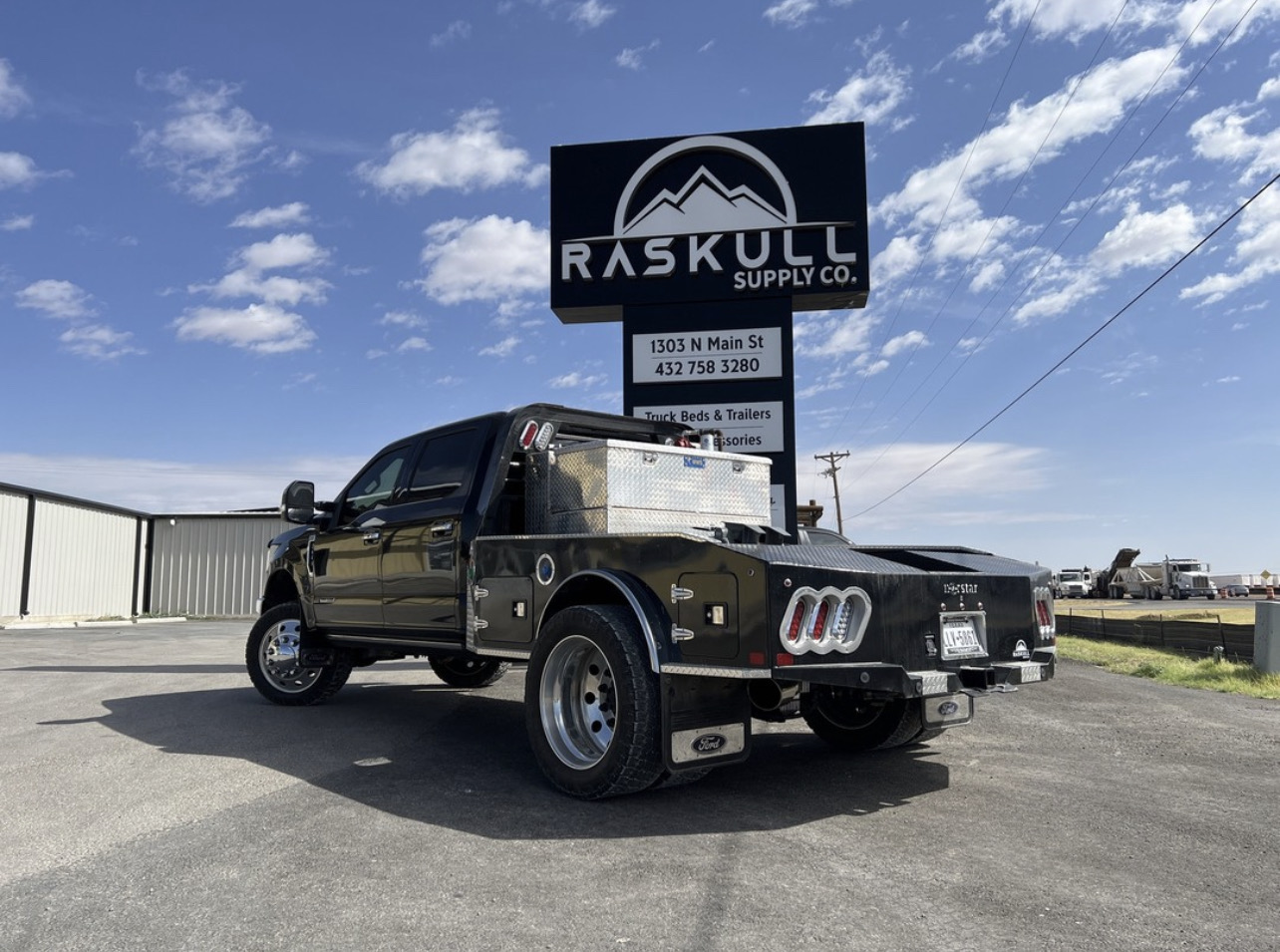

The standard 2.5” receiver allows you to add a hitch for bumper pull cargo and a 2 5/16” gooseneck ball is standard in case you are hauling a heavyweight. Our receivers are lab tested and certified for 18,500 lbs bumper capacity and 30,000 lbs gooseneck capacity. This bed is the perfect fit for any single or dual wheeled work truck and can keep up with your daily workload. The WH comes equipped and ready to impress loaded with 1/8” diamond plate floor and 10 gauge sides, with 11 gauge skirted bumper coated in gloss black powder coat. We have put just about every option on this bed except the kitchen sink – standard including cast housings on rear lighting, fuel filler, license plate mount, chrome accented head rack lighting, running boards and loads of diamond plate trim. Go to work - in style.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
WH
Specifications
*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

Structural Steel Frame

2.5" 18.5k Rated Receiver

30k Rated 2 5/16" GN Ball

Formed 3 x 3/16" Channel Cross Members

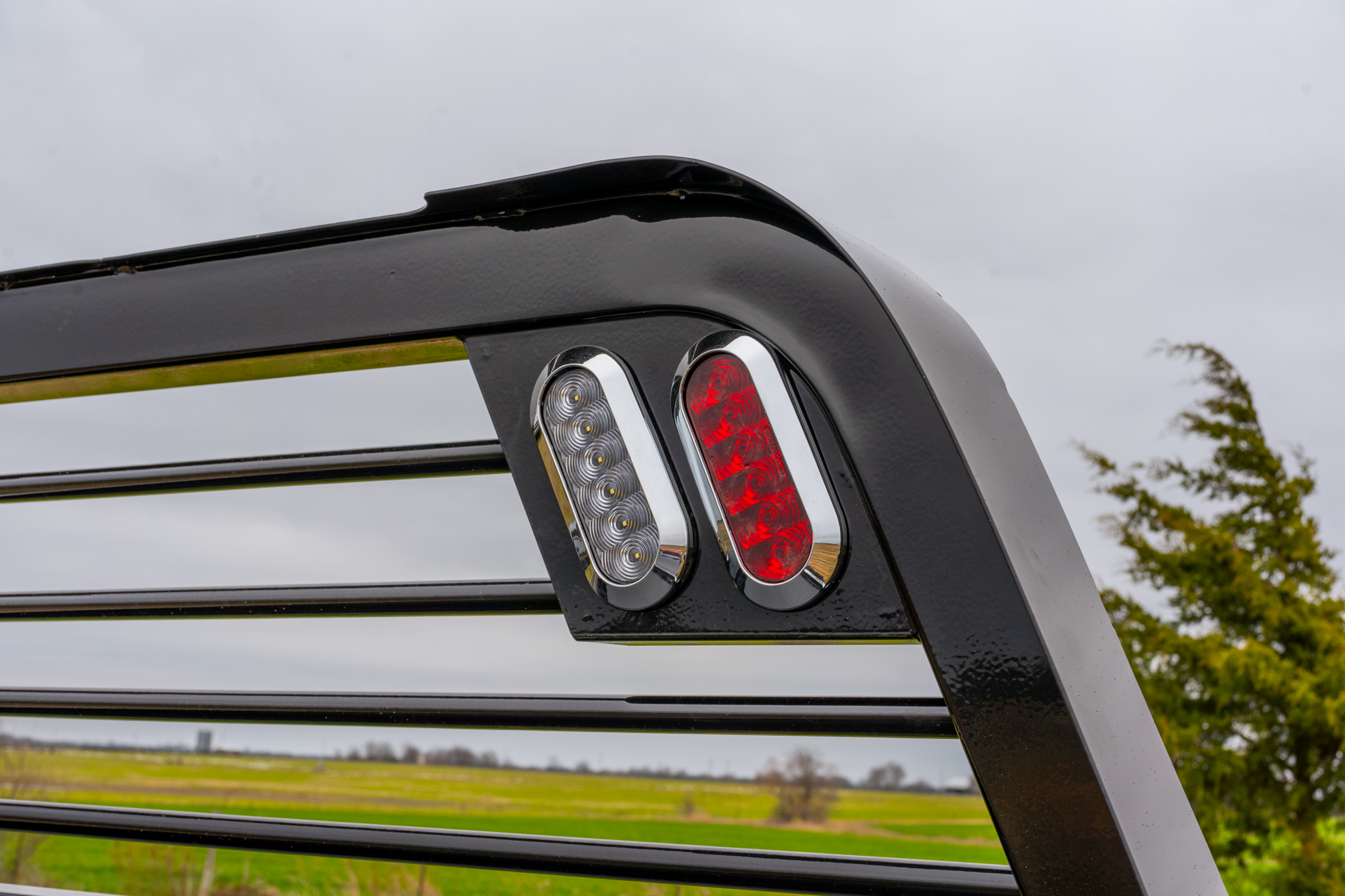

Steel Tube Head Rack with Cross Bars, Tail & Rev. Lights

Built-in Gooseneck Well w/ Ball Mounted & Diam Plate Lid

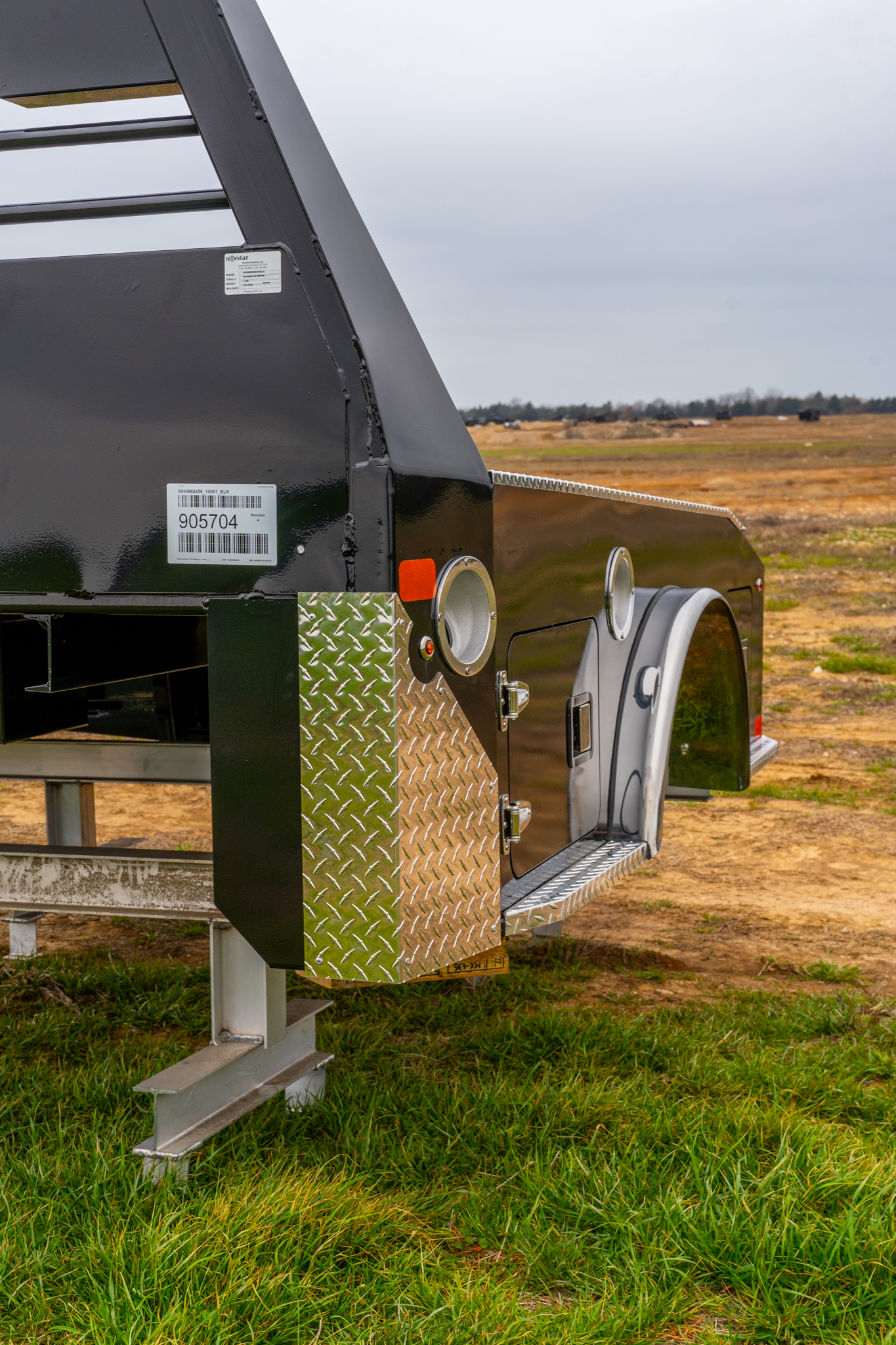

Skirted Rear Bumper w/ Anti-Slip Step

2 Aluminum Cast Angled Fuel Fillers

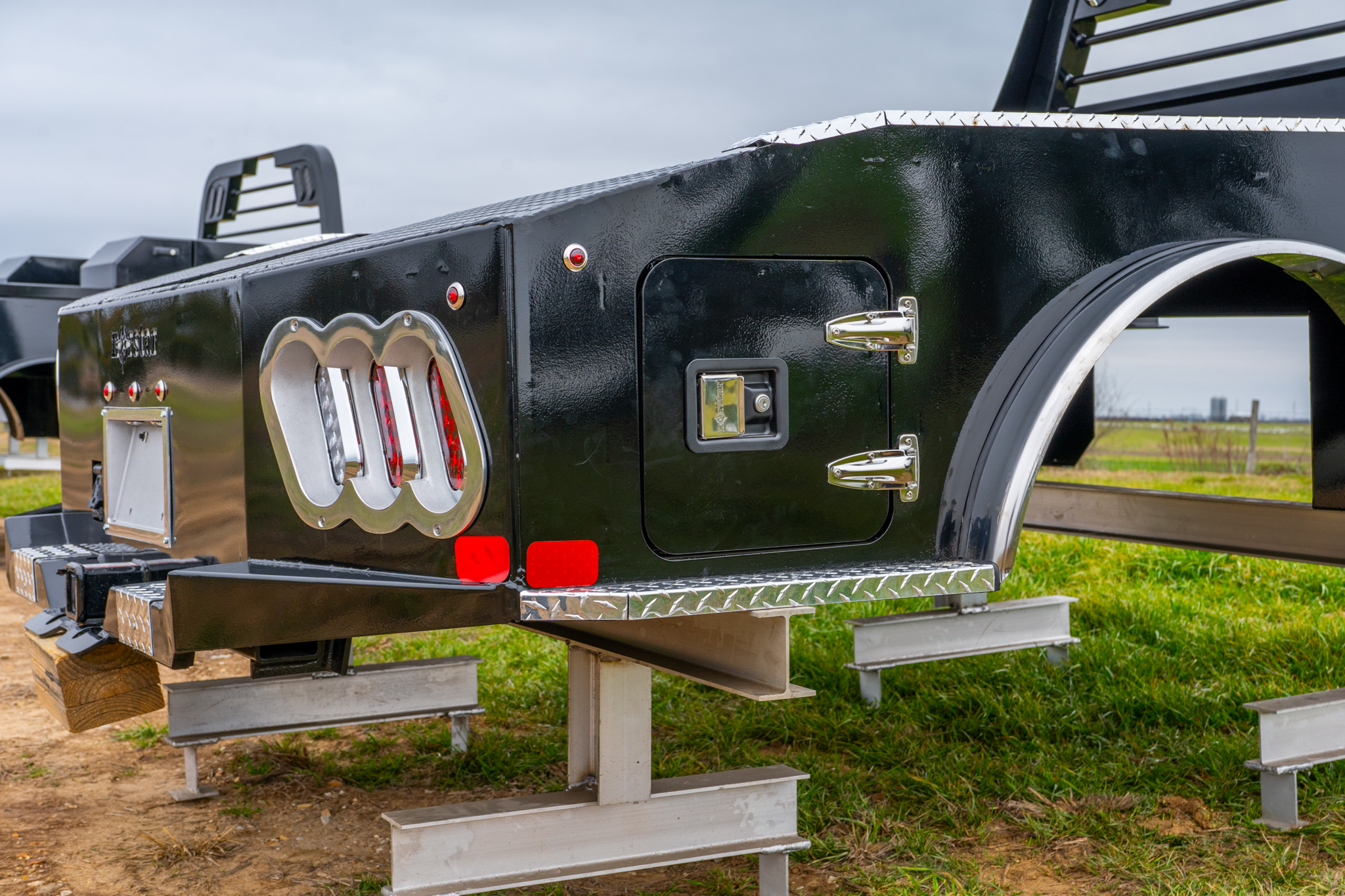

Aluminum Cast Tail Light Housing

Aluminum Cast License Plate Housing

Aluminum Trim Package

11 Ga Steel Construction with 10Ga Bumper

4 Side Swing Tool Box Doors w/ Chrome Hinges (Except Megacab)

7 Way Plug in Gooseneck Trough

4 Recessed D-Rings

18" Gooseneck Trough

Dove Tail

Primer & Powder Coated Black

Chrome Accent Lighting

3/4" LED Marker Lights

4 Clear 6" Oval LED Rev. Lights

6 Red 6" Oval LED ST/TL/TN Lights

Single LED License Plate Light

All Lighting DOT Approved

Molded Sealed Harness with resistors

4/5 & 7 Way Receiver Female Plug with Adapter

Mudflap Brackets

Steel 1/8" Diamond Plate Floor

options

Extend Head Rack From Standard Height

B&W Turnover Ball (eliminates gooseneck trough)

Optional White Zinc Powder Coat

bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

1998-Present

  • Dually – 8’6”L x 97”W x 56” CTA x 38” Runners
  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner
  • Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner
  • Cab & Chassis – 9’4”L x 94/97”W x 60”CTA x 34” Runners
  • F-450 & 550 are 94” & 97”W with Standard Headache Rack
  • 2015 F650 Runners 34.5”

2001-Present

  • Dually – 8’6”L x 97”W x 56”CTA x 42” Runners
  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner
  • Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner
  • Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners
  • (Prior to 2000 measurements will be required)
  • 4500 & 5500 is 94”W with 60” Headache Rack

2003-Present

  • 2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner
  • Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners
  • Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners
  • Dually – 8’6”L x 97”W x 58”CTA x 42” Runners
  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner
  • Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner
  • 2002 and earlier will have 56” CTA and 38” Runners on long bed

Plug N Play

Installation Adapters

The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:

  • 1001010   WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)
  • 1001009   WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)
  • 1001011   WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)
  • 1001013   WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)
  • 1001012   WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)
  • 1001014   WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)
