DTB14
‍60x10'|72x10'--12'|83x12'--16'
Sizes
9,990 - 21,000 lb
GVWR
26"
Deck Height
DTB14
14k Dual I-Beam Frame
No items found.
14,000 lb GVWR Tandem Axle Dump Trailer
Sizes
‍60x10'|72x10'--12'|83x12'--16'
GVWR
9,990 - 21,000 lb
Strength where strength matters - Ironbull DTB dump trailer beast models are built to work!

The industry best DTB sits atop of a dual layer of 6" I-beam weighing in at 12 pounds per ft main frame construction. That's 24 lbs/ft of pure steel putting maximum strength into the most critical part of your trailering system. Ironbull has elevated the dump trailer experience with our redesigned Side Armor system. This upgraded design keeps our 24-inch, 10-gauge original sidewall, featuring an oversized break that prevents bowing, ensuring unmatched side rigidity. The enhanced Side Armor introduces a fully enclosed top rail made of 11-gauge steel to safeguard against potential damage during side loading. Corner reinforcements have been strengthened, offering additional welding area to reinforce the dump box. With this advanced Side Armor system, every Ironbull dump trailer boasts an industry-leading dump box, allowing you to concentrate on your tasks with confidence.

A new ramp system removes the traditional ramp door flaps. 7-Gauge flooring is still standard on these models along with a fan favorite oversized front toolbox. The dump box side-step received a minor refresh with the addition of a gate pin and ramp lanyards. The rear gate latching system will now be housed inside the corner post offering greater protection to the operating components. A new stylized single break diamond plate fender was incorporated into the refresh and the jack mounting system was revised to allow for easier jack installation. Corrosion resistant tarp sail rod and crank handle hardware has also been incorporated based on customer feedback. It’s the same tough Bull with a new hard-hitting look. These show-stopper dump trailers are built to haul. 14,000-21,000 lbs of GVWR and are equipped with enough lifting power to ensure you can always get your job done. Each Iron Bull 83 wide dump comes equipped standard with an industry best 7 gauge floor and 24" high 10 gauge sides with 7 machined breaks that will not bend, bow, or buckle, even under the most demanding conditions. One of the most unique features on the Ironbull DTB is the structure under the bed. These full length bed runners ensure your floor is never warped across the crossmembers by any heavy tracked equipment you might haul. We have also equipped 10k jacks and a side step for easy bed access. A three way gate will ensure maximum flexibility for transport and dumping.

Top tier components come together with the most rugged construction on the market to deliver a dump trailer like no other. Brake axles and radial tires provide a solid foundation for each Iron Bull dump trailer, and ample grip for stopping power. A fresh coat of primer and powder coat gives each trailer a rugged finish with a showroom shine. 5/16 hydraulic cylinders are nested into a scissor hoist and provide the muscle for each Iron Bull dump trailer. Additional features include lifetime LEDs, provided by TecNiq lighting - and all units are powered by a deep cycle battery.

Each Ironbull Trailer also comes equipped with a standard tarp kit, spare tire mount, jack stand brackets, stake pockets, locking pump box, 5 position adjustable coupler, and 5 AMP 110v wall outlet charging receptacle for your battery. Our 83" wide 14k bumper pull is by far our most popular model. With two 7k axles and tons of standard features and options for any need, this model is a perfect fit for the contractor or weekend warrior. We back all of this up with our industry-best IronClad warranty which covers every unit with a three year structural, two year component warranty and two years free roadside assistance.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
072
DTB

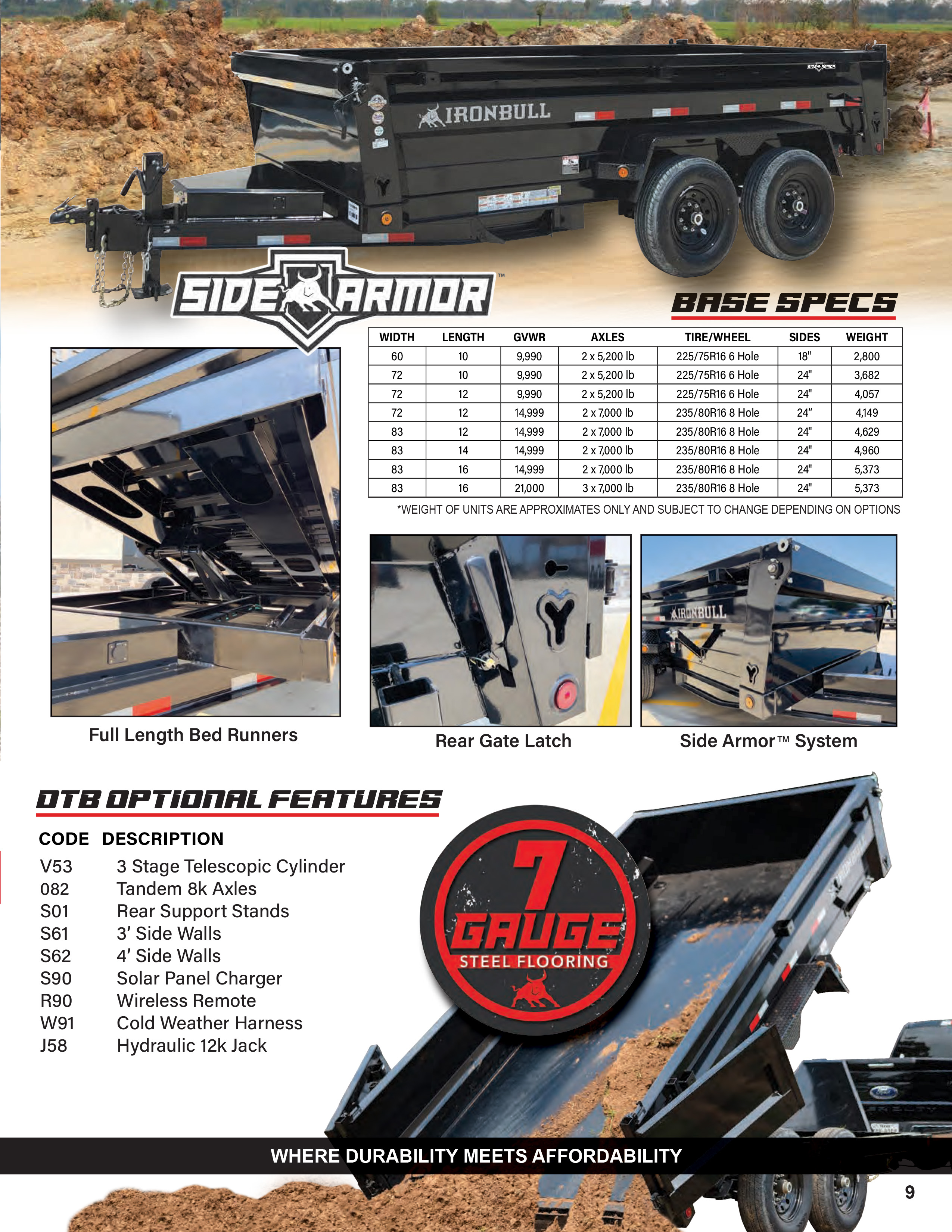

Specifications

WIDTH: 60
LENGTH: 10
GVWR: 9,900
AXLES: 2 x 5,200 lb
TIRE/WHEEL: 225/75R16 6 HOLE
SIDES: 18"

WEIGHT: 3,131

WIDTH: 72
LENGTH: 10
GVWR: 9,900
AXLES: 2 x 5,200 lb
TIRE/WHEEL: 225/75R16 6 HOLE
SIDES: 24"

WEIGHT: 4,149

WIDTH: 72
LENGTH: 12
GVWR: 9,900
AXLES: 2 x 5,200 lb
TIRE/WHEEL: 225/75R16 6 HOLE
SIDES: 24"

WEIGHT: 4,149

WIDTH: 72
LENGTH: 12
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
SIDES: 24"

WEIGHT: 4,149

WIDTH: 83
LENGTH: 12
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
SIDES: 24"

WEIGHT: 4,629

WIDTH: 83
LENGTH: 14
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
SIDES: 24"

WEIGHT: 4,960

WIDTH: 83
LENGTH: 16
GVWR: 14,999
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
SIDES: 24"

WEIGHT: 5,373

WIDTH: 83
LENGTH: 16
GVWR: 21,000
AXLES: 3 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
SIDES: 24"

WEIGHT: 5,373

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

Side Armor™ Body Design

S1235/80R16 Radial Tires

Reinforced Top Rail

Toolbox and Front Jack Bracket

Dual 6" I-Beam Frame (24 lbs/ft)

7 Gauge Steel Flooring on 83" Wide Models

4" Tubing Bed Frame

Full Length Bed Runners and Ramp Pockets

10 Gauge 18" or 24" Steel Sides

Standard Retractable Tarp Kit

10k Drop-Leg Jack

2 5/16" Adjustable Auto Latching Coupler

2 - 7k Cambered Brake Axles (8k, Triple 7 Available)

Multi-leaf Slipper Spring Suspension

Black Mod Wheels*

Spare Tire Mount

Slide-in Ramps

Rear Support Stand Bracket

Three-Way Spreader Gate

Powder Coat and Primer

Scissor Hoist with 516 Cylinder

Double Acting Pump Unit w/ Gravity Down

Flow Control Valve

Locking Pump Box

Standard Stake Pockets

Weld On Diamond Plate Fenders

Four Floor Mounted 1/2" D-Rings

DOT Approved Lifetime LED Lighting

Molded Sealed Harness with Resistors

LED Voltage Indicater in Remote

Built-In 5 amp Battery Charger

7-Way Receiver Female Plug w/ Adapter

32" Deck Height

options

3 Stage Telescopic Cylinder

Tandem 8k Axles

Triple 7k Axles

Rear Stabilizer Jacks

3' or 4´ Side Walls

Solar Charger (1.5 Amp)

Spare Tire

Hydraulic 12k Jack

Wireless Remote

Cold Weather Harness
