EWB14
8” I-Beam Equipment Trailer
No items found.
14,000 lb Equipment Trailer with 8” I-Beam Frame
SIZES
83 x 18--24'
GVWR
14,000 -- 16,000 lb

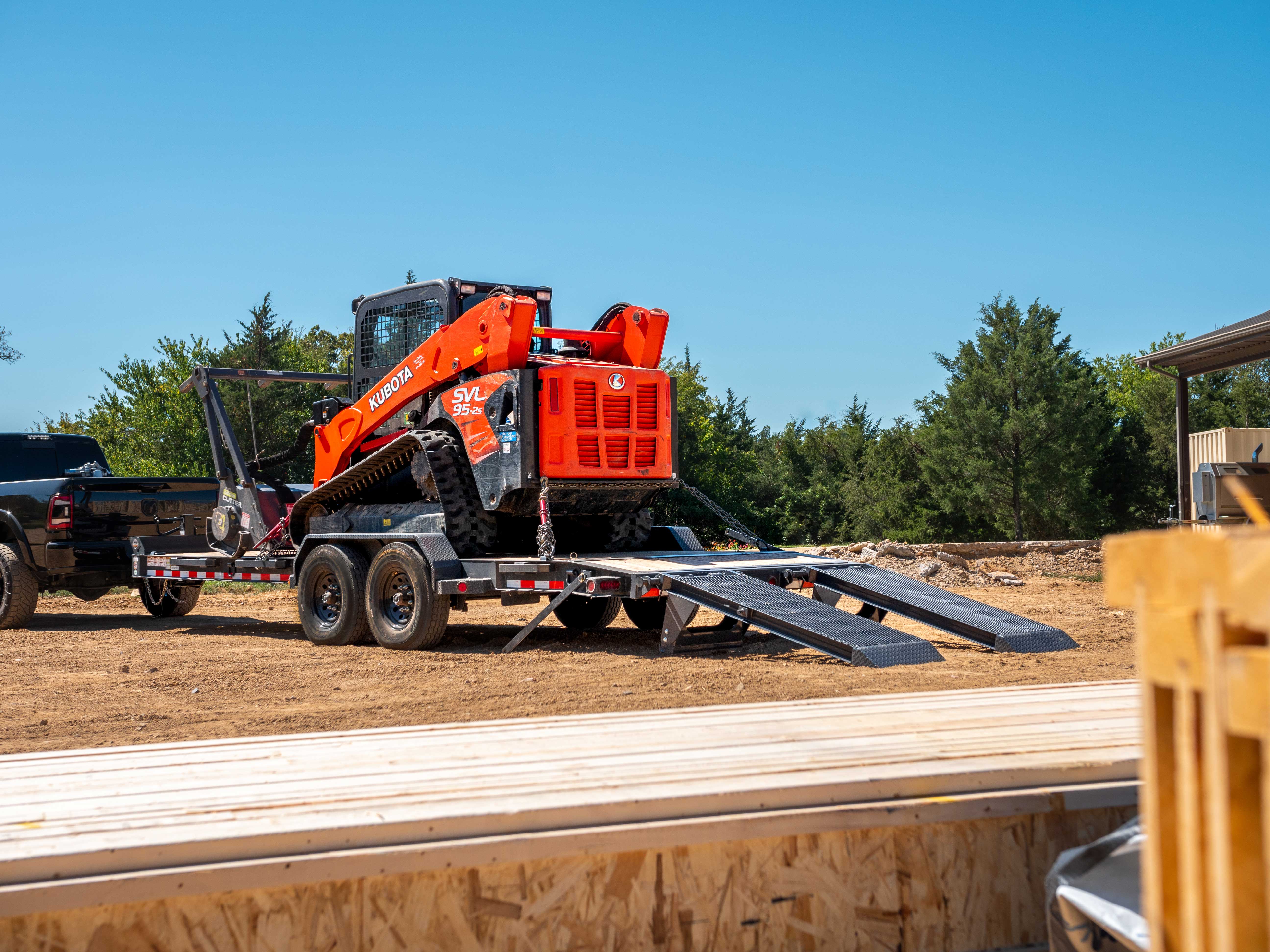

The Ironbull EWB is available in 14k or 16k GVWR and is designed for a balanced and smooth towing experience. The oversized front toolbox provides you with an organized storage solution that eliminates clutter and reduces the risk of misplaced or lost tools. Standard with an 8" I beam frame and tongue and available in 83" or 102" wide, this equipment hauler can get the job done!

In addition to the monobeam frame construction, this trailer also receives our new supersized full tongue front toolbox as standard equipment and can be equipped with our rampage ramps or 6’ fold up ramps. You will still find several great Iron Bull standards on this trailer such as brake axles and radial tires, powder coat, and USA made LEDs are provided by TecNiq lighting. Each EWB trailer also comes equipped with D-Ring tie downs, removable diamond plate fenders, and adjustable coupler. And, as always, these trailers are covered by our industry-best IronClad warranty providing three year structural, two year component and two year free roadside assistance.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
072
EWB

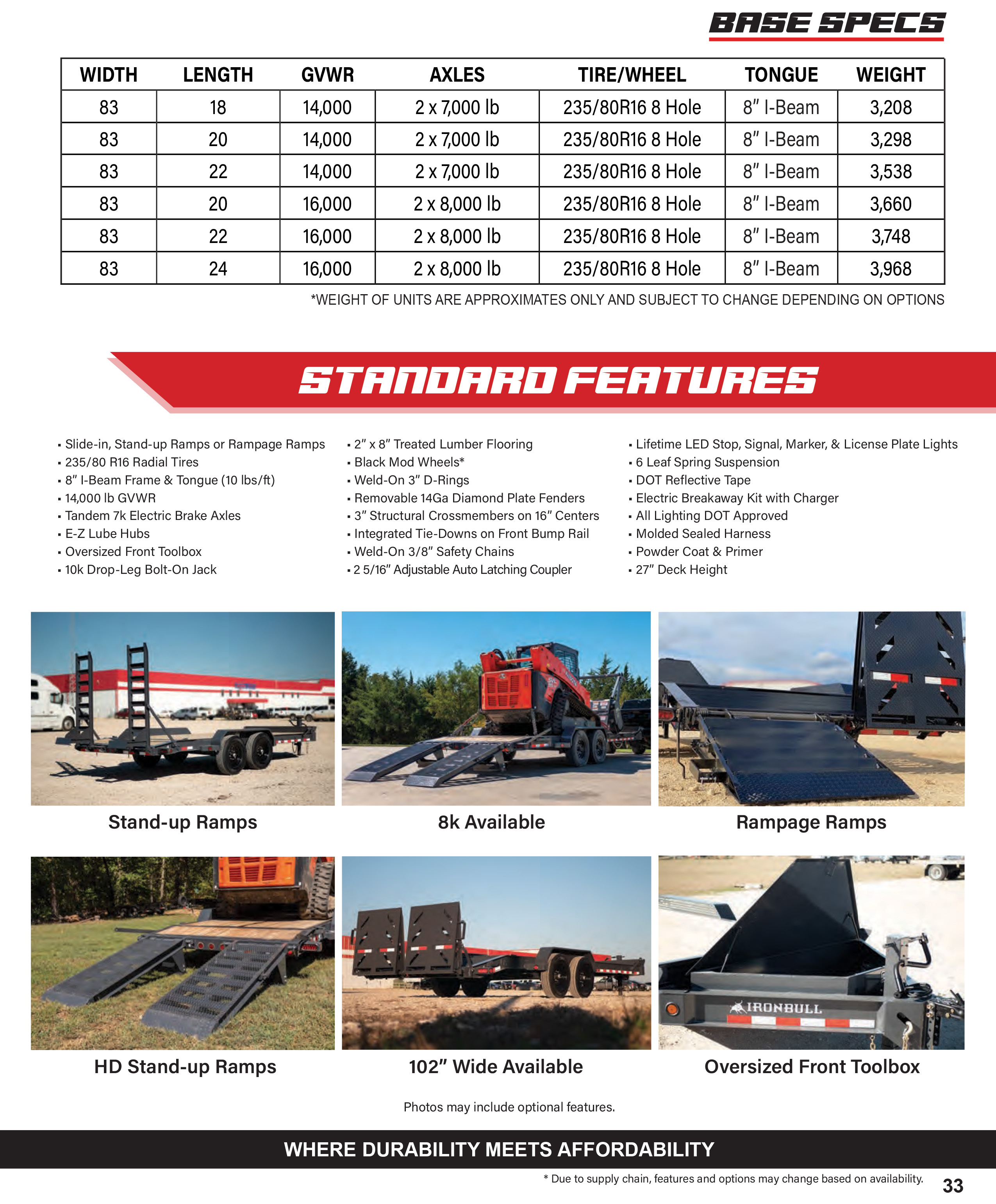

Specifications

WIDTH: 83
LENGTH: 18
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
TONGUE: 8" I BEAM

WEIGHT: 3,208



WIDTH: 83
LENGTH: 20
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
TONGUE: 8" I BEAM

WEIGHT: 3,298

WIDTH: 83
LENGTH: 22
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
TONGUE: 8" I BEAM

WEIGHT: 3,538

WIDTH: 83
LENGTH: 20
GVWR: 16,000
AXLES: 2 x 8,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
TONGUE: 8" I BEAM

WEIGHT: 3,660

WIDTH: 83
LENGTH: 22
GVWR: 16,000
AXLES: 2 x 8,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
TONGUE: 8" I BEAM

WEIGHT: 3,748

WIDTH: 83
LENGTH: 24
GVWR: 16,000
AXLES: 2 x 8,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
TONGUE: 8" I BEAM

WEIGHT: 3,968

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

8” I-Beam Frame and Tongue (10 lbs/ft )

14,000 lb GVWR

Tandem 7k Brake Axles

Super Lube Hubs

235/80 R16 Radial Tires

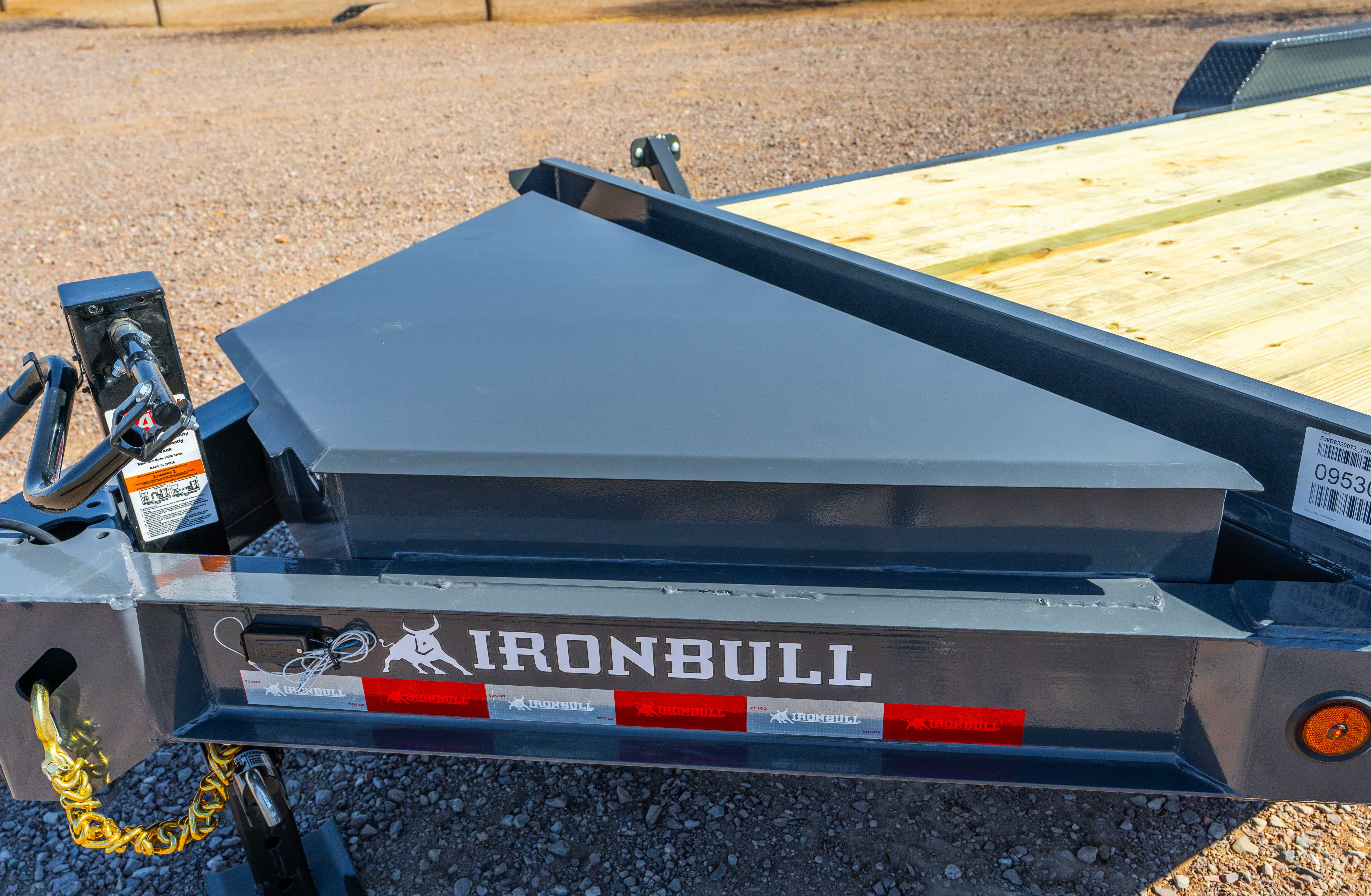

Oversized Front Tool Box

10k Drop-Leg Bolt-On Jack

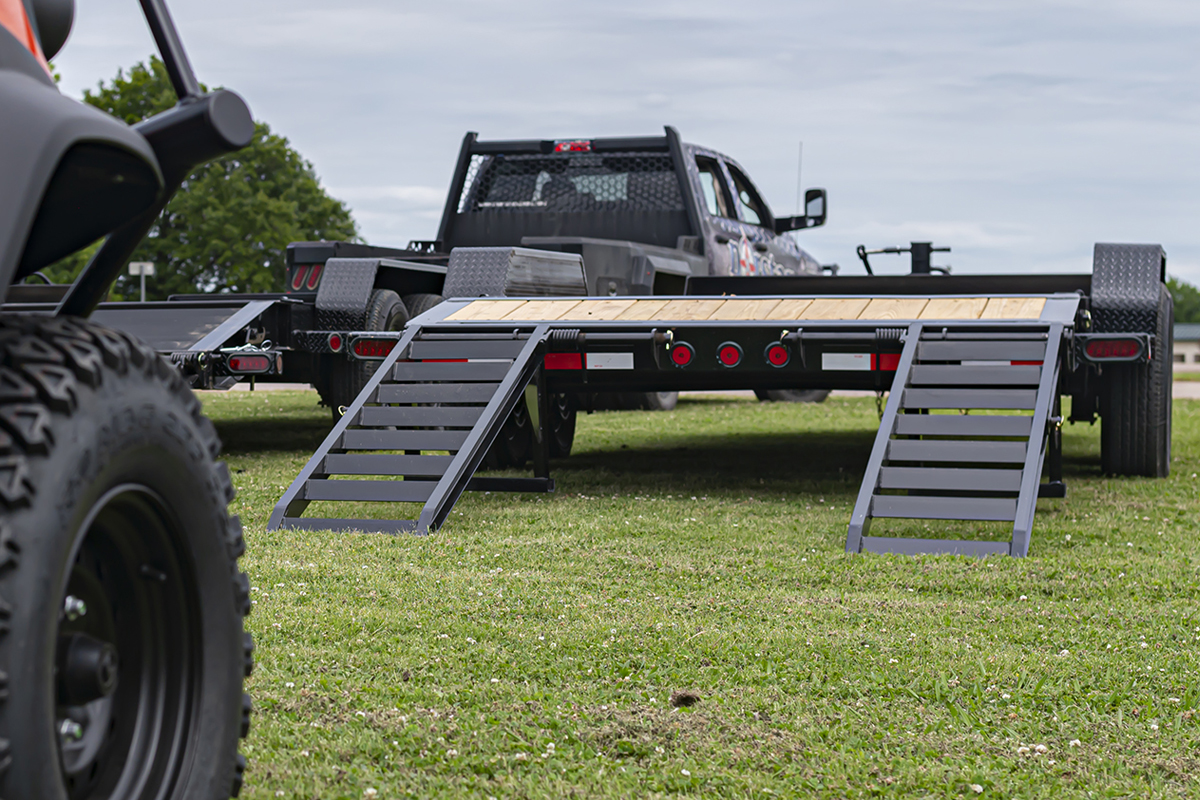

Slide in, Stand-Up Ramps or Rampage Ramps

2x8 Treated Lumber Flooring

16” Black Wheels

6 Weld-On D-Rings

Removable 14 Ga Diamond Plate Fenders

3” Structural Crossmembers on 16” Centers

Integrated Tie-Downs on Front Bump Rail

Weld-On 3/8” Safety Chains

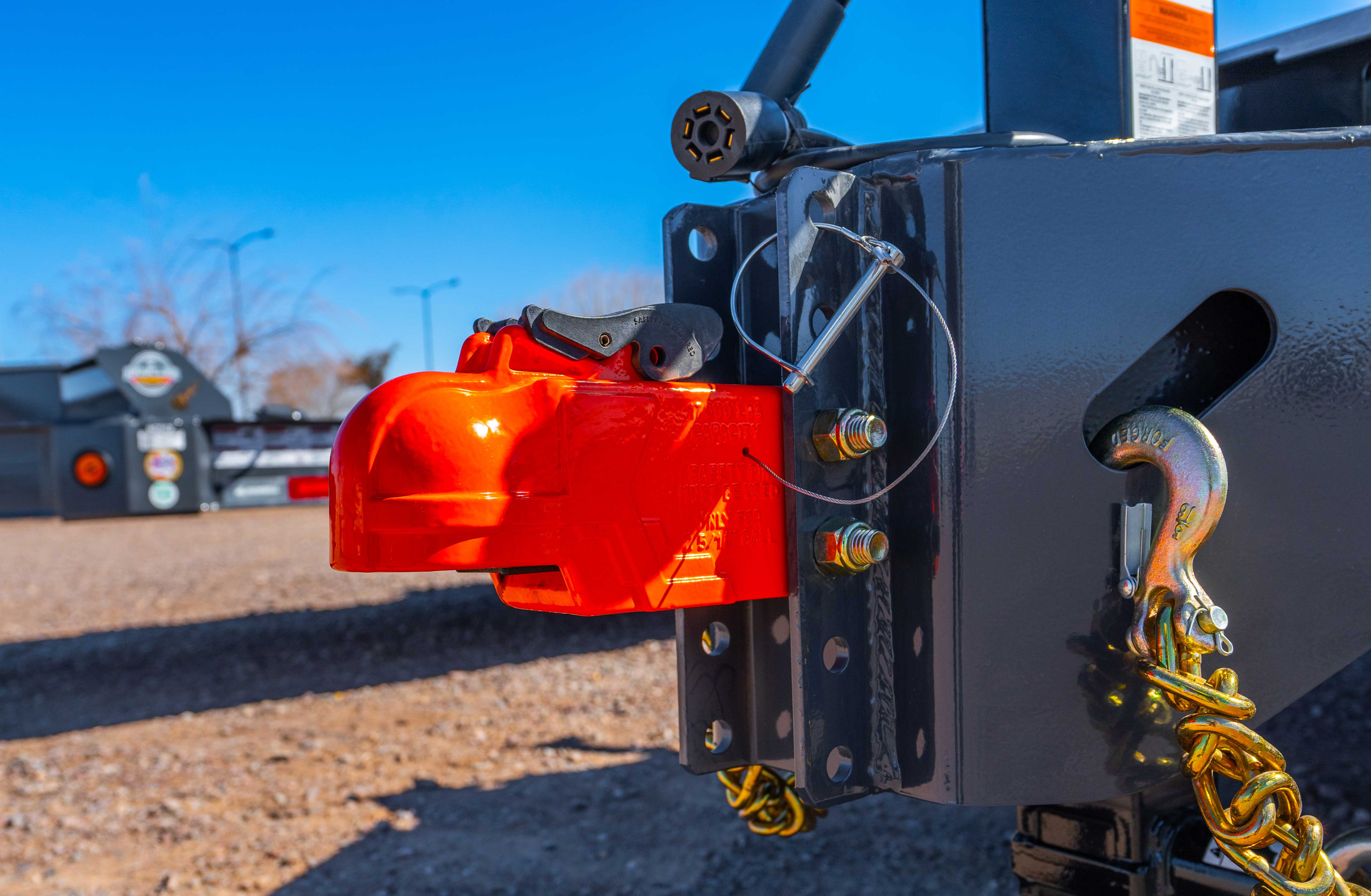

5 Position 2 5/16” Ball Coupler

Powder Coat and Primer

Lifetime LED Stop, Signal, Marker, License Plate Lights

6 Leaf Spring Suspension

DOT Reflective Tape

Electric Breakaway Kit with Charger

All Lighting DOT Approved

Molded Sealed Harness

options

2’ Dove with Slide-In Ramps

2’ Dove with 6’ Stand Up Ramps

3’ Dove with Rampage Ramps
