Norstar Company Logo
0.8
15
28
FLG22
102" x 20' - 40'
Sizes
23,900
GVWR
34"
Deck Height
Best Seller
FLG22
HD Low-Pro Gooseneck
https://www.youtube.com/watch?v=4vMOs_TqF5A

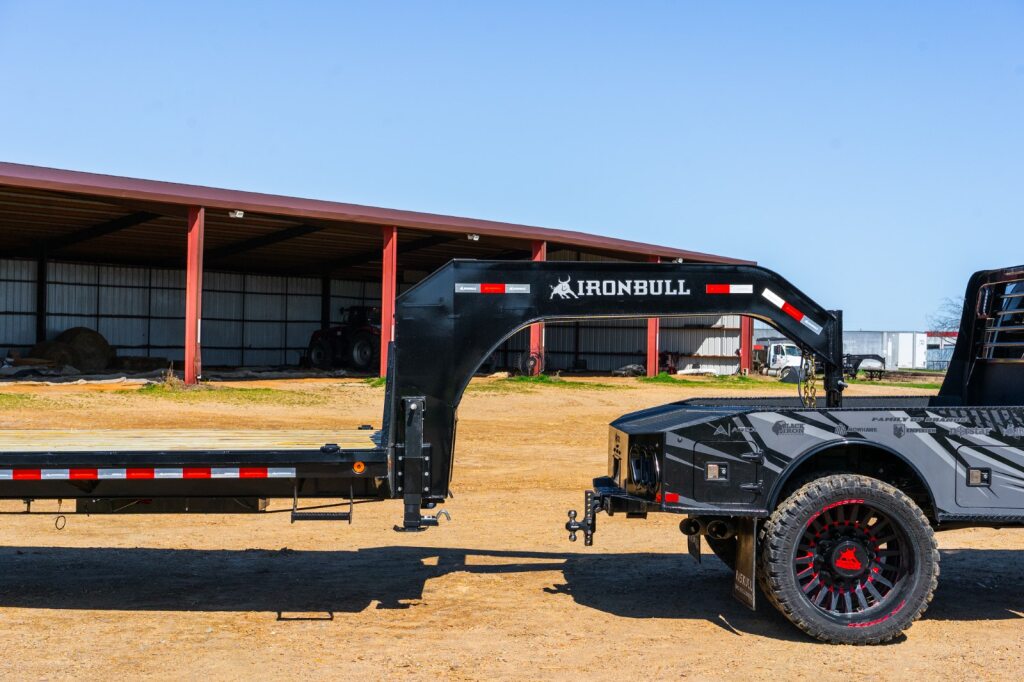

FLG low profile gooseneck equipment trailer on truck
No items found.

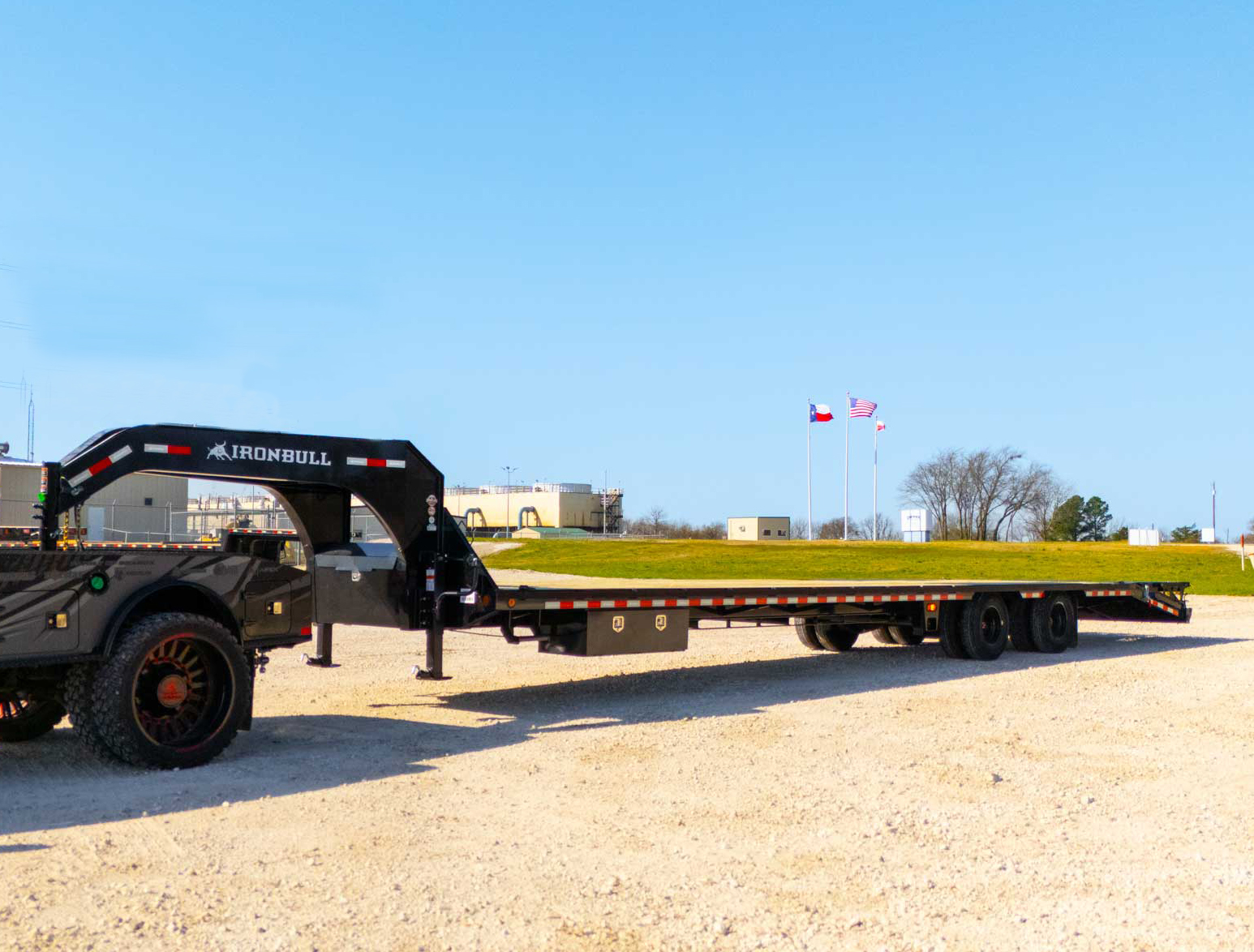

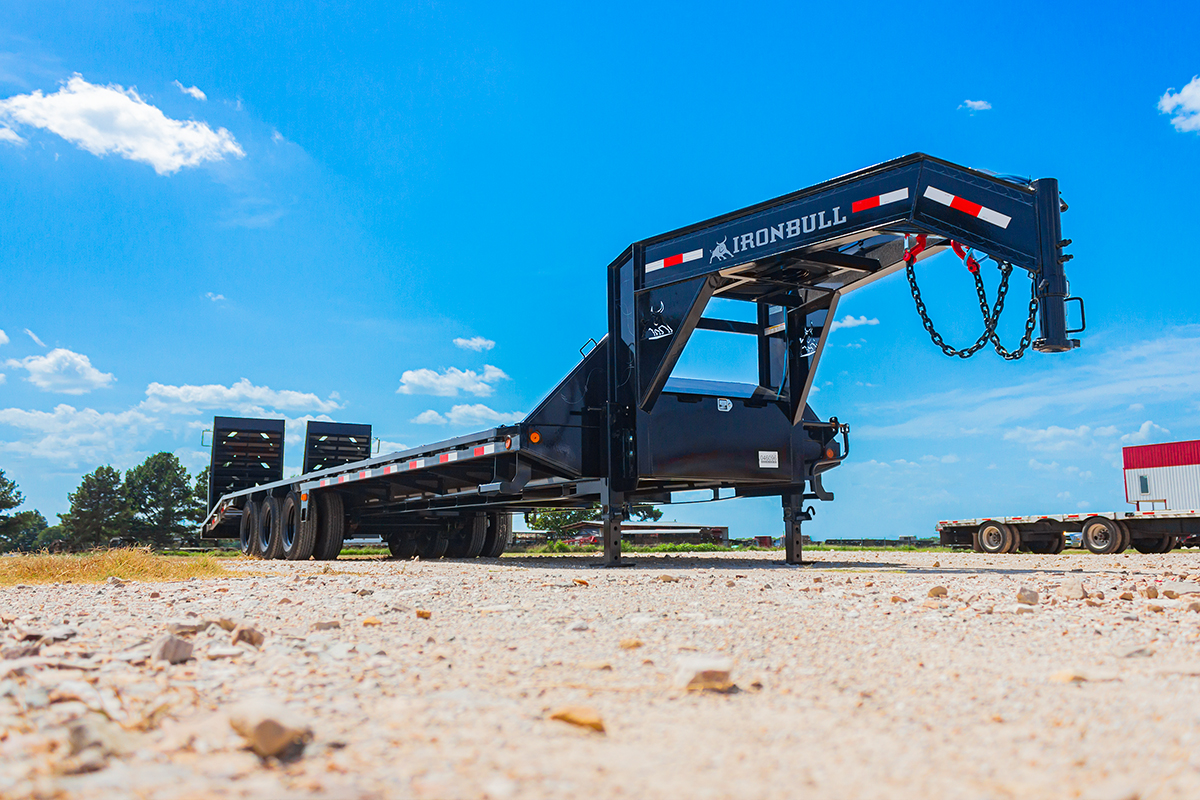

Gooseneck Low-Pro Equipment Trailer
Sizes
102" x 20' - 40'
GVWR
23,900

The FLG is equipped with a low-pro, pierced frame design that lowers the deck 3” providing a decreased center of gravity, more stable cornering and a lower loading angle for equipment. Ironbull Goosenecks have earned a reputation as some of the most rugged and longest-lasting units in service today. This isn't by chance; it's the result of meticulous engineering and a commitment to using high-quality materials and construction techniques. From heavy-duty steel to precision welding, every component is designed to withstand the most demanding work environments, ensuring your investment continues to perform reliably for years to come, minimizing downtime and maximizing your operational efficiency.

Our 102" wide 22k low-pro Gooseneck is by far our most popular model. Standard on all Ironbull FLG models comes our pipe bridge to reduce torque under heavy loads. Heavy SCH40 construction outclasses thin walled pipe as seen on some of the competition. Low-Pro, pierced frame design lowers the deck 3" providing a lower center of gravity, more stable cornering and a lower loading angle for equipment. 12" 19lb/ft I-Beam makes up the main frame of these monsters - compared to the 14lb found on the other guys. Heavy duty 10" I-beam crossmembers are located on the lower main frame to further support the pipe bridge. These important steel beams are omitted by some competitors. 3" Channel crossmembers located in the deck frame are on 16" centers and topped with 2" x 8" treated pine wood - and you will find a standard locking toolbox at the front of each gooseneck trailer. Two 16" side steps adorn the front of each deck.

All wiring is in a sealed harness and runs inside the 2" x 8" upper deck frame. Fresh powder coat gives each trailer a rugged finish with a showroom shine. USA made, lifetime recessed LEDs are provided by TecNiq lighting. Each Ironbull Trailer also comes equipped with stake pockets, pipe spools and rub rails as well as an adjustable coupler. All Ironbulls are sitting on electric brake axles and roll down the road on radial tires. Select from our multiple tail options including our rampage ramps or a hydraulic dove tail and corral your Ironbull today.

REQUEST A QUOTE
add review
reviews
4.0
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
22
FLG
I needed to upgrade from a 7k to a 10k equipment trailer and the Iron Bull ETB10 fit the bill.  The extras like the D rings and removable fenders are great and the overall build quality is awesome.  Ive towed it all up and down the east coast with no issues.  I would definitely recommend.
-Bryan B.
09/11/24
View All
Specifications

WIDTH: 102
LENGTH: 22
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
WEIGHT: 6,076

WIDTH: 102
LENGTH: 20
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
WEIGHT: 6,300

WIDTH: 102
LENGTH: 24
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
WEIGHT: 6,376

WIDTH: 102
LENGTH: 25
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
WEIGHT: 6,576

WIDTH: 102
LENGTH: 26
GVWR: 23,900
AXLES: 2 x 10,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
WEIGHT: 6,676

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
No items found.
Standard Features

12” I - Beam Frame and Neck (19 lbs/ft)

235/80R16 Radial Tires

Low Pro Deck

2 5/16” Adjustable Coupler

3” Structural Crossmembers

2.5 x 2.5 Front Bumper Rail

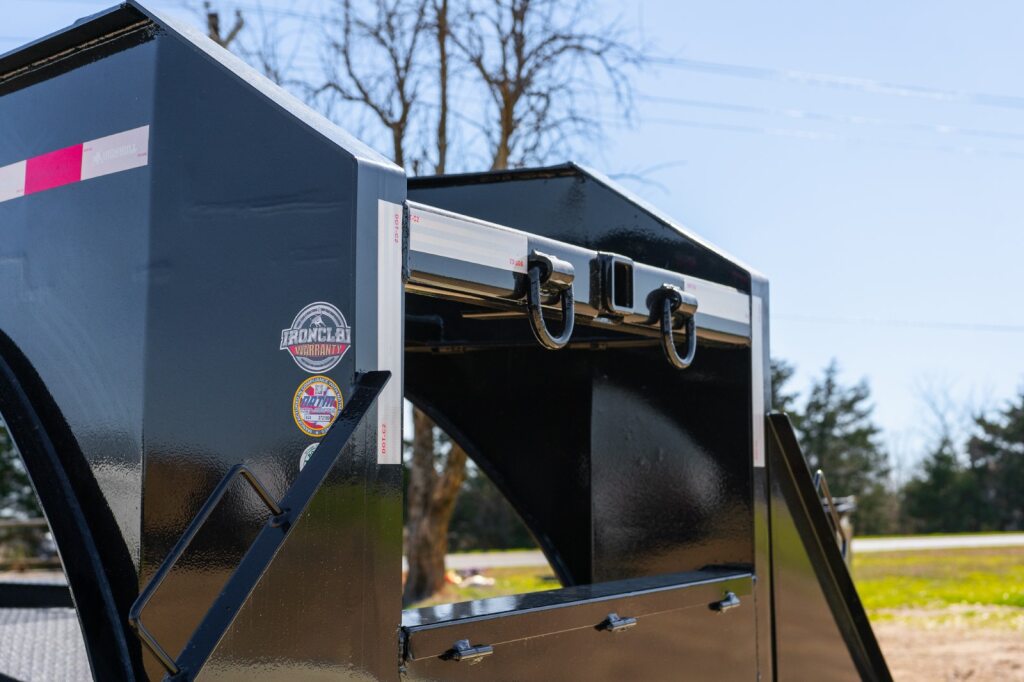

Lockable Full Neck Width Tool Box

Rub Rail, Stake Pockets & Pipe Spools

Standard Torque Tube & Underframe Bridge

Heavy Duty Suspension System Standard

2 - 10k Electric Brake Axles

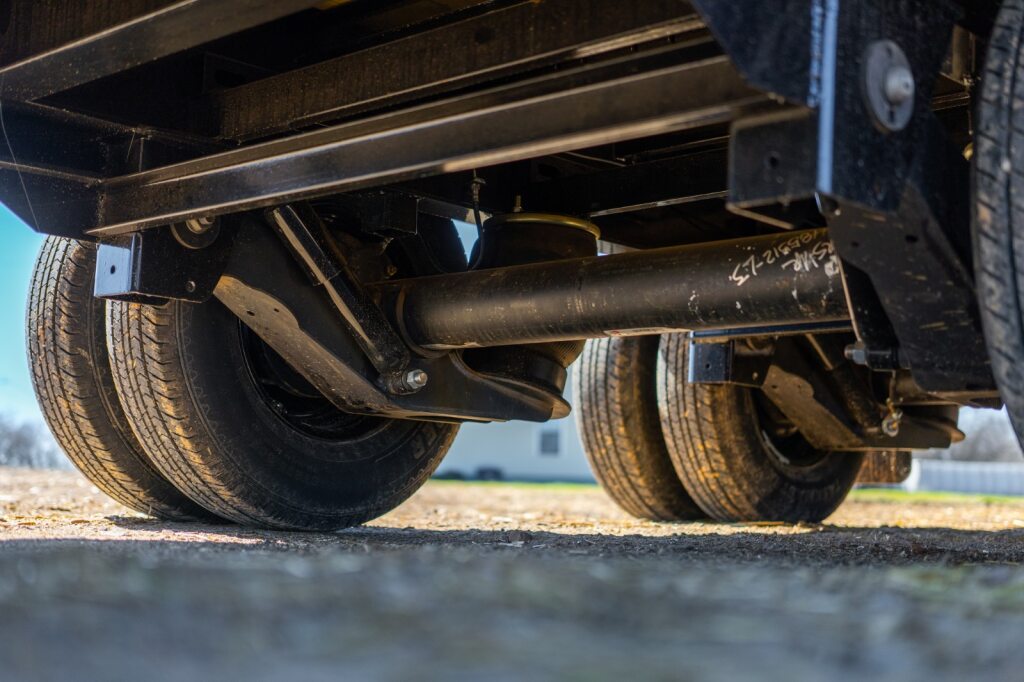

Multi-leaf Slipper Spring Suspension

E-Z Lube Hubs

25” Gooseneck Box

8’ Slide-in Ramps

2 - 10k Drop-Leg Jack

Treated Pine 2” x 8” Floor

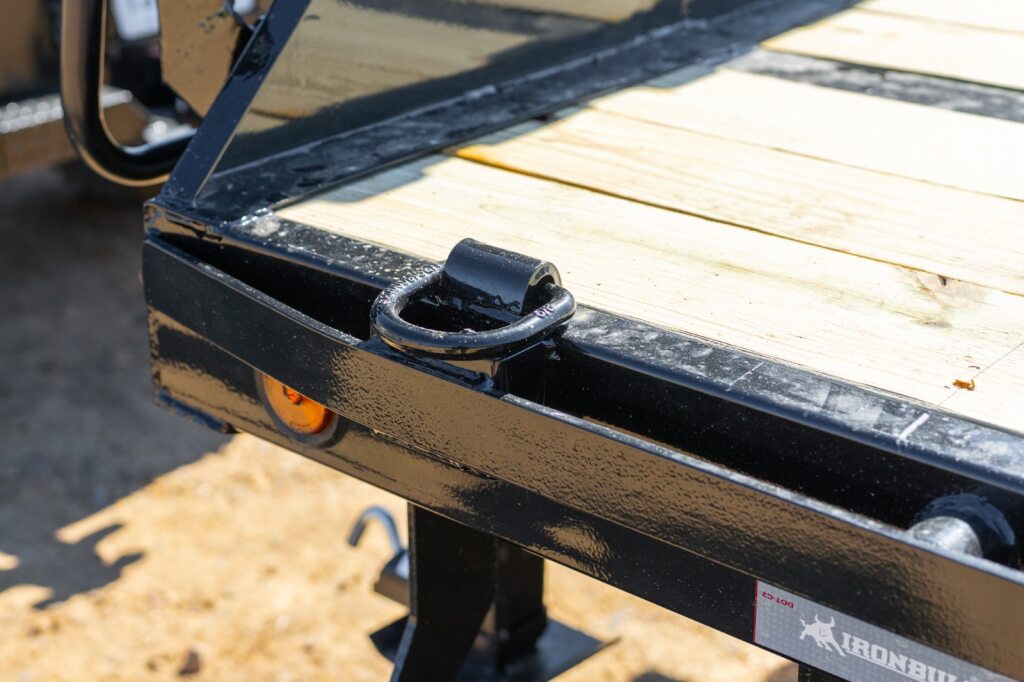

4 Standard 3” D-Rings

Black Mod Wheels*

Spare Tire & Mount

Lifetime LED Lighting

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7-Way Receiver Female Plug with Adapter

Powder Coat & Primer

34” Deck Height

options

14-Ply 235/85 Tire Upgrade (ea.)
Winch Plate 1/2” (in neck)
Weld On Track with Adjustable Ratchets E very 5’
Weld On Ratchets Every 5’ (per ft)
Weld On Ratchet Track Only (per ft)
17.5” x 6.75” Tire Upgrade (ea.)
Cold Weather Harness: -85°F to 221°F (Standard harness: -40°F to 158°F)
Additional Side Tool Box (ea.)
Deck Over Neck
12” Crossmembers (per ft)
6’ Spread Axles
2 - 12k Hydraulic Jacks
2 Speed Drop-Leg Jacks
Tube Rear Support Stands
5’ Self Cleaning Dove Tail with 3 Flip-Over Ramps
5’ Self Cleaning Dove Tail with 2 Flip-Over Ramps
5’ Self Cleaning Dove Tail with Slide-in Ramps
Rampage Ramps (2 - 40” Flip-Over Ramps w 5’ Self Cleaning Dove)
3 - 12,000 lb Electric Over Hydraulic Brake Axles
3 - 12,000 lb Electric Brake Axles
3 - 10,000 lb Electric Over Hydraulic Brake Axles
3 - 10,000 lb Electric Brake Axles
2 - 15,000 lb Air Ride Axles
2 - 15,000 lb Electric Brake Axles
2 - 12,000 lb Electric Over Hydraulic Disc Brake
2 - 12,000 lb Electric Brake Axles
2 - 10,000 lb Electric Over Hydraulic Disc Axles

bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

Options gallery
Accessories/misc
Toolboxes
Ratchets
Sides
Jacks
Dove Tails & Ramps
Hydraulic Dove Options
Flooring
Accessories/misc
U52 - half inch winch plate in gooseneck
this optional feature adds a winch plate into the gooseneck of your trailer for a winch to be mounted on.
Accessories/misc
W91 - Cold Weather Harness
the cold weather harness helps keep your trailer safely operating in wintery or cold eviroments.
Dove Tails & Ramps
D31 - two flip-over ramps with self cleaning dove
Features a self-cleaning dove accompanied by 2 flip over ramps help you make the most of your deckover and flatdeck trailer.
Dove Tails & Ramps
D07/D13/D30 - Rampage Ramps
Rampage Ramps are a tough, durable option for loading and unloading your trailer. Even better they are easy to use and flip over for convenient storage when not in use. Available in 3',4',5'.
Flooring
K21 - 12" Crossmembers
Adds 12-inch crossmembers by the foot, enhancing structural support and overall strength for your trailer frame.
Flooring
E04 - Rough Oak Flooring
rough oak flooring by the foot, offers a sturdy, durable surface with excellent traction for heavy-duty trailer use.
Flooring
E03 - Blackwood Flooring
Blackwood flooring by the foot, combines lasting durability with enhanced traction for safer, easier loading.
Flooring
E02 - Steel Flooring
Adds a durable steel floor by the foot, delivering superior strength and long-lasting performance for heavy-duty use.
Toolboxes
T42/T43 - Additional toolbox
Adds a toolbox on the passenger or drivers side, offering secure and convenient storage for tools and equipment.
Toolboxes
T41 - Two Additional Toolboxes
Adds two extra toolboxes to your deckover trailer, providing convenient storage and easy access for tools and equipment.
Accessories/misc
A72 - 72" Axle Spread
Features a 72-inch axle spread, improving stability, weight distribution, and towing performance for safer, smoother hauls.
Accessories/misc
A60 - 60" Axle Spread
A 60-inch axle spread, enhancing stability, weight distribution, and handling for safer towing and hauling.
Accessories/misc
C56 - 30K Coupler Upgrade
this upgrades your trailer with a 30,000 Ib coupler, providing enhanced strength and secure towing for heavy-duty loads.
Accessories/misc
D60 - Deck-Over Neck
An additional deck that can be added on top of any gooseneck model that provides extra loading area for small equipment items.
Accessories/misc
R90 - Wireless Remote (Two Button)
A two-button wireless remote, providing convenient, easy control for operating your trailer's electric systems.
Accessories/misc
N02/N03 Extra D-Rings
Additional D-rings can be added for extra support, providing maximum tie-down options for safely securing equipment and cargo.
Accessories/misc
R06 - 6" Raised Gooseneck
A 6-inch raised gooseneck, improving clearance and providing a better towing angle for easier loading and transport. Perfect for trucks with a large lift.
Accessories/misc
S90 - Solar Charger panel
The solar charger provides a convenient, eco-friendly way to keep your trailer's battery charged and ready.
Ratchets
U30/31/32/33 - Ratchet Tracks
Available as either weld-on (every 5 feet) or adjustable, ratchet tracks provide consistent and secure tie-down points all along your trailer on either side. Availability varies by model.
Jacks
J52/J56 - 12k Hydraulic Jack (if hydraulics NOT equipped)
Available in either a single or set of 2, our 12,000 lb hydraulic jacks ensuring strong, dependable litting capability for safe operation.
Jacks
J55 - 2 Speed Jacks
These jacks feature a 2-speed system, allowing faster setup and precise control for safely lifting and stabilizing trailers.
