1.1
11
SR
30,000 Lb
Gooseneck Rating
18,500
Bumper Rating
11 Gauge
Full Skirted Bumper
SR
SR Heavy Duty Flatbed
No items found.
Heavy Duty Flatbed
Gooseneck Rating
30,000 Lb
Bumper Rating
18,500

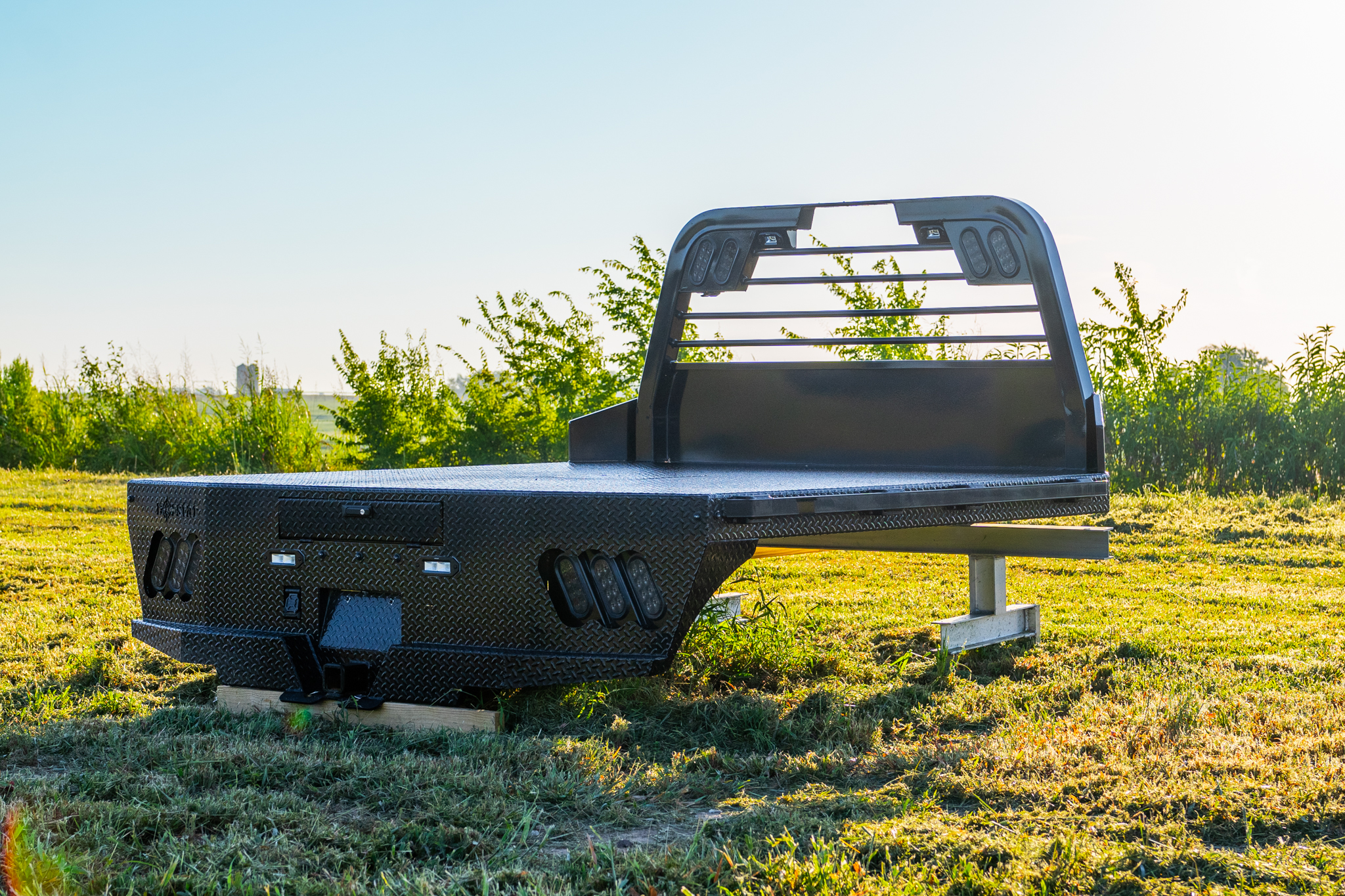

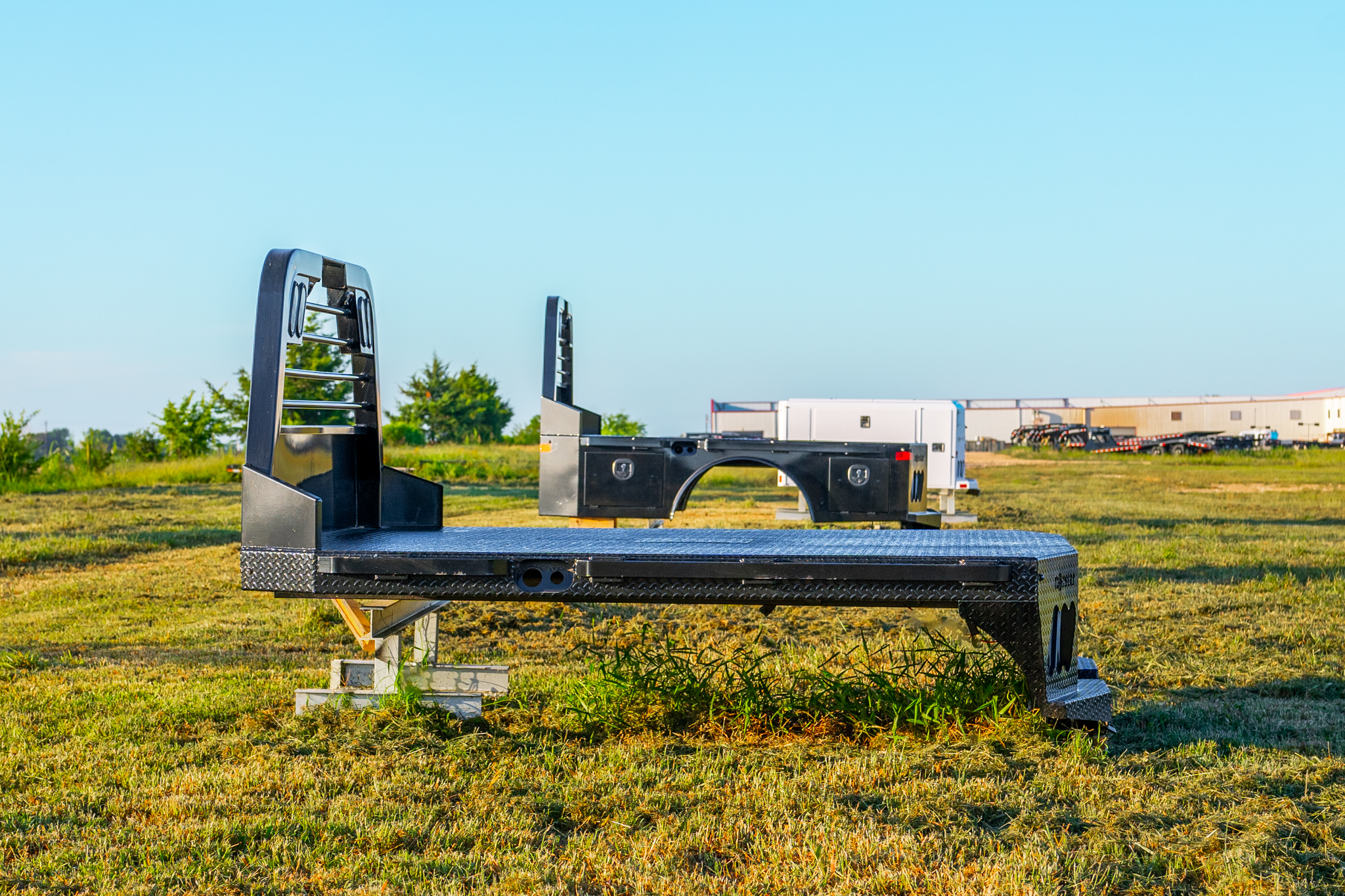

Built with heavy-duty diamond plate construction, the Norstar SR has earned its place as one of our most popular flatbed models. Engineered for strength, reliability, and day-to-day performance, the SR is designed to handle everything from rugged job-site demands to everyday hauling tasks. Now equipped with upgraded standard features like enhanced lighting, improved storage options, and a refined head rack design, the SR delivers unmatched versatility and long-lasting durability. Whether for work or personal use, this flatbed is built to perform—and built to last.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
SR
Specifications
*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

NEW REAR LOCKABLE COMPARTMENT

2 NEW REAR WORK LIGHTS W/ SWITCH, 40W EACH

2 NEW WORK LIGHTS IN HEADRACK W/ SWITCH, 20W EACH

UPGRADED 3/4” LED MARKER LIGHTS

NEW NOTCHED HEADRACK FOR GN CAMERA

UPGRADED SMOKED LIGHTS

UPGRADED DEF & FUEL TOGETHER

NEW CAMERA KNOCKOUT W/ MOUNTING BRACKET

NEW SENSOR KNOCKOUT

NEW SPARE TIRE KNOCKOUT

Bolt On Hinges

3/4” LED Marker Lights

Headrack Work Lights

Structural Steel Frame

2.5” 18.5k Rated Receiver

30k Rated 2 5/16” GN Ball

4” Runner Channels (Adjustable on 84”, 8’6” Only)

Formed 3 x 3/16” Channel Cross Members

Steel Tube Notched Head Rack with Cross Bars, Tail & Reverse Lights

Steel 1/8” Diamond Plate Floor

Built-In Gooseneck Well w/ Ball Mounted & Diamond Plate Lid

Angled Fuel Filler Neck and DEF Ready

11 Ga Skirted Rear Bumper

1/8” Diamond Plate Construction

Primer & Powder Coated Black

4 Smoked 6” Oval LED Reverse Lights

6 Smoked 6” Oval LED ST/TL/TN Lights

Single LED License Plate Light

Molded Sealed Harness with Resistors

4/5 & 7 Way Receiver Female Plug with Adapter

Adjustable Mudflap Brackets

7 Way Plug in Gooseneck Well

options
bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

1998-Present

  • Dually – 8’6”L x 97”W x 56” CTA x 38” Runners
  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner
  • Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner
  • Cab & Chassis – 9’4”L x 94”/97''W x 60”CTA x 34” Runners
  • F-450 & 550 are 94” & 97”W with Standard Headache Rack
  • 2015 F650 Runners 34.5”

2001-Present

  • Dually – 8’6”L x 97”W x 56”CTA x 42” Runners
  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner
  • Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner
  • Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners
  • (Prior to 2000 measurements will be required)
  • 4500 & 5500 is 94”W with 60” Headache Rack

2003-Present

  • 2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner
  • Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners
  • Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners
  • Dually – 8’6”L x 97”W x 58”CTA x 42” Runners
  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner
  • Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner
  • 2002 and earlier will have 56” CTA and 38” Runners on long bed

Plug N Play

Installation Adapters

The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:

  • 1001010   WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)
  • 1001009   WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)
  • 1001011   WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)
  • 1001013   WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)
  • 1001012   WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)
  • 1001014   WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)
