Tilt Trailer with 8” I-Beam Frame
No items found.
Tilt Trailer with 8” I-Beam Frame
Size
83" x 20' -- 24'
Stationary
4'

We have a new Bull on the market! It’s our 8” I-Beam 102 wide tilt equipment hauler. Iron Bull Gravity Tilt Decks offer a great alternative to ramps, steep loading angles and possible hang up points of traditional flat deck units. 14,000 lbs of gross vehicle weight rating ensures you have enough capacity for your heaviest loads, as well as expert craftsmanship combined with top-tier components will ensure you have an effortless tow. It’s a great fit for work and play.

REQUEST A QUOTE
add review
reviews
4.0
.
.
5.0
1k reviews
4.0
1k reviews
3.0
1k reviews
2.0
1k reviews
1.0
1k reviews
072
TWB

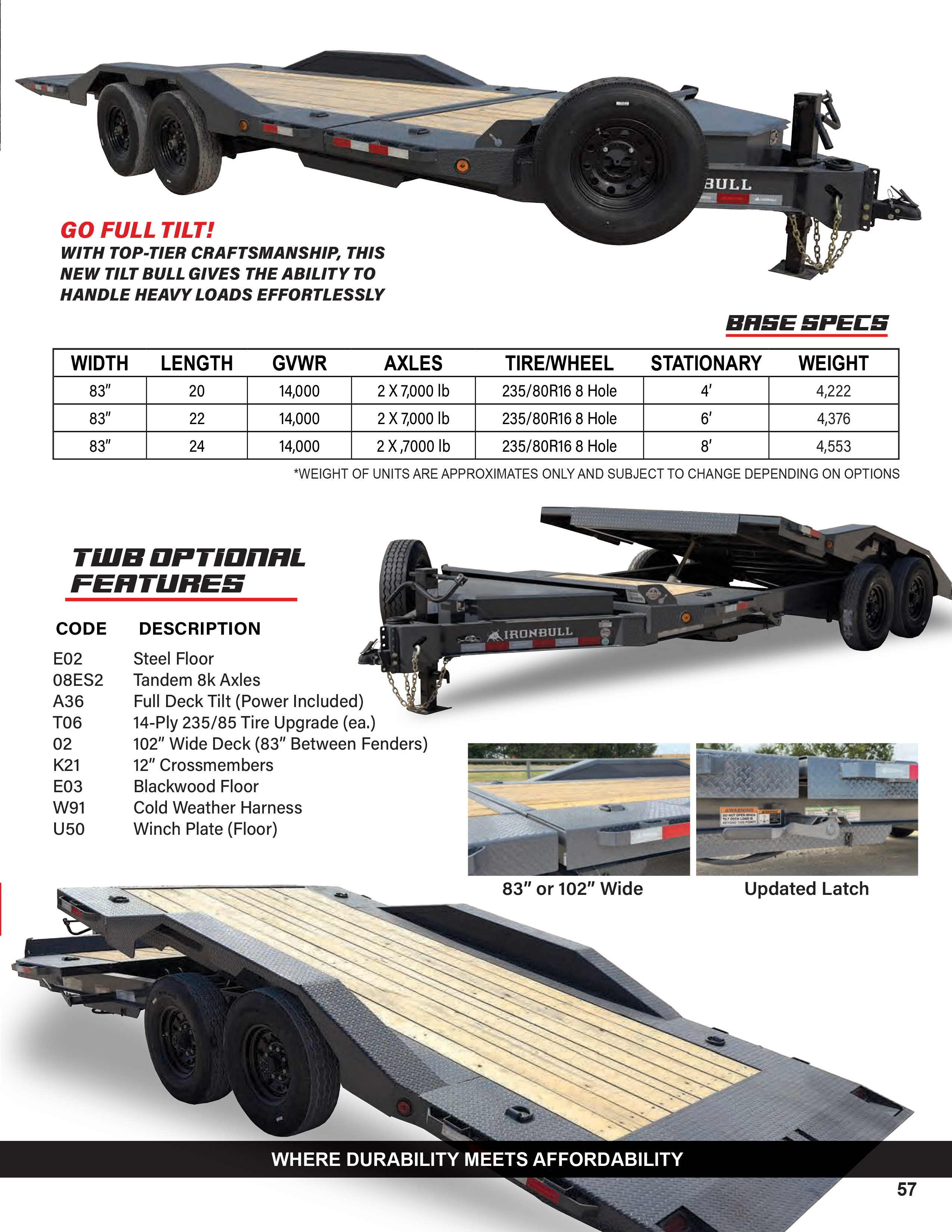

Specifications

WIDTH: 83
LENGTH: 20
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
STATIONARY: 4'
WEIGHT: 4,222

WIDTH: 83
LENGTH: 22
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
STATIONARY: 6'
WEIGHT: 4,376

WIDTH: 83
LENGTH: 24
GVWR: 14,000
AXLES: 2 x 7,000 lb
TIRE/WHEEL: 235/80R16 8 HOLE
STATIONARY: 8'
WEIGHT: 4,553

*Weight of units are approximates only and subject to change depending on options.

*Weight of units are approximates only and subject to change depending on options.
Brochures
No items found.
Standard Features

8” 10 lb I Beam Frame

235/80 R16 Radial Tires

14 Degree Tilt Angles

14k GVWR

4,400 lbs est Weight (20’) Gravity Tilt

Oversized Front Toolbox

2 - 7,000 lb Torsion Axles

Cambered Torsion Axles

2 5/16” Adjustable Auto Latching Coupler

3” Structural Crossmembers

Knife Edge Tail (1/4” Diamond Plate)

Removable Diamond Plate Fenders

Rub Rail and Stake Pockets

10k Drop-Leg Jack

4 Standard 3” D-Rings

E-Z Lube Hubs

Black Mod Wheels*

3” x 10” Cylinder with 1.5” Shaft

Multi-Leaf Slipper Spring Suspension

Treated Pine Floor

Lifetime LED Lighting

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7-Way Receiver Female Plug with Adapter

Powder Coat & Primer

23” Deck Height

options

Steel Floor

Tandem 8k Axles

14-Ply 235/85 Tire Upgrade (ea.)

102” Wide Deck (83” Between Fenders)

12” Crossmembers

Blackwood Floor

Cold Weather Harness

Winch Plate (Floor)

bed size guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
