Rear Locking Components

Rated Bumper

18,500

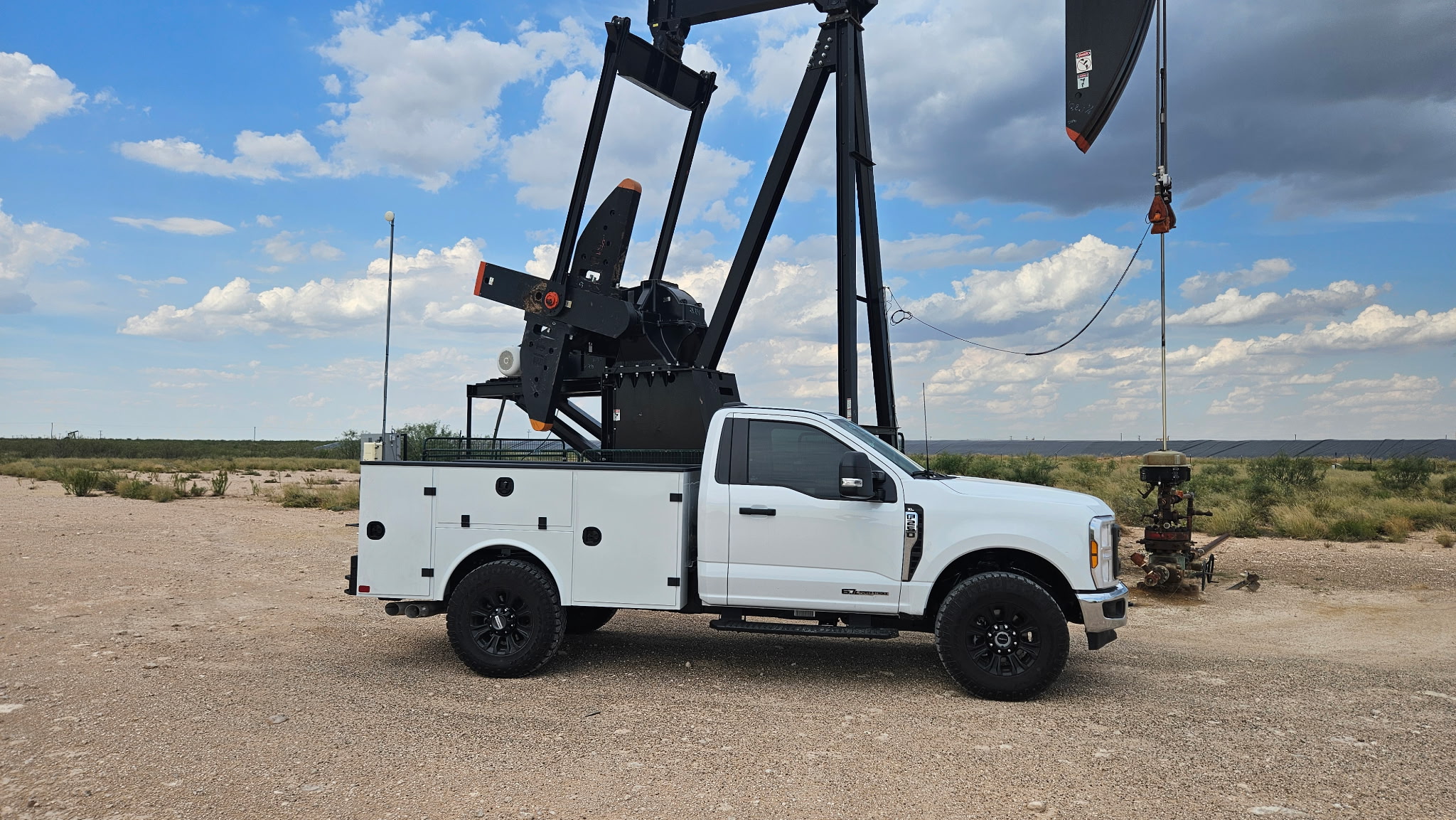

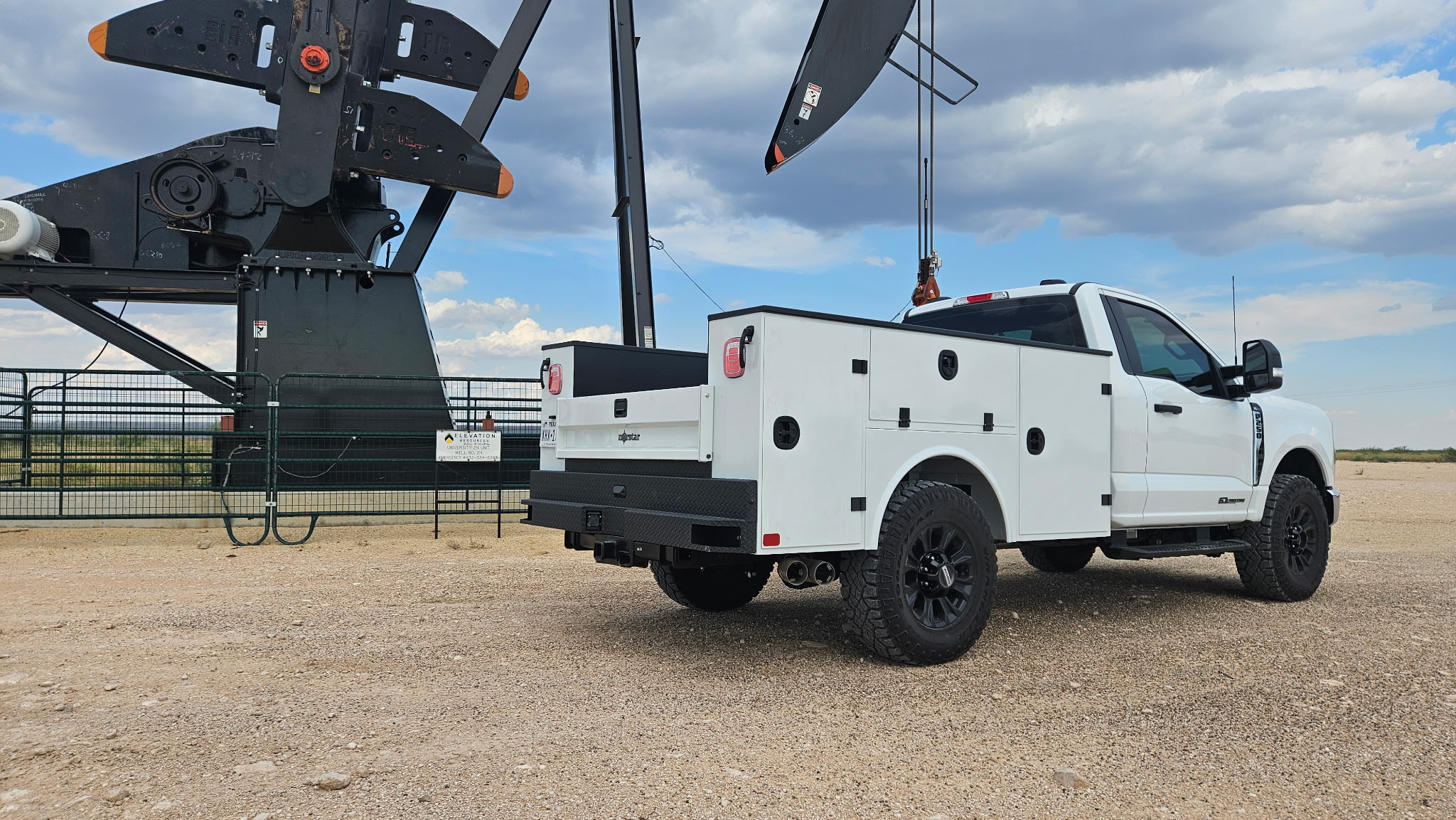

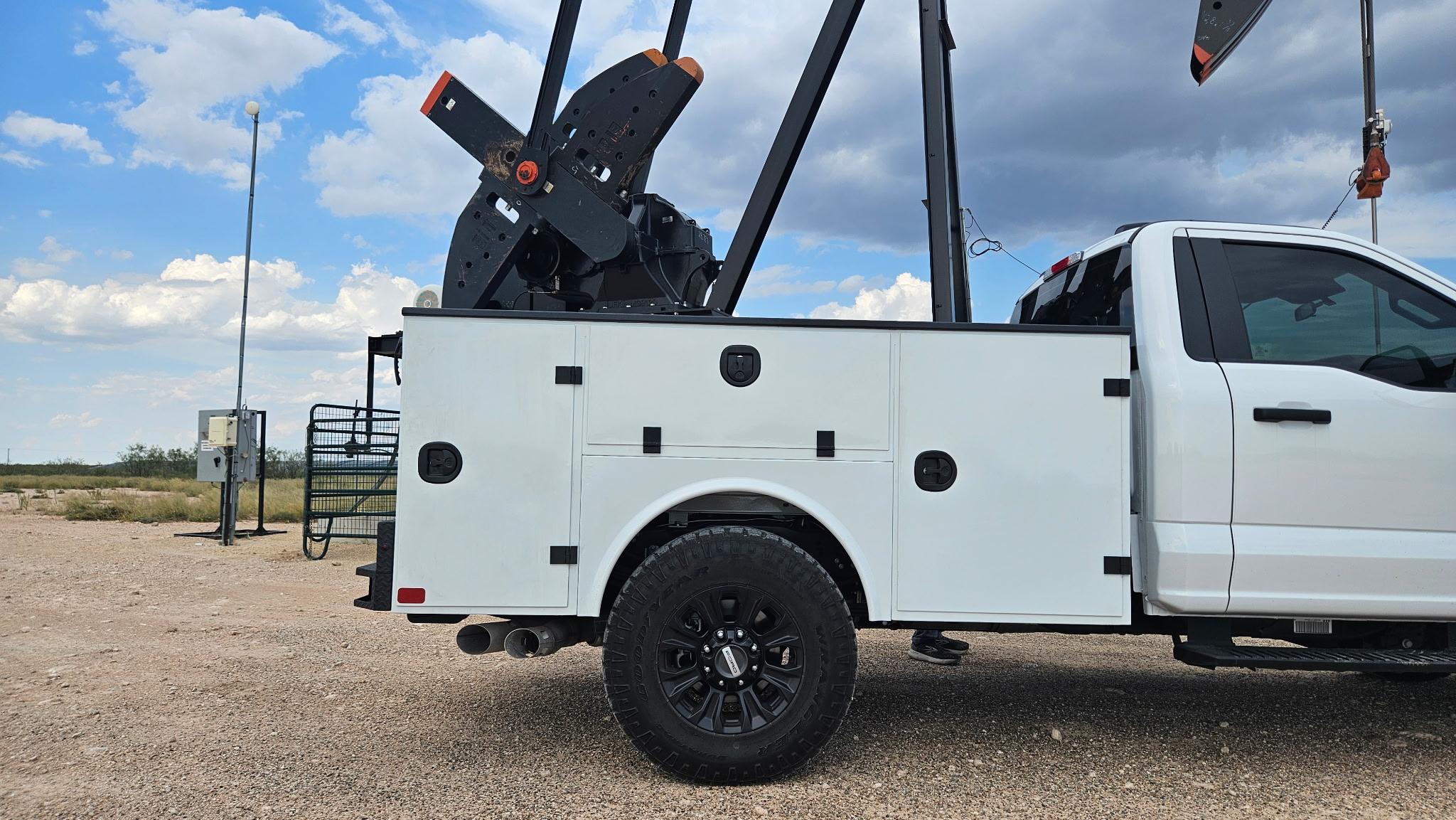

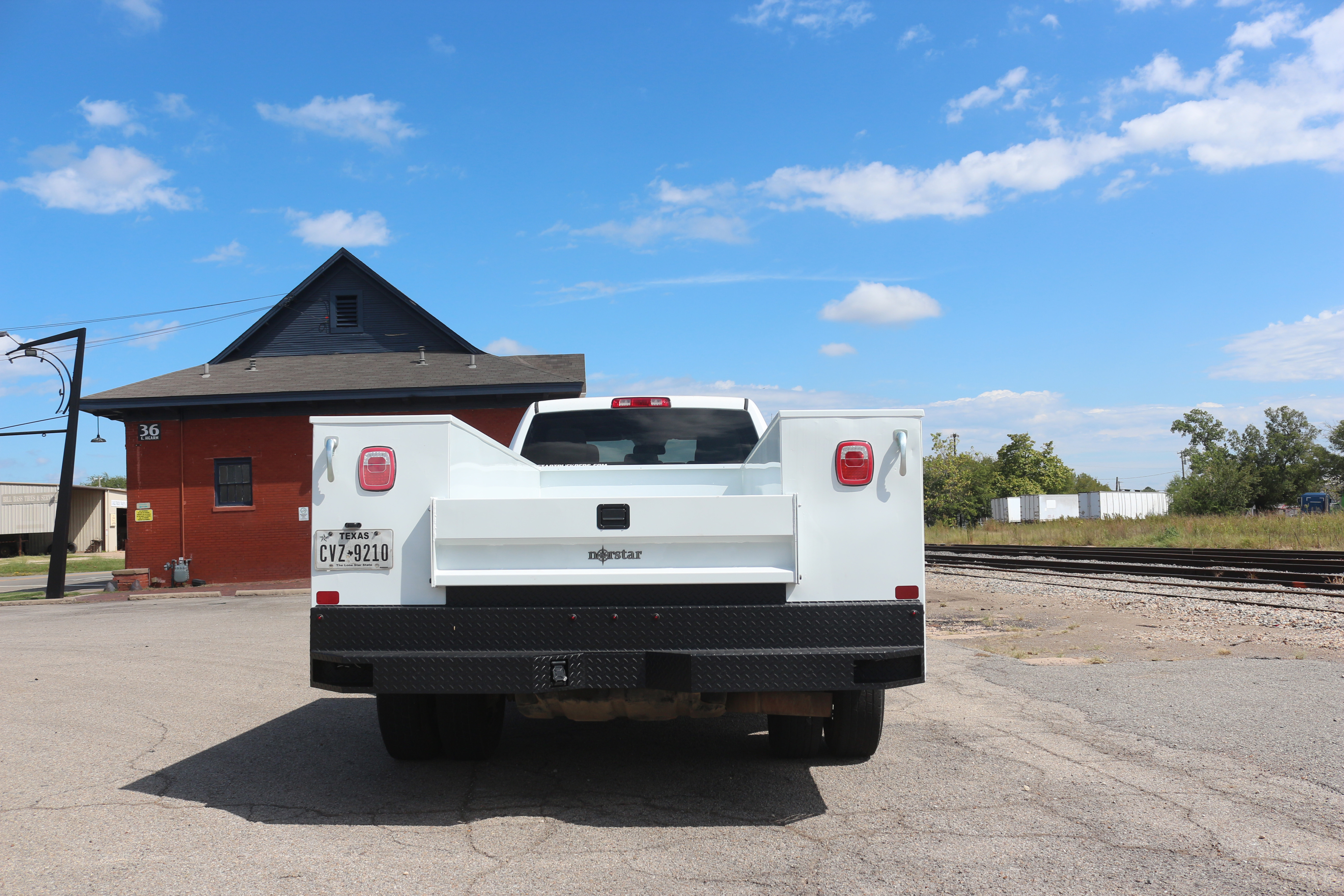

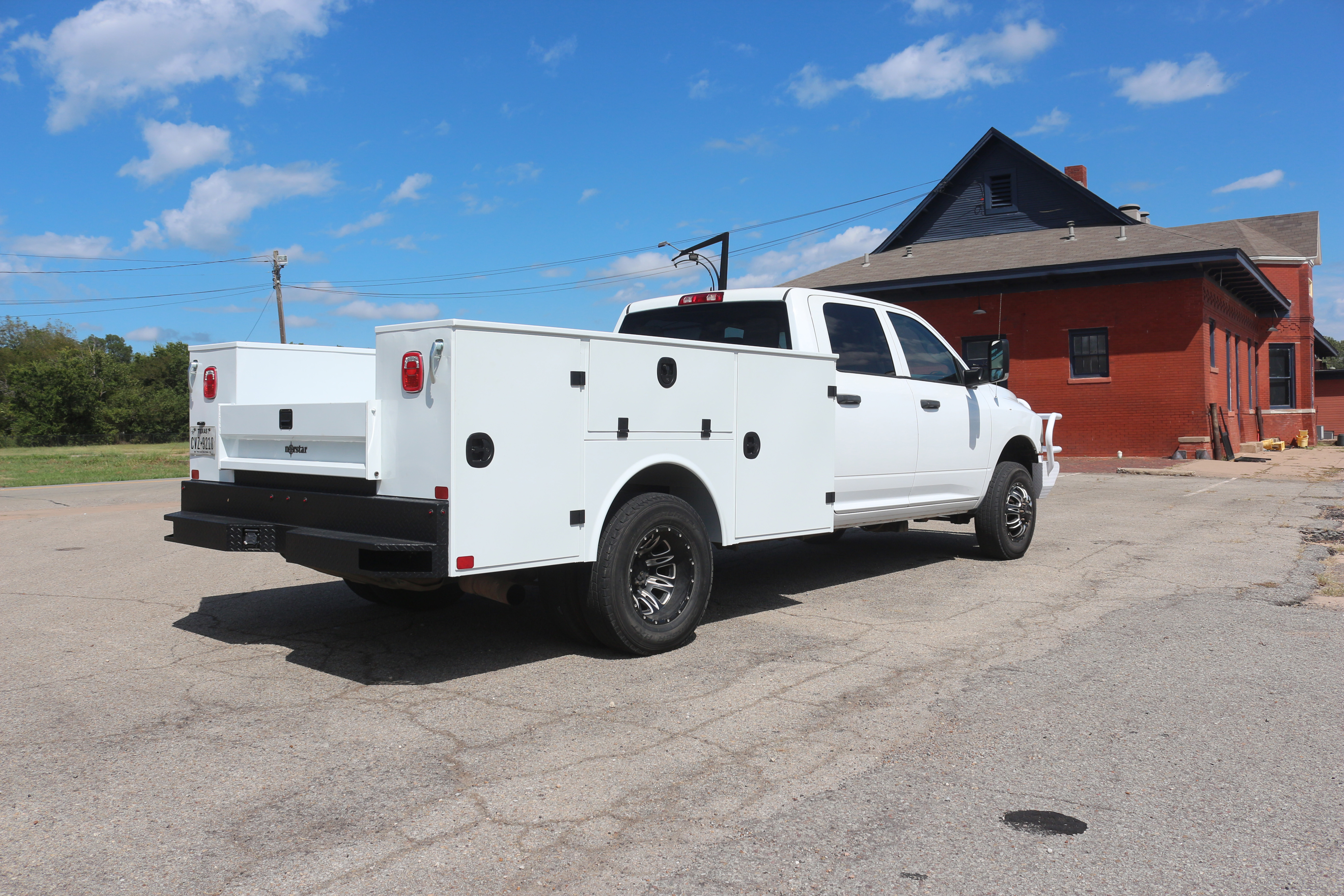

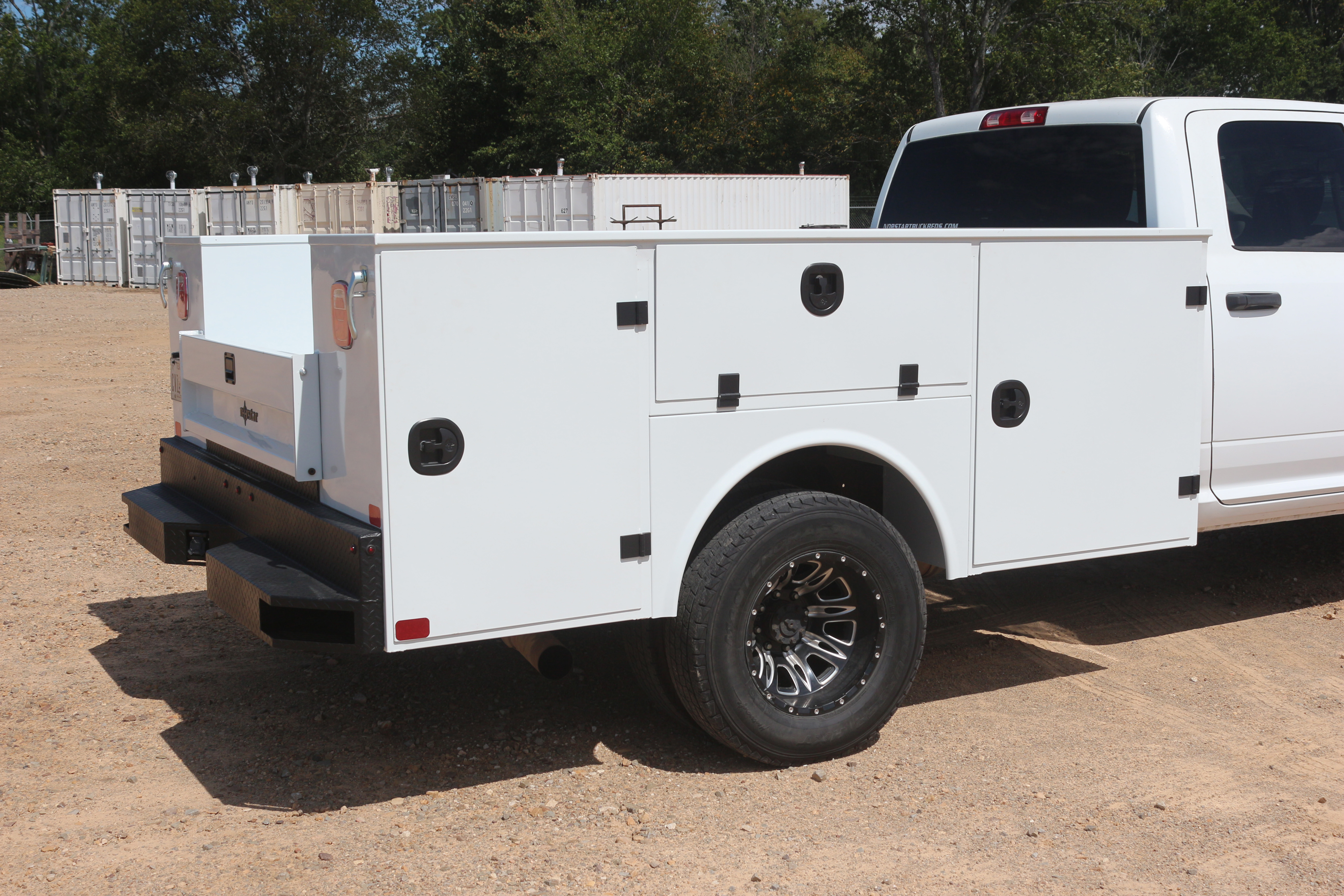

The Norstar UB Utility Bed has been re-engineered for enhanced security and durability. It now features a new master lock system for improved access control and peace of mind. The redesigned doors come with a compression latch and three-point locking system, ensuring your tools and gear are kept safe and dry. The bed is also upgraded with new taillights and all-new stamped fenders for a sleek, modern look. For added functionality, the deck now includes four D-rings, and the bumper has a powder-coat textured finish for increased grip and protection. Finally, new, more secure hinges with no exposed hardware provide a clean finish while boosting security.

REQUEST A QUOTE

add review

Standard Features

Structural Steel Frame

Galvanneal Steel Construction (12 - 18 Gauge)

Truck Specific Cross Member Layout

1/8" Diamond Plate Steel Floor

Angled Fuel Filler Neck & DEF Ready

Bolt-On Frame Mounted Rear Bumper

Integrated Step in Rear Bumper

Stamped Fenders

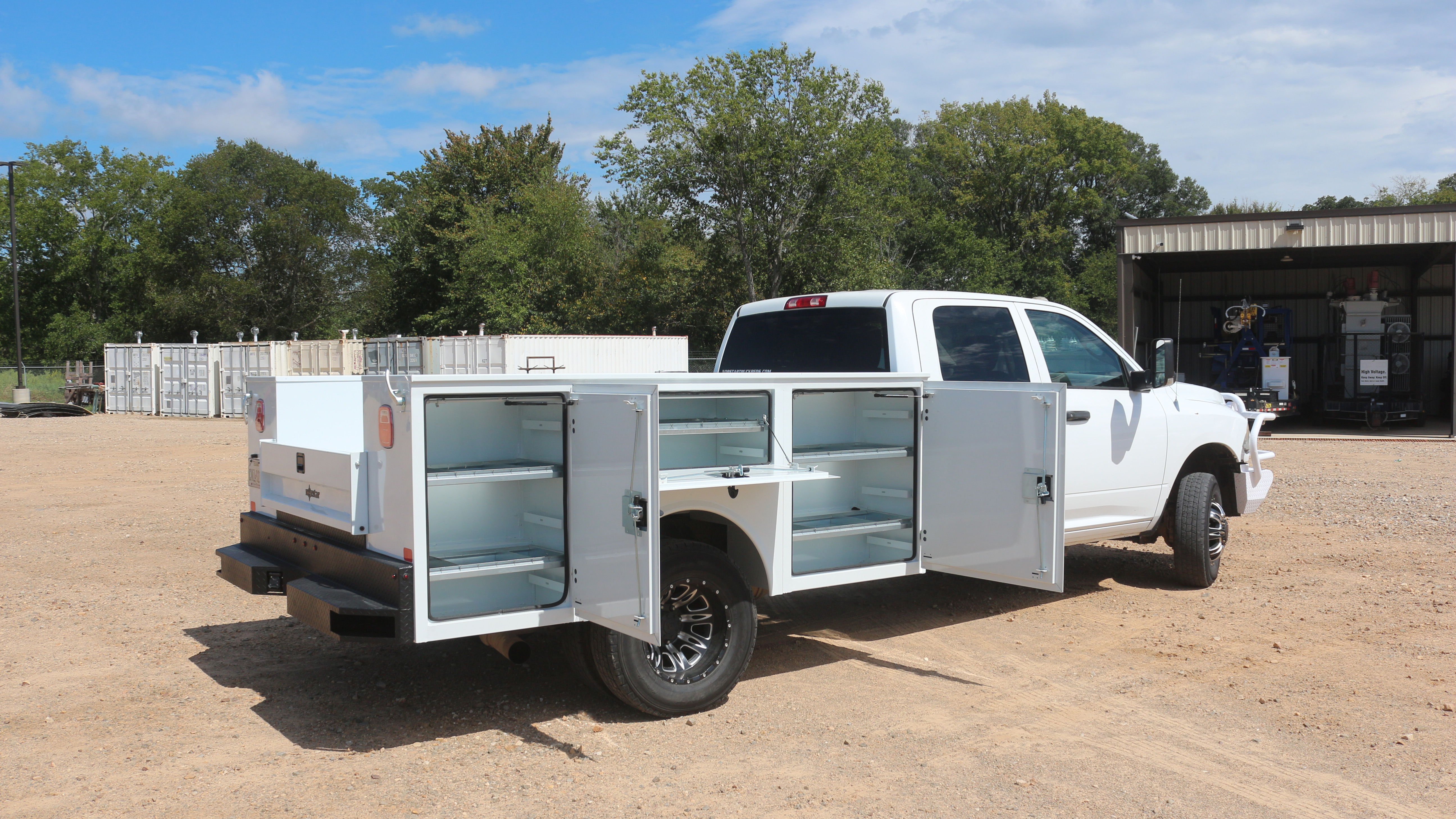

6 Tool Boxes w/ Adj Shelves

NEW Master Locking System

Bolt-On Fold Down Tail Gate

Primer & Powder Coated White

2 Multi Function Rear Facing Lights

Dual LED License Plate Light

3/4" Side Markers/Bullet Lights

All Lighting DOT Approved

Mudflap Brackets

‍

bed size guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

Length: Measurement from cab to end of frame.
Width: Measurement from outside of tire to outside of tire
CTA: Measurement from cab to axle
Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
Models: ST, SF, SR, SD
Order Method: Model x Length x Width x CTA x Runner
Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

‍

1998-Present

Dually – 8’6”L x 97”W x 56” CTA x 38” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner
Cab & Chassis – 9’4”L x 94''/97”W x 60”CTA x 34” Runners
F-450 & 550 are 94” & 97”W with Standard Headache Rack
2015 F650 Runners 34.5”

‍

2001-Present

Dually – 8’6”L x 97”W x 56”CTA x 42” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner
Cab & Chassis – 9’ 4”L x 94”/97”W x 60”CTA x 34” Runners
(Prior to 2000 measurements will be required)

‍

2003-Present

2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner
Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners
Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners
Dually – 8’6”L x 97”W x 58”CTA x 42” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner
2002 and earlier will have 56” CTA and 38” Runners on long bed

‍

Plug N Play

Installation Adapters

The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:

1001010 WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)
1001009 WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)
1001011 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)
1001013 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)
1001012 WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)
1001014 WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)

‍
