DMG22
Gooseneck Deckover Dump Trailers
Sizes: 102 x 20'
GVWR: 24,900
The DMG is not your average dump trailer. Built after the DSG but with a square bottom, there isn't anything this trailer can't haul. The distinctive feature of the square bottom design is that the trailer bed has a flat, even surface, as opposed to a V-shaped or sloped bottom. This design allows for efficient and uniform unloading of various materials such as gravel, sand, or other bulk items. With a 7 gauge flooring and the standard 3 stage 12 ton telescopic cylinder on this beast lifts the entire bed and enables the contents to be easily and evenly emptied.
Reviews
No Reviews. Check back soon!
Description

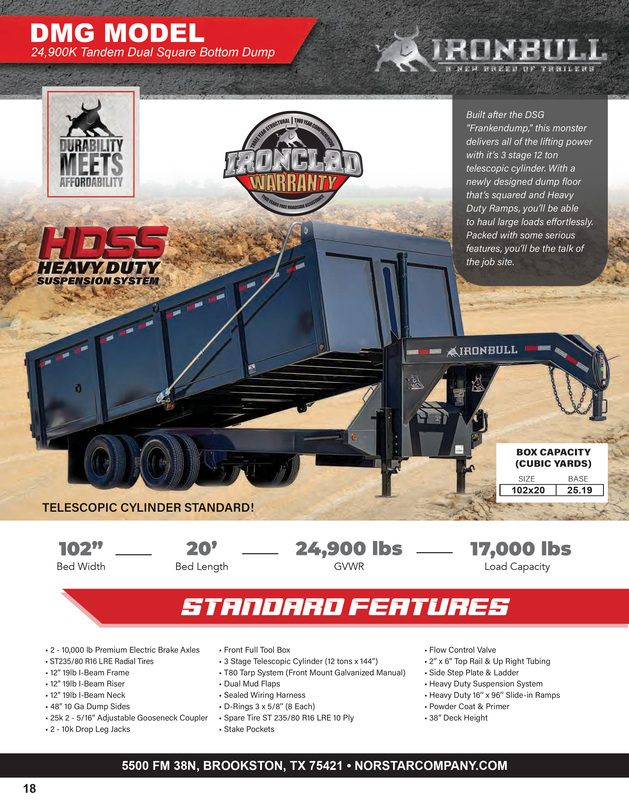

Built after the DSG “Frankendump,” this monster delivers all of the lifting power with it’s 3 stage 12 ton telescopic cylinder. With a newly designed dump floor that’s squared you’ll be able to load the biggest of equipment ever. Packed with some serious features, you’ll be the talk of the job site.
Specifications
| WIDTH | LENGTH | GVWR | AXLES | TIRE/WHEEL | SIDES | LOAD CAPACITY |
|---|---|---|---|---|---|---|
| 102 | 20 | 24,900 | 2 x 10,000 lb | ST235/80R16 | 48" | 17,000 |
Photos & Videos
Standard Features
2 - 10,000 lb Premium Electric Brake Axles.
ST235/80 R16 LRE Radial Tires
12" 19|b I-Beam Frame
12" 19lb I-Beam Riser
12" 19lb I-Beam Neck
48" 10 Ga Dump Sides.
25k 2 - 5/16" Adjustable Gooseneck Coupler
2 - 10k Drop Leg Jacks
Front Full Tool Box
3 Stage Telescopic Cylinder (12 tons X 144").
T80 Tarp System (Front Mount Galvanized Manual)
Dual Mud Flaps
Sealed Wiring Harness
D-Rings 3 x 5/8" (8 Each)
Spare Tire ST 235/80 R16 LRE 10 Ply
Stake Pockets
Flow Control Valve
2" x 6" Top Rail & Up Right Tubing
Side Step Plate & Ladder
Heavy Duty Suspension System
Heavy Duty 16" x 96" Slide-in Ramps.
Powder Coat & Primer
38" Deck Height
7 Ga flooring
*Weight is approximate base model. Optional features will change
Attention: Due to supply chain issues some standard features are subject to change without notice. If a feature is of particular importance for you, please verify with your dealer prior to purchase.
Options

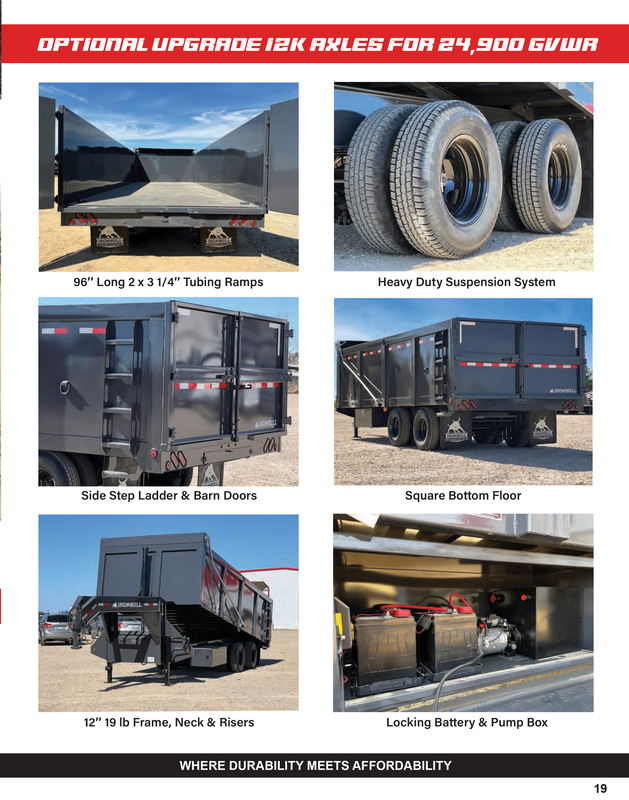

2 -12K Axles for 24,900 GVWR
