SR
Norstar Diamond Plate Flat Bed

(4.9)
One of our best sellers - and for good reason. The Norstar SR model offers everything you need in a flatbed configuration. If you want a little more from this basic configuration, look over our options list. We have underbody locking tool boxes for additional storage and gooseneck troughs for a towing upgrade, spare tire mounts for the unexpected and a list of other options to personalize your bed for your home or business needs.
Reviews
Norstar Diamond Plate Flat Bed
SR
4.9 out of 5 stars (27 reviews)
Showing 1-5 of 27 reviews
Arnoldo Gonzalez - 10/11/2021
Exactly what I was looking for, great product, great build.
Thomas D'alessandro - 01/10/2022
Great, thank you.
Luke Vassallo - 01/11/2021
Albert Dalton - 08/13/2024
I had been looking into purchasing a flatbed for my 2008 Ford F350 Dually. I had a very hard time finding a bed that fit the look and function that I was after. When doing some research, I came across the Norstar SR flatbed and was sold on it. I envisioned what the truck would look like with the bed installed, and to my surprise, it is even better than i had imagined. I loved the fact that the bed rails are adjustable, so if i ever decide to switch trucks, the option is there to keep the bed.
Xenelis Construction Company Inc. - 12/18/2020
Description

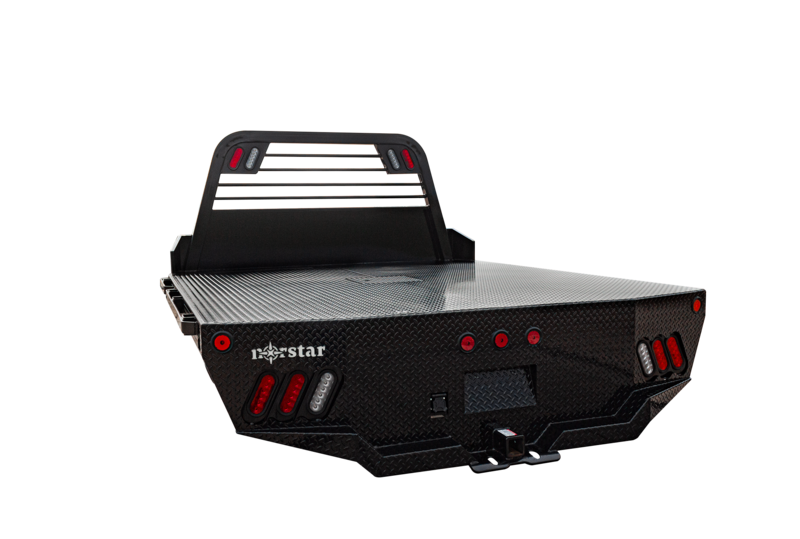

The standard 2.5" receiver allows you to add a hitch for bumper pull cargo and a 2 5/16" gooseneck ball is standard in case you are hauling a heavyweight. Our receivers are lab tested and certified for 18,500 lbs bumper capacity and 30,000 lbs gooseneck capacity. Durable diamond plate construction and powder coat will make this bed your most faithful assistant for years to come. Tapered corners, 7 way plug with 4 way adapter and recessed 2 5/16" ball and receiver hitch give you a towing package standard. Exposed stake pockets and rub rail ensure you have tie down points for any load, plus the LED lights are standard on all SRs. Full 11 gauge skirted rear bumpers finish off every model as an additional standard feature.


*HB1 is an optional upgrade available on select model truck beds. HB1 is designed to transport a single bale of hay over short distances in an agricultural setting. When hay forks are not in use they must be stored in a designated location. While hay forks are not in use it is not recommended to operate vehicle at highway speeds. HB1 option is designed for lifting and transporting a single bale of hay only. Any other use is not recommended.

Photos & Videos
Standard Features
Structural Steel Frame
2.5" 18.5k Rated Bumper Receiver
30k Rated 2 5/16" Gooseneck Ball
4" Runner Channels
Formed 3 x 3/16" Channel Cross Members
Steel Tube Head Rack with Cross Bars, Tail and Reverse Lights
Steel 1/8" Diamond Plate Floor
Built-In Gooseneck Well w/ Ball Mounted and Diamond Plate Lid
Angled Fuel Filler Neck and DEF Ready
1/8" Diamond Plate Construction
Receiver Hitch Ready
7 Way Plug in Gooseneck Box
Powder Coated Black
2.5" LED Reflective Marker Lights
4 Clear 6" Oval LED Reverse Lights
6 Red 6" Oval LED ST/TL/TN Lights
Single LED License Plate Light
All Lighting DOT Approved
Molded Sealed Harness with Resistors
7 Way Receiver Female Plug with ADAPTER
11 Ga Skirted Rear Bumper
Adjustable Mud Flap Brackets

*Weight is approximate base model. Optional features will change
Attention: Due to supply chain issues some standard features are subject to change without notice. If a feature is of particular importance for you, please verify with your dealer prior to purchase.

Options
Rear Stake Pockets and Rub Rail
Extend Head Rack From Standard Height
Removable Tailgate
Gooseneck Trough
B & W Turnover Ball 2-5/16"
Bale Spike Option (Includes 3000PSI pump, (2) 24" Tool Boxes, 4' Spikes, Cylinders, and Spike Compartment)
Bed Size Guide
Close
Request A Quote
Please enter your first name.
Please enter your last name.
Please enter your email.
Close
Leave A Review
Please enter your first name.
Please enter your last name.
Please enter your email.
Please enter subject.
Please enter your review.
Close
All Reviews
Arnoldo Gonzalez - 10/11/2021
Exactly what I was looking for, great product, great build.
Thomas D'alessandro - 01/10/2022
Great, thank you.
Luke Vassallo - 01/11/2021
Albert Dalton - 08/13/2024
I had been looking into purchasing a flatbed for my 2008 Ford F350 Dually. I had a very hard time finding a bed that fit the look and function that I was after. When doing some research, I came across the Norstar SR flatbed and was sold on it. I envisioned what the truck would look like with the bed installed, and to my surprise, it is even better than i had imagined. I loved the fact that the bed rails are adjustable, so if i ever decide to switch trucks, the option is there to keep the bed.
Xenelis Construction Company Inc. - 12/18/2020
Monty Doig - 03/01/2021
Overall very well built deck, fit truck with no problems.
Ryan Kinser - 09/03/2020
Fit and finish of my new Norstar bed is perfect! I highly recommend them to everyone.
Curtis D'addario's - 12/04/2020
Love the bed. Great quality
Philip Martin - 01/31/2022
Perfect truck bed thank you.
Thomas Silvia - 09/24/2022
I needed a bed for my truck cause it rusted out, I chose the North Star SR modle because it was reasonable priced and super easy to instal.
Jonathan Bonner - 03/09/2024
Very good quality for a great price. I'm very impressed on how this bed looks and how it was built. I purchased the bed from Rollin-S-Trailers in Martin Georgia and I highly recommend them
Derrick Raines - 12/29/2020
My Norstar bed has been one of the best purchases I’ve made. The build quality is obvious just looking at it. I would recommend them to anyone.
Andrew Hartman - 08/04/2021
I always wanted a flat bed. Finally got the money to get one. Ordered a different brand from the dealer. When I got the dealer to drop off my truck and saw the Norstar flatbeds sitting there, I immediately changed my mind and purchased the Norstar flatbed instead. I haven't been more pleased. Love the tubing on the headache rack. Hides all the wires for the lights. Nice steps on the bumper too. Great product and very useful.
Travis Morgan - 12/18/2020
I looked at a lot of different beds and options and brands for over a month. I found the Norstar to be the best bang for the buck. Heavy duty, and best looking. The mounting system uses rails that slide on tubes that are permanently attached. I installed the bed myself (I do lots of metal fabrication and welding) and noticed the rails were not square to the bed. So I had to measure and split the difference, then welded them in place and not use the supplied bolts. I then put it on the frame and welded steel plates (3 on each side) then bolted the bottom half with 2 bolts a plate into the frame. Only reason I am giving it 4 stars is because the squareness was off 3/4 of an inch and that is high. Also, the dealer told me I didn't need an additional adapter for my truck, but turns out I did, so I ordered one directly from Norstar. Bed fits perfectly now and looks awesome. Cab profile is the same as my truck (08 F350 CCLB SW). I would buy one again and always looking at one of their dump trailers.
Phillip Labrecque - 12/29/2020
Matt Claus - 03/01/2024
Desperately needed a new (appropriately sized) flatbed for my truck. Loved the look of the Norstar beds. For the longest time it seemed that the CM beds were the way to go, but after looking closer at recent models the CM beds are being made to lesser standards. The Norstar SR bed looks great, has marker lights instead of reflective stickers up front, and the installation was super easy! I'll buy another one for my next truck without thinking twice!
Chance Staton - 02/16/2022
Center Motors Inc. - 01/06/2021
Adam Knipe - 03/01/2021
Brandon Ciskowski - 05/14/2021
My new Norstar truck bed gets so many complements on my new truck, why would anyone want anything else?
Karl Andersen - 03/21/2022
Need something for my toy’s
Kris Weidemann - 11/02/2020
I am a firemen that uses his truck everyday and I love this flatbed. I should have done this years ago to my truck.
Andrew Ignasiak - 12/29/2020
Purchased this for my 1999 Dodge Ram 3500.
Logan Anderson - 10/11/2021
Great bed styling, eager to get it installed, more than happy with my dealer and the bed so far.
Steven Bowers - 08/04/2024
Had a great experience purchasing my flatbed and the bed is a good quality one looks amazing on my pickup truck thanks again Midwzy Trailers
Christopher Carpenter - 05/14/2021
quality of the SR BED is unsurpassable, the fit is great and the design works awesome on my pickup truck, fair pricing and quality product! I am very pleased with my recent purchase from Norstar and will be recommending them in the future. Thank you, chris
Lance Harrell - 09/24/2022
Great made flatbed and very well make and look great while doing it best looking flatbed on the market
