FDG14
Gooseneck Deckover Equipment Trailers

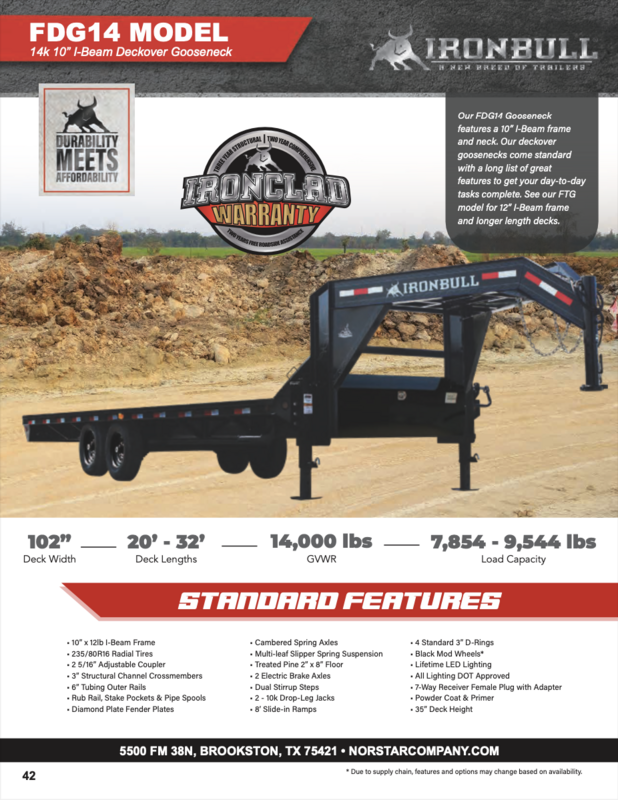

14k Low-Pro Gooseneck 14k Goosenecks have tandem 7k axles, 10" I-Beam Frames, 10" I-beam necks, 3" channel crossmembers and a host of other standard features. 20'-32' length is also available. Iron Bull Goosenecks are some of the most rugged units in service today. 3" Channel crossmembers are standard on 16" centers, and topped with 2" x 8" treated pine wood. A locking toolbox is also standard on the front of each gooseneck trailer. Two 16" side steps adorn the front of each deck.
All wiring is in a sealed harness to help shield it from the weather. Sherwin-Williams Powdura powder coat gives each trailer a rugged finish with a showroom shine. USA made, lifetime recessed LEDs are provided by TecNic lighting. Each Iron Bull Trailer also comes equipped with stake pockets, pipe spools and rub rails as well as an adjustable coupler. All Iron Bulls are sitting on electric brake axles and roll down the road on radial tires. Select from our multiple tail options including our Rampage Ramps, slide in ramps, or stand up ramps and ride off with your new Iron Bull today.
| WIDTH | LENGTH | GVWR | AXLES | TIRE/WHEEL | FRAME | WEIGHT |
|---|---|---|---|---|---|---|
| 102 | 20 | 14000 | 2 x 7000 lb | 235/80R16 8 HOLE | 10" (12lb/ft) | 4460 |
| 102 | 22 | 14000 | 2 x 7000 lb | 235/80R16 8 HOLE | 10" (12lb/ft) | 5354 |
| 102 | 24 | 14000 | 2 x 7000 lb | 235/80R16 8 HOLE | 10" (12lb/ft) | 4968 |
| 102 | 25 | 14000 | 2 x 7000 lb | 235/80R16 8 HOLE | 10" (12lb/ft) | 5230 |
| 102 | 26 | 14000 | 2 x 7000 lb | 235/80R16 8 HOLE | 10" (12lb/ft) | 5315 |
| 102 | 28 | 14000 | 2 x 7000 lb | 235/80R16 8 HOLE | 10" (12lb/ft) | 3825 |
| 102 | 30 | 14000 | 2 x 7000 lb | 235/80R16 8 HOLE | 10" (12lb/ft) | 5960 |
| 102 | 32 | 14000 | 2 x 7000 lb | 235/80R16 8 HOLE | 10" (12lb/ft) | 6146 |
*Weight is approximate base model. Optional features will change
Attention: Due to supply chain issues some standard features are subject to change without notice. If a feature is of particular importance for you, please verify with your dealer prior to purchase.
