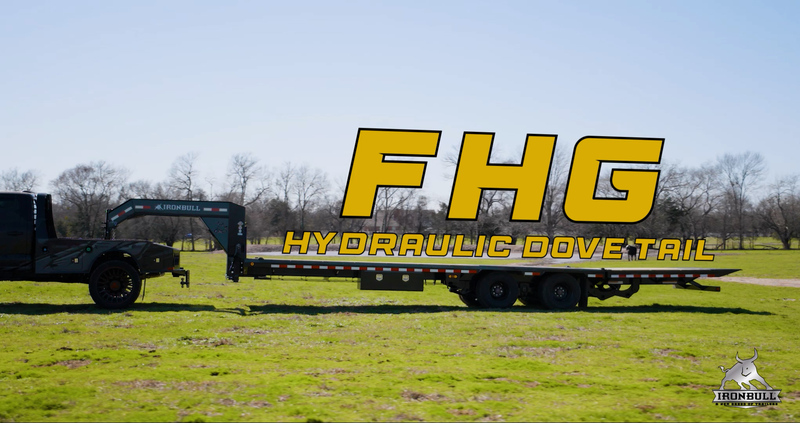

FHG22

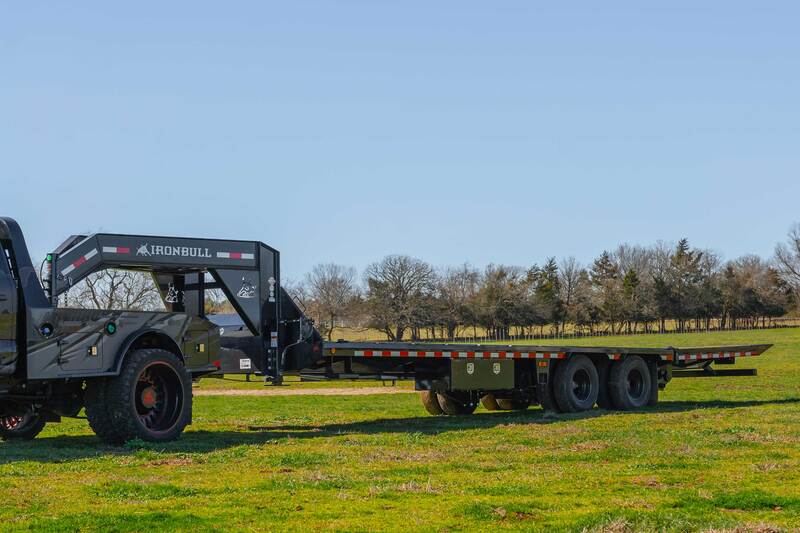

Gooseneck Low-Pro Hydraulic Dove Tail Equipment Trailers

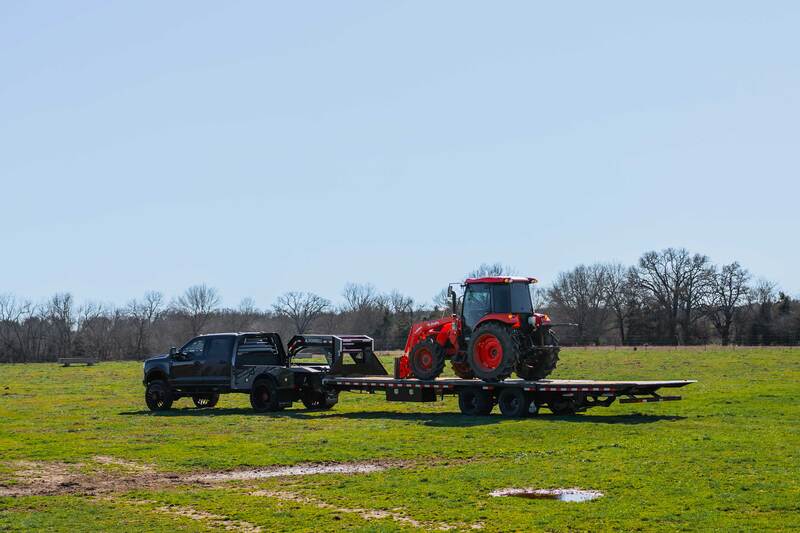

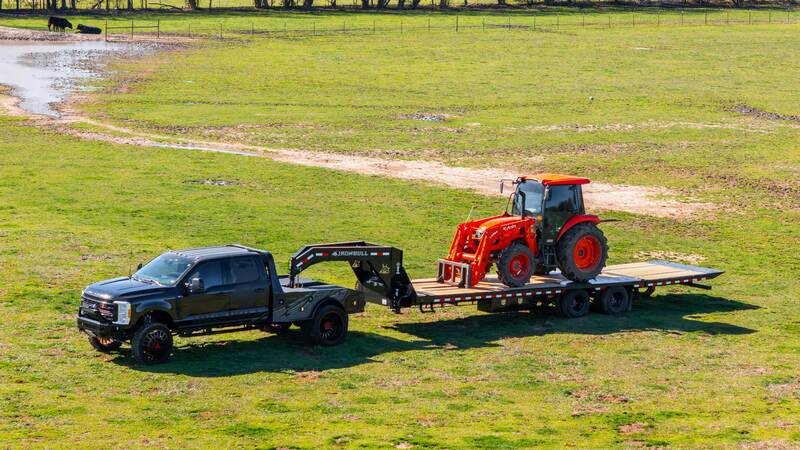

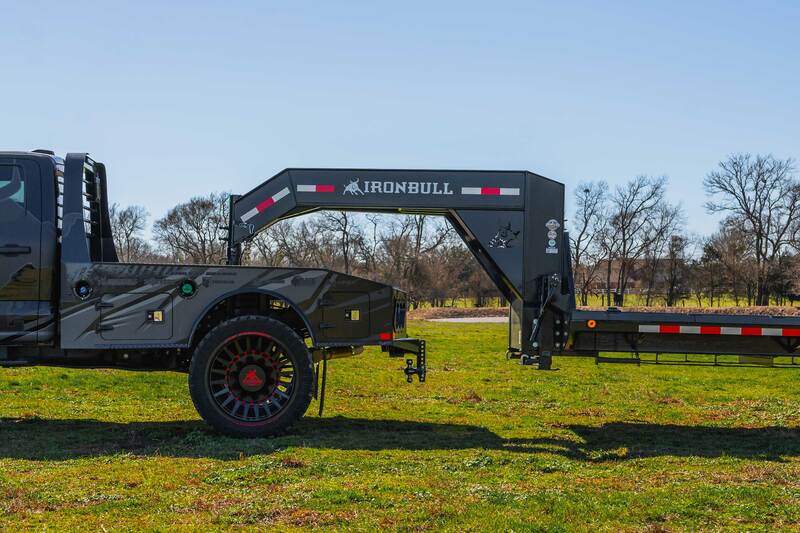

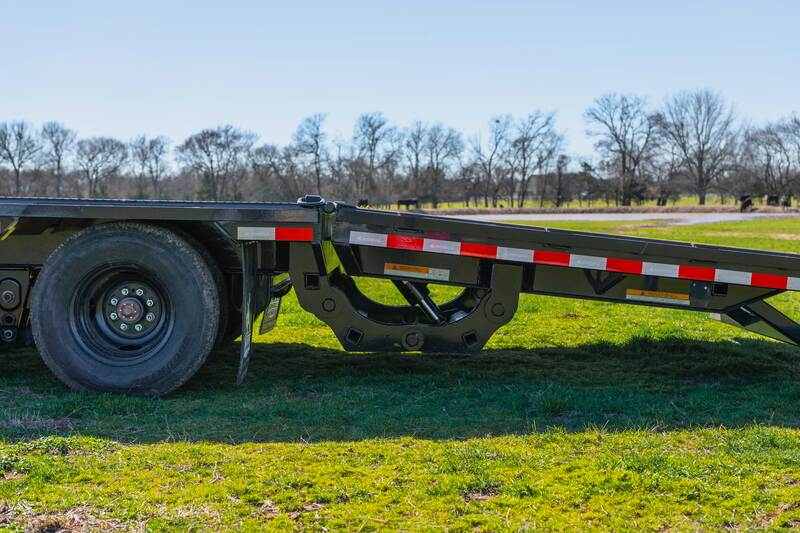

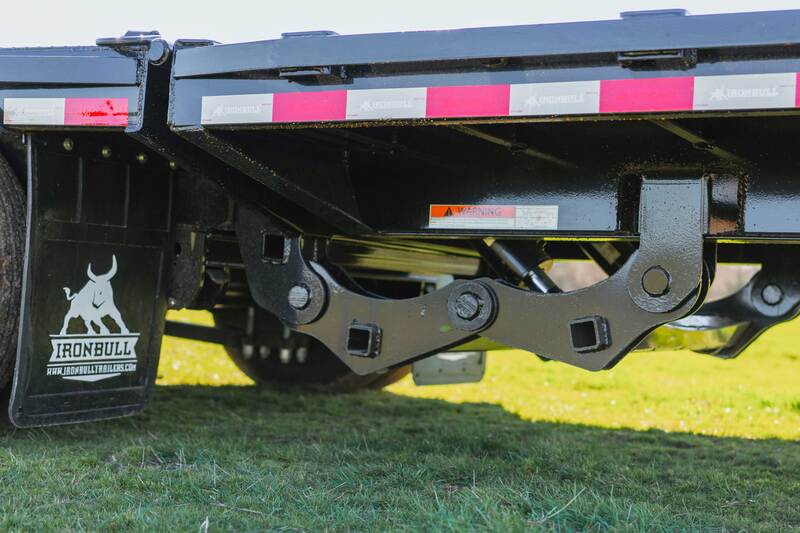

An industry best max lifting capacity of 12k lbs properly loaded and max hauling capacity of 8k provides an unmatched performer. This design auto locks so there is no need to manually engage and disengage a separate device when lowering and raising the tail - perfect for wireless remote applications. When in action, the dual arms approach the ground as the tail lowers, and provide extra rear stability when loading heavy equipment. Iron Bull Goosenecks are some of the most rugged and longest lasting units in service today.

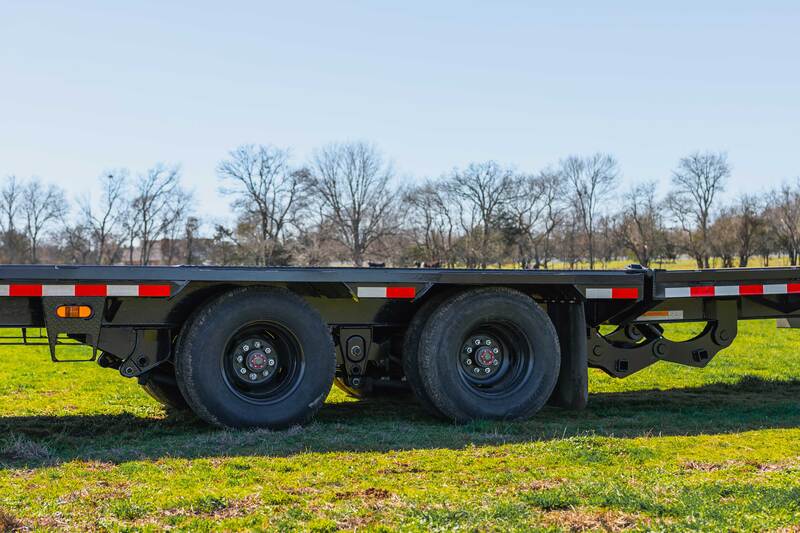

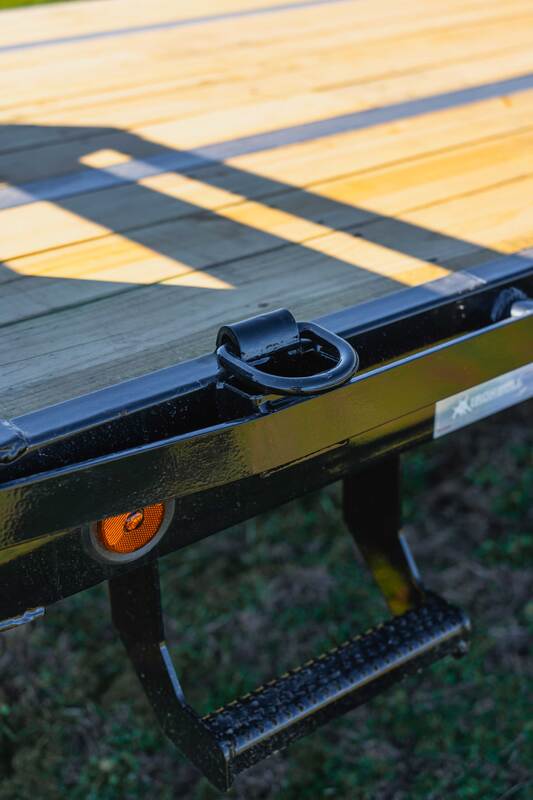

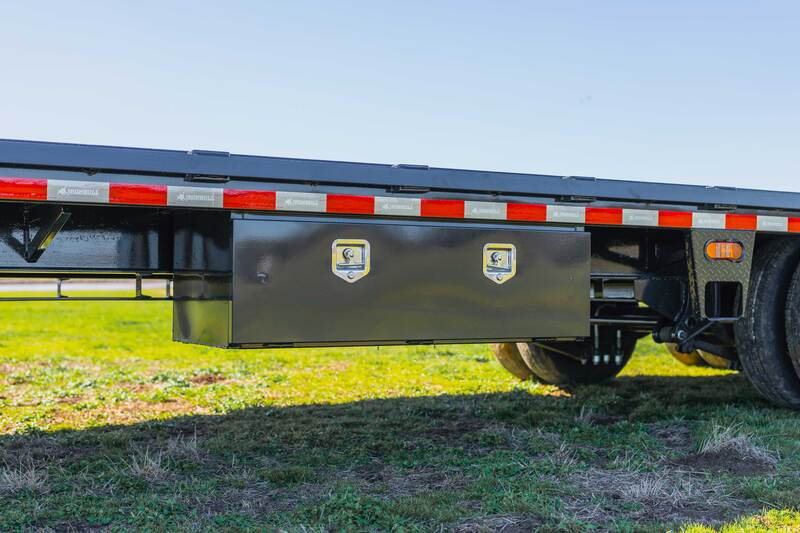

Decades of experience in our new manufacturing company have combined to create one of the most thought out trailers available. Each FHG comes with a standard pipe bridge to reduce torque under heavy loads. Heavy SCH40 construction outclasses thin walled pipe as seen on some of the competition. Low-Pro, pierced frame design lowers the deck 3" providing a lower center of gravity, more stable cornering, and a lower loading angle for equipment. 12" 19lb/ft I-Beam makes up the main frame of these monsters - compared to the 14lb found on the other guys. Heavy duty 10" I-beam crossmembers are located on the lower main frame to further support the pipe bridge. These important steel beams are omitted by some competitors. 3" Channel crossmembers located in the deck frame are on 16" centers, topped with 2" x 8" treated pine wood where you will find a standard locking toolbox at the front of each gooseneck trailer. Two 16" side steps adorn the front of each deck.

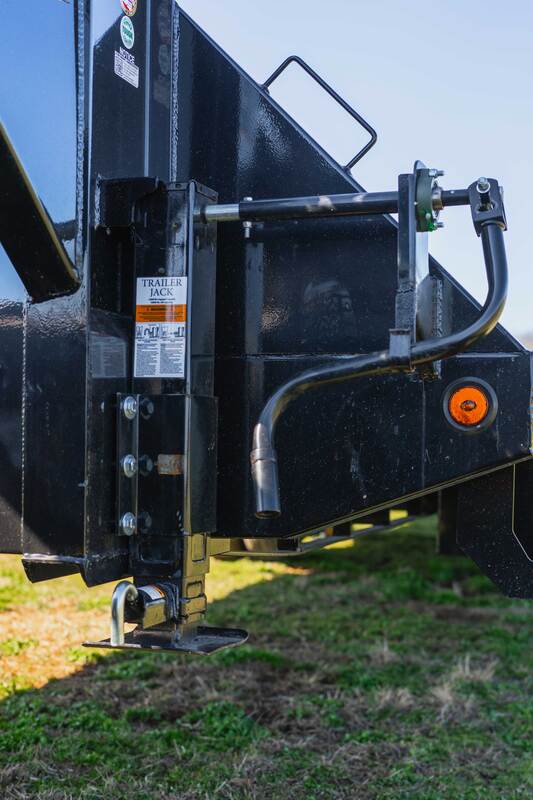

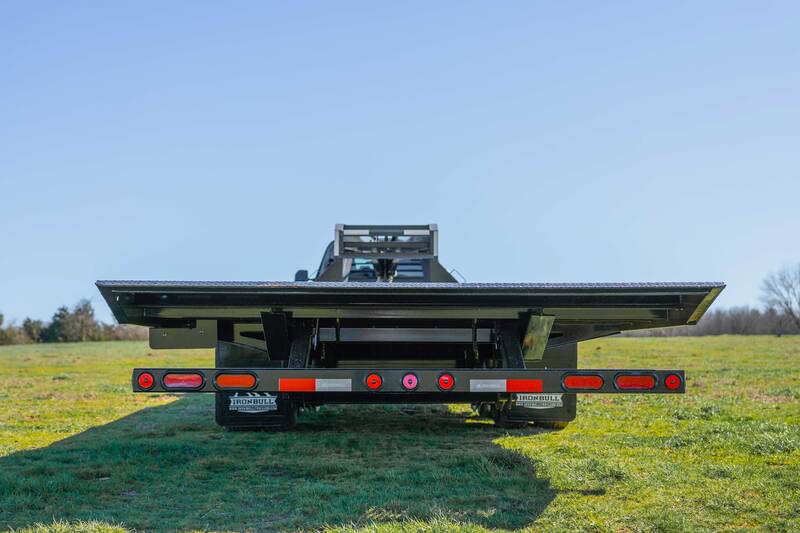

All wiring is in a sealed harness and runs inside the 2" x 6" upper deck frame. Fresh powder coat gives each trailer a rugged finish with a showroom shine. USA made, lifetime recessed LEDs are provided by TecNic lighting. Each Iron Bull Trailer also comes equipped with stake pockets, pipe spools and rub rails as well as an adjustable coupler.
