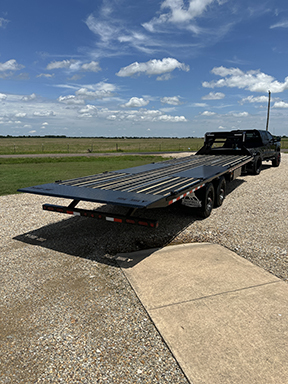

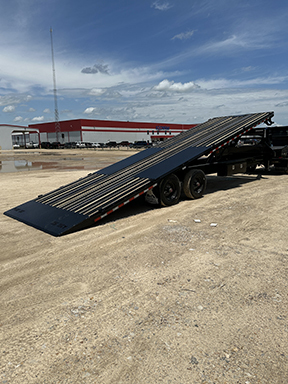

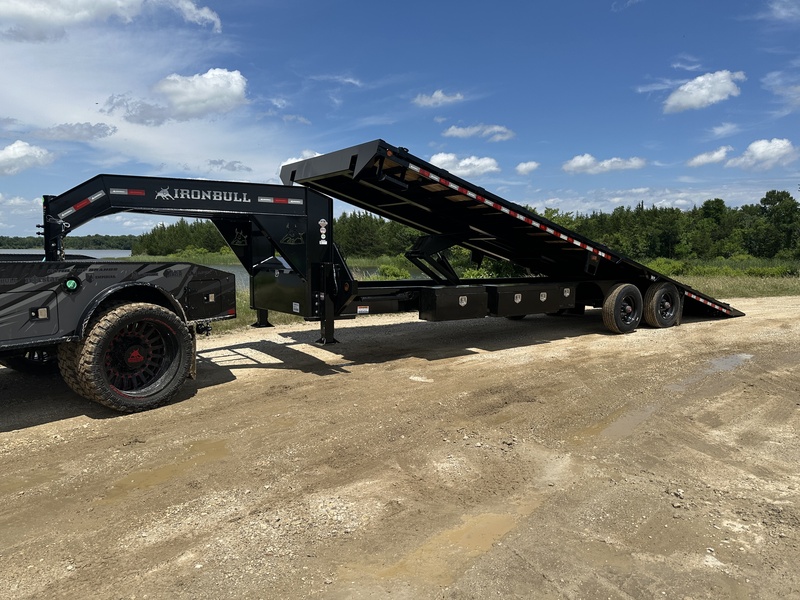

The Ironbull THG Tilt Trailer is built for heavy-duty performance with super single 10K axles and rugged 16" crossmembers for unmatched strength and durability. Its hydraulic tilt deck allows for easy loading and unloading, making it ideal for transporting equipment with speed and efficiency. Whether on the jobsite or the highway, the THG delivers reliable hauling power with a tough, low-maintenance design.
THG 22
Super Single 10k Tilt Gooseneck
Sizes: 102" x 30'
GVWR: 22,000 lb
Reviews
No Reviews. Check back soon!
Specifications
| WIDTH | LENGTH | GVWR | AXLES | WHEEL/TIRE | STATIONARY | WEIGHT |
|---|---|---|---|---|---|---|
| 102 | 30 | 22,000 | 2 x 10,000 | ST235/75 R17.5 LRJ 18Ply |

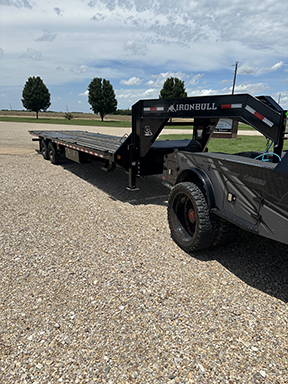

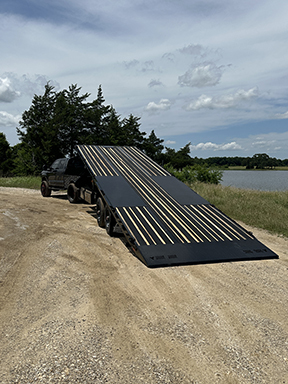

Photos Shown may have optional features equipped.
Photos & Videos
Standard Features

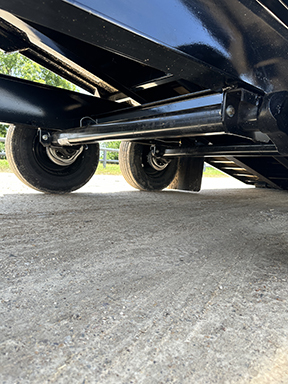

ET2 - 2 - 10,000 Lb Tors Axles (LEVEL)(2 Elec. Brakes)
12" 19LB I-Beam Frame

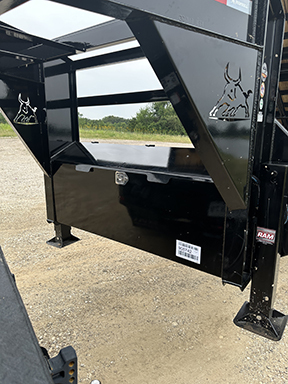

12" 19LB I-Beam Neck
10" 19LB I-Beam Deck Frame
16" Crossmembers (3" 3.5lb C-channel)
Gooseneck Coupler 2-5/16* Adjustable Rd. 25k
Floor Treated Wood

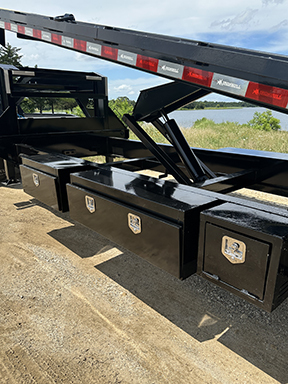

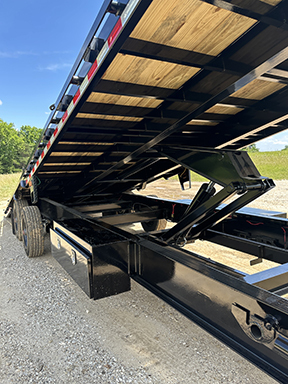

Scissor Hoist TH-520|
Jack Spring Loaded Drop Leg 2-10K
LED Lighting
Standard Wire Harness
D-Rings 3" X 5/8" Weld On (4ech) Std.
Spare Tire Mt.
Standard 2 Front Steps
*Weight is approximate base model. Optional features will change
Attention: Due to supply chain issues some standard features are subject to change without notice. If a feature is of particular importance for you, please verify with your dealer prior to purchase.
Options
Third Spring Axle (Three Brake Axles)
tandem 8k Axles
516 Scissor Hoist
Steel Floor (per ft)
Blackwood Floor
12" Crossmembers (per ft)
Winch Plate 1/2" (in floor)
Cold Weather Harness
