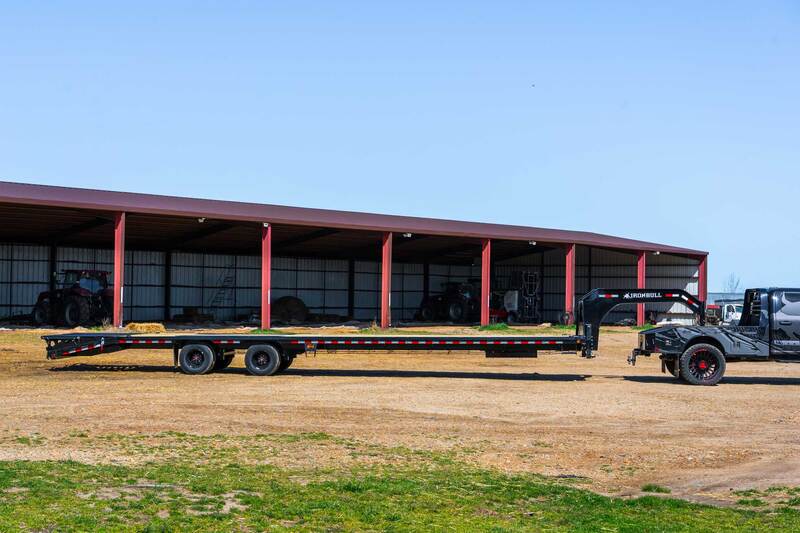

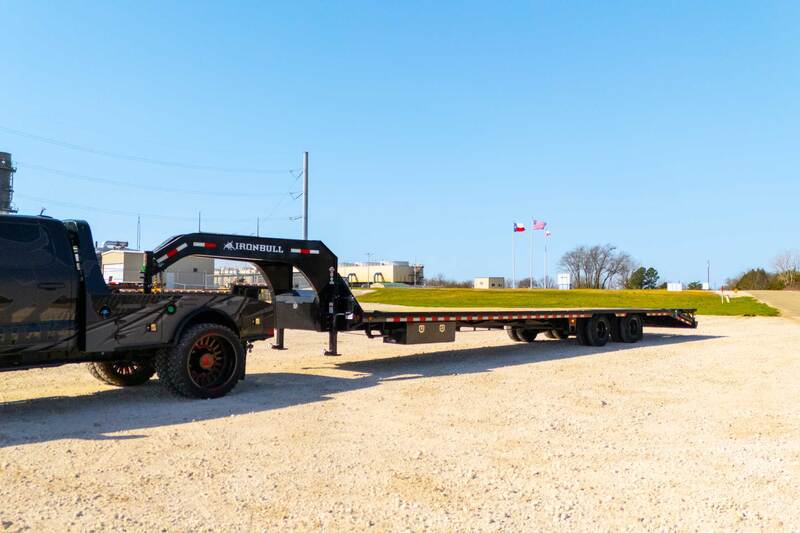

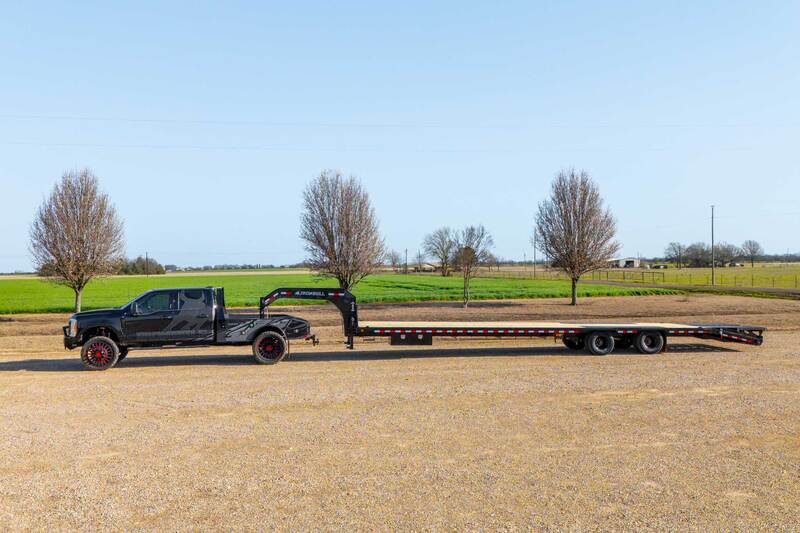

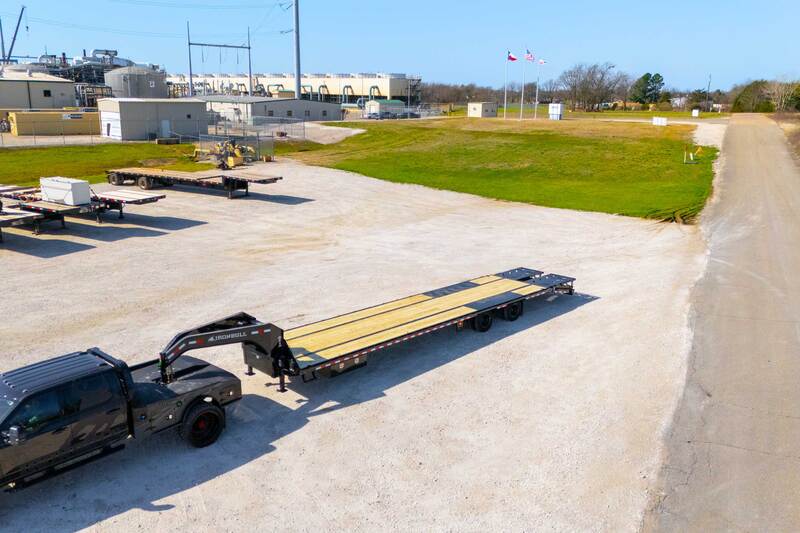

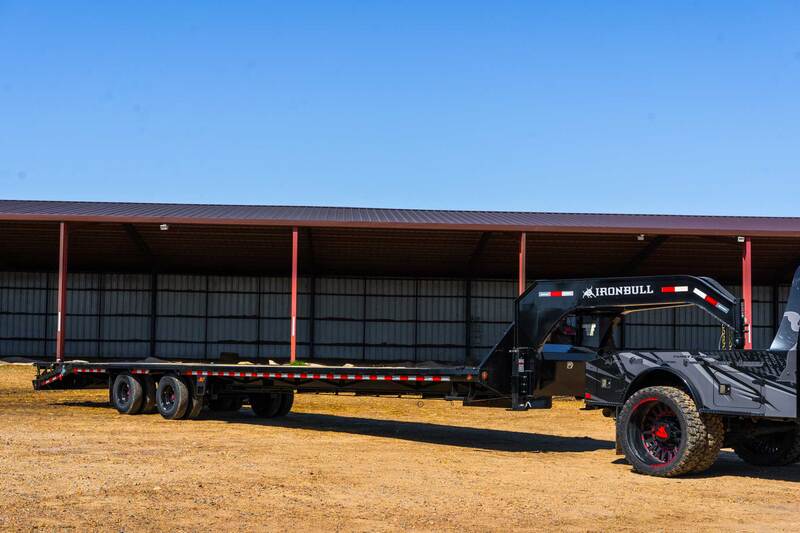

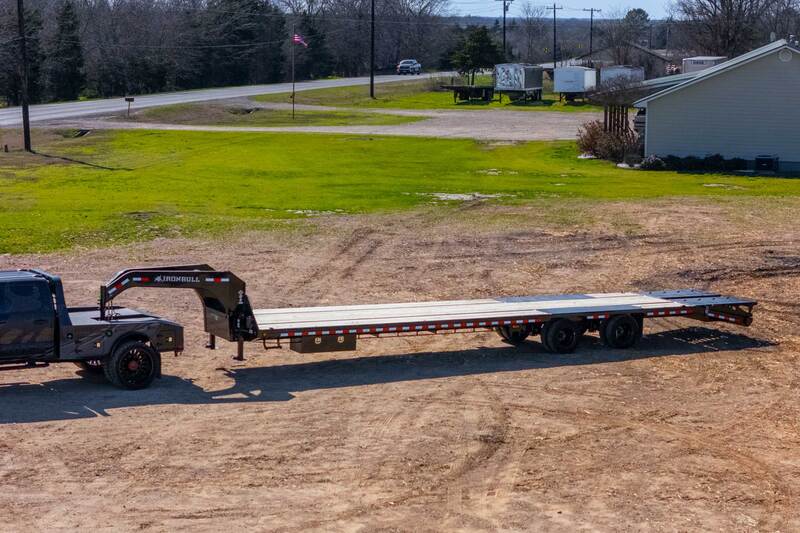

Iron Bull 22k Low-Pro Gooseneck

Iron Bull Gooseneck Low-Pro Equipment Trailers

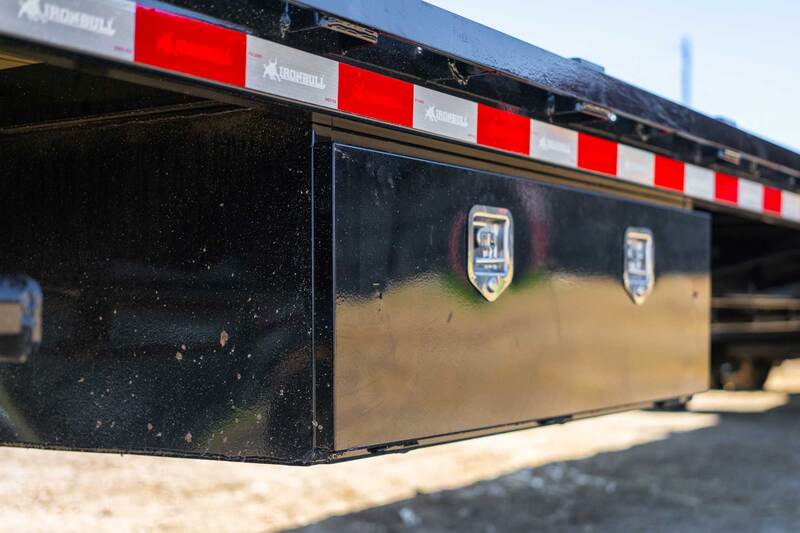

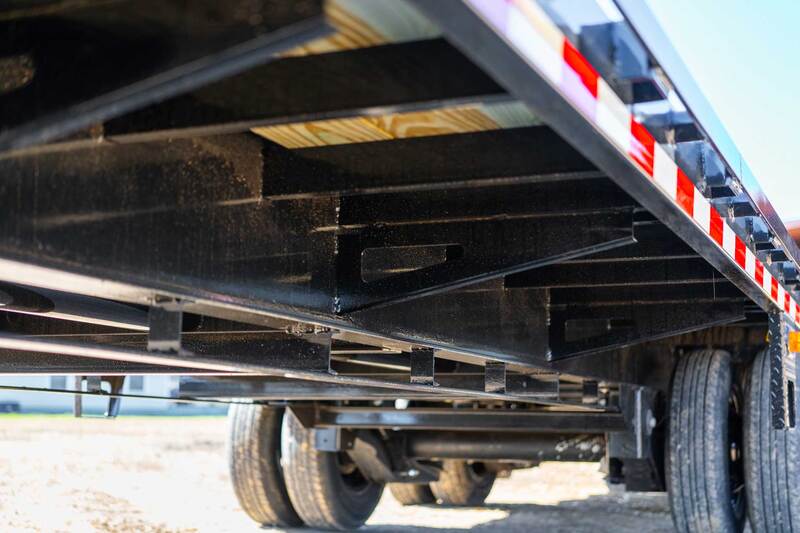

Iron Bull Goosenecks are some of the most rugged and longest lasting units in service today. Decades of experience in our new manufacturing company have combined to create one of the most thought out trailers available. Included on each Iron Bull trailer is a pipe bridge to reduce torque under heavy loads. This pipe is not an option, but standard on every trailer and the heavy SCH40 construction outclasses thin walled pipe as seen on some of the competition. Low-Pro, pierced frame design lowers the deck 3" providing a lower center of gravity, more stable cornering and a lower loading angle for equipment. 12" 19lb/ft I-Beam makes up the main frame of these monsters - compared to the 14lb found on the other guys. Heavy duty 10" I-beam crossmembers are located on the lower main frame to further support the pipe bridge. These important steel beams are omitted by some competitors. 3" Channel crossmembers located in the deck frame are on 16" centers and topped with 2" x 6" treated pine wood and you will find a standard locking toolbox at the front of each gooseneck trailer. Two 16" side steps adorn the front of each deck. Standard -- Not an option -- and oversized to ensure stable footing each and every time you climb on the trailer. All wiring is in a sealed harness and runs inside the 2" x 6" upper deck frame. Sherwin-Williams Powdurda Powder coat gives each trailer a rugged finish with a showroom shine. USA made, lifetime recessed LEDs are provided by TecNic lighting. Each Iron Bull Trailer also comes equipped with stake pockets, pipe spools and rub rails as well as an adjustable coupler. All Iron Bulls are sitting on Dexter Nev-R-Adjust brake axles and roll down the road on Provider radial tires. Select from our multiple tail options including our Rampage Ramps or a hydraulic dove tail and corral your Iron Bull today.

Additional Photos

Details


Available Sizes

Length

Frame/Neck

Deck Height

Axles

Weight*

20' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
22' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
24' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
25' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
26' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
28' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
30' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
32' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
34' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
36' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
38' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
40' 12" I-Beam Neck and Risers (19lb/ft) 32.5 " 2 X 10,000 lb
*Weight is approximate base model. Optional features will change

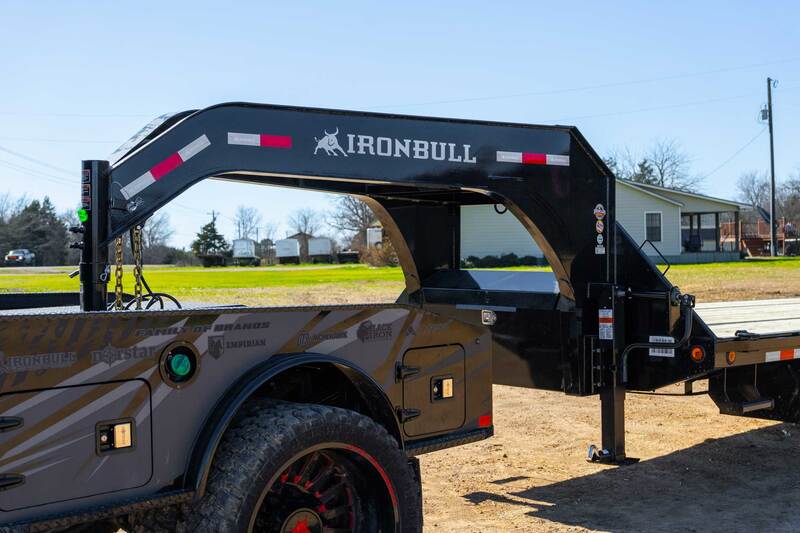

  • 12" I-Beam Neck and Risers (19lb/ft)
  • 2 5/16" Adjustable Coupler
  • Schedule 40 Pipe Bridge
  • Structural 3" x 3/16" Channel Crossmembers
  • 2" x 6" x 1/8" Side Wall Tubing
  • Dual Oversized Stirrup Steps
  • Rub Rail with Stake Pockets and Pipe Spools

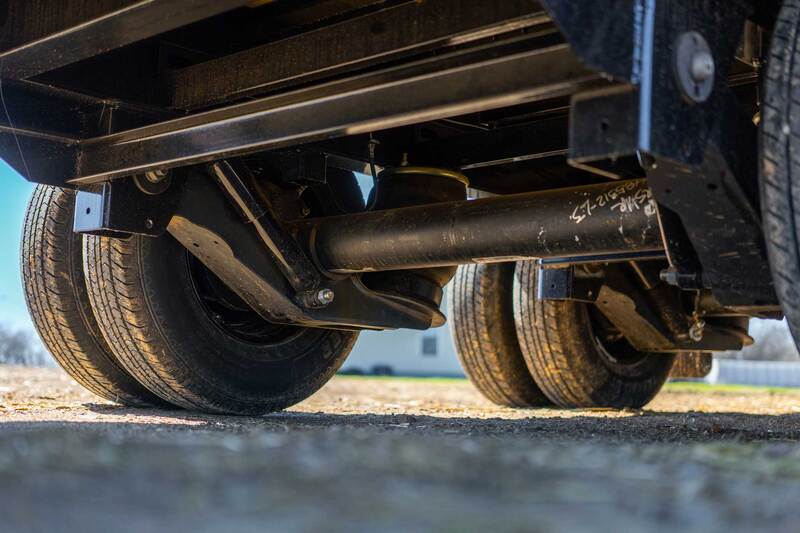

  • Multi-Leaf Slipper Spring Suspension

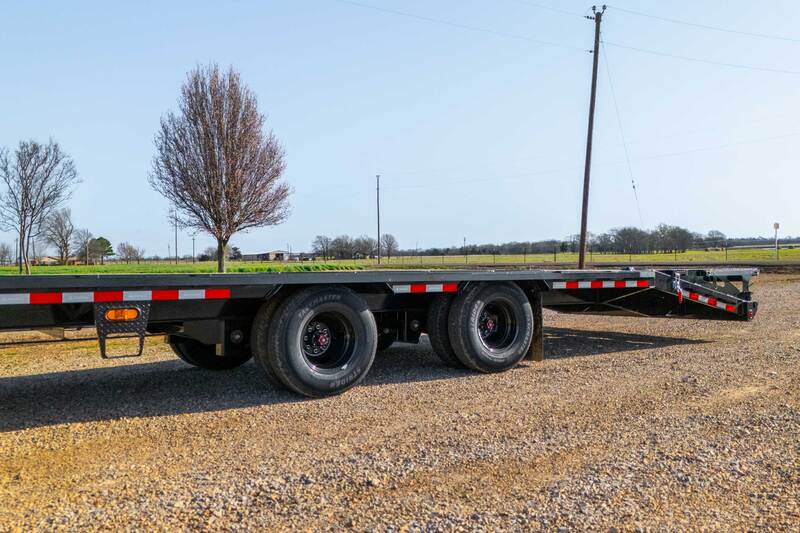

  • 2 Cambered Dexter Nev-R-Adjust Brake Axles

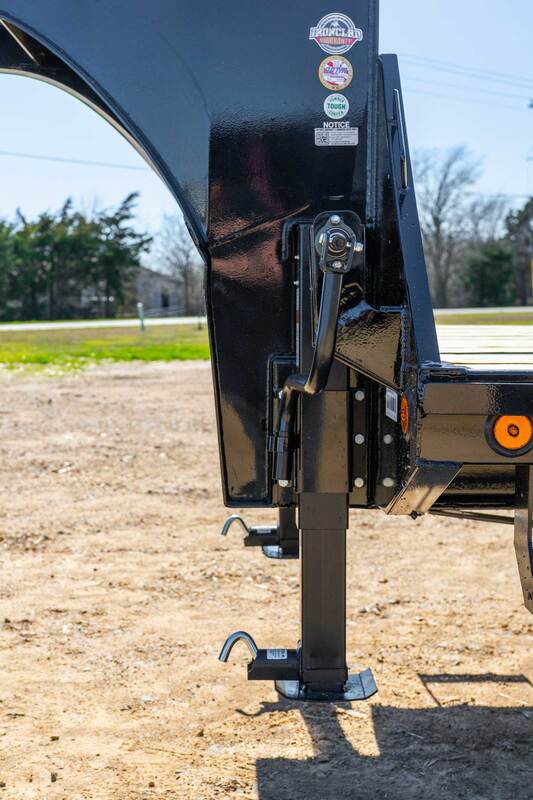

  • 2 - 1ok Drop Leg Jacks
  • Treated Pine 2" x 6" Flooring

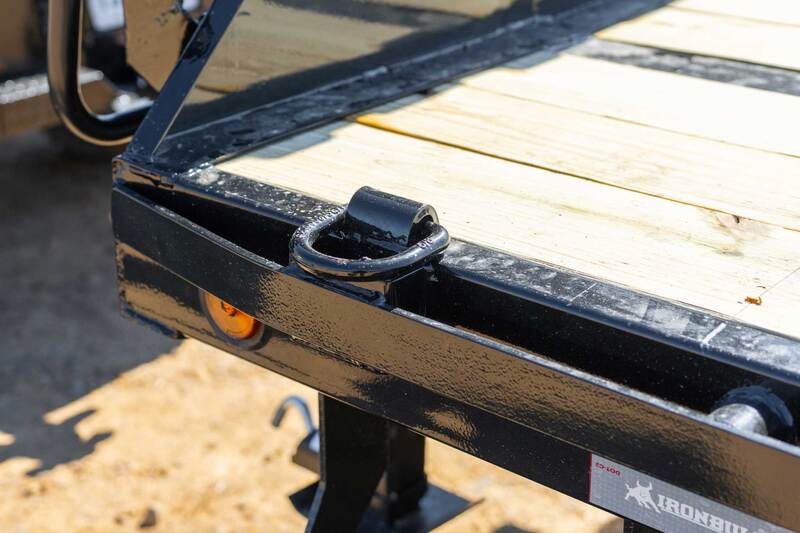

  • 4 Standard 3" D-Rings
  • Provider Brand Radial Tires
  • Spare Tire Included
  • Sealed Lifetime LED Lighting
  • Molded Sealed Harness w/ Resistors
  • 7-Way Receiver Female Plug w/ Adaptor
  • Sherwin Williams Powdura Powder Coat
  • Molded Sealed Harness w/ Resistors
  • 7-Way Receiver Female Plug w/ Adaptor
  • Sherwin Williams Powdura Powder Coat
  • 2 10k Axles
  • 2 12k Axles
  • 2 15k Axles
  • 3 10k Axles
  • 3 12k Axles
  • 14 Ply Tires
  • 12"-22 I-BEAM
  • Steel Floor
  • Rough Oak Floor
  • 12" Cross Members
  • Dual 2 Speed Jacks
  • Additional D-Rings
  • Side Mount Tool Box
  • Under Frame Bridge
  • Wood Rack
  • Spread Axles
  • Hutch Suspension
  • Air Ride Suspension
  • Air Ride with Lift Action
  • Weld-On Ratchets
  • Adjustable Ratchets
  • Ratchet Tracks

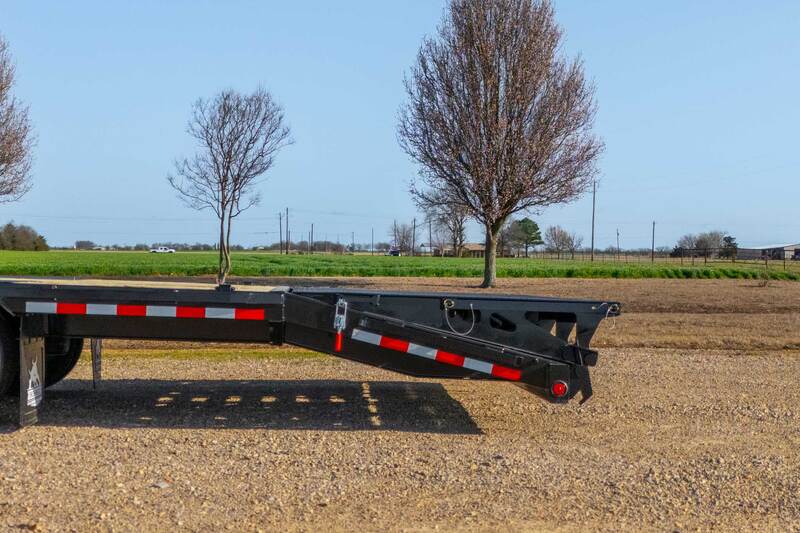

  • 5' Self-Cleaning Dovetail
  • 5' RAMPAGE Ramps
  • 8' Slide-In Ramps
